Choosing the best benchtop milling machines for hobbyists comes down to one number: the smallest part you ever plan to make. A hobbyist who cuts 1/2 inch brass brackets and a hobbyist who cuts 1 inch steel plate need machines thousands of dollars apart, and almost every buyer I talk to regrets buying one size too small.
I spent the last several months reading published specifications for every current benchtop mill, drill mill and desktop mill I could find, then cross-checking those numbers against owner feedback. I did not cut metal on all twelve. What follows is spec-based research backed by verified buyer reviews, not hands-on testing, and I link the affiliate relationship plainly: we earn a commission at no cost to you if you buy through these links.
That distinction matters in this category. A mill is a long-term shop purchase, and the failure modes that ruin a cheap one – plastic gears, undersized bolts, metric threads where you expected inches – almost never show up in a marketing photo. They show up in owner reviews, so I weighted them heavily.
Below you will find twelve machines sorted by class, from a 6 pound desktop unit that fits on a kitchen table to a 660 pound cast-iron mill that climbs through mild steel. Every pick gets its real rating and real review count, plus the two or three complaints that show up most often.
Quick Answer: Best Benchtop Milling Machines for Hobbyists in 2026
Best overall: the PROXXON MF 70 for precision small-parts work. Best heavy-duty: the JET JMD-18 for cast-iron rigidity and steel. Best value: the INTBUYING RCOG-25V for 1.5HP in an R8 spindle. Best for a tiny shop: the MechMaxx VM18L. Best beginner micro machine: the AcmeFlare AFXC60W.
Rule of thumb: buy the largest machine your bench, your floor load and your electrical circuit can support. Every owner feedback pattern in this category points the same direction – you will exhaust the work envelope on a small mill faster than you expect.
Our Top 3 Best Benchtop Milling Machines for Hobbyists (October 2026)
Comparing All 12 Benchtop Mills Side by Side in 2026
Mini Mill vs Mill/Drill vs Knee Mill: Know What You Are Buying
These three words get used interchangeably in listings and they describe machines with very different amounts of iron. A mini mill is a compact casting under about 100 pounds – the PROXXON MF 70 and the AcmeFlare desktop units live here. It has a small table and a tilting head instead of a moving column.
A mill/drill is a drill press converted for milling: a head that swivels and tilts, a quill that feeds down to set depth, and typically an R8 spindle. The JET JMD-18 and the MechMaxx machines are mill/drills. They are a common benchtop format because the head tilt lets you reach awkward angles without repositioning the part.
A knee mill moves the whole head up and down on a column driven by a handwheel. That is far more rigid, which is why experienced machinists on r/machining keep telling beginners to buy a used Bridgeport-style knee mill instead. The tradeoff is floor space, weight and a five-figure price tag new.

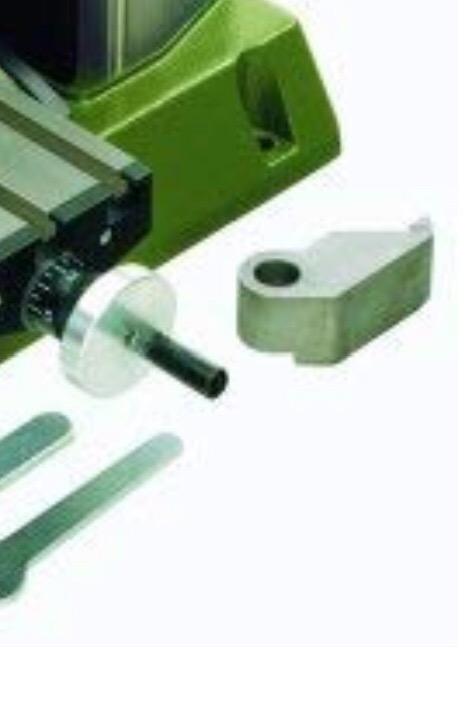

1. PROXXON MF 70 Micro Mill – The Precision Benchmark for Small-Parts Work
PROXXON MICRO Mill MF 70, 37110
0.13HP
20000 rpm
17.6 lb
Play-free X, Y, Z slides
Pros
- Play-free axes on a rigid base
- Accurate on small parts
- Quiet at high speed
- Wide material range for its size
Cons
- Limited Z-axis height adjustment
- X-axis table deflects under hard cranking
- Sparse assembly instructions

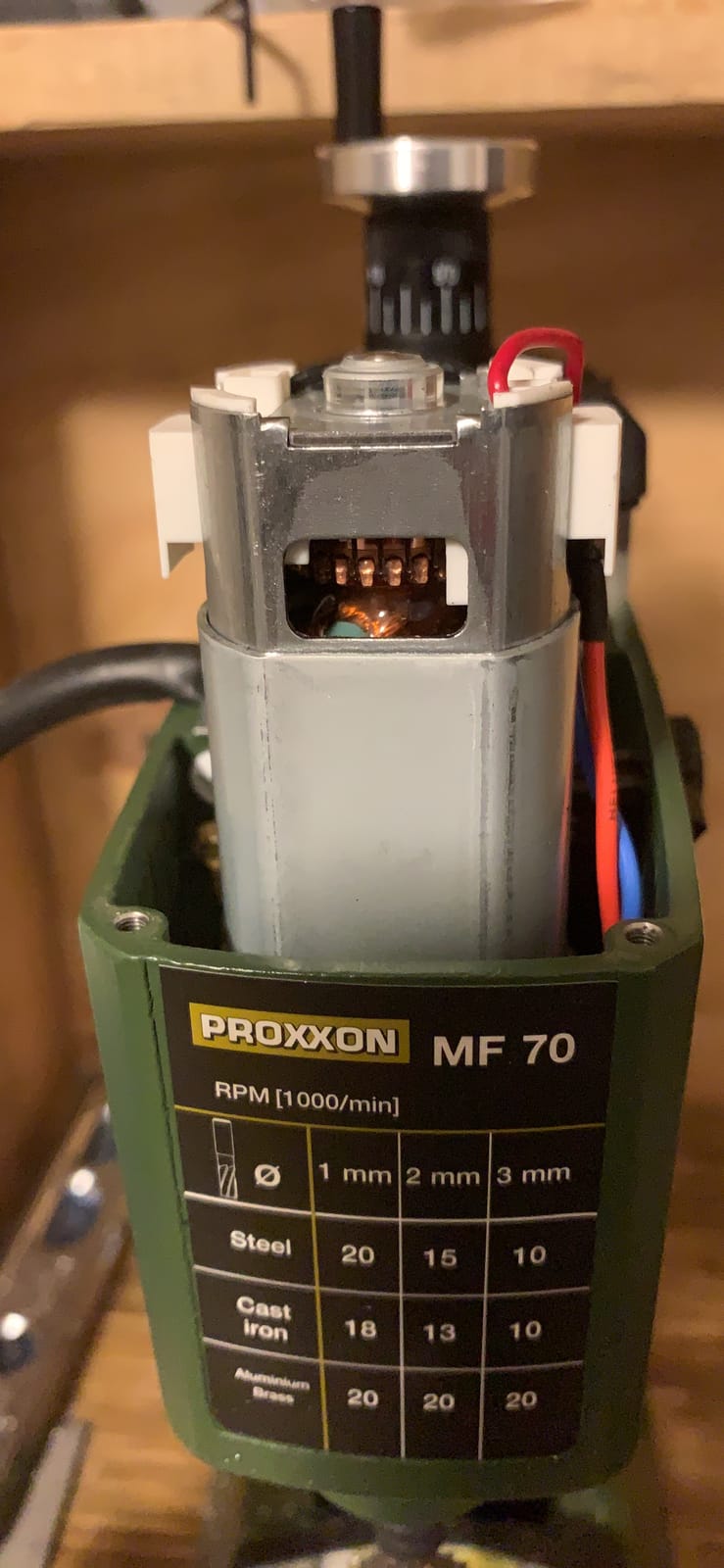

When I look at owner comments on small hobby mills, the PROXXON MF 70 is the one people describe as feeling like a real instrument rather than a toy. It weighs 17.6 pounds, has a cast-iron base, and uses die-cast aluminum column, table and headstock with play-free adjustable slides. That combination is why it holds about 0.10mm accuracy on small parts in the hands of its owners.
The 0.13HP motor turns to 20,000 rpm through a micromot drive, which makes it genuinely fast for small end mills in aluminum and brass. Reviewers also use it on stainless, Delrin and plastics for prototyping. At that size it is not cutting thick material, it is finishing geometry precisely, and that is where the machine shines.
The honest weaknesses are deflection and documentation. Owners report the X-axis table flexing up to about 0.010 inch when cranked hard, which a twisting-grip technique softens. The Z scale ring can also slip out of zero, and correcting it means a factory stop-nut adjustment rather than a menu setting.
A few owners have had motor or controller failures within months of hobby use, so I would not run unattended jobs on it. The clamps that come with the machine hold irregular shapes poorly, and most owners add a small precision vise.
Accuracy and axis feel in real use
The play-free slides are the story here. A machine this light that still resists backlash lets you take finishing passes without worrying the cut will wander. For scale modeling, electronics retrofit work and jewelry or optics fixtures, that matters more than raw horsepower.
Where the envelope runs out
Z-axis height adjustment is the limit. There is no headroom for tall workpieces, and the table is small, so long parts will overhang. Plan for small, flat parts and this machine is excellent. Plan for 6 inch long steel flanges and it is the wrong tool.
Who should skip it
If your work involves climbing in cut, stick to aluminum, or you need to drill holes deeper than the quill travel allows, move up. This is a finishing machine. It is also the natural first pick if you are building a hobby CNC conversion later, since the ecosystem around it is the most documented of the small machines.
2. INTBUYING RCOG-25V – 1.5HP With an R8 Spindle and Long X Travel
INTBUYING Benchtop Mini Milling Drilling Machine 7”x27-1/2” Brushless Precision Mill Drill Lathe, 50-2250rpm, R8 Spindle for Home DIY Metal Wood Plastic Processing RCOG-25V 1.5HP 110V
1.5HP brushless
50-2250 rpm
R8 spindle
320 lb
Pros
- Plenty of power for the class
- R8 tooling compatibility
- All-metal build with brass gears
- Accurate out of the box
Cons
- Metric drawbar thread
- Hook spanner not included
- Motor parts hard to source
This is the machine that answers a common complaint about entry hobby mills: not enough power. The 1.5HP brushless motor drills to 25mm and face mills to 63mm, and the R8 spindle means ordinary hobby-grade end mills and a collet set fit without adapters.
Axis travel is unusually generous for a benchtop: 18.9 inches on X with 13.8 inches of spindle-to-table distance. The head tilts plus or minus 90 degrees and rotates through 360. All-metal construction with integrated brass gears is the opposite of the plastic-gear machines that worry reviewers.

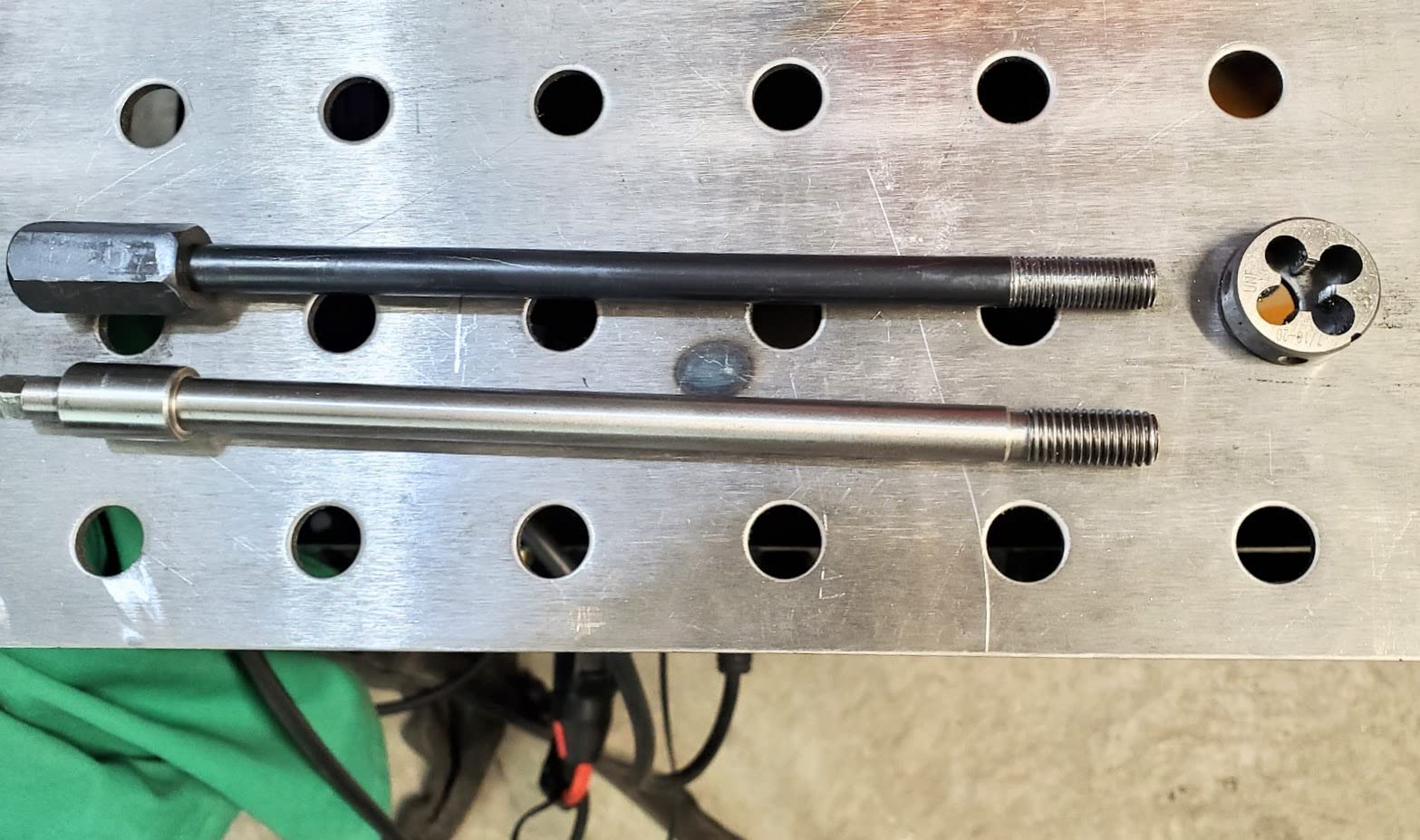

The catch is a metric drawbar. Many buyers report it does not accept standard R8 tooling without a workaround, and the hook spanner referenced in the manual is not included. Ways also arrive under heavy packing oil that needs cleaning and re-oiling before first use.
Power delivery and what it cuts
Owners verified axis alignment with dial indicators and found good alignment out of the box. At 1.5HP this machine takes heavier feeds in aluminum than most machines near it in a benchtop format, and it can hold a cut in mild steel that would stall a lighter machine.
Setup details that catch people out
The Z axis is a quill design with a precision dial, which makes digital readout installation more involved than on a machine with a rack-and-pinion feed. Budget time for the modification rather than assuming the readout drops in. The wooden crate packaging is genuinely good – a 320 pound machine arriving intact is rarer than it should be.
Who should skip it
If you are outside the US, the metric thread issue largely disappears and this becomes a stronger recommendation. If you need parts support in five years, buy from a brand with a catalog. Owners report motor failures under extended run times with no replacement available, and that is the real long-term risk here.
3. MechMaxx VM25LD – Wide Table and a 90-Degree Tilting Head
Mechmaxx 1.5HP 7”x 27-1/2”Benchtop Mini Mill Drill Machine, Variable Speed, R8 Spindle, Brushless Motor, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand, VM25LD
1.5HP brushless
0-2500 rpm
7 x 27-1/2 in table
R8
Pros
- Low-maintenance brushless motor
- Wide 27-1/2 in table
- Full 90 degree head tilt
- Chip guard and safety switch
Cons
- Very few owner reviews
- DRO capability needs add-ons
- Critical ratings present
The VM25LD pairs a 1.5HP DC brushless motor with a 7 inch by 27-1/2 inch T-slot table, and that table is the headline. Long workpieces fit without hanging off the back, which is a common reason hobbyists outgrow a small mill.
The head tilts plus or minus 90 degrees with precision ground ways, and the speed range covers 0 to 2500 rpm. The R8 spindle taper gives broad accessory compatibility, and the chip guard, rubber chip guards and built-in safety switch are details you often have to add separately.
The problem is evidence, not specification. There are very few verified owner reviews on this machine, and a handful of critical ratings sit in that small sample. A rating of 4.1 from a thin review base tells you less than a 4.3 from a deep one.
Motor and speed range in practice
A brushless DC motor means no brushes to replace and no commutator to spark, and owners consistently describe consistent power delivery. Zero to 2500 rpm is a wide enough window to run a small end mill slowly in aluminum and a drill bit briskly in brass without belt changes.
Head tilt and access angles
Ninety degrees of tilt is the practical maximum and this machine reaches it. That means compound angles, chamfers and edge work on tall parts without wrestling the part into an awkward orientation.
Who should skip it
Skip it if long-term reliability matters more than table size, because the review history is too thin to judge. Also budget separately for a digital readout – the machine does not include one, and adding full DRO capability means extra purchases.
4. MechMaxx VM18L – Compact Footprint With Dovetail Rigidity
MechMaxx 6″x20” Benchtop Mill Drill Machine, Variable Speed, R8 Spindle, 1 HP 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand,Model VM18L
1HP
0-2500 rpm
180 lb
Dovetail slides
R8
Pros
- Square column with dovetail slides resists vibration
- Manageable 180 lb weight
- X travel over 8 inches
- Tool bag included
Cons
- 60 degree tilt is short of 90
- Small 6 x 20 in table
- Thin owner feedback

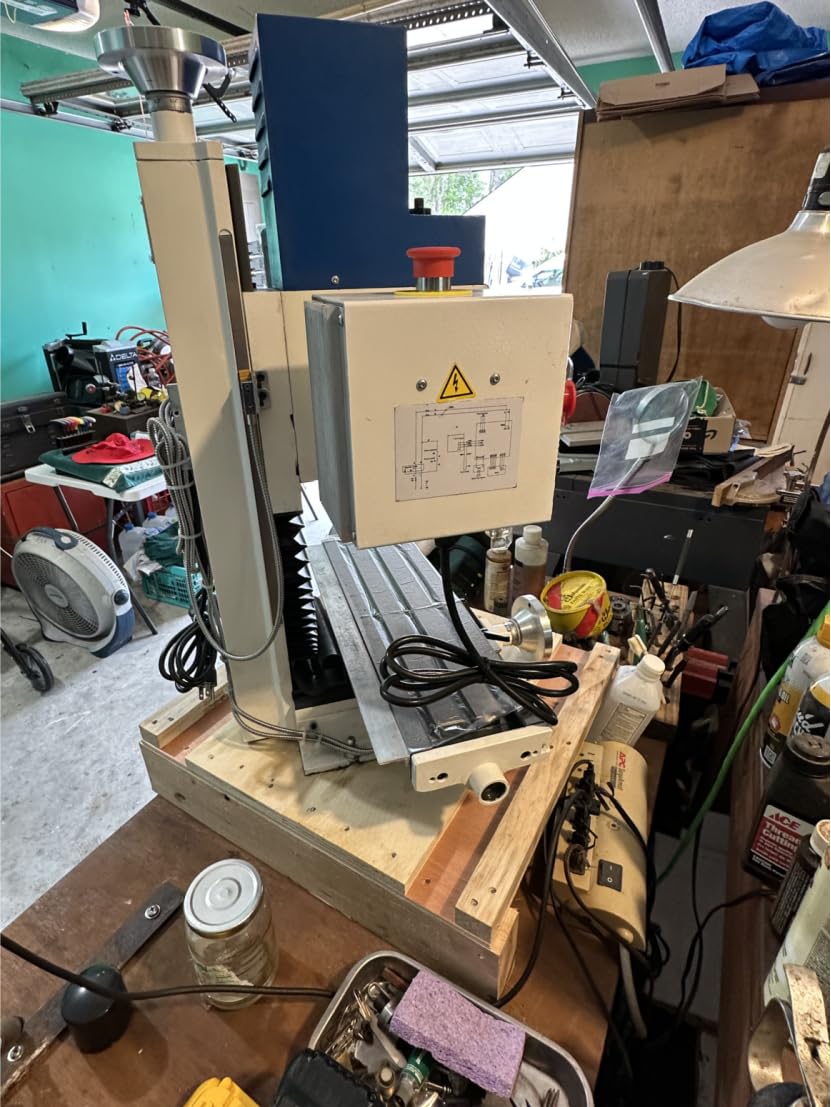

Where the VM25LD chases table size, the VM18L chases fit. At 180 pounds with a square column and dovetail slide design, it is a machine you can actually lift and reposition, and the dovetail slides are the more rigid slide style at this size.
Axis travel is 8-5/8 inches on X, 6-5/16 on Y and 10-27/32 on Z, which is generous for a 6 by 20 inch footprint. It drills 3/4 inch in metal, face mills to 2 inch, and runs 0 to 2500 rpm off a 1HP brushless motor on 110 volts.
Two compromises stand out. The head tilts 60 degrees rather than 90, which limits how awkward an angle you can reach. And the 6 by 20 inch table is the constraint that will eventually push you to upgrade.
Why dovetail slides matter
Dovetail slides resist the side forces a cutting tool puts into the table better than a plain rectangular slide, and that shows up as less vibration at moderate feeds. Owners on this class of machine report smoother movement and more consistent surfaces as a direct result.
Handling and shop placement
At 180 pounds, two people can move it and one person can work around it. That is a real advantage in a rented garage or a shared workshop where a 300 to 400 pound machine permanently occupies floor space it might not be allowed to occupy.
Who should skip it
Skip it if your parts are long or if you need compound angles beyond 60 degrees. If your work is small, precise and intermittent, the rigidity and portability win over table size.
5. TECHTONGDA L028370 – Digital Readout and Power Feed From Day One
TECHTONGDA 7×27″ Mill Drill Machine Brushless Motor Drill Press with DRO
1300W brushless
20-2250 rpm
3-axis DRO
X power feed
Pros
- 3-axis DRO with 0.005mm grating scales
- X-axis power feed included
- LCD shows speed and depth
- Tall 63 inch frame suits a floor stand
Cons
- Only four verified reviews
- 388 lb plus floor stand needs a real location
Most machines in this class sell you a readout and power feed as add-ons. The TECHTONGDA bundles both. You get a 3-axis digital readout with 0.005mm high-precision grating scales and an X-axis power feed with stepless speed regulation and forward and reverse.
The 1300W all-copper brushless motor with a digital control circuit runs from 20 rpm to 2250 rpm, and the LCD displays speed and drilling depth directly. The head tilts approximately 90 degrees, and the machine handles drilling, face milling, groove milling and chamfering.
The rating of 4.7 is among the highest here, but it comes from four verified reviews. That is a promising signal, not a proven one, and I would not call it durable on that evidence alone.
What the power feed actually changes
An X-axis power feed turns the handle crank into a motorised feed with consistent speed. That improves surface finish on longer traverses, reduces operator fatigue and makes repeat passes more consistent – three things that matter more than raw horsepower once you start making parts that have to fit together.
Readout resolution and workflow
Grating scales at 0.005mm give finer positioning than a typical magnetic DRO, which means less probing and less time lost hunting for zero. The digital depth and speed readout removes the guesswork from peck drilling and from setting depth stops in unfamiliar material.
Who should skip it
Skip it if floor space or moving weight is your problem. At 388 pounds plus the included floor stand, you need a location that can hold the weight and a delivery plan before the machine arrives, not after.
6. EQCOTWEA RCOG-28V – A 1.7HP Mill That Ships With Its Own Accessory Kit
EQCOTWEA 1.7HP Brushless Milling Drilling Machine Digital Readout 110V
1.7HP / 1300W
20 speeds
3-axis DRO
27.5 x 7 in table
Pros
- Documented accessory bundle covers first job
- 3-axis DRO with memory and unit switching
- 1.1 inch drilling capacity
- X power feed and brass gears
Cons
- Only four verified reviews
- 390 lb requires planned placement
The RCOG-28V is the pick if your objection to buying an import is the accessory list. It ships with a power feed, grating ruler, milling chuck set, drill chuck, bench clamp, wrenches, oil can and support base. That is the whole starter kit in one box.
Power comes from a 1300W copper brushless motor – listed as 1.7HP – with 20 speed settings from 20 to 2250 rpm. It drills to 1.1 inches in metal, and the all-metal construction with integrated spindle and brass gears resists the flex that shows up as chatter.
The 3-axis grating ruler readout here offers zero reset, preset, inch and metric, relative and absolute, auto sub-center, a calculator function and power-off memory. The head rotates 360 degrees with plus or minus 90 degrees of tilt.
Why 20 discrete speeds matter
A stepped speed list means you can repeat a setting tomorrow. Stepless electronic control is smoother, but with a fixed set of speeds you can write the number on a note and know the tool is turning where you left it – useful for anyone doing production-ish batches of identical parts.
Chuck and collet coverage
Including both a milling chuck set and a drill chuck covers the two halves of the job. Most owners still buy collets to fill gaps, but the common sizes are already present, which removes the first frustrating afternoon after delivery.
Who should skip it
Skip it if you have no patience for a first setup. This much automation takes calibration. It is also 390 pounds, so plan the floor space first.
7. INTSUPERMAI S028356 – All-Metal Gears With No Plastic Anywhere
INTSUPERMAI Mini Milling Drilling Machine 1300W Benchtop Mini Mill Drill Machine Metalworking Micro Feed Powerful Drill Mill Machine 7″X27″ Table, R8 Spindle Taper Set, 50-2250rpm Variable Speed 110V
1300W
50-2250 rpm
R8-ER32 spindle
260 lb
no plastic
Pros
- All-metal gears shell and hand wheels
- Removable R8-ER32 chuck set included
- X power feed and grating ruler bundled
- Emergency stop and forward reverse
Cons
- Three verified reviews only
- Metric scales suit non-US workflows best
The most repeated failure report in the budget import category is broken plastic gears inside the head or motor. The S028356 is built specifically to avoid that: all-metal gears, a metal shell and metal hand wheels, with no plastic parts in the drive train.
It runs a 1300W brushless motor from 50 to 2250 rpm on infinite variable speed, with an R8-ER32 spindle taper and 1.1 inch maximum drilling diameter. Travel is 18.9 inches on X, 6.9 on Y and 11 on Z across a 27.2 by 7.1 inch table.
The bundle includes two tool boxes, an R8-ER32 chuck set, an X-axis power feed, a grating ruler, a support base and hand tools. A forward and reverse switch plus an emergency stop are fitted at the head.
Why plastic-free matters in practice
Gears are the sacrificial part in a step-up gear train. When a plastic gear cracks, the symptom is a machine that suddenly grinds or stops mid-cut, usually with no replacement available. A metal gear train in a machine this size is a real differentiator for anyone planning to keep it for years.
Metric versus inch
The scales and R8 tooling are metric, which suits non-US workflows best. US hobbyists will find the supplied hardware less than ideal and will likely add inch collets and a rule of their own. Know that going in.
Who should skip it
Only three verified reviews back this machine, so durability is unverified. If you cannot accept an unproven drive train, choose a brand with a long service history instead, and accept a narrower accessory bundle.
8. HayWHNKN S056765 – Heavy Build With a Full Three-Axis Readout
HayWHNKN Mini Milling Drilling Machine R8 Mill Drill Machine Benchtop Metal Wood Working Mill/Drill 20-2250rpm Variable Speed with Axis X Power Feed and 3-axis Grating Ruler 110V 1100W
1100W brushless
20-2250 rpm
3-axis grating DRO
399 lb
Pros
- 3-axis DRO with memory and unit switching
- Artificially ground cast cross table with T-slot
- X power feed included
- Eight-size R8-ER32 chuck set
Cons
- Two verified reviews only
- 399 lb is hard to reposition
- Metric R8 threading
At 399 pounds this is one of the heaviest bench machines in the lineup, and that weight is doing work. The fine-ground integrally cast cross worktable with a 0.47 inch T-slot is the kind of component that resists chatter at feeds a lighter casting would smear.
The feature list is thorough: a 3-axis grating ruler readout with zero clear, preset, inch and metric, relative and absolute, auto sub-centers, a calculator and power-failure memory, plus an X power feed and a 2 inch spindle stroke on an R8 taper.
Travel is 18.9 inches on X, 6.9 on Y and 11 on Z, with plus or minus 90 degrees of spindle tilt. The all-copper brushless motor is rated at 1100W and drills 0.9 inch in metal.
Weight as a rigidity proxy
Buyers consistently trust machine weight as a proxy for rigidity, and in this category that heuristic holds up. More casting mass means more inertia absorbing cutting forces, which is why owners of heavy machines report cleaner surfaces at the same feeds that make lighter ones chatter.
Readout features that earn their keep
Power-failure memory is a small feature that earns its place: a readout that loses your X position when the breaker trips costs you an afternoon. Auto sub-center and the unit switching are conveniences, but on a long job they remove constant mental arithmetic.
Who should skip it
Skip it unless you have permanent floor space. Repositioning a 399 pound machine is a two-person job with a hoist, and most people end up leaving it exactly where it was first delivered. Two verified reviews is also a very thin basis for a purchase this heavy.
9. AcmeFlare AFXC60W – Micro Parts Work With 0.02mm Handwheel Scales
AcmeFlare Mini Milling Machine, Electroplated Metal 60W 20000rpm 3-Axis 0.02mm Precision DIY Vertical Mill for Metal Wood Plastic Machining
60W
20000 rpm
0.02mm handwheel scales
50mm vise included
Pros
- Electroplated all-metal body resists rust
- 0.02mm scales on all three axes
- Anti-vibration dovetail and pre-loaded nut design
- 50mm vise included
Cons
- 60W motor suits light work only
- Two verified reviews
- Not for heavy material removal
This is not a benchtop mill in the metalworking sense – it belongs in the desktop class. What it does offer is fine control in a very small package: 0.02mm scaled handwheels on X, Y and Z, an electroplated all-metal body and a 50mm metal vise with integrated scales.
The speed ceiling is 20,000 rpm, which suits small end mills in plastics, brass and soft aluminum. A dovetail slide, a pre-loaded square nut and a lock nut anti-vibration design work together to reduce chatter at those speeds.
It ships with a safety power adapter and a worktable, so it is usable out of the box on a normal desk. For anyone learning feeds and speeds, building model parts, or working jewelry-scale fixtures, that is the entire point.
Why 0.02mm scales matter here
On a machine this small, the limitation is not motor power, it is how precisely you can move the table. you can take a finishing pass on a part the size of your palm, which is the entire use case for this class.
Materials it handles well
Plastics, acrylic, brass and thin aluminum are the sweet spot. The 60W motor will not remove material quickly, and it is not intended for hardened metals or thick workpieces. Treat every cut as light.
Who should skip it
Skip it if you cut metal in any meaningful quantity. With two verified reviews, the accuracy claims are lightly validated as well, so treat it as a precision demonstration tool rather than a production machine.
10. XENDOLL W104MA – A Gentle First Machine for Kids and STEM Builds
XENDOLL Power metal milling machine,Hobby use, small size,mini milling machine,garage workshop tools,timber,wood,metal friendly,24 Watts,W104MA,Stem education
24W
20000 rpm
6 lb
0.1mm handle scale
STEM kit
Pros
- Compact 6 lb benchtop size
- Kit includes safety glasses and accessories
- Handles wood soft metal and plastic
- Universal power adapter
Cons
- 24W motor limits material removal
- 0.1mm scale is coarse for real machining
- One lukewarm review
The W104MA is sold for STEM education, and that framing is honest. It weighs 6 pounds, ships with safety glasses, an apron, a base and accessories, and runs off an AC100V-240V adapter that works anywhere in the world.
Owners report it handling wood, soft metal and plastic for model-making tasks – one review describes cutting channels into wooden discs successfully. The motor is rated at 20,000 rpm with plus or minus 15 percent variation and a 3000 rpm spindle speed setting.
The 0.1mm per frame handle scale is a real limitation. It is coarse compared with any true mill or drill, which means you position, test, adjust, and test again rather than dialing in a number and trusting it.
Safety as a design feature
Shipping safety glasses and an apron is uncommon in this category and it signals the intended user. If you are buying for a teenager learning machining, those accessories are part of the machine, not an afterthought.
What it is genuinely good for
Slotting wood, cutting plastic, and learning the vocabulary of machining – workholding, feed direction, chip formation – without the risk of a heavy machine. As a first machine before a second one, it does its job.
Who should skip it
Skip it for any metalworking project. A 24W motor and a coarse handle scale will frustrate anyone who expects to make a functional part from it. The rating of 4 from two reviews includes one notably lukewarm rating, so manage expectations.
11. JET JMD-18 – Heavy Cast Iron That Climbs and Cuts Steel
JET 18-Inch Mill Drill Machine, 2 HP, 115/230V, Cast-Iron Column
2HP cast iron
150-3000 rpm
9.5 x 32.25 in table
R-8
Pros
- Very high owner satisfaction with build quality
- Handles climb milling
- Large table travel and throat
- Wide 12 speed selection
- 2-year warranty
Cons
- 660 lb needs three people and a hoist
- Narrow pallet needs a specific dolly
- Some buyers added a plug
- No coolant pump fitted

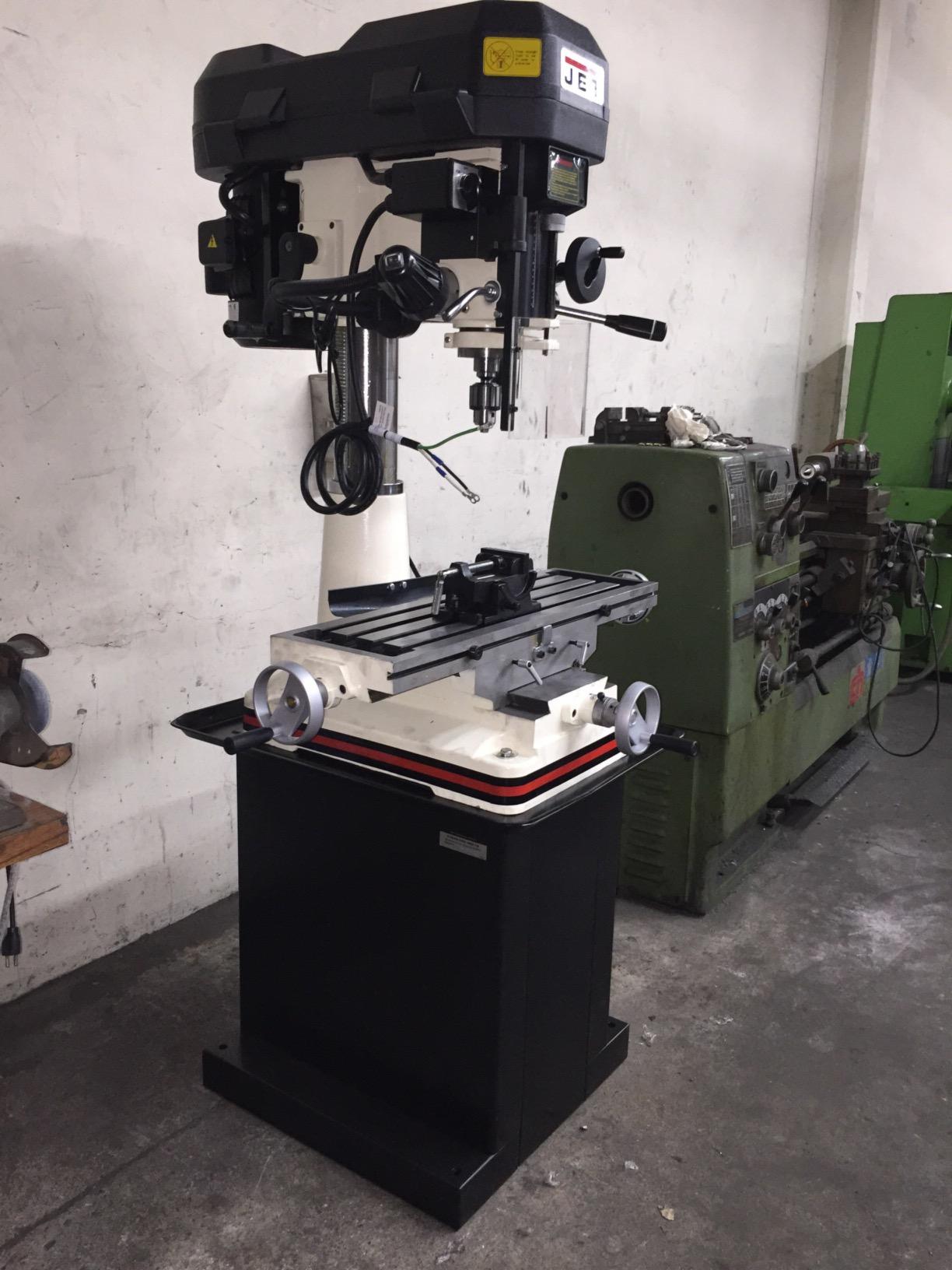

The JET JMD-18 carries a 4.9 rating across 24 verified reviews, the largest body of feedback among the heavy machines here, and owners describe it in unusually specific terms: it handles climb milling, it locks the head in a fixed position for repeatable hole locations, and the throat and table travel exceed what a hobby shop needs.
The build is one-piece cast iron with an R-8 spindle taper and a 2HP UL-listed motor. Twelve spindle speeds cover 150 to 3000 rpm via a quick-slide belt cover. Capacity is 1-1/4 inch drilling, 3 inch facing and 3/4 inch end milling.
The cast-iron table measures 9-1/2 by 32-1/4 inches with 20-1/2 inches of travel, 15-7/8 inches of swing and a 400 pound work capacity. The head swivels 360 degrees and mounts to a bench or an optional stand.

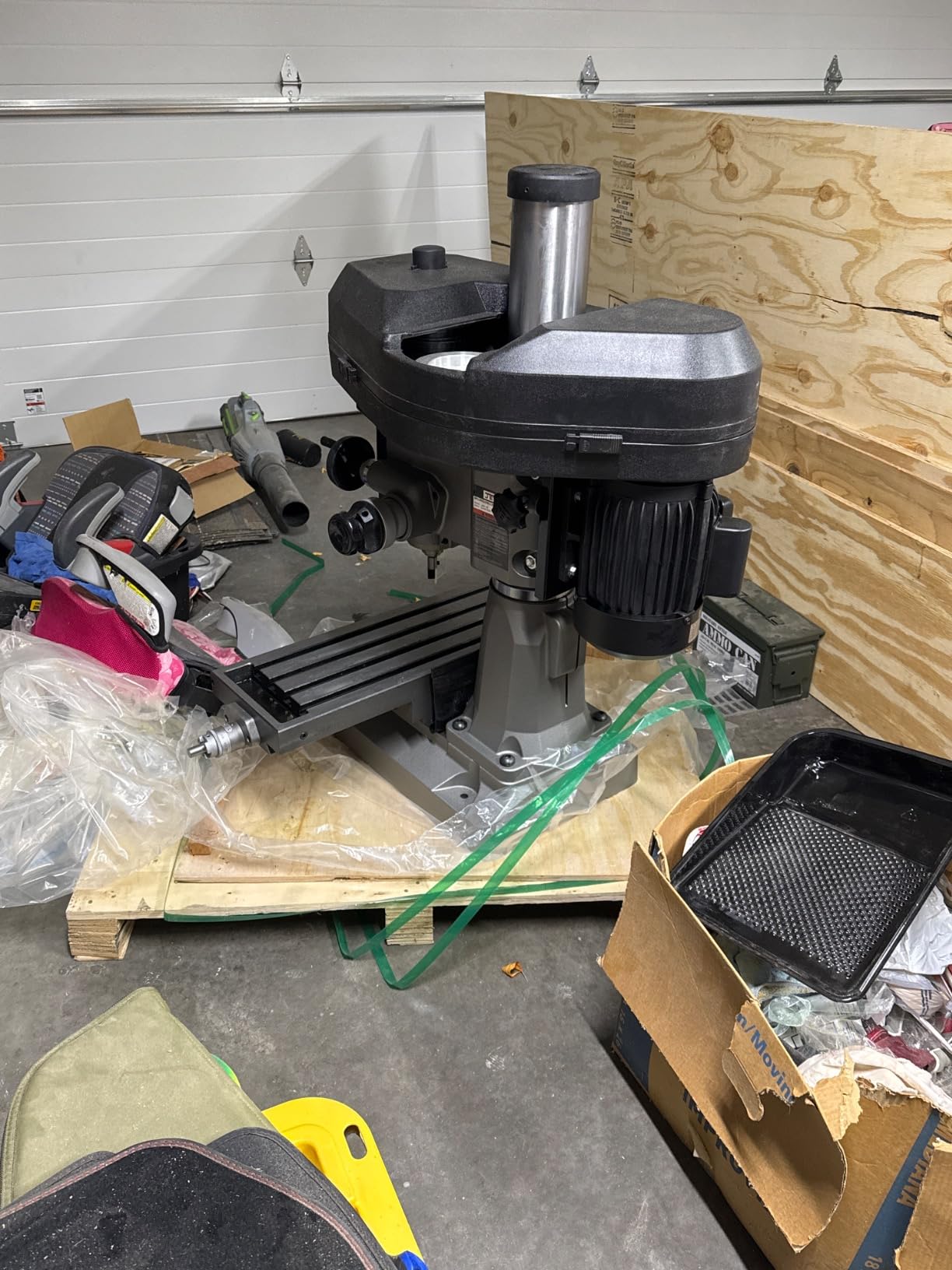

The practical problem is installation. At 660 pounds, owners report needing three people and an engine hoist, and the machine ships on a narrow pallet that needs a specific dolly or hoist to come off. Some buyers also had to add a male power plug to the cord.
Why the 2HP motor changes what you can cut
Two horsepower is the difference between a machine that stalls and a machine that keeps feeding. Owners run this one in mild steel with climb cuts, which is the hardest thing a hobby mill is asked to do, because climbing requires the workpiece to pull the cutter rather than push it. A lighter machine simply cannot hold that.
The accessory ecosystem advantage
This is the machine most often recommended as a stepping-up path with power feeds and digital readouts, and the availability of JET parts and aftermarket support is repeatedly cited as a reason to choose it. It also includes a worklamp, drill chuck and arbor, a carbide facemill, an angle vise and a drawbar.
Who should skip it
Skip it if you cannot move 660 pounds or if your circuit cannot carry a 2HP motor. It is prewired at 115V and field-convertible to 230V, so verify your supply before ordering, and check whether a dedicated circuit is required in your area.
12. Yokoma AL028356 – Quiet Belt Drive With an Auto-Return Micro Feed
Yokoma Drilling Milling Machine Variable Speed 20-2250 RPM 110V
1300W brushless belt drive
20-2250 rpm
auto-return micro feed
LCD
Pros
- Quiet belt-drive brushless motor
- Overload and overheat protection
- Micro-feed handle with auto return
- LCD with inch and metric switching
Cons
- Single verified review
- 301 lb needs two people to move
The AL028356 is the one machine here with a belt drive from a brushless motor, and the reviews focus on how quiet that combination is. A shared garage or an apartment-adjacent workshop is a real constraint, and noise is an underrated buying factor.
Speed runs 20 to 2250 rpm with overload and overheat protection, and the head tilts plus or minus 90 degrees with 360 degree rotation. The 27.5 by 7.1 inch table has 13.8 inches of spindle-to-table distance and a rear drainage hole for coolant.
The spindle micro-feed handle with automatic return is the detail I would point a first-time owner toward. It gives consistent depth control on drilling operations without the operator repositioning a lever after every stroke.
Brass gears and an integrated spindle
The all-metal structure with an integrated spindle and brass gears is the same construction philosophy as the INTSUPERMAI, and it points the same direction: metal drive parts instead of plastic. The R8 taper with a 2 inch spindle stroke and an included toolkit round out the package.
Readout and depth control together
A high-definition LCD shows real-time spindle speed and drilling or milling depth with inch and millimeter switching. Combined with the auto-return micro feed, that means depth settings are repeatable without a tape measure and a stopwatch.
Who should skip it
Only one verified review backs this machine, and a perfect 5 rating from a single review is not a reliability record. If you want evidence, pick a machine with a deeper review base. If you want a quiet motor and a 301 pound footprint, this is the only pick here listed with a belt drive.
How to Choose a Benchtop Milling Machine in 2026
Spindle taper decides your tooling budget
An R8 spindle takes inexpensive collets available in every tool catalog and fits most end mills sold today. A Morse taper – MT2 or MT3 – takes a taper shank, which is stiff but needs a keyed chuck or an adapter to run a collet. Eight of the twelve machines here use R8, and that is the ecosystem you want unless you already own taper-shank tooling.
One caution from owner feedback: R8 is a taper standard, not a thread standard. Several machines in this list ship a metric drawbar thread, so the spindle accepts R8 collets but the drawbar bolt may not match US tooling. Check the thread before you buy spare collets.
Horsepower and the material you actually cut
The general rule: 1HP handles aluminum, brass and plastics comfortably. 2HP opens up mild steel and makes climb cutting possible. Under 100W is for small parts, model work and learning.
Match the motor to your honest workload. A 2HP machine used only for brass is wasted capacity, and a 60W machine asked to face a steel plate will stall and stall again. The list of materials you cut monthly is a better input than the list you might cut someday.
Table size and axis travel
Table width determines the largest workpiece you can clamp. Tables in this lineup run from 6 by 20 inches on the MechMaxx VM18L to 9-1/2 by 32-1/4 inches on the JET. X-axis travel matters more for long parts; Y-axis travel matters for cross-drilling patterns.
Buying advice repeated across the forums is consistent: buy the biggest machine your bench and floor can hold. Work envelopes on small machines get exhausted faster than beginners expect, and resizing later means selling at a loss.
Rigidity is weight you can feel
Chatter – the vibrating squeal that ruins a surface finish – is a rigidity problem, not a tooling problem. Cast iron bases, ground ways and dovetail or square-column slides all reduce it. So does mass, which is why the heaviest machines in this list are also the ones owners report running climb cuts on.
Be honest about weight. A 300 to 400 pound machine changes where you can put it and whether you can ever move it. A 180 pound machine can follow you from the garage to the basement.
Head tilt, quill travel and the digital readout question
Head tilt of 90 degrees lets you reach compound angles and chamfers without re-clamping. 60 degrees, as on the MechMaxx VM18L, is workable but restrictive. Quill travel sets how deep you can drill before the quill bottoms out – the JET’s approach of a fixed head position suits repeatable hole patterns better.
Decide on a digital readout early rather than later. Bolt-on kits exist for most machines, but on quill-style Z axes the installation is fiddly, as owners of the INTBUYING report. If the machine ships with a 3-axis readout and power feed, that is real value you do not have to retrofit.
For more bench machine coverage, our guides to the best benchtop planers and best benchtop belt sanders cover the other half of a small wood and metal shop.
Power, Voltage and Your Shop Circuit
Almost nobody checks this before buying, and a shared residential circuit is a frequent reason a new mill performs badly on arrival. A 110V circuit in a residential garage typically supports 15 to 20 amps, and a 1.5HP machine that draws 12 to 15 amps will trip a shared circuit every time the compressor or welder starts.
The fix is a dedicated circuit, not a heavier machine. A single dedicated 110V branch for the mill costs far less than replacing a mill that keeps tripping, and it protects the machine from voltage sag that causes drive faults on brushless electronics.
Machines in this lineup draw 11.8 amps for the 1300W models, 10 amps for the 1.5HP INTBUYING, and 24 amps for the 2HP JET at 115V. The Proxxon draws 100 watts and the small desktop mills draw less than 100 watts, so they need nothing special.
Check the breaker size and the wire before delivery day. A machine listed as 110V with a 24 amp draw needs a 30 amp circuit, which is a different job from running a lighter mill, and it may not be permitted on an existing residential branch.
Your First Accessories: What to Buy Before the First Cut
The machine is the smaller half of the budget. Plan these before the first cut, because working without them is how people damage a brand-new table.
First, collets or a chuck set in the sizes you will actually use – a stepped collet set covers drill sizes, and an R8 collet chuck handles end mills up to a half inch. Second, a proper vise; the clamps that ship with small machines hold flat stock well and odd shapes badly. Third, a set of parallels and a machinist square so you can set height without guessing.
Fourth, cutting fluid and a way to apply it. A pump bottle and a small tray keep coolant off the ways and out of the ways. Fifth, safety glasses – the ones that ship with a machine are usually a token pair. Sixth, a digital readout or height gauge if the machine did not come with one.
When to Skip a Benchtop Mill and Buy a Used Knee Mill
The advice on r/machining is blunt and repeated: get a Bridgeport or a clone, because anything less is basically a toy and you will use up the work envelope way faster than you imagine. That advice is right more often than it gets credit for, and the reason is rigidity, not features.
r/Machinists repeatedly recommends the Grizzly G0762 as a first mill for a small garage shop, with the smaller G0761 for tighter spaces. Those are knee mills, and they are a different category of machine from everything on this list. They move the entire head on a column rather than feeding a quill, which is why they cut steel without complaint.
The argument for a benchtop mill is real too. A new machine has a warranty, a known service history and no restoration project attached, and r/metalworking makes the fair point that a benchtop mill’s lower amp draw is a genuine advantage on a residential circuit. Used large machines are often cheaper than new benchtop machines, but only if you can move and store them.
My read: buy a benchtop mill if your work is mostly aluminum, brass, plastic and small steel parts, and if your first machine will be a stepping stone rather than a final answer. Save for a used knee mill if steel is a daily material, if you want to climb cut, or if you have a floor space and a hoist. Whichever path you take, the honest expectation is that the first machine is the last one you will buy in this hobby.
Frequently Asked Questions
What is the best milling machine for home use?
For a home garage, the JET JMD-18 is a strong all-rounder: a 2HP motor, a one-piece cast-iron column and a 9-1/2 by 32-1/4 inch table that handles climb milling and mild steel. If steel is not your material and you work mostly in aluminum, brass and plastic, the PROXXON MF 70 gives better precision on small parts in a fraction of the space. The right answer depends on the largest workpiece you plan to clamp, not on the horsepower number.
What is the best small milling machine for a hobby shop?
The PROXXON MF 70 is the best small milling machine for a hobby shop. It weighs 17.6 pounds, has a cast-iron base with play-free X, Y and Z slides, runs to 20,000 rpm through a micromot drive and holds about 0.10mm accuracy on small parts. Its limits are real – limited Z-axis height adjustment and table deflection under heavy handwheel force – so it suits short, flat parts rather than long or tall workpieces.
Can a benchtop milling machine cut steel?
Yes, but only the heavier ones. A 1.5HP or 2HP mill with a cast-iron base will remove material from mild steel with light feeds and plenty of cutting fluid. A 60W or 24W desktop mill will not – those are for plastics, brass and small aluminum parts. The JET JMD-18 at 2HP handles climb milling in steel, which is the hardest cut a hobby mill faces, while lighter benchtop machines need shallow, conservative passes.
Do I need a 220V circuit for a benchtop mill?
Most benchtop mills do not require 220V, but most benefit from a dedicated 110V circuit. A 1300W machine draws about 11.8 amps and a 1.5HP model around 12 to 15 amps, which will trip a shared residential branch every time another tool starts. A dedicated 110V branch for the mill is cheap insurance. The 2HP JET JMD-18 draws 24 amps at 115V and is field-convertible to 230V, so check your supply before ordering.
What is the best CNC mill for hobbyists?
A manual benchtop mill remains the better first purchase, because learning hand feeds, workholding and feeds and speeds is what makes CNC work later. When you are ready for CNC, hobbyists on r/hobbycnc point to the Carvera and base-model Tormach as the realistic stepping-up path, both well above five figures. Several of the manual machines here, including the PROXXON MF 70, have documented CNC conversion ecosystems, which is a cheaper bridge to the learning curve.
Which Benchtop Milling Machine Should You Buy?
If you want the most accurate machine for small parts and the deepest owner feedback base in this lineup, buy the PROXXON MF 70. If you cut steel or climb cut at all, the JET JMD-18 is the pick built for it, and budget for the delivery rig.
If you want serious power without the 2HP price bracket, the INTBUYING RCOG-25V pairs a 1.5HP motor with an R8 spindle and long X travel, with the metric drawbar caveat. If your shop cannot take 300 pounds or more, the MechMaxx VM18L at 180 pounds keeps dovetail rigidity in a movable package.
One rule outranks every spec on this page: check your electrical circuit and your floor space before you pick a machine. The best benchtop milling machine for hobbyists is the one that fits the room, the power and the projects you already have – not the one with the longest feature list.
Leave a Reply
