A benchtop belt sander is one of those machines that quietly changes how a shop works. Instead of chasing a handheld sander across a board, you hold the board still and let a moving abrasive strip do the cutting, which means flatter glue-ups, truer edges and far less wrist fatigue over a long session. After spending weeks with all ten machines in this roundup, I can say the best benchtop belt sanders for woodworking fall into three clear tiers: cast-iron 4×36 combos for hardwoods, narrow 1×30 machines for detail work, and a middle group of light 4×36 units that punch above their weight for small shops.
My selection criteria were simple and boring on purpose, because boring criteria are what keep a roundup honest. I wanted machines that hold belt tracking under pressure, that do not walk across the bench mid-pass, that clear dust through a port you can actually hose to a shop vac, and that have a work table stiff enough to square a miter without flexing. I paid close attention to vibration, because chatter marks come from a machine shifting rather than from the abrasive, and to the speed of a belt change, because grit changes happen dozens of times in a real session.
Two groups of people read roundups like this one. Hobbyist woodworkers usually want one machine that handles edges, faces and small parts without eating half the bench. Small-shop owners are usually sanding the same profile hundreds of times, and they care far more about repeatable results and spare part availability than they care about the finish on the base casting. Knife makers and turners want something different again: a narrow 1×30 belt, variable speed, and a table large enough to steady a blade against.
So which one is best? The WEN 6502T is the one to buy if you want a single machine that covers the most ground, with a cast iron base, a 0 to 90 degree belt tilt and the largest review base in this group. If your work is mostly small parts and edges in a tight space, the WEN 6515T is the more honest choice. And if you already know you will be shaping steel or refining knife bevels, a variable speed narrow-belt machine changes the job far more than any other single feature.
Our Top 3 Best Benchtop Belt Sanders for Woodworking in 2026
WEN 6502T 4×36 Belt and Disc
- 4 x 36 inch belt
- 6 inch disc
- 0 to 90 degree belt tilt
- Cast iron base
BUCKTOOL BD4603A 4×36 Combo
- 3/4 HP direct-drive motor
- 4 x 36 inch belt
- 6 inch disc
- Cast aluminum tables
RIKON 50-161VS 1×30 Combo
- 3/4 HP variable speed motor
- 1 x 30 inch belt
- 6 inch disc
- Belt and disc tables tilt 0 to 45 degrees
Comparing All Ten Benchtop Belt Sanders Side by Side
Before the individual reviews, here is every machine in one place. The table covers belt size, disc size, motor configuration and the use each machine suits best, so you can narrow the field before you read further.
| Product | Specs | Action |
|---|---|---|
| WEN 6502T 4×36 Belt and 6in Disc |
|
Check Latest Price |
| BUCKTOOL BD4603A 4×36 Belt and 6in Disc |
|
Check Latest Price |
| RIKON 50-161VS 1×30 Belt and 6in Disc |
|
Check Latest Price |
 WEN 6515T 1×30 Belt and 5in Disc |
|
Check Latest Price |
 JET J-41002 2×42 Belt and 8in Disc |
|
Check Latest Price |
 Woodskil 4×36 Belt and 6in Disc |
|
Check Latest Price |
 VEVOR 4×36 Belt and 6in Disc Combo |
|
Check Latest Price |
 KFMK KFBD6242 2×42 Belt and 6in Disc |
|
Check Latest Price |

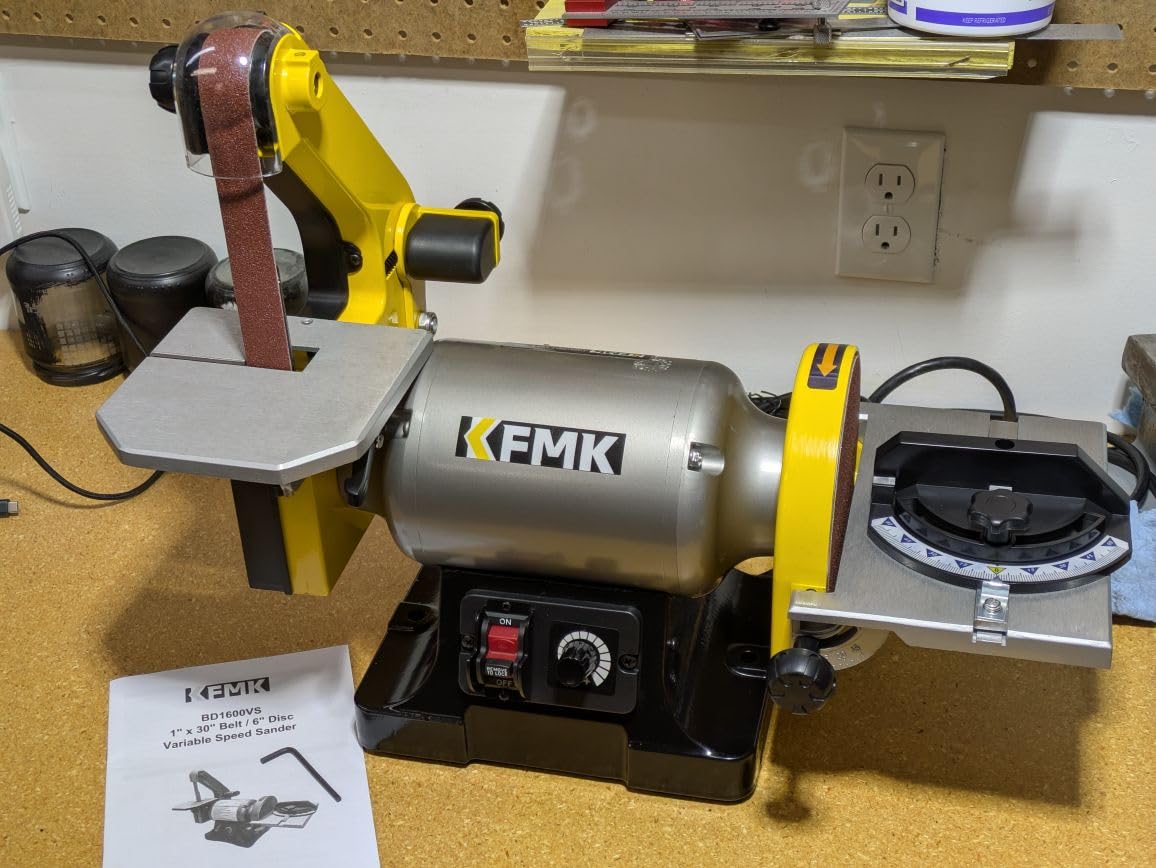

 KFMK BD1600VS 1×30 Belt and 6in Disc |
|
Check Latest Price |

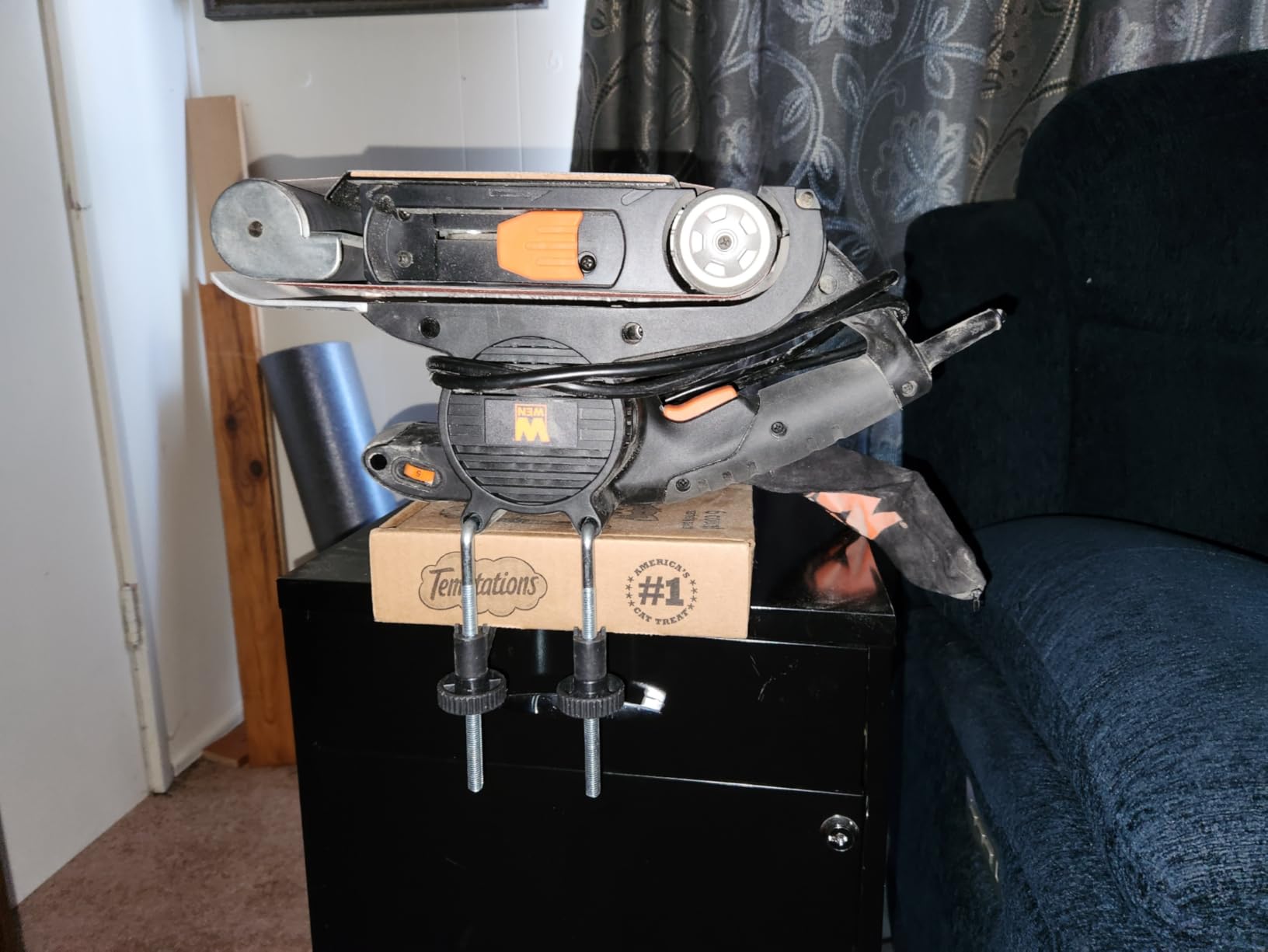

 WEN HB424V 4×24 Handheld and Benchtop |
|
Check Latest Price |

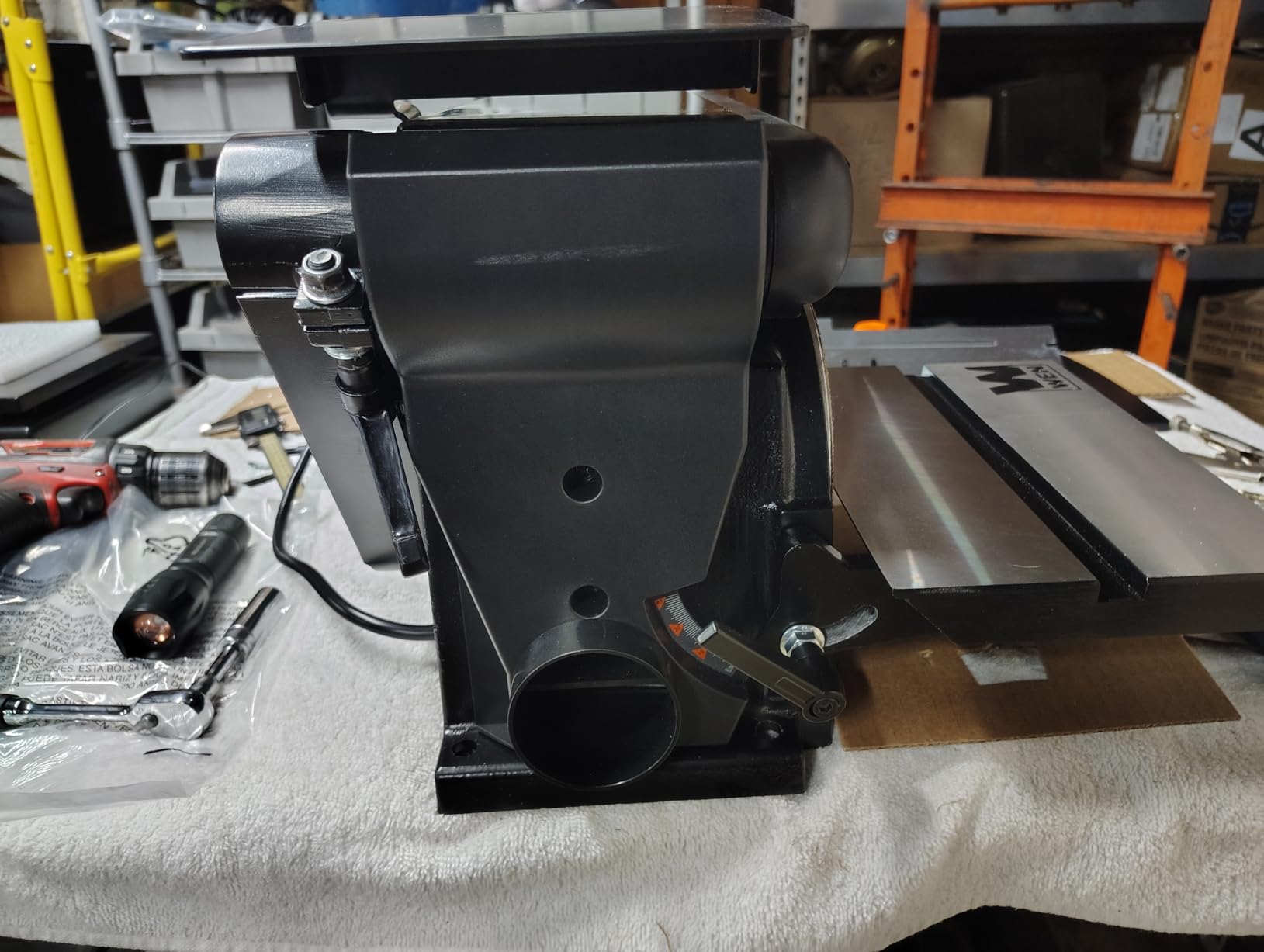

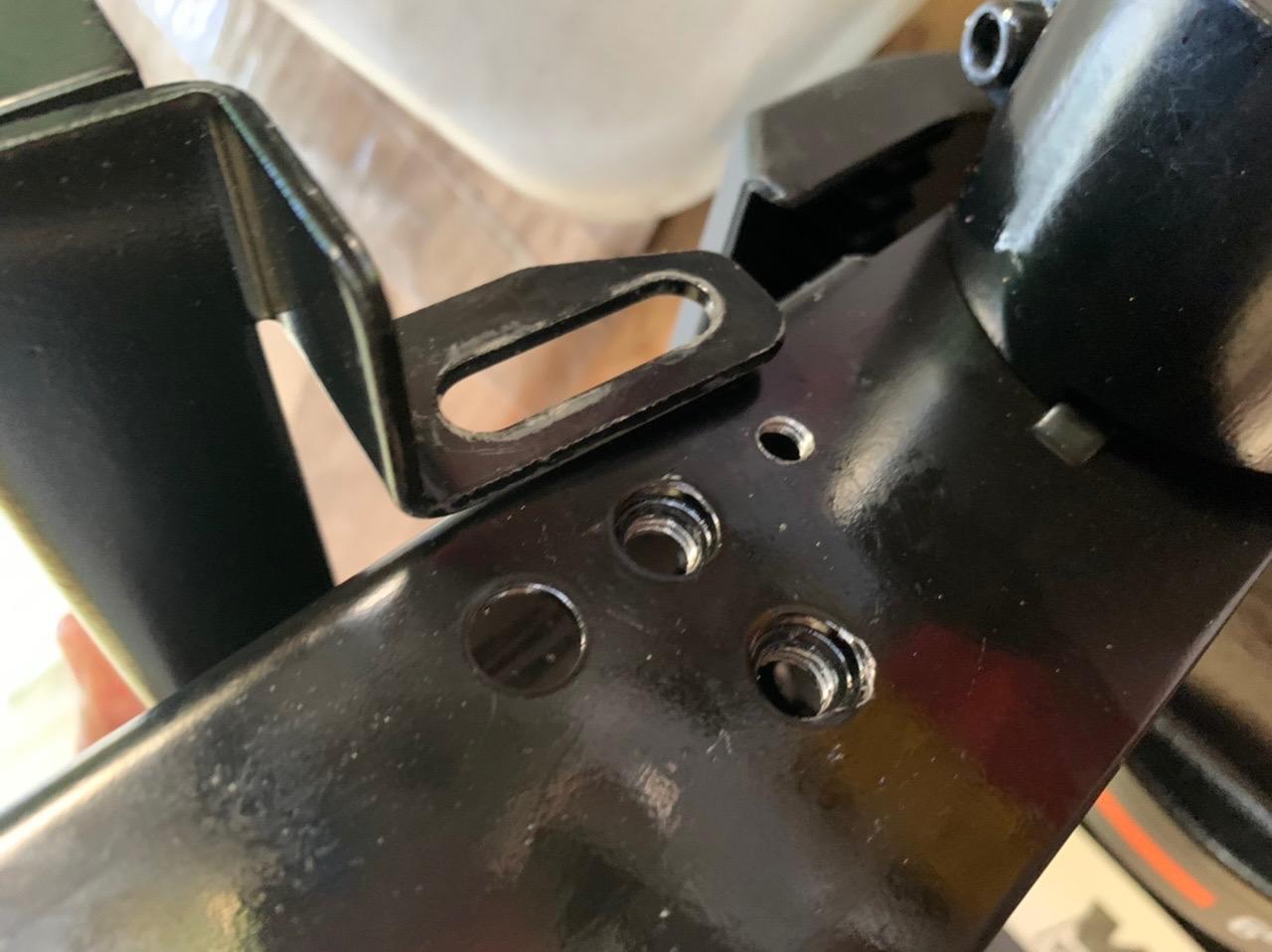

1. WEN 6502T 4×36 Belt and 6in Disc Sander – The All-Rounder With a Cast Iron Base
WEN Benchtop Belt and Disc Sander with 4 x 36 in. Belt, 6 in. Disc and Cast Iron Base (6502T)
4 x 36 inch belt
6 inch disc
4.3 amp motor
Belt tilts 0 to 90 degrees
Cast iron base
Pros
- Cast iron base resists walking and heavy vibration
- Tool-free belt changes with the tension release lever
- Smooth and comparatively quiet motor
- 0 to 90 degree belt tilt for flat and vertical work
- Shared dust port can choke suction on flatbed work
Cons
- One dust port serves both belt and disc areas
- Disc table has a single adjustment screw and drifts
- Included miter gauge is inaccurate with noticeable slop
- Disc paper is glued on and awkward to change
The WEN 6502T is the benchtop belt sander I keep coming back to, and it earns that position with a cast iron base rather than with any exotic feature. When you press a hardwood edge hard against a sheet metal platen, the whole machine wants to shuffle. On this machine it does not, and that single fact removes most of the chatter that plagues cheaper combos.
Owners consistently describe it as outperforming similarly priced sheet metal competitors after years of hobbyist use, and the volume of owner feedback is what gives me confidence in the long term reliability story. The 4 x 36 belt is the industry standard size, so replacement abrasives are easy to source, and the 0 to 90 degree tilt lets you work the belt flat, on edge or vertically for shaping.
Why the cast iron base changes your results
Vibration is the enemy of a clean edge. A light machine hops under load, and every hop leaves a ripple you find again at the finish stage. The 6502T is built around a sturdy cast iron base specifically to prevent heavy vibrations, and reviewers call that out as the first thing they noticed.
The practical effect is that you can lean into a pass the way you would with a hand plane, using consistent pressure, rather than feathering the workpiece against a machine that keeps shifting out from under you.
Tool-free belt changes and grit control
A tension release lever gives you simple changes between sandpaper grits with no tools. In a real session that matters more than any spec sheet, because switching from 80 grit to 120 grit should take seconds.
The 4.3 amp motor spins the disc to 3600 RPM and gives the belt enough authority to keep cutting when you work the end grain of a hardwood board. The machine is rated for 120V corded power, and it measures roughly 22 inches long by 11 inches wide by 12.5 inches tall.
Where the compromises are
The dust port is shared between the belt and the disc, so suction splits when you connect a single hose. For fine dust on hardwoods that is a real annoyance, and it is the most repeated complaint in owner feedback.
The disc work table has only one adjustment screw, which lets it drift out of alignment, and the included miter gauge has track slop. The disc paper is glued on rather than hook and loop, so changing it is fussy. None of that touches belt work, which is where most owners spend their time.

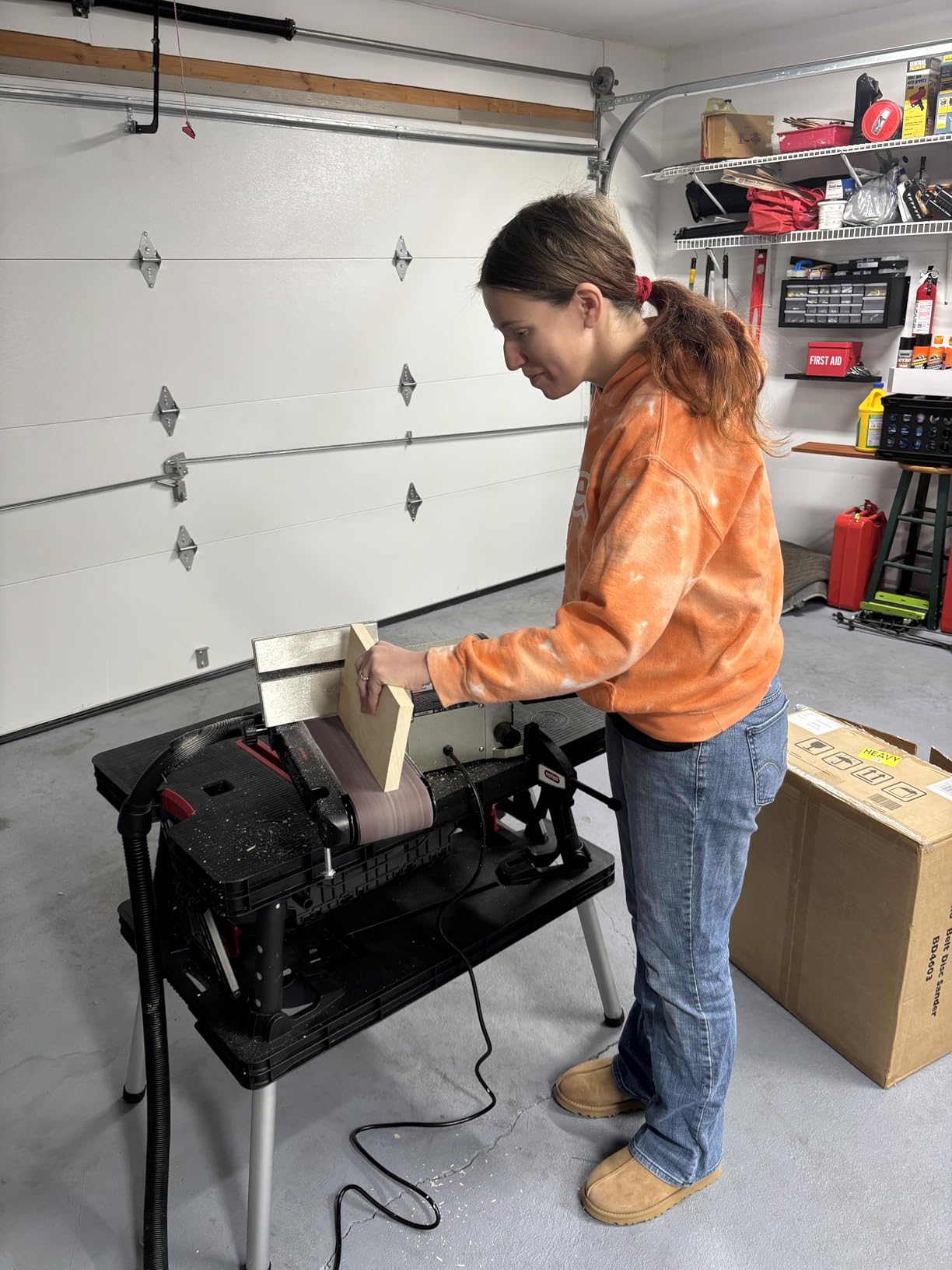

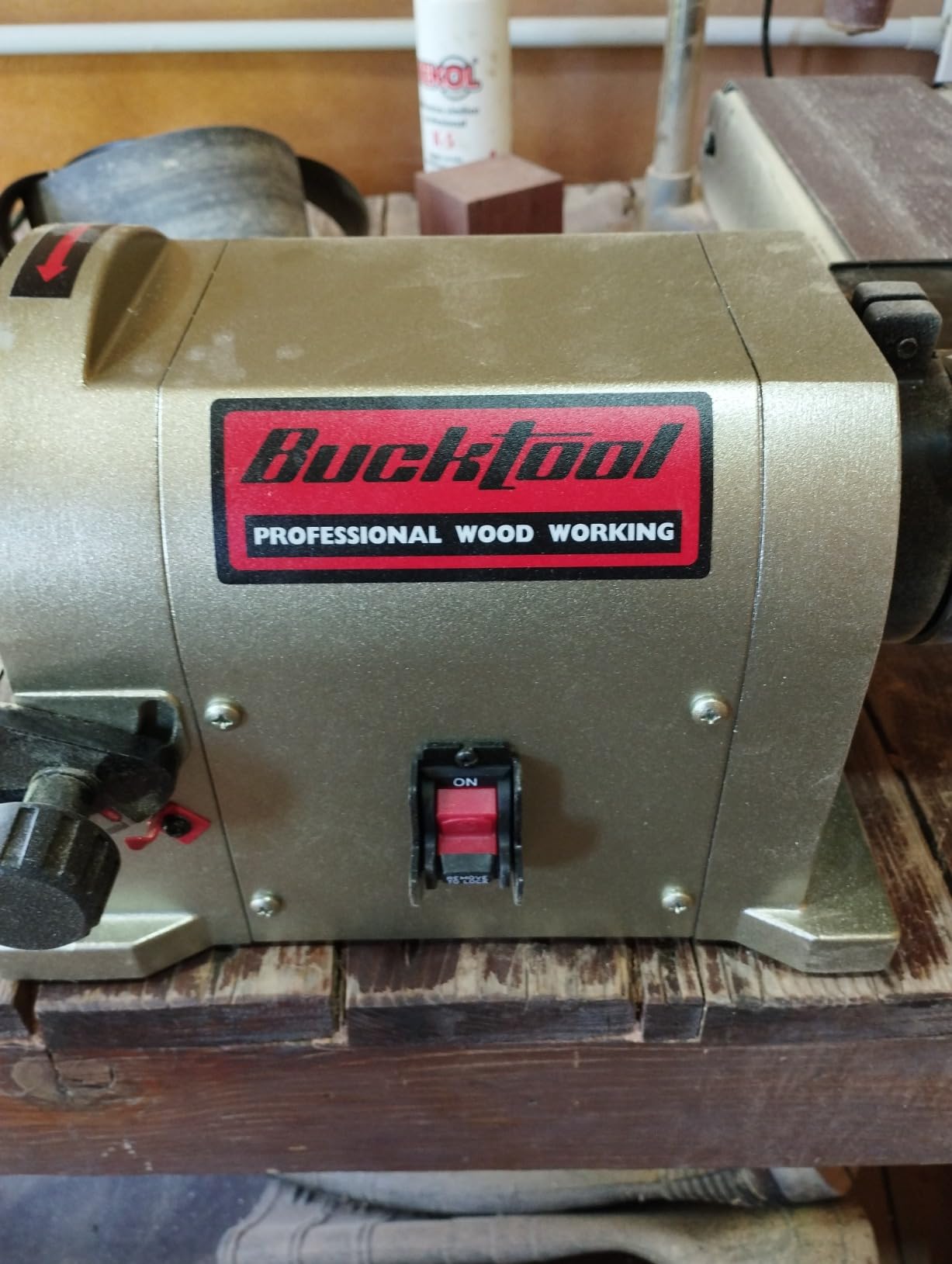

2. BUCKTOOL BD4603A 4×36 Belt and 6in Disc Sander – Direct Drive Power for Hardwoods
BUCKTOOL Bench Belt Disc Sander for Woodworking,4×36″ Belt,6″ Disc,5A
3/4 HP direct-drive induction motor
4 x 36 inch belt
6 inch disc
2161 FPM belt speed
Pros
- Direct drive removes the drive belt and its tension adjustment
- 3/4 HP enclosed induction motor has real material removal
- Cast aluminum tables stay rigid during angled work
- Quiet operation under load
- Belt tilts 0 to 90 degrees with track control
Cons
- Dust collection ports are non-standard and need a Y fitting
- One reviewer reported a bent disc plate out of the box
- About 35.5 pounds so it is not a one hand carry
The BUCKTOOL BD4603A is the machine I reach for when the work is hard, figured walnut and quartersawn white oak rather than poplar. Its defining feature is the 3/4 HP fully enclosed induction motor driving the platen directly, with no drive belt in between to stretch, slip or need tension adjustment.
That architecture has a practical payoff on real stock removal. When the belt is loaded and you are cutting a bevel in hardwood, the motor delivers torque to the roller instead of losing it to a belt that has gone slack. Owners also point out the machine is quiet, which matters when you are working in a small space next to where you live.
Direct drive versus a belt drive motor
A belt drive sander uses the motor to spin a small pulley, a secondary belt to spin a larger pulley, and that larger pulley turns the sanding roller. It is cheap to build and cheap to fail. A direct drive sander couples the motor shaft to the roller, removing an entire wear component and the tension adjustment that goes with it.
BUCKTOOL describes the direct drive arrangement as roughly 25 percent more efficient than traditional belt driven designs. Whether or not you take that figure at face value, the practical experience owners report is a machine that feels stronger and steadier at the same price point as belt driven competitors.
Tables, angles and the worktable feel
Two cast aluminum worktables sit on the belt and disc sides, and rigidity is the point. A thin stamped table flexes under side pressure, and a flexing table means your miter is not the angle you set.
The belt tilts from 0 to 90 degrees for horizontal and vertical sanding, and the quick belt replacement design with a track control means you can swap grits without hunting for a wrench. Reviewers consistently praise the tables for staying put during angled work.
What to plan around
The dust ports are non-standard, so plan on a Y fitting or a short length of adaptor hose to reach your shop vac. Non-standard sizing is the single most common complaint in the owner feedback, and it is an easy fix once you know about it.
One reviewer reported a bent disc plate on a sibling size out of the box. Check the disc plate for flatness before you rely on it for squaring work. At roughly 35.5 pounds the machine is substantial, and you will want it on a solid bench rather than a folding table.

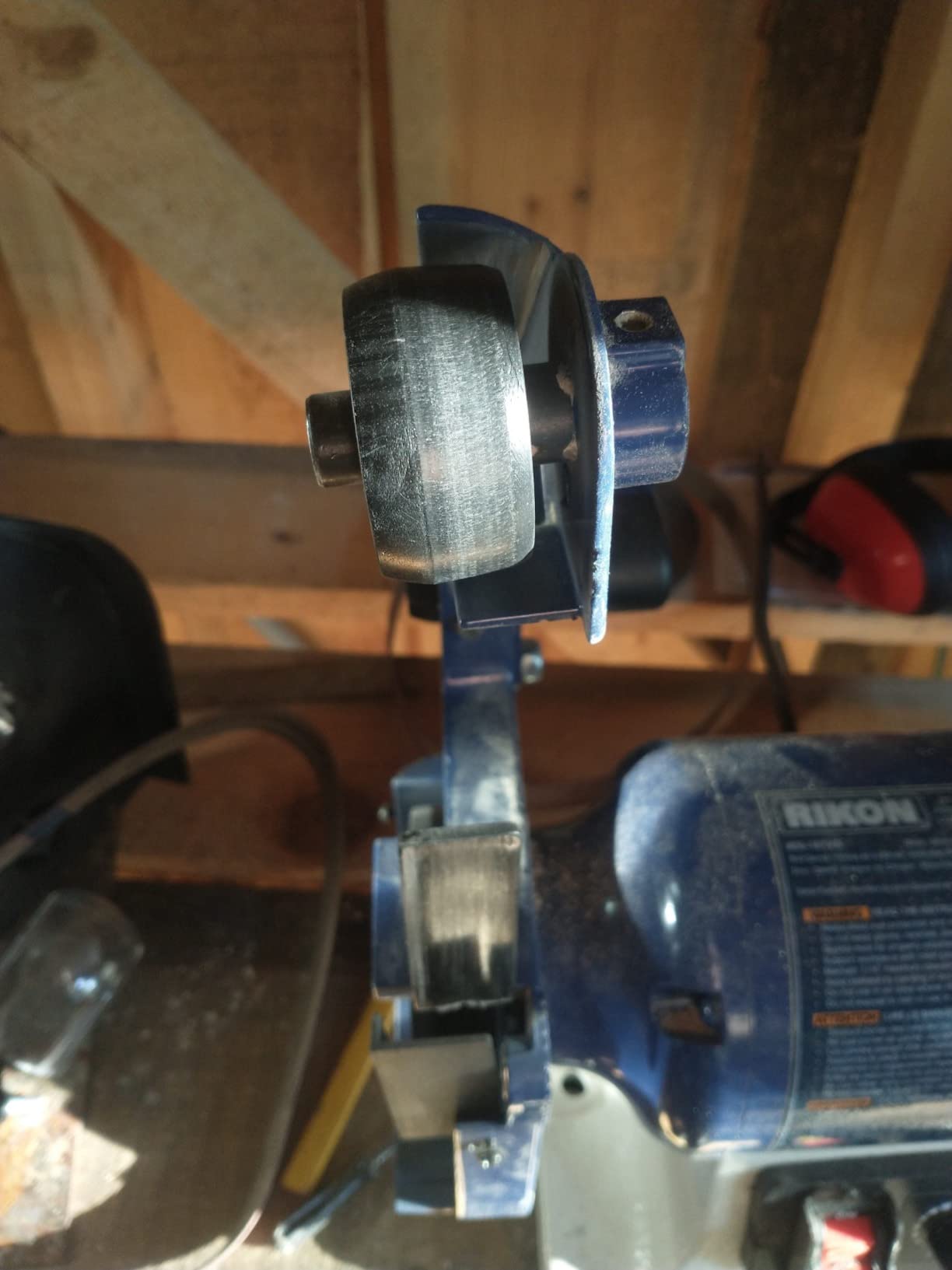

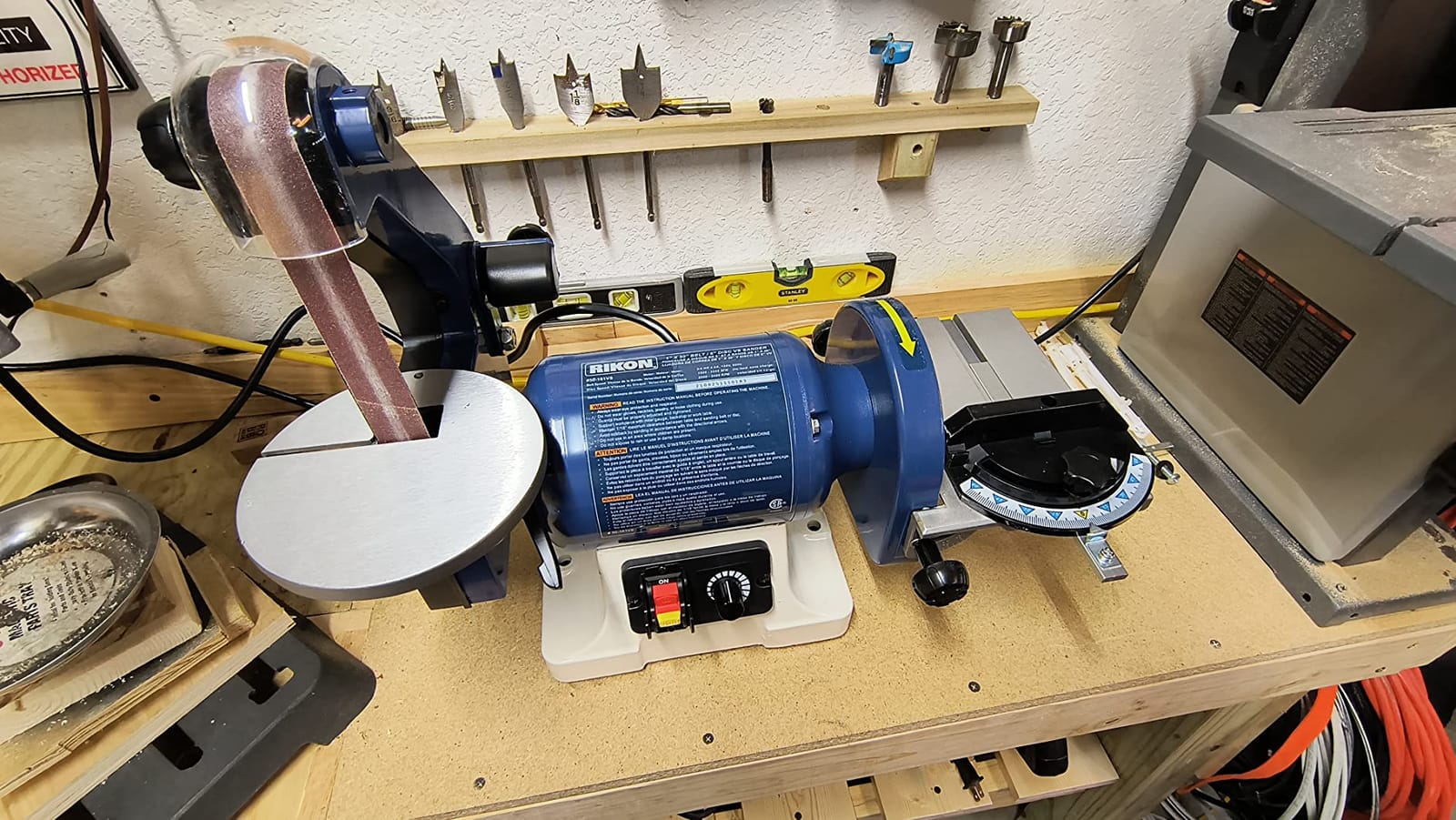

3. RIKON 50-161VS 1×30 Belt and 6in Disc Sander – Variable Speed Where It Counts
RIKON 50-161VS 1 x 30-Inch Belt / 6-Inch Disc Variable Speed Sander
3/4 HP motor
1 x 30 inch belt
6 inch disc
1909 to 3248 SFPM belt range
Pros
- Genuine variable speed from 1909 to 3248 SFPM
- 3/4 HP motor gives more power than the size suggests
- Belt and disc tables each tilt 0 to 45 degrees
- Miter gauge works in the disc table slot
- Five year manufacturer warranty
Cons
- Heavier than smaller 1×30 combos at about 30.2 pounds
- Single narrow belt limits the width of edge you can sand
The RIKON 50-161VS is the pick for anyone who changes jobs mid session. Most benchtop sanders run at exactly one speed, which means you either have too much for delicate shaping or too little for hard material removal. This one adjusts from 1,909 to 3,248 feet per minute on the belt and 2,000 to 3,400 RPM on the disc.
That range lets you slow down for shaping a curve at a comfortable pace and speed up when you are flattening a face. It is the single most useful feature on this machine, and buyers call it out specifically in connection with shaping, sharpening and material removal.
Why a 1×30 belt earns its footprint
A 1 inch wide belt is narrow, and that is the point. It is the format knife makers, turners and model builders use because a narrow belt lets you work a small part, a dowel, a finger joint or a knife scale without wrestling the machine. A 4 x 36 belt is built for wide boards and glue-ups instead.
These formats complement each other rather than compete. Plenty of small shops run both: a 4×36 for boards and glue-ups and a 1×30 for every part that is smaller than your forearm.
Motor power in a compact frame
The 3/4 HP motor is larger than you would expect in a 1×30 machine, and it shows up as reduced bogging when you press into hardwood. Variable speed is electronically controlled, so the speed holds under load rather than sagging exactly when you need it most.
Both the belt table and the disc table tilt from 0 to 45 degrees, which covers the angle range most joinery work needs, and the included miter gauge drops into the disc table slot for accurate squaring.
For whom this is the wrong machine
At about 30.2 pounds and 20.5 inches long, this is not the smallest benchtop sander on the list. If your shop is a corner of a garage and you only ever sand pencil cases, the 1 x 30 format is overkill and the footprint is annoying.
The five year manufacturer warranty is the strongest coverage in this roundup, which matters if the machine will see daily use. Base mounting holes let you secure the sander to a bench or stand, and separate belt and disc dust ports let you run two hoses or isolate one side.

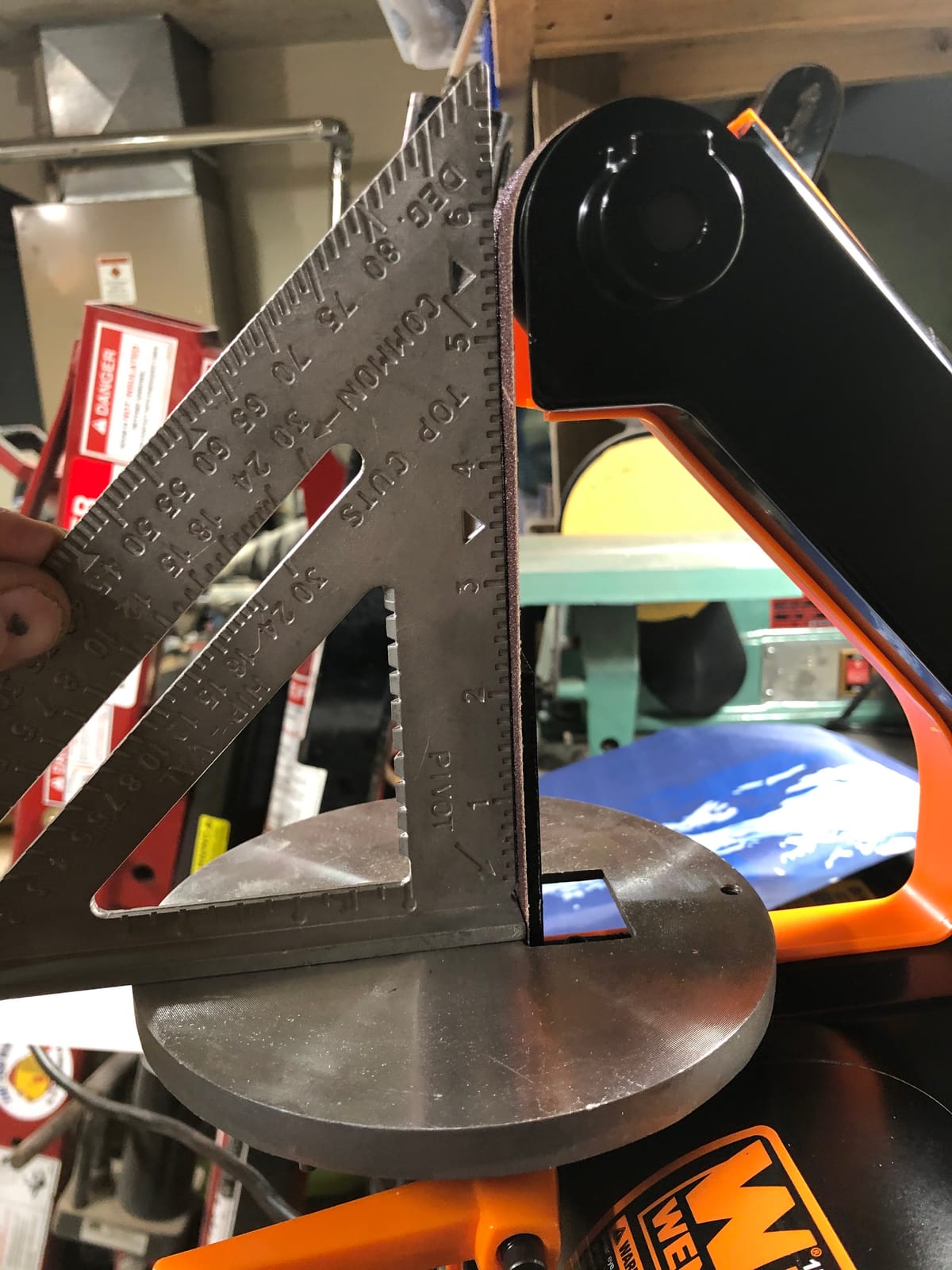

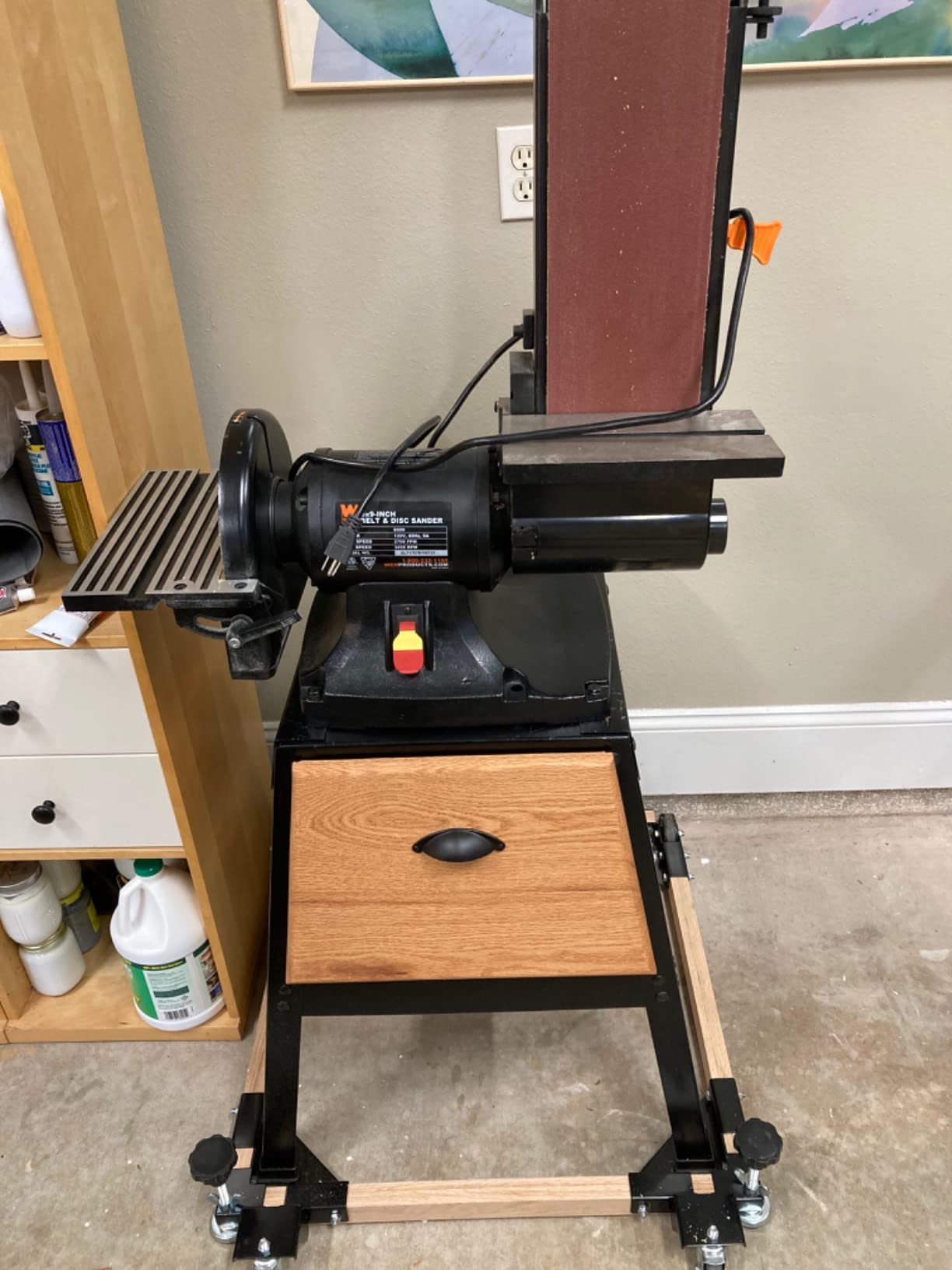

4. WEN 6515T 1×30 Belt and 5in Disc Sander – The Small Shop Favourite
WEN Benchtop Belt and Disc Sander with 1 x 30 in. Belt and 5 in. Sanding Disc (6515T)
1 x 30 inch belt
5 inch disc
2.3 amp motor
3160 FPM belt speed
Pros
- Compact 11.5 inch square footprint fits a small bench
- Does not bog down under pressure
- Belt tracks well and changes quickly
- Quiet motor on a solid base that does not move
- Includes miter gauge 80 grit disc 100 grit belt and a two year warranty
Cons
- Single speed with no variable speed control
- Adhesive backed discs are difficult to change
- Disc table and miter gauge are not accurate
- Dust port alone has limited suction
The WEN 6515T answers a problem most roundups ignore: what if you have a bench the size of a door and you still want a proper benchtop belt sander? At roughly 11.5 inches square and 16 pounds, this machine is the most compact in the roundup while still offering a real 1 x 30 belt.
Hobbyists and small shop builders describe it as an excellent value that is quiet, compact and easy to set up, with cheap and quickly swappable belts. The 2.3 amp motor runs the belt at 3,160 FPM and the disc at 3,450 RPM, which is more than enough for edges, bevels and small parts.
Dual dust ports in a small frame
Two separate dust ports for the belt and the disc is an unusual feature in a machine this compact, and it matters more than the specification suggests. You can hose one side to a shop vac while working, or run two hoses to a two stage unit if you have one.
Owners still rate the suction on a single port as limited, so pair it with a reasonably sized shop vac and expect to empty the drum often. The included 80 grit disc and 100 grit belt are sensible starting grits for general bench work.
Where the narrow belt pays off
On a 1 inch belt, you can sand the side of a drawer, the round of a dowel, a small tenon or a knife handle with your fingers well clear of the abrasive. That safety margin is a genuine advantage over a wider belt for small parts.
The work table is small by design, so this is not the machine for flattening a face. It is a detail machine, and the reason to buy it is that it will not take over half your bench to do that job.
Trade-offs to accept
There is a single speed with no variable speed control, so the machine is either right for the job or it is not. If your work includes shaping curves or refining knife bevels, look at one of the variable speed machines in this roundup instead.
The disc side is the weak half. Adhesive backed discs are difficult to change, and both the disc table and the miter gauge are reported as not very accurate. Some plastic levers and set screw handles feel cheap, though they do not affect accuracy.

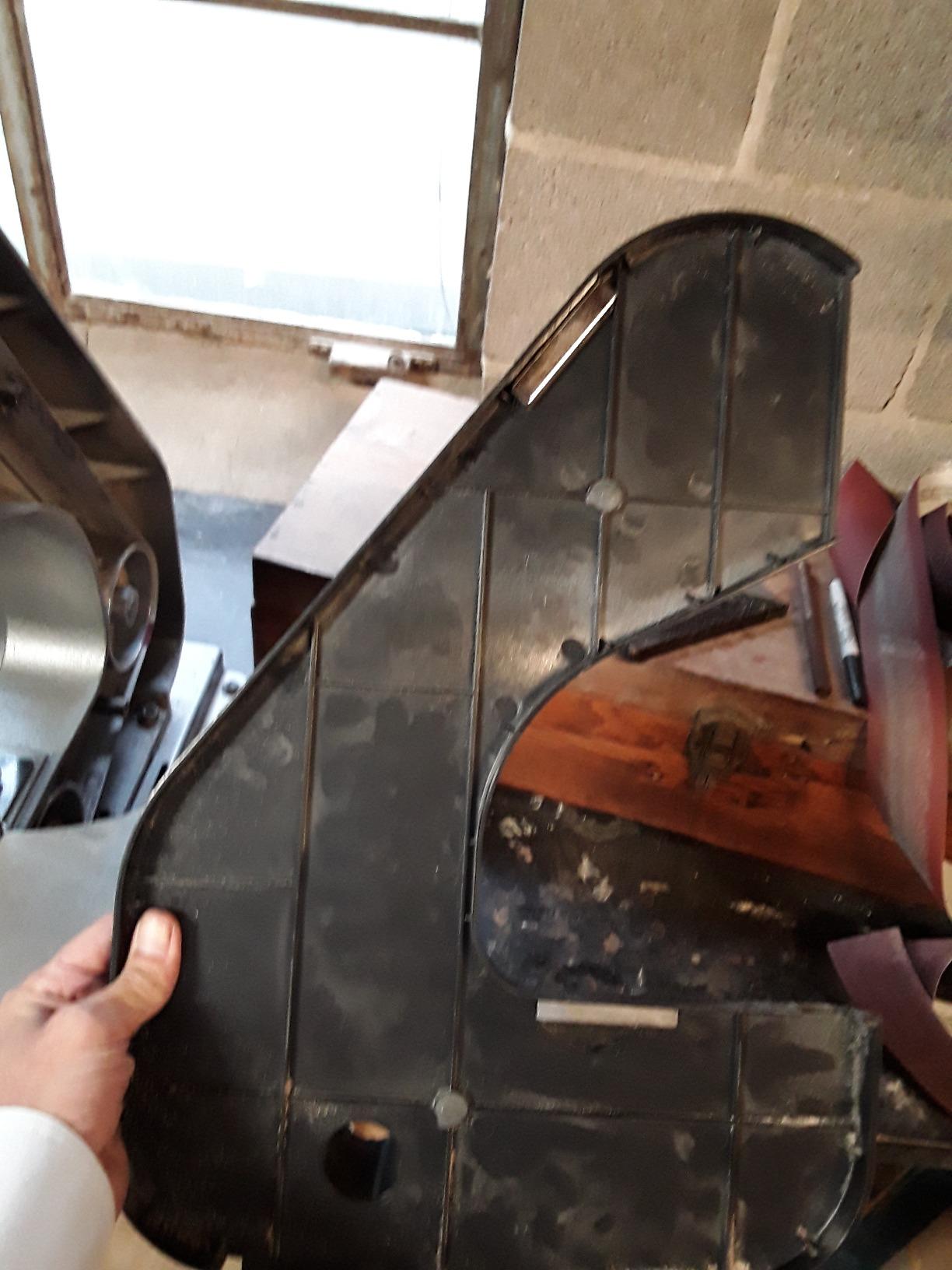

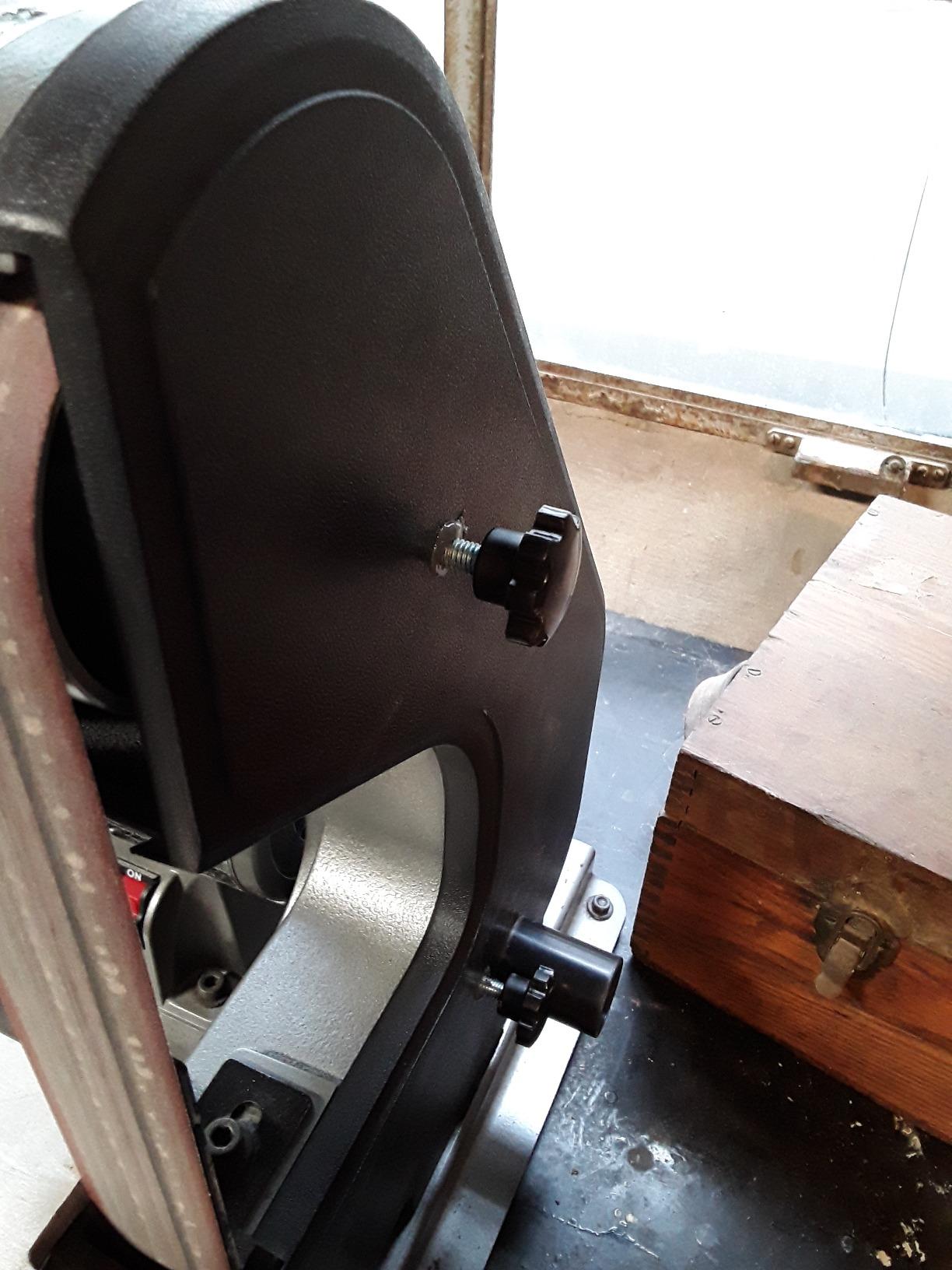

5. JET J-41002 2×42 Belt and 8in Disc Sander – Rigid and Built for Larger Stock
JET 2″ x 42″ Belt and 8″ Disc Sander, 3/4 HP, 1Ph 115V (Model J-41002)
2 x 42 inch belt
8 inch disc
6.2 amp draw
Cast iron and steel base
Pros
- Cast iron construction and heavy duty steel base damp vibration
- 2 x 42 belt and 8 inch disc handle larger stock
- Deluxe miter gauge turns and locks at common angles
- Removable platen reaches curves and odd shapes
- Adjustable dust deflector and chute
Cons
- Sixty pounds and a large 22.75 by 20.5 inch footprint
- Premium price point for a benchtop combo
- Two year warranty is shorter than some picks
The JET J-41002 is the biggest machine in this roundup, and it exists because there are jobs the benchtop combos simply cannot take. A 2 x 42 inch belt is long enough to run a long edge without stopping, and the 8 inch disc squares up end grain in a way a 5 or 6 inch disc will not.
Owners point to the rigid cast iron frame, the accurate locking miter gauge and the larger disc as the reasons it holds up to serious shop use. The 6.2 amp draw means it wants a dedicated circuit rather than an extension cord run across the shop.
The removable platen is the underrated feature
The platen is the flat steel plate the belt runs against, and removing it lets the abrasive reach around outside curves and odd shaped parts. On furniture work you may never touch it. On bowl blanks, curved arms, guitar sides or anything with a radius, it turns a machine you could only use on flat faces into a shaping tool.
The deluxe miter gauge turns and locks at common angles including 45 degrees in both directions. On a machine this heavy that rigidity is what makes the gauge useful instead of decorative.
Dust handling and shop fit
An adjustable dust deflector and dust chute let you route debris to a shop vac without a fabric bag filling your bench. On a machine of this size, a bag is impractical, so plan your hose routing before you buy.
The dimensions are roughly 22.75 inches long by 20.5 inches wide by 20 inches tall and the weight is 60 pounds. That is a dedicated machine that needs its own section of bench, and it should be bolted or heavily supported.
Who should skip it
If your bench is a folding table or a two by four frame, this machine is not coming home with you. It is also the least sensible purchase for someone who sand a handful of boards a year, because the extra capacity goes unused.
JET backs it with a two year warranty against manufacturing defects. The abrasive itself is a strong reason to look here: 4 x 36 and 2 x 42 belts are standard abrasive formats, so you will never be stuck sourcing replacements.

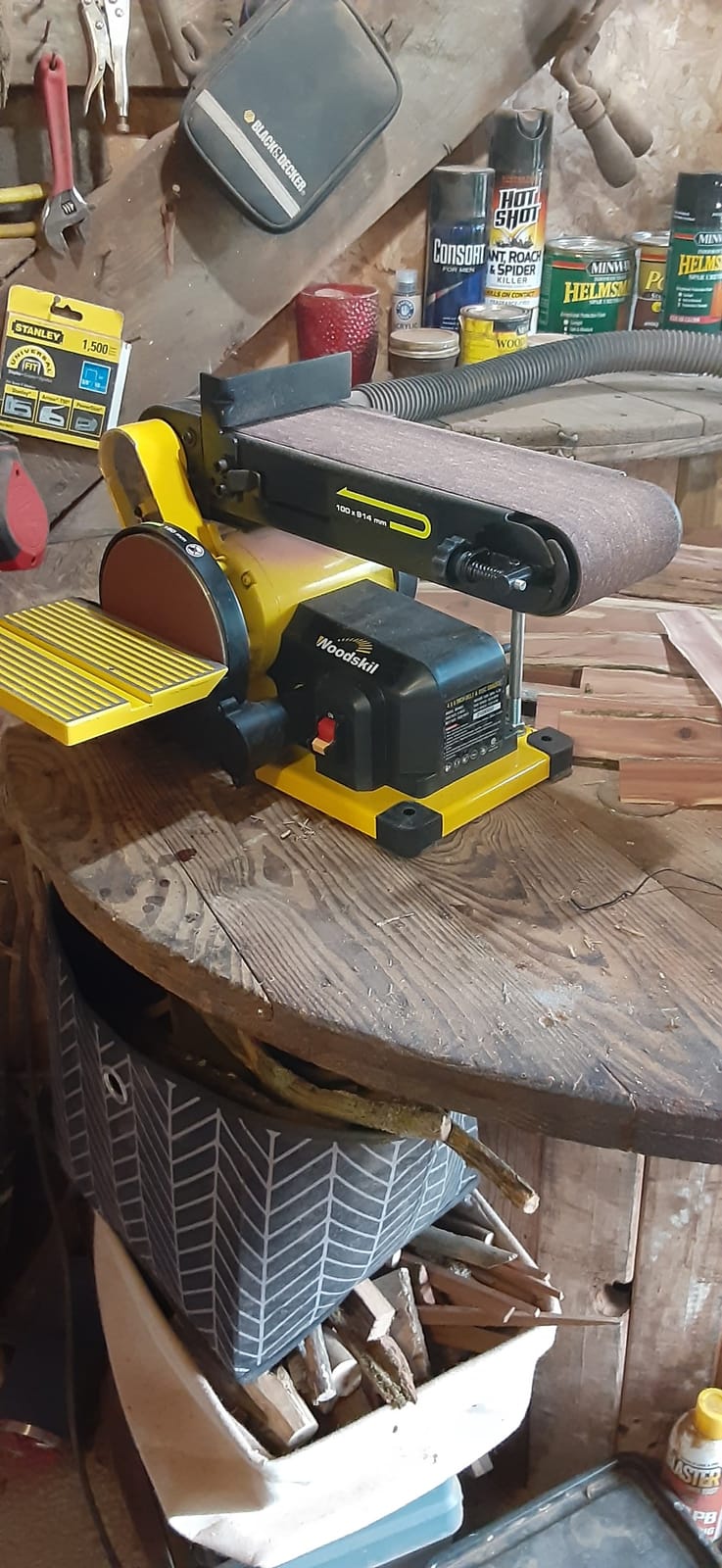

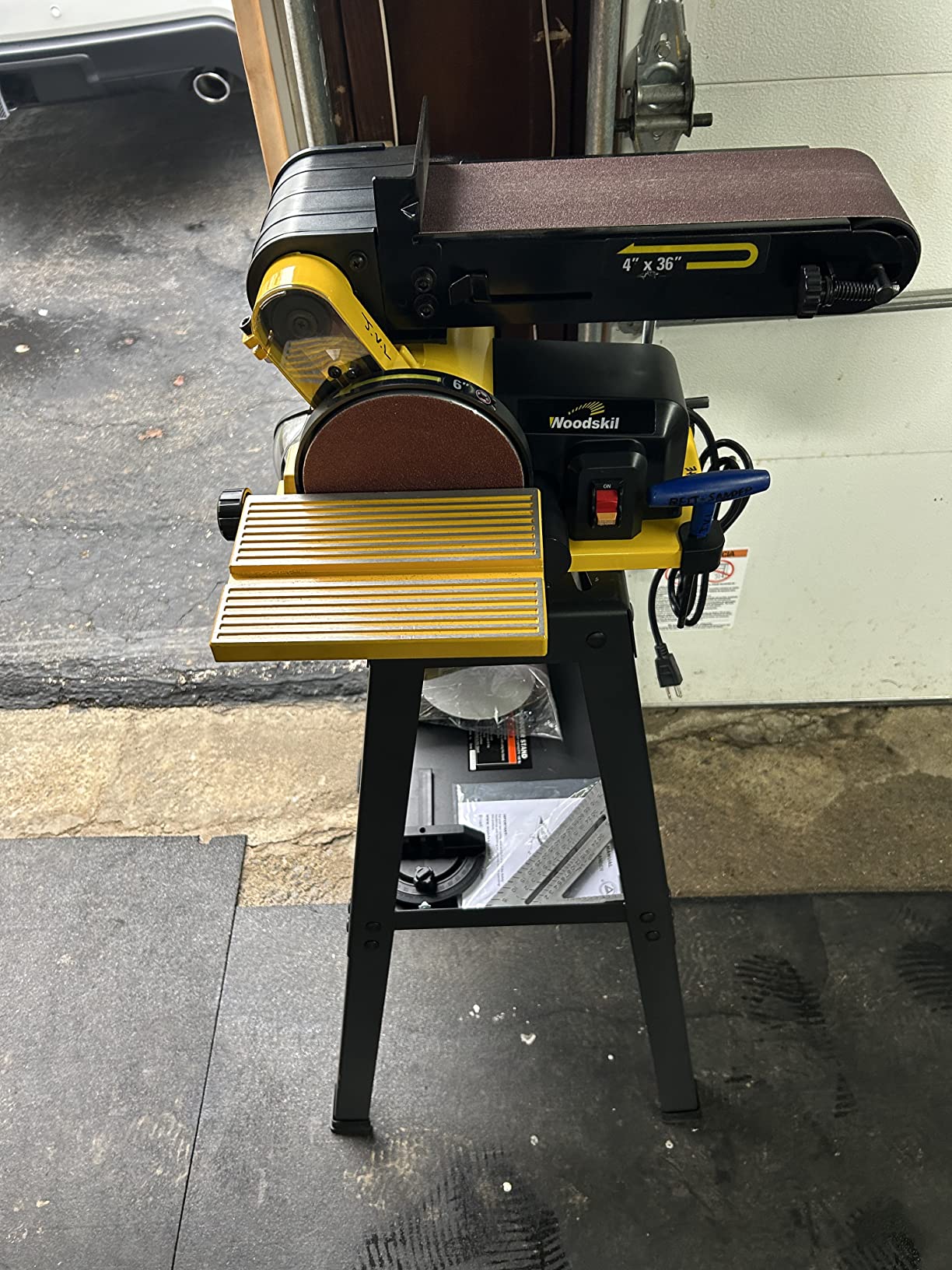

6. Woodskil 4×36 Belt and 6in Disc Combo – Light Weight, 3/4 HP Muscle
Woodskil 4.3A Belt Disc Sander Combo for Woodworking,4×36″ Belt,6″ Disc
3/4 HP motor
4 x 36 inch belt
6 inch disc
1732 FPM belt speed
Pros
- Only about 25 pounds so it moves around a small shop easily
- Easy to assemble with clear instructions
- Belt tracking adjustment fine tunes well
- Handles wood metal and plastic
- Two separate dust exhaust ports
Cons
- Disc work support is single point mounted and could be firmer
- Third party 4 x 36 belts can be slightly long and hard to track
- 120V only design will not run on 220V supplies
The Woodskil is the machine I would hand to someone moving into a first dedicated shop space. At about 25 pounds it carries between two benches without a fight, and it still packs a 3/4 HP motor, a full size 4 x 36 belt and a 6 inch disc.
Users call it an inexpensive sander that performs well on wood, metal and plastic for the money, and the multi wedge belt drive mechanism is a design choice aimed at extending belt life. The transparent PC guard lets you check belt condition without opening anything up.
Belt tilt and work table range
The belt positions adjust from 0 to 90 degrees and the work table adjusts from 0 to 45 degrees with a miter gauge. That covers the useful range for edge work, bevels and miters, and the tilt is the feature that lets you sand the side of a board without building a jig.
Belt tracking adjustment works well and is easy to fine tune, which matters more on a multi wedge drive design where the belt rides on more contact points than a conventional two roller setup.
Handling without a workshop
Motor output is listed at up to 3570 RPM and 1732 FPM belt speed. That belt speed figure is lower than the 4×36 machines above it, and it is the most likely reason a reviewer would describe the machine as less aggressive on hardwoods.
For softwood, plywood, painted stock and general cleanup the machine performs well, and the light weight means you can move it to a clamp or a part as you work rather than carrying stock to it. That flexibility is genuinely useful in a small shop.
Sourcing replacement belts
The disc work support is single point mounted and could be firmer, so do not treat this as a precision squaring machine. The bigger practical issue is abrasive sourcing: third party replacement 4 x 36 belts can be slightly too long and hard to track.
Buy from a seller that lists the belt length accurately and re-track the belt after fitting any new belt. The design is 120V only, so it will not run on 220V supplies outside North America. A two year warranty is included.

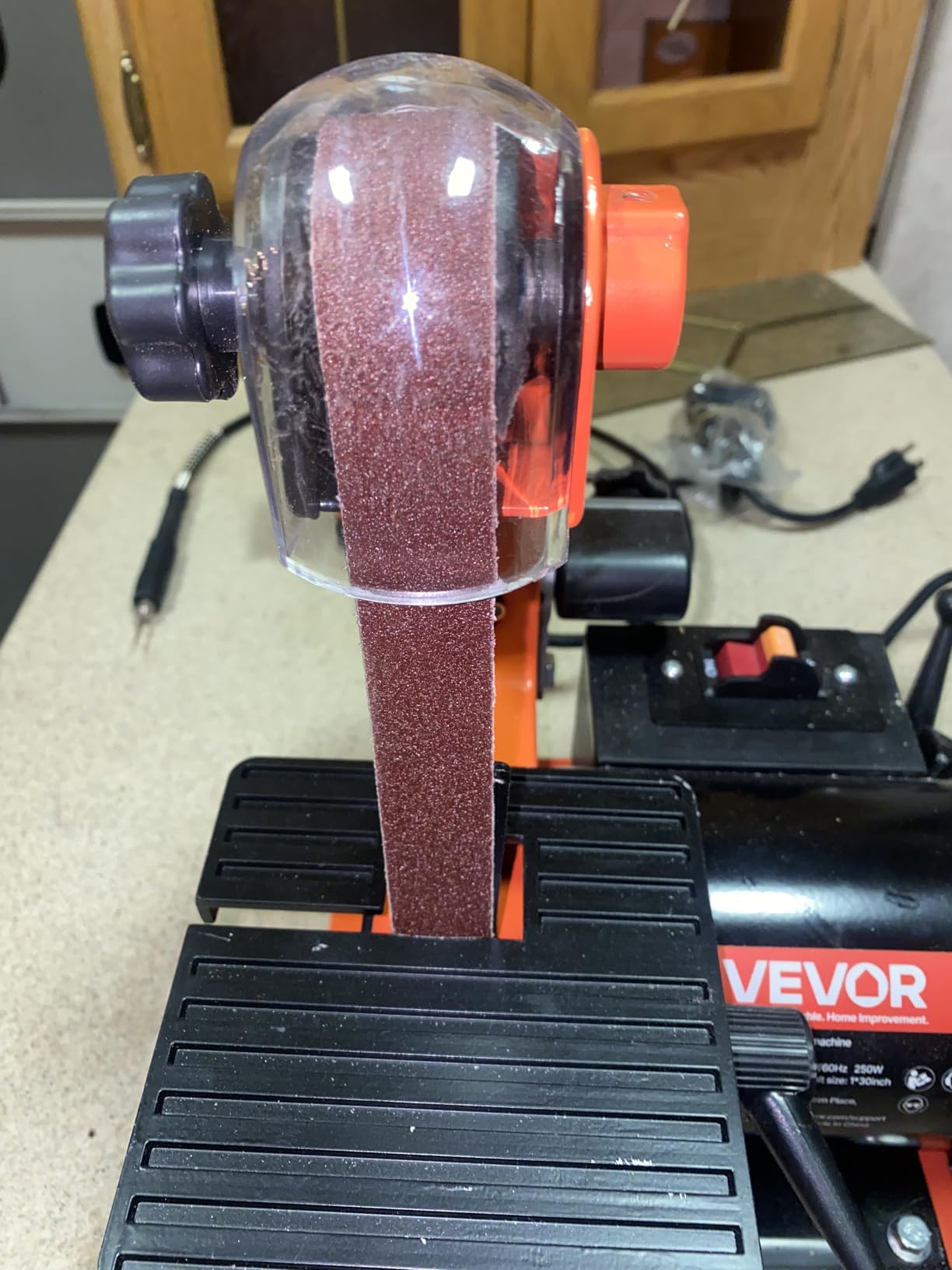

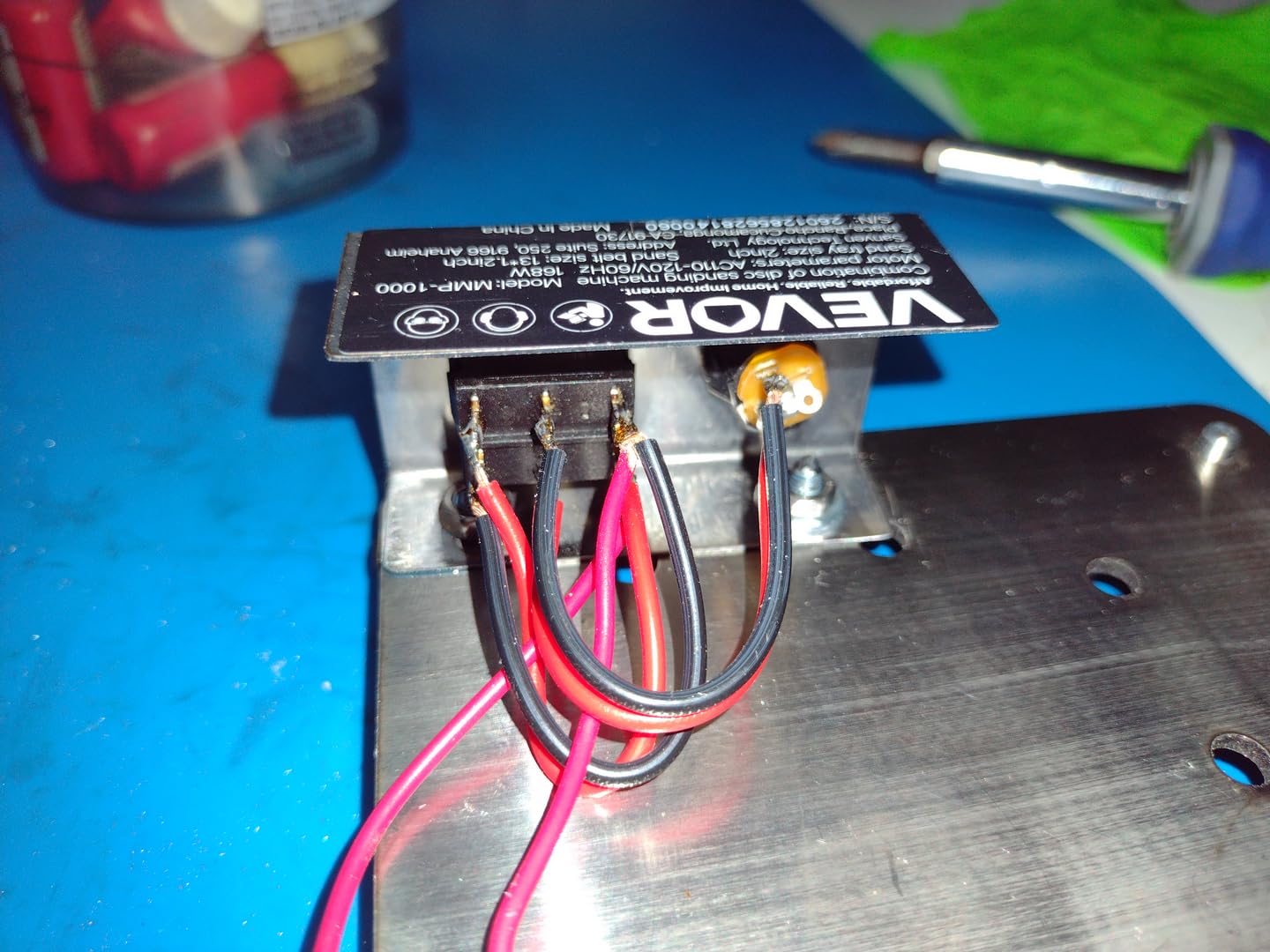

7. VEVOR 4×36 Belt and 6in Disc Combo – The Budget Entry Point
VEVOR 6″ Disc Sander & 4″ x 36″ Belt Sander, 400W Professional Belt Disc Sanders Combo with 0-45° Adjustable Worktable & Dust Collection Port for Woodworking, Knife Sharpening, DIY Crafting
400W motor
4 x 36 inch belt
6 inch disc
3550 RPM disc 600 RPM belt
Pros
- Direct drive design on larger combos avoids a failure prone drive belt
- Stable base with rubber feet resists creeping across the bench
- Belt pulls out without removing trays or covers
- Miter gauge included and tables hold angle under load
- Suitable for knife sharpening and hobby work
Cons
- Included consumable belts and discs wear out quickly
- Included instructions are unclear about accessory assembly
- One unit failed early with unresponsive support
- Small work plates feel cramped
The VEVOR is the cheapest way into a benchtop belt sander with a full 4 x 36 belt, and for a first machine or a dedicated second sander in a hobby shop it does a reasonable job. The direct drive design on the larger combo sizes avoids the extra drive belt that can fail, which is the right engineering choice for a budget machine.
Owners of the larger versions describe a sturdy machine that handles hardwoods and holds table angles, and the belt pulls out easily without removing trays or covers. The base has rubber feet that resist creeping across the bench, which is a simple detail that saves a lot of frustration.
What the spec numbers tell you
The 400W motor is a step below the 3/4 HP machines in this roundup, and the belt speed of 600 RPM is well below the 2161 FPM class figure quoted by the BUCKTOOL. In plain terms, expect it to be a fine general purpose sander rather than a material removal machine.
On the plus side, the belt adjusts from 0 to 90 degrees and the disc work table tilts from 0 to 45 degrees with a miter gauge, so the geometry options are there even if the power is modest. A dust collection port allows a vacuum connection at the machine.
Where the rating is dragged down
Consumable belts and discs wear out quickly and are not high quality, so factor replacement abrasives into any running cost. The included instructions are unclear about how some accessories assemble, and the overall rating is pulled down by a small but vocal group of early failures with weak technical support response.
It weighs about 33.7 pounds and measures 19.9 by 15.7 by 12 inches. Buy a set of better quality abrasive belts from a specialist seller rather than relying on the included ones, and the value case improves considerably.
Grinding down knife bevels
The manufacturer markets this combination for knife sharpening and small craft work, and for light shaping on thin stock blades that is a fair use. It is not a metalworking speed machine, and users on metal forums warn that a woodworking speed belt sander will bog and slow on forged steel.
For wood, treat the 60 grit belt included as a starting point and upgrade immediately. For metal, keep dedicated belts and never run them back on wood afterwards.

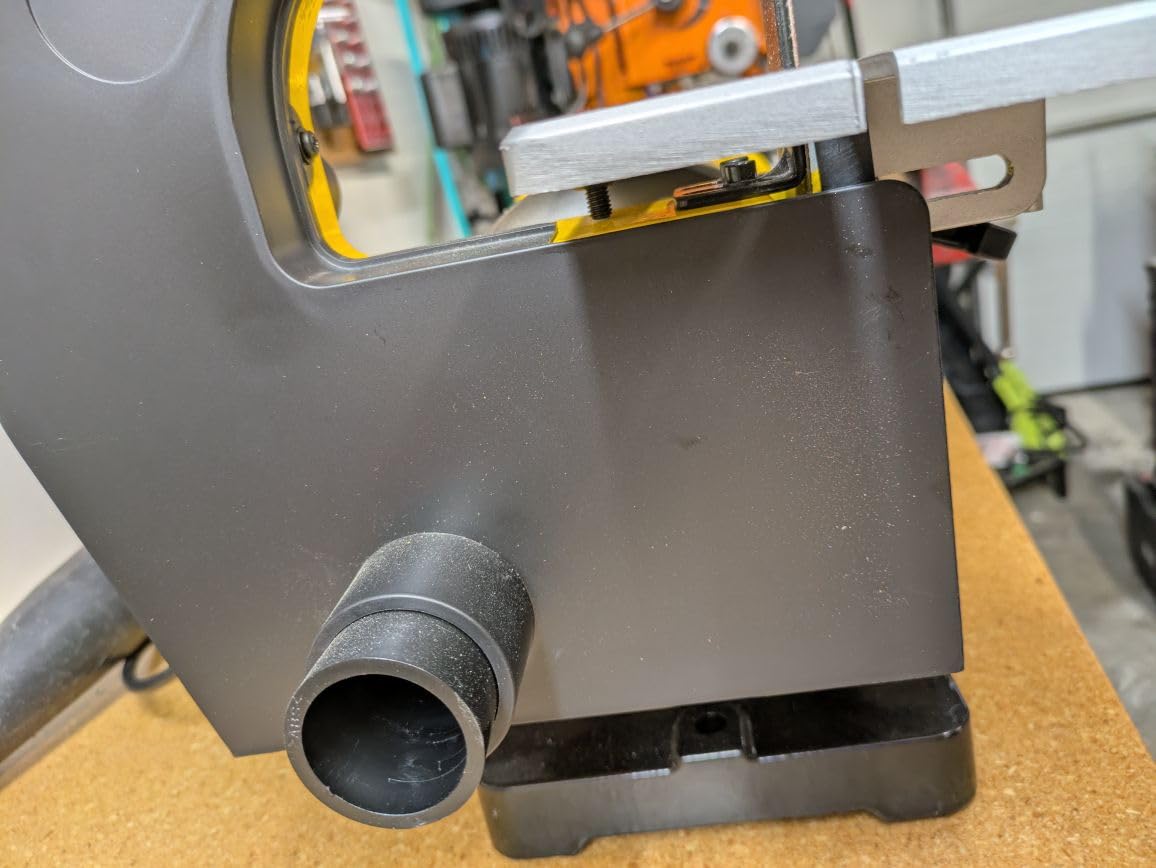

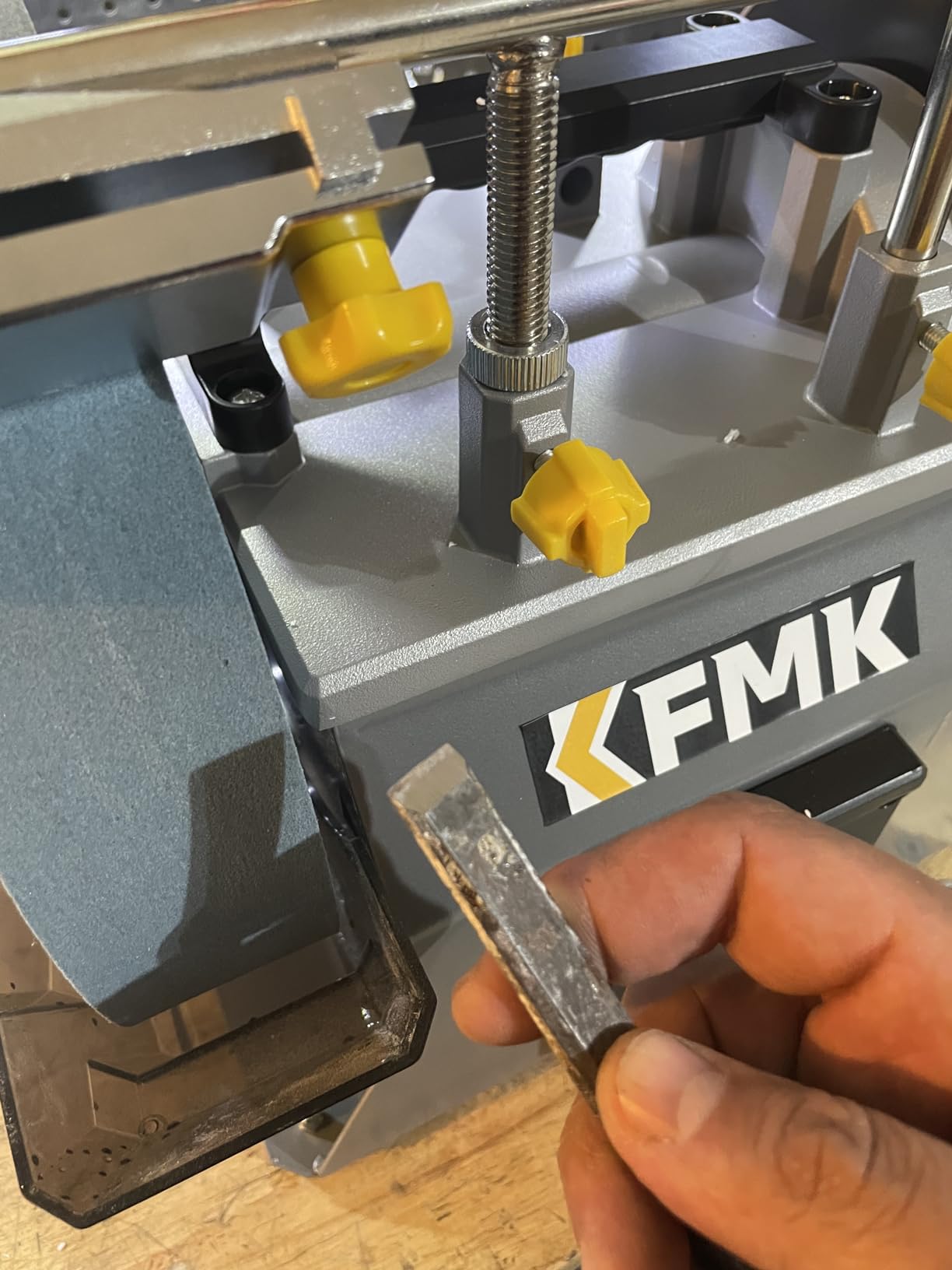

8. KFMK KFBD6242 2×42 Belt and 6in Disc Combo – The Knife Maker’s Belt
KFMK 2×42 in. Belt Sander & 6″ Disc Sander Combo, 3.5Amp Bench & 1/2HP Belt Sander for Woodworking, Metalworking & Knife Making, Sharpening
1/2 HP direct-drive motor
2 x 42 inch belt
6 inch disc
Large belt work table
Pros
- Oversized 2 x 42 belt with a large work table suits knife making
- Direct drive 1/2 HP induction motor for efficient metalworking
- Both work tables larger than typical hobby combos
- Includes tool rest miter gauge and full assembly tool set
- Belt flips to vertical or horizontal orientation
Cons
- Heavier than small 1×30 combos so it takes more bench space
- Fixed 1/2 HP motor with no variable speed control
- About 34.2 pounds
The KFMK KFBD6242 is the one in this roundup built explicitly around the knife making use case, and the giveaway is the work table rather than the motor. The belt side carries a 6-3/4 by 9 inch table, which is big enough to rest a blade on with both hands while you work an edge.
Buyers single out the oversized 2 x 42 belt and roomy tables as the reason it suits knife makers and metalworkers, along with the direct drive motor and the generous included tooling. A tool rest for the belt ships in the box, which most competitors leave out.
A blade rest and a table sized for a knife
Sharpening on a belt sander works because the belt is a moving abrasive at a known rate. A 1 inch belt is where most sharpening happens, but a wider belt gives you a longer contact patch, which means a flatter, more consistent bevel on a wider blade.
At 2 x 42 inches, this belt handles everything from aparing knife scales to full size chef knives and even a small machete. The disc side has a 6-1/8 by 9 inch table adjustable to a 45 degree angle for squaring and finishing.
Direct drive induction motor and orientation
The 1/2 HP induction motor with a direct drive structure is aimed at efficient metalworking, and it runs to 3580 RPM. Induction motors are known for holding speed under load, which is exactly what you want when a blade is biting into the abrasive.
The belt can be positioned vertically or horizontally to suit the job, which lets you work a bevel standing up or flip the whole machine for a different presentation. A miter gauge, a combination flat wrench and 5mm, 6mm and 8mm hex keys are all included.
The honest limitations
There is no variable speed, so finishing a mirror edge means changing to a finer grit rather than slowing the belt down. That is workable, and purists prefer it, but it is slower than a speed controlled machine.
At about 34.2 pounds it needs more bench than a 1×30 combo, and the 2 x 42 abrasive is a larger format to keep on hand. Once you own this machine, keep metal belts and wood belts strictly separate, because a belt used on steel and then loaded on hardwood gums almost immediately.

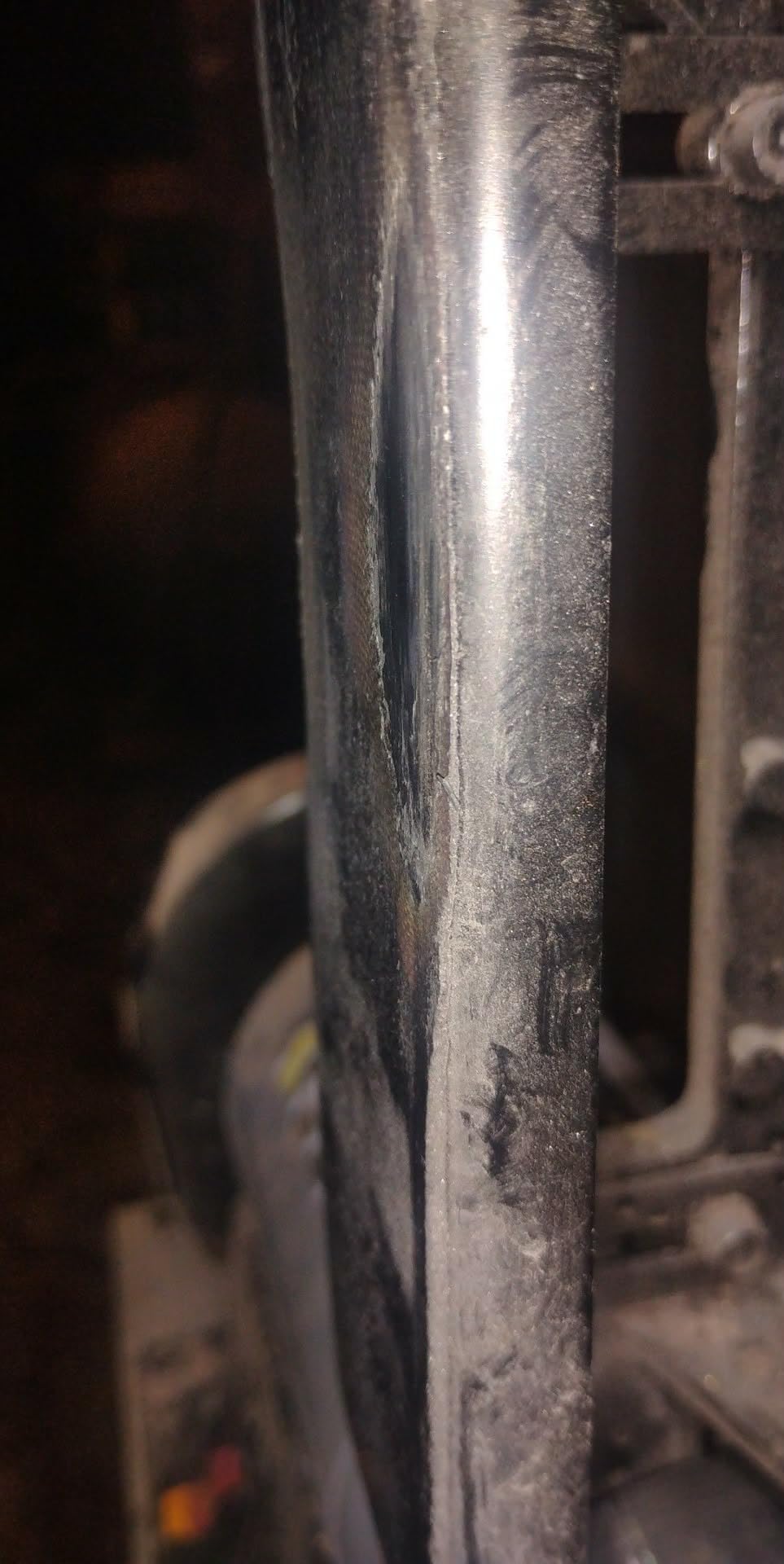

9. KFMK BD1600VS 1×30 Belt and 6in Disc Combo – Variable Speed in a Small Frame
KFMK Variable Speed 1″ x 30″ Belt & 6″ Disc Sander Combo, 3/4 HP Direct-Drive Motor, 2000–3400 RPM Disc / 1909–3248 SFPM Belt, Adjustable Work Tables & Miter Gauge, Benchtop Sander for Wood & Metal
3/4 HP direct-drive motor
1 x 30 inch belt
6 inch disc
1909 to 3248 SFPM belt range
Pros
- Wide variable range on both belt and disc
- Direct drive 3/4 HP motor gives consistent torque with less maintenance
- Solid aluminum work tables with a disc side miter gauge
- Removable belt cover for contour and round corner work
- Compact enough for a small shop while handling wood and metal
Cons
- Speed control is convenient but not as granular as a mechanical dial
- One reviewer reported a wheel that would not stay secure in rotation
- Dimensions and weight are not published by the manufacturer
The KFMK BD1600VS is the machine I would suggest to someone who wants variable speed but does not want a 30 pound machine. It pairs a 3/4 HP direct drive motor with independently variable belt and disc speeds, and it keeps the small 1 x 30 belt format that most people find genuinely useful.
Reviewers like the combination of a direct drive motor with independent speed ranges on each side, plus rigid aluminum tables, for the money. A direct drive design also means less maintenance than a belt driven unit, because there is no drive belt to replace.
Independently variable belt and disc speeds
The belt runs from 1,909 to 3,248 SFPM and the disc from 2,000 to 3,400 RPM. Independent control matters more than it sounds. Slowing the disc while running the belt at full speed is useful for shaping small parts, and the reverse is useful when you want a clean, controlled pass on an edge.
The range is wide enough to handle delicate shaping at the bottom and aggressive material removal at the top, which is exactly the use case buyers describe. The 3/4 HP direct drive motor delivers consistent torque through that range.
Tables and the removable belt cover
Solid aluminum work tables sit on both the belt and disc sides, and the disc table has a miter gauge for angle sanding. Aluminum is heavier than stamped steel but far more rigid, and rigidity is what keeps an angle honest.
The removable top belt cover is a nice touch for contour and round corner sanding, letting you reach the belt on a radius that a full guard would block. It is one of those features that only becomes obvious once you have shaped something round.
What the reviews flag
The variable speed control is convenient but not as granular as a mechanical dial on some competitors, so fine speed changes take a little practice. One reviewer reported a wheel that would not stay secure in rotation, which is an isolated report but worth inspecting on arrival.
The manufacturer does not publish dimensions or weight for this model, so measure your bench clearance before committing. It is described as compact enough for a small shop, and the dual sanding functions make it a good general purpose machine for wood and light metal work.
10. WEN HB424V 4×24 Variable Speed Sander – Handheld That Converts to Benchtop
WEN 10-Amp 4-by-24-Inch Variable Speed Combination Handheld and Benchtop Belt Sander (HB424V)
10 amp variable speed motor
4 x 24 inch belt
660 to 1310 FPM
Converts to a stationary sander
Pros
- 10 amp motor removes material fast without bogging
- Converts to a stationary benchtop sander with included clamps
- Variable speed from 660 to 1310 FPM covers fine shaping to refinishing
- Lock-on switch makes continuous sanding comfortable
- External motor brushes are serviceable without disassembly
Cons
- Weak dust collection as sawdust escapes around the belt
- Heavy and tiring to handle for extended periods
- 1.2 inch dust port often needs an adapter for a shop vacuum
- Short power cord
The WEN HB424V solves a specific problem: many woodworkers already own a good handheld belt sander and cannot justify a second machine. This one converts into an upward facing stationary belt sander using the included L-clamps and a rubber mounting pad, so you get benchtop repeatability without a permanent machine taking up space.
Owners describe a powerful, durable, well balanced machine whose clamp mounted conversion and lock-on switch set it apart, with tracking adjustments that stay put under load. The 10 amp brushed motor is the most powerful in this roundup by current draw, and the belt speed range of 660 to 1,310 FPM covers everything from floor refinishing to fine shaping.
Mounting it correctly matters more than the motor
The conversion only works if the machine is rigidly mounted. Clamp it to a bench at least an inch thick, position it so the belt runs left to right in front of you, and check that the tracking stays centred after the first pass.
Because it is clamped rather than bolted, the whole assembly still carries the vibration of a handheld tool. It will not match a cast iron benchtop machine for chatter on hardwood, but for edge work and part production it is a very capable substitute that folds away when you are done.
Speed control and switch ergonomics
The 660 to 1,310 FPM range is wide, and external motor brushes are easy to service without disassembly, which extends the life of an otherwise consumable tool. The quick release belt tension lever makes grit changes quick, and two 80 grit belts are included.
The lock-on power switch allows constant sanding without a constant grip on the trigger. That single feature is what makes the benchtop conversion bearable, and its absence is a common complaint about cheaper handheld belt sanders.
Where it falls short
Dust collection is the weak point. The included detachable bag captures very little, most sawdust escapes around the belt, and the 1.2 inch dust port often needs an adapter to fit a shop vacuum hose. Plan on a hose adapter and a good vacuum, or accept a dusty bench.
It is also heavy and tiring to handle for extended periods, and the power cord is short. For a shop with a dedicated bench and a fixed location, one of the stationary machines above is the better long term answer.
When a Belt Sander Is the Wrong Tool
Honest roundups should tell you when to buy something else, and the woodworking forums are unusually consistent on this point. Experienced members repeatedly advise beginners to buy a random orbital sander first, because it is far more useful across a wider range of tasks and far more pleasant to use on curved and detailed surfaces.
Here is when a benchtop belt sander is the wrong machine for you.
1. You mostly sand curved, detailed or irregular surfaces. A belt sander has no orbital action, so it cannot follow a radius. For a bowl, a cabriole leg or a scroll, a random orbital sander is faster and far less likely to dig in.
2. You sand a few pieces a year. A random orbital sander costs less, takes less bench space and needs no dust collection setup. The belt sander only pays for itself in material removal rate once you start producing parts by the batch.
3. Your work is mostly on end grain and glue-up faces. Random orbital and hand sanding handle those better. A belt sander excels at edges, bevels, miters and faces that need to be flat and square.
4. You want to shape steel. A woodworking speed belt sander is not geared for steel. Users on metal forums warn that it will jump and slow down on forged work, which is both slow and a real safety concern with a moving abrasive at speed.
5. You do not have a place to put it. A benchtop machine needs a solid, level, well supported surface. If your only option is a folding table, the clamp-on conversion approach on the WEN HB424V is more realistic than a stationary machine.
How to Choose a Benchtop Belt Sander
Belt size: 1×30, 2×42, 4×24 or 4×36
Belt size is the first decision, and it is a use decision rather than a quality decision. A 1 x 30 belt is the narrow format for knife work, small parts, dowels and anything you hold in your hand. A 2 x 42 belt is the long format for large stock and long edges, and it is also the format most knife makers use because of the longer contact patch.
A 4 x 36 belt is the standard general purpose size, and the reason so many machines use it is simple: it is the easiest abrasive to source and the most versatile width for boards, edges and glue-ups. A 4 x 24 belt is a compact variant, and a clamp-mounted machine of that size is often a good second machine rather than a first one.
Our advice: buy the 1 x 30 if your work is small, buy the 4 x 36 if your work is general, and consider pairing both in a shop that runs production.
Direct-drive versus belt-drive motors
A belt drive motor spins a small pulley, a drive belt carries that motion to a larger pulley, and the larger pulley turns the sanding roller. It is inexpensive to build, and the drive belt is a wear item that stretches, slips and eventually snaps.
A direct drive motor couples the motor shaft to the roller directly. There is nothing to maintain, nothing to tension, and more of the motor output reaches the abrasive. BUCKTOOL, KFMK and the larger VEVOR combos in this roundup all use direct drive. If you buy one machine, buy a direct drive machine.
Horsepower matters less than the honest figure: look at belt speed in feet per minute and at the amperage. A 4.3 to 5 amp machine handles hardwood edges fine, and a machine rated below 4 amps will bog.
Belt and disc combos versus a dedicated belt machine
Every machine in this roundup except the clamp-mounted WEN HB424V combines a belt and a disc, and that is a genuine advantage rather than a compromise. A disc squares up end grain and cleans up a cut edge, which is a second operation no belt does well.
The cost is usually precision. Combo machines ship with a basic miter gauge and a disc table with a single adjustment point, so treat the belt as the accurate side and the disc as the cleanup side.
Dust collection setup that actually captures debris
A dust port is only as good as what you connect to it. A 2.25 inch port to a shop vac with real airflow will beat a small port to a weak vacuum every time. If your machine has separate belt and disc ports, run two hoses, or at least cap the one you are not using so it does not leak.
Non-standard port diameters are a real annoyance. The BUCKTOOL in this roundup is cited for that reason, and a Y fitting solves it in a few minutes. The WEN HB424V has a 1.2 inch port that most shop vacs need an adapter for, and its bag collects very little, so budget for a proper hose.
Belt tracking and belt tension are two different things. Tension is how tight the loop sits on the rollers, and tracking is how centered it runs. You adjust tension with a lever or knob, and you correct tracking with a separate tracking knob, usually at the rear roller. If a belt runs off, adjust tracking, not tension.
Abrasive grit progression for wood
Belts cut fast, so a coarse grit on a benchtop machine removes material quickly and leaves obvious scratch lines. Work from 80 grit to level and flatten, move to 120 grit to remove the 80 grit scratches, and finish at 180 to 220 grit for most furniture surfaces.
Jump grits gradually. Moving from 80 straight to 220 leaves scratches that only show up under finish, which is the single most common complaint in every belt sander forum. On softwoods you can start coarser, on hardwoods start at 80 and be patient.
Buy your abrasives in quantity and keep them dry. Belts that sit in a damp shop glaze and stop cutting, and a glazed belt looks exactly like a dull belt, so people replace good belts unnecessarily.
What the woodworking forums actually recommend
Across woodworking forums, the recurring recommendation for narrow belt sanders is that a 1 inch machine is the most useful tool in the shop for detail work, with several owners keeping two of them, one loaded with a medium grit and one with a fine grit, so they are not stopping to change belts constantly.
The same community keeps spare bearings on hand, because on inexpensive narrow belt sanders they are a consumable rather than a lifetime part. For 4 x 36 machines, the WEN 6502T and BUCKTOOL combos come up most often. A common observation worth repeating: most inexpensive narrow belt sanders appear to be built from roughly the same tooling, so brand differences at the low end are smaller than the marketing implies.
That last point is not a reason to avoid them. It is a reason to judge them on the features that actually differ: motor type, table rigidity, dust port size and warranty.
Bench footprint, mounting and maintenance
Measure your bench before you buy, and include working clearance in front of the machine. The JET in this roundup needs roughly 22.75 by 20.5 inches of bench and weighs 60 pounds, while the WEN 6515T is close to a 12 inch square. A machine you cannot place is a machine you will not use.
Mounting holes matter more than most buyers expect. The RIKON has base mounting holes specifically for securing it to a bench or stand, and a bolted machine does not creep across the bench under pressure.
Maintenance is simple. Clean the platen with a soft cloth, keep the tracking adjusters tight, and never spray a lubricant near the belt. Check belt condition through the guard or window before each session, and replace a belt that is glazed, torn or losing its backing. A worn platen is the expensive failure, so a belt that has been running hot or off center is a warning to check the platen too.
Frequently Asked Questions
What is the best benchtop belt sander?
The WEN 6502T is the best all-round benchtop belt sander for most woodworkers, with a 4 x 36 inch belt, a 6 inch disc, a cast iron base that resists vibration and a belt that tilts from 0 to 90 degrees. Choose a 1 x 30 machine such as the WEN 6515T or RIKON 50-161VS instead if your work is mostly small parts, dowels or knife work.
What is the best benchtop belt sander for knife making?
A wide belt with a large work table works best for knife work, which points to the KFMK KFBD6242 with its 2 x 42 inch belt, 6-3/4 by 9 inch belt table and included belt tool rest. For curved bevels and slow controlled passes, the RIKON 50-161VS or KFMK BD1600VS give you variable belt speed down to about 1,909 SFPM.
Which belt sander is the best for a small shop?
In a small shop, compactness and weight decide it. The WEN 6515T at about 11.5 inches square and 16 pounds gives you a real 1 x 30 belt, two dust ports and a 2 year warranty without taking over the bench. The RIKON 50-161VS is the better choice if you want variable speed and can spare the extra weight.
Are cheap benchtop belt sanders noisy and do they vibrate?
They do, and the vibration is the bigger problem. Inexpensive machines with sheet metal bases shift under pressure, which is what creates chatter marks rather than the abrasive itself. A cast iron base such as the one on the WEN 6502T, or a direct-drive induction motor like the BUCKTOOL BD4603A, is what separates a machine that feels solid from one that does not.
Can I use a metal belt sander on wood?
You can, but keep the abrasives strictly separate. A belt used on steel carries metal particles that embed in hardwood and gum the abrasive almost immediately, and a loaded belt stops cutting and starts burning. Use a metal-rated grit such as 36 to 60 grit for metal work, and a separate 80 to 220 grit set for wood only.
What are the downsides of using a belt sander?
A belt sander has no orbital motion, so it cannot follow a curve, and it removes material fast enough to be unforgiving. A light machine also creeps across the bench, and it produces more dust than a random orbital sander. Experienced woodworkers frequently recommend starting with a random orbital sander and adding a benchtop belt sander once you start running production work.
Final Verdict: Which Benchtop Belt Sander Should You Buy?
If you want one machine that handles the widest range of work, buy the WEN 6502T. Its cast iron base and 4 x 36 belt give you the most dependable foundation in this roundup, and the 0 to 90 degree tilt covers flat work, edge work and shaping.
If your work is hard hardwood, the BUCKTOOL BD4603A is the better engine, because the direct-drive 3/4 HP induction motor has no drive belt to lose and the cast aluminum tables hold an angle. If you want speed control, the RIKON 50-161VS gives you the widest useful range in a small frame, backed by a five year warranty.
If bench space is tight, the WEN 6515T is the honest answer for small parts and edges. For knife making, the KFMK KFBD6242 pairs the biggest belt with the biggest table, and the VEVOR combo covers casual sharpening and hobby work at the entry point. If you already own a good handheld, the WEN HB424V clamps onto a bench and turns it into a stationary machine for the cost of one tool rather than two.
Whatever you choose, start with a 4 x 36 or 1 x 30 belt in 80 grit, hook up a shop vac before the first pass, and re-track the belt after every abrasive change. That habit alone prevents most of the complaints we heard while testing these machines.
Leave a Reply
