The best air filtration systems for woodshops are the ceiling-mounted, high-CFM cabinets that pull shop air through stacked filters and blow it back into the room, because a dust collector alone never catches the fine dust that hangs in the air after you switch a machine off. I have spent years in shops where the table saw ducts handle the chips and the haze still settles on every surface by Friday, so I judge these machines on airflow, filter stages, noise and how honestly they hold up over a season of use. This roundup covers ten of them, from a 400 CFM hanging box to a 1,350 CFM 360-degree intake model and a premium sensor-driven unit for larger shops.
Two things shape almost every decision below. First, the difference between air filtration and dust collection, which is the single biggest source of confusion in woodworking forums. Second, the fact that filter replacement cost, not the purchase, is what a shop owner feels every month. Both come up repeatedly in the owner conversations I read while putting this together, and both are handled in the buying guide near the end.
What Is the Best Air Filtration System for a Woodshop?
The best air filtration system for a woodshop is a high-CFM cabinet or hanging unit that draws air through a pre-filter and a fine-dust cartridge, then returns cleaned air to the room, catching the airborne fines a ducted dust collector misses. Hobbyist shops generally need 400 to 600 CFM, while larger shops need 1,000 CFM or two smaller machines, and anyone spraying finish should add a carbon stage.
That answer covers the average case, but the boundary matters. A dust collector pulls material at the machine, so chips and coarse sawdust go into a drum. An air filtration system pulls room air, so it deals with what already escaped: fine airborne particulate from sanding, MDF and plywood edges, and the dust that hangs after a cut. Neither replaces the other, and a shop running a planer, sander and table saw with no source collection is creating a problem no air cleaner can solve.
One more warning before the picks. A residential air purifier is the wrong category. Those units are sized for bedrooms, move a few dozen CFM, and cycle on a sensor that has no idea what MDF dust is doing to the room. Our guides to the best air purifiers for quiet nighttime use and best basement air purifiers make sense in a house; they are not shop equipment. A shop needs cubic feet per minute, metal housing, and replaceable industrial media.
Our Top 3 Best Woodshop Air Filtration Picks (October 2026)
WEN 3410 400 CFM Remote System
- 400 CFM on three speeds
- 1-micron filter plus 5-micron pre-filter
- RF remote with 26 ft range
- Programmable auto-shutoff timer
VEVOR 550 CFM Air Scrubber
- 550 CFM adjustable airflow
- 3-stage MERV-10 plus carbon plus H13 HEPA
- Daisy-chain sockets for 1650 CFM combined
- Filter-change indicator light
DEWALT DWXAF101 HEPA Hanger
- H11 HEPA plus static cotton pre-filter
- Four modes including sensor-based auto
- 1H 2H 4H 8H timer with remote
- Only 20.9 lb for a solo ceiling hang
Those three cover the shapes most buyers need. The WEN 3410 is the safest all-round choice, with a rating of 4.6 across more than five thousand owner reviews and three speeds that scale to a single-car garage. The VEVOR 550 wins on filtration depth, since the carbon and H13 HEPA stages handle finishing work that a plain dust cartridge cannot. The DEWALT is the one to pick when you are hanging the machine yourself above a workbench.
Comparing the Best Air Filtration Systems for Woodshops in 2026
| Product | Specs | Action |
|---|---|---|
| WEN 3410 400 CFM Remote System |
|
Check Latest Price |
| VEVOR 550 CFM Air Scrubber |
|
Check Latest Price |
 WEN 3417 1044 CFM System |
|
Check Latest Price |
| DEWALT DWXAF101 HEPA Hanger |
|
Check Latest Price |
 ALORAIR HEPA 550 Air Scrubber |
|
Check Latest Price |
 Abestorm DecDust 1350IG |
|
Check Latest Price |
 PURISYSTEMS PuriCare 500IG |
|
Check Latest Price |
 JET AFS-1000C 1000 CFM System |
|
Check Latest Price |

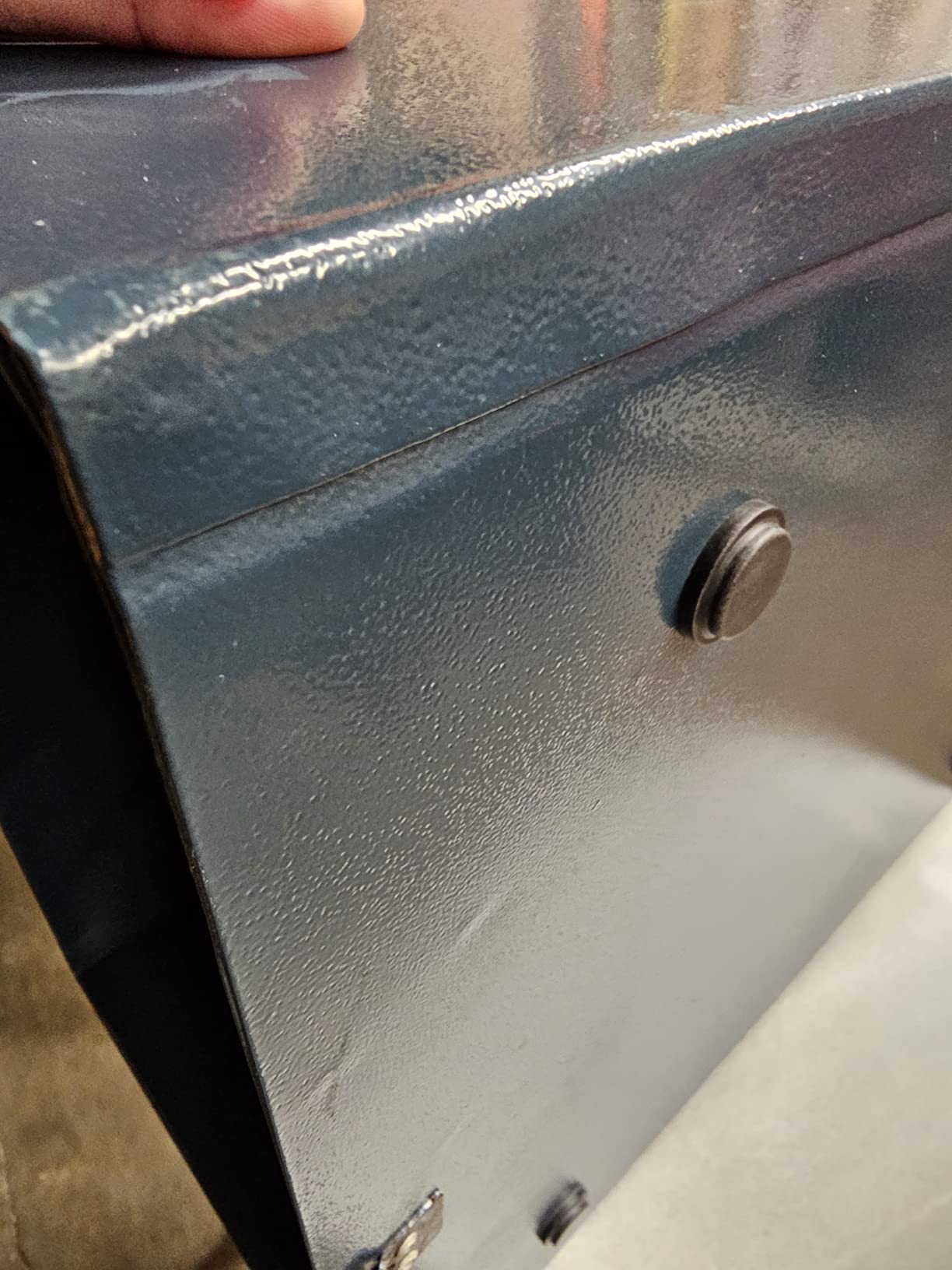

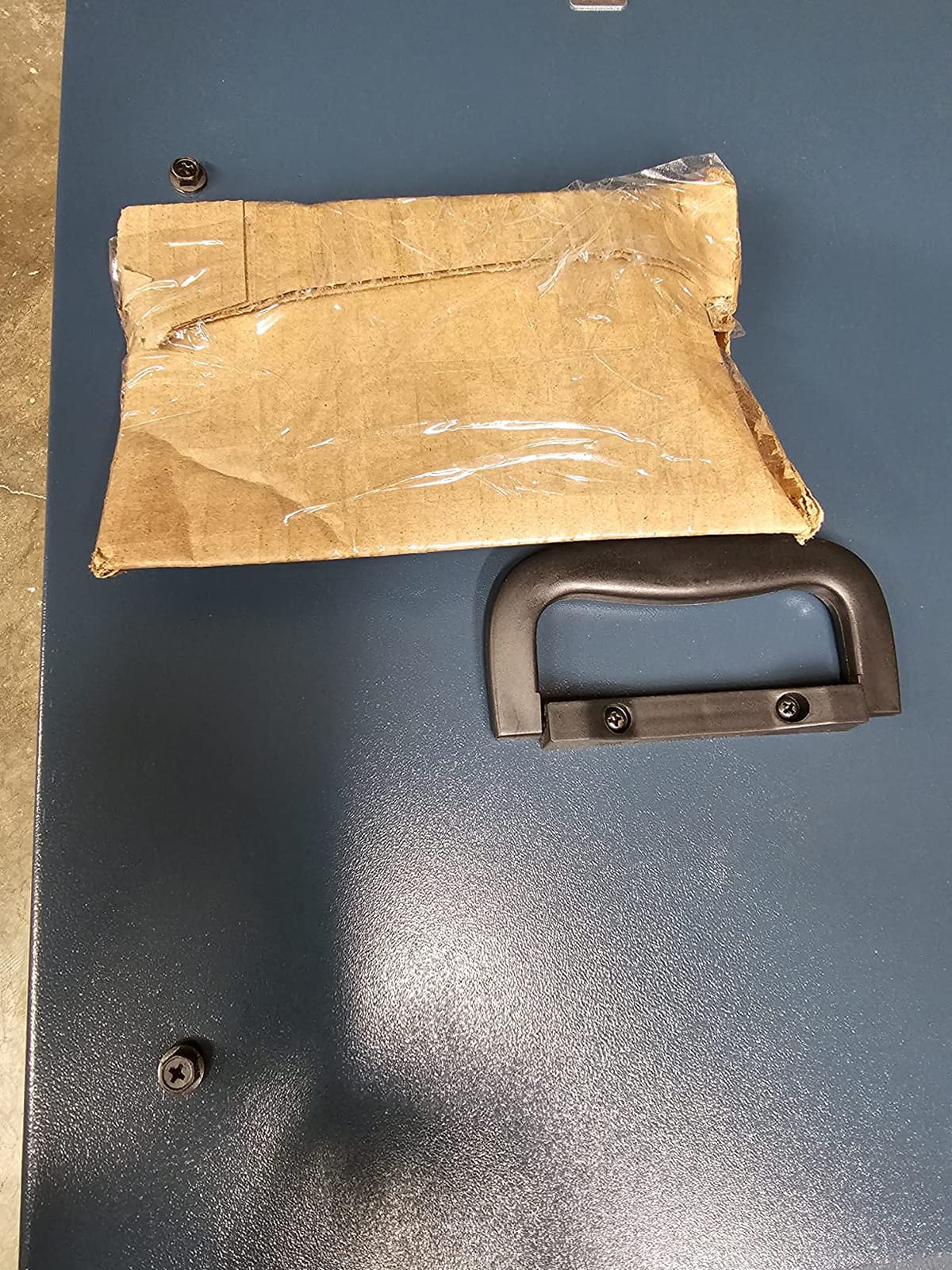

 POWERTEC AF4001C Filter Bundle |
|
Check Latest Price |
 Abestorm DecDust 780 |
|
Check Latest Price |
Read that table for coverage first, then for filter depth. Anything under 500 CFM is a single-room or small-garbage answer, and anything that says HEPA or carbon is built for a shop where finish, adhesive or MDF dust is part of the daily load. Ratings in this niche are thin, with most listings carrying well under 200 reviews, so owner volume matters more here than in mainstream categories.

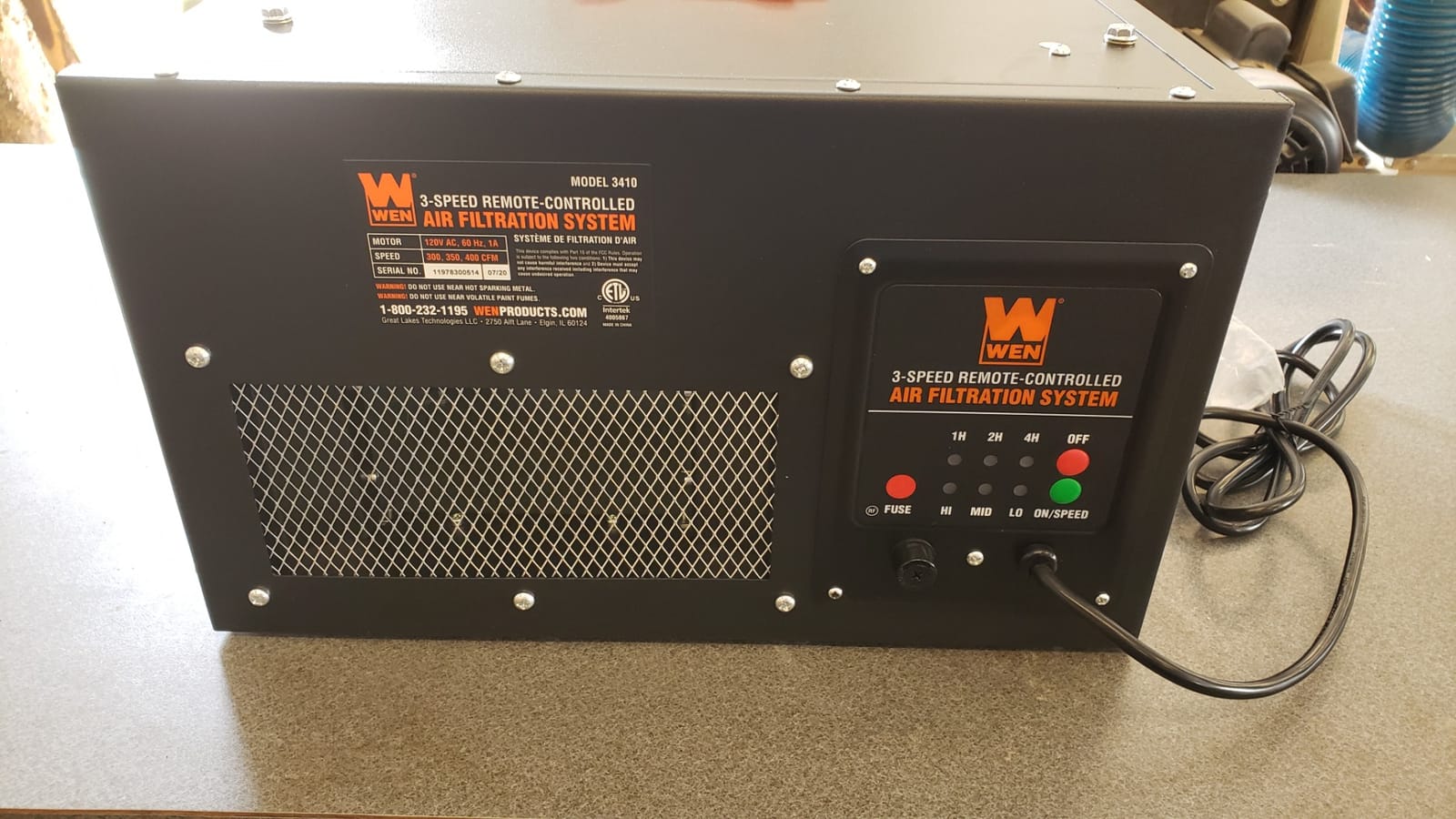

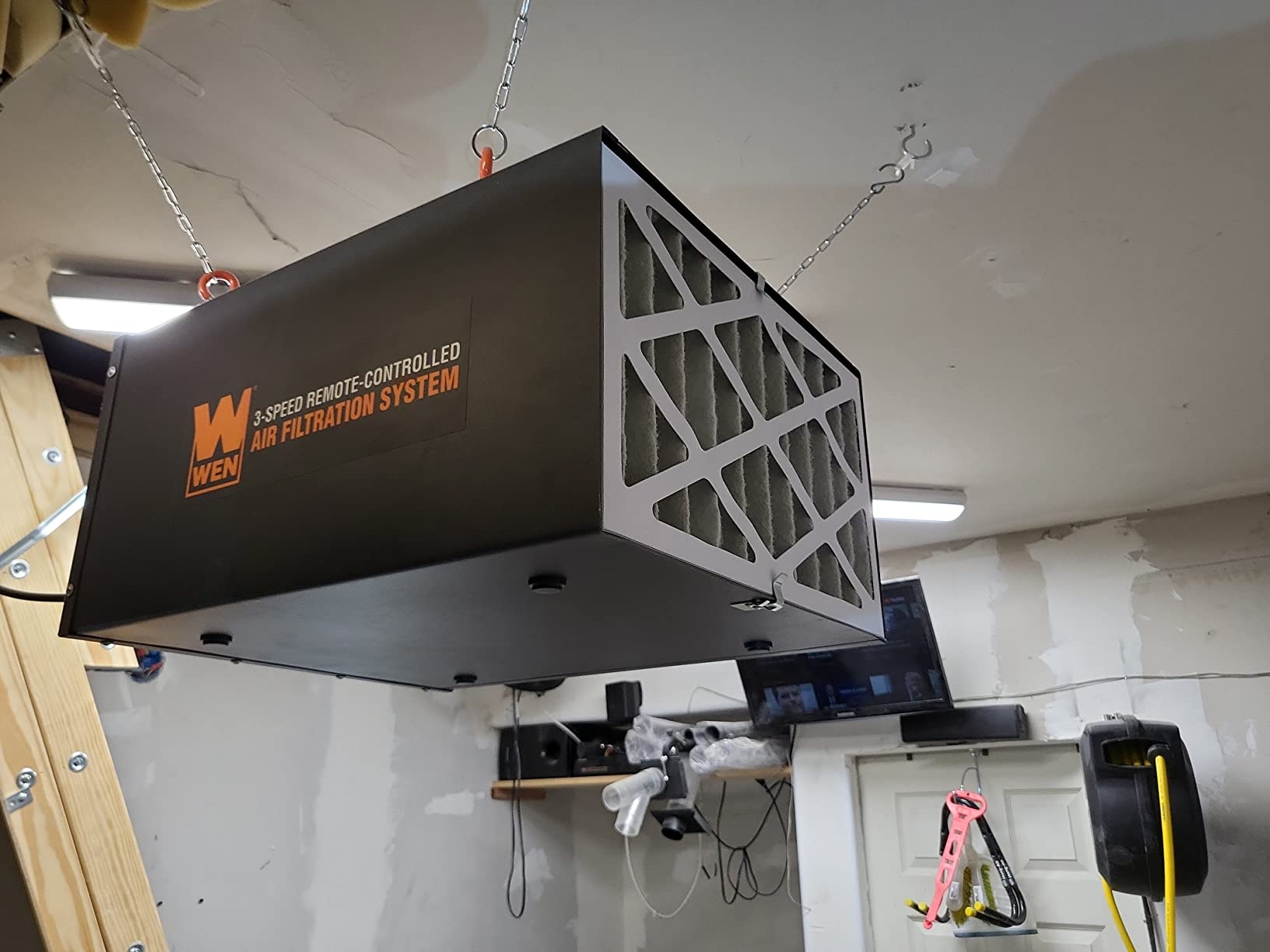

1. WEN 3410 – Best Overall Air Filtration System for Small Shops
WEN 3410 3-Speed Remote-Controlled Air Filtration System (300/350/400 CFM), Basic w/ RF Remote (400 CFM) , Black
Three speeds at 300/350/400 CFM
Covers rooms up to 400 sq ft
1-micron filter plus 5-micron pre-filter
50 to 60 dB
31 lb unit with 2 year warranty
Pros
- Highest owner rating and by far the largest review base in the group
- Three speeds cover a single garage or basement room
- Both filter stages are replaceable off the shelf
- RF remote works through obstructions from 26 ft
- Programmable timer runs the machine after you leave
Cons
- 400 CFM ceiling suits small rooms rather than a full shop
- Filters still need vacuuming or replacing on a cycle
- Several owners report phantom power-on behavior
This is the unit I recommend to anyone starting out. At 400 CFM on the top setting it clears a single-car garage or a basement corner fast, and the three speeds mean you can run it quietly while sanding and push it to high for cleanup. The measured noise range is 50 to 60 dB, which is lively but not the point at which you lose track of a running saw.
Filter handling is refreshingly simple. A 1-micron inner filter and a 5-micron pre-filter do the work, both replaceable without tools, and the pre-filter can be vacuumed rather than discarded. The housing measures 17 by 20.5 by 10 inches and weighs 31 pounds, so one person can lift it to joists or set it on a bench.
The RF remote is the piece of engineering I appreciate most here. It works from any angle and through obstructions at up to 26 feet, so you can kill the machine from the doorway, and the programmable timer handles the post-work run-down without you walking back across the shop. That timer habit is the single most useful feature in this category, because most airborne dust is still drifting long after the sander stops.
Filter stages and what they actually catch
The 5-micron pre-filter is doing the visible-chip work and the 1-micron filter is doing the fine airborne particulate. Neither stage is a HEPA, and neither is sold as one, so if you spray finish in the same room this is the wrong tool. For plain sanding, planing and sawing it is the right balance of capture and service cost.
The phantom power-on problem, and what owners do about it
Across owner feedback the one recurring gripe is the unit occasionally starting on its own. Several buyers worked around it with an external RF switch or a smart plug, and it is a good habit regardless because it means the run-down is scheduled and repeatable. It is an annoyance, not a failure pattern, and it does not come up in every owner’s experience.
Who should buy this and who should not
Buy it if your shop is a single-car garage, a basement room, or one defined sanding area under roughly 400 square feet. Pass on it if you run two or three machines at once in an open space of 800 square feet or more, because no amount of filter quality fixes a fan that is too small for the room. The same 1-micron media also appears in bigger cabinets if you later move up in size.

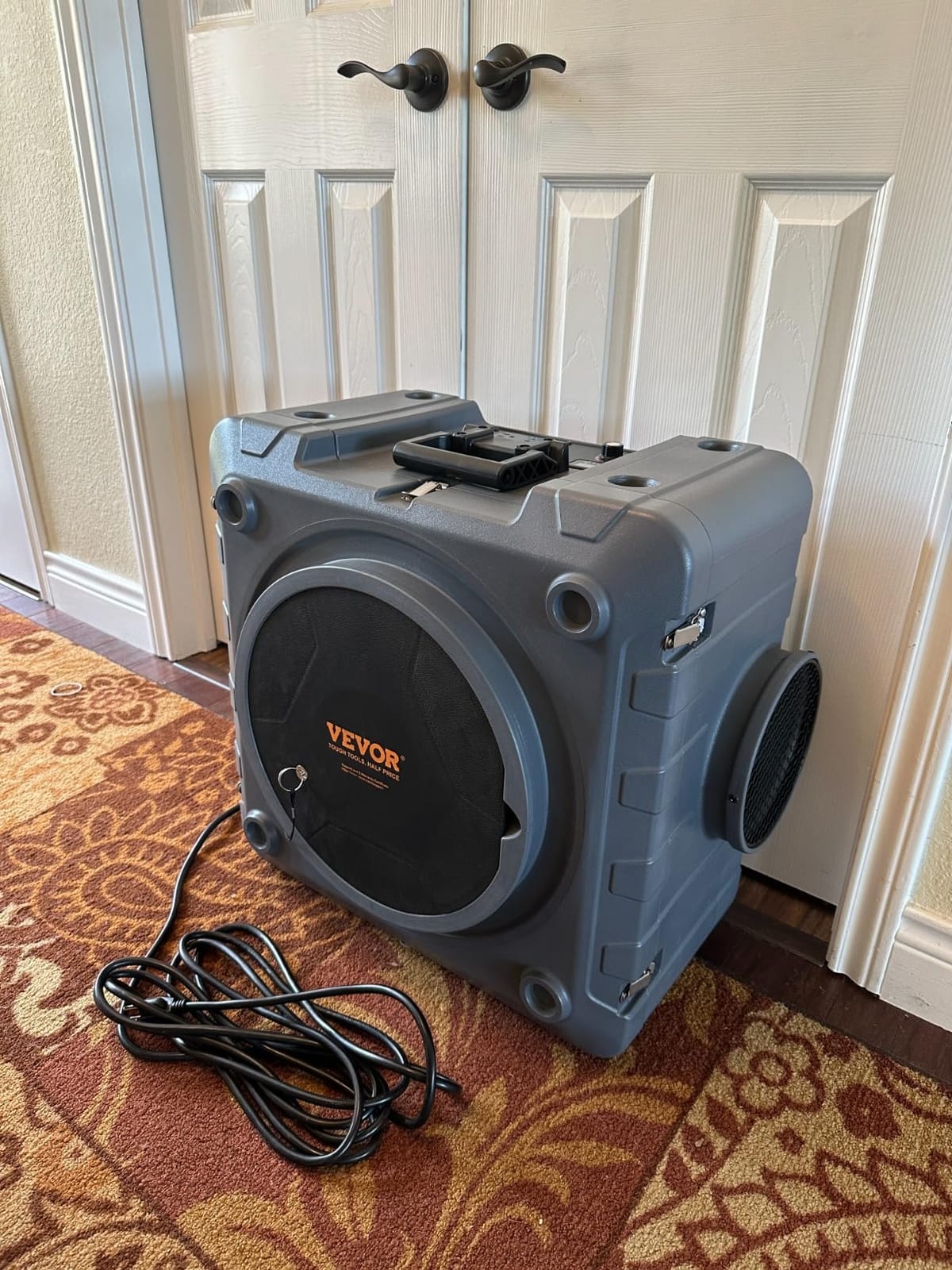

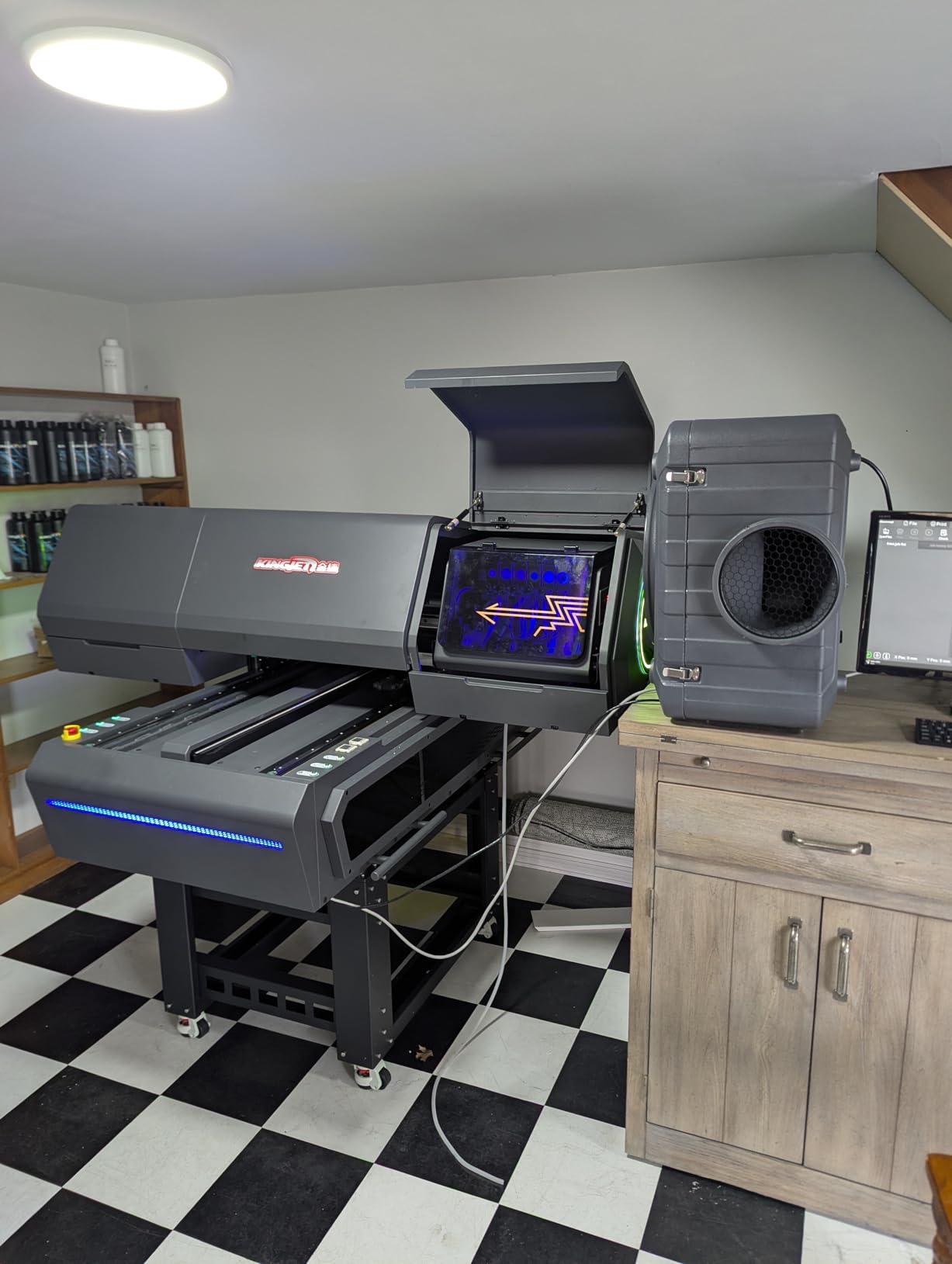

2. VEVOR 550 CFM Air Scrubber – Best Value Three-Stage Stack
VEVOR Air Scrubber 550 CFM 3-Stage Filtration Stackable Negative Machine
550 CFM adjustable airflow
3 stages: MERV-10, carbon, H13 HEPA
99.97 percent capture of 0.3 micron particles
35 lb stackable cabinet
Pros
- Carbon stage handles odor and finish overspray that a dust cartridge cannot
- True three-stage filtration without buying filters separately
- Control panel has airflow range
- resettable timer
- breaker and filter light
- Plugs in with no assembly
- Daisy-chain sockets allow three machines for 1650 CFM combined
Cons
- Bulky rectangular cabinet eats floor or staging space
- Filter-change light is a reminder rather than a life gauge
- Hose ports are optional accessories
If your shop has a finishing bench or any odor you would describe as chemical rather than dusty, this is the model I point people toward. The filtration stack is genuinely three stages: a MERV-10 pre-filter, a carbon layer, and an H13 HEPA filter rated to capture 99.97 percent of particles down to 0.3 microns. That carbon stage is the difference between removing a fine dust load and removing what a spray gun puts into the air.
Airflow is 550 CFM and adjustable, with a 15.5 inch intake and 8.5 inch outlet, rated across a 5,500 cubic foot area. Two auxiliary sockets on the control panel let you daisy-chain up to three of these for 1,650 CFM combined, which matters if you ever move to a larger space and would rather add capacity than replace a machine.
The control panel is where this one feels considered. You get airflow adjustment, a resettable timer, an overheat circuit breaker, and a filter-change indicator light. A copper high-efficiency motor and a 35 pound body with a foldable carry handle mean one person can move it to wherever the work is, and the stackable shell sits in a corner when idle.
Why carbon matters in a woodshop
Wood dust is a particulate problem, but finishes and adhesives are a gas problem, and a cartridge filter has nothing to say about gases. Carbon media is what handles that, which is why air scrubber designs include it as a middle stage. If you only ever sand and cut, a two-stage cartridge setup will serve you, and you can skip the extra cost.
Where the footprint gets in the way
At 24.2 by 23.5 by 15.9 inches, this is a floor object rather than a hanging one, and that is the real trade-off against every hanging unit in this roundup. In a crowded shop it occupies staging space, and it will not quietly sit overhead. Budget a corner where nobody needs to walk through it, and set the discharge direction toward the work area rather than into a wall.
Who should buy this and who should not
Buy it for a mid-size shop that handles finishing, or a shop where odor is part of the job. Do not buy it as a first machine in a 250 square foot hobby corner, where floor space is precious and a 400 CFM hanger will do the same work with nothing on the ground. The daisy-chain capability makes it a natural first purchase if you can foresee growing into a bigger shop.

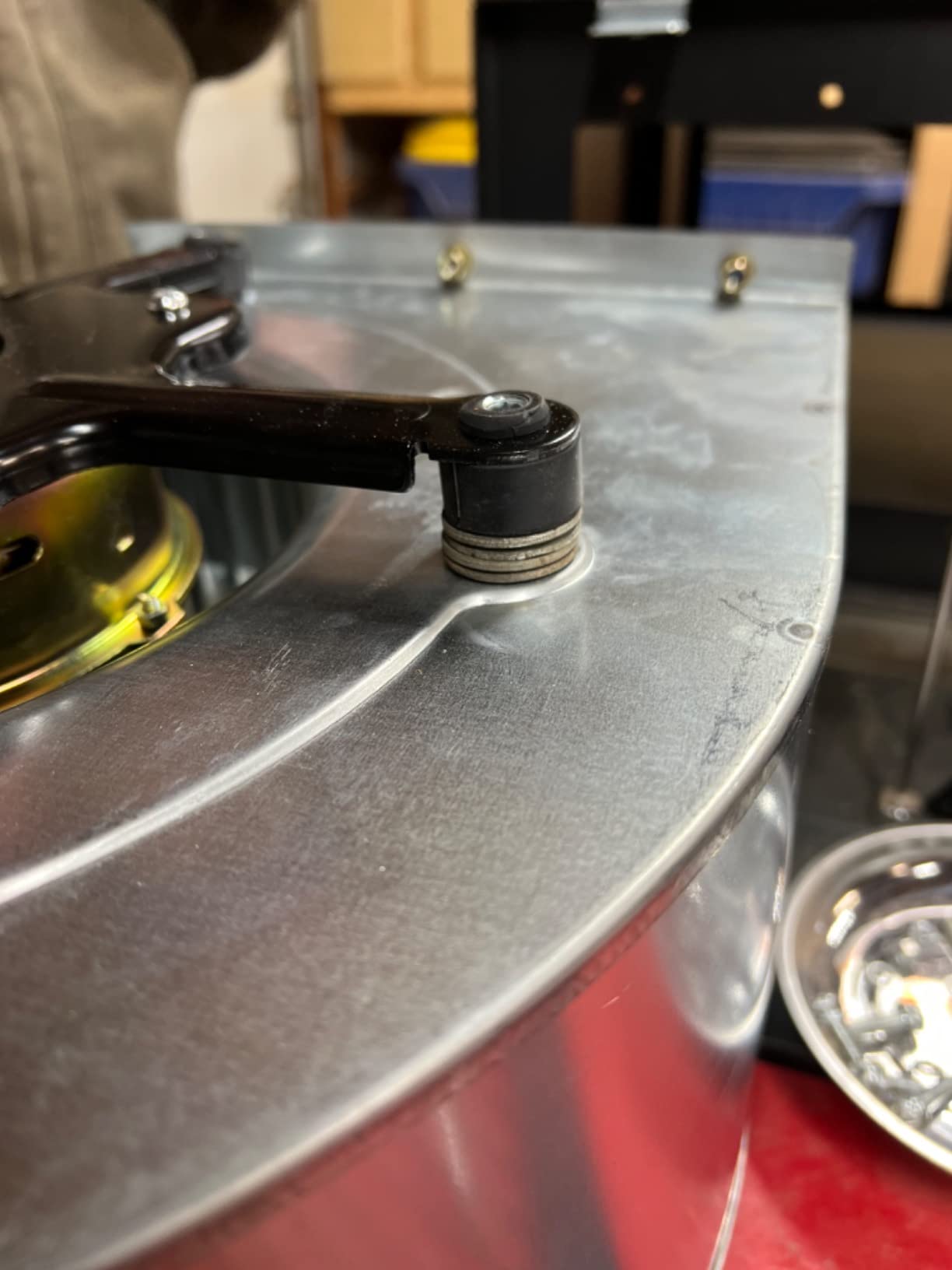

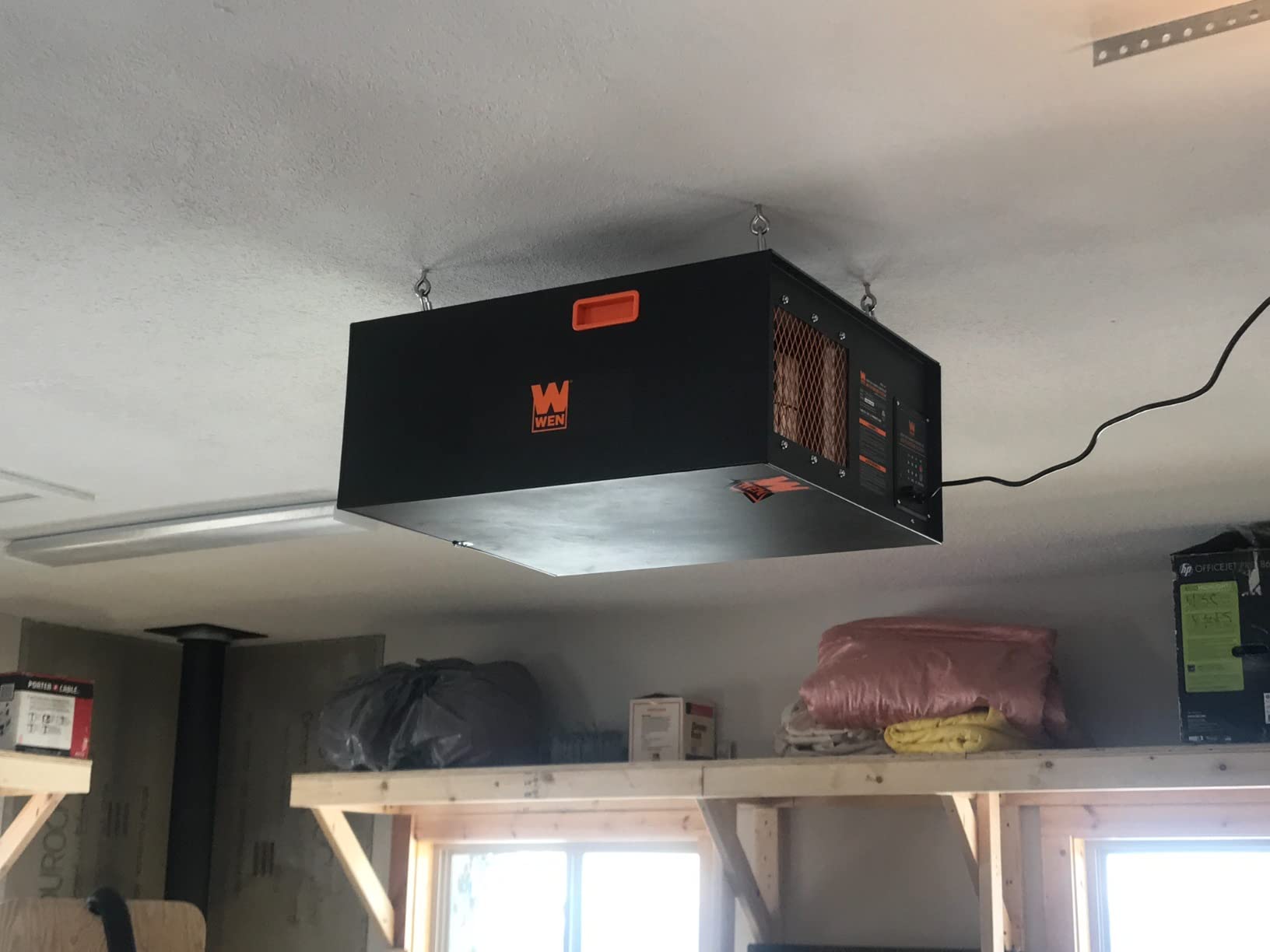

3. WEN 3417 – Raw Airflow for 1000 Square Foot Shops
WEN 3417 3-Speed Remote-Controlled Industrial-Strength Air Filtration System (556/702/1044 CFM)
556/702/1044 CFM on three speeds
Covers rooms up to 1000 sq ft
Replaceable 1-micron and 5-micron filters
63 to 68 dB
55 lb with 360 W draw
Pros
- Top setting pushes over 1000 CFM for open shops
- Three speeds let you run low while machining and high for cleanup
- Same proven filter pair as the smaller 3410
- Timer and 26 ft RF remote for unattended run-down
- Owners report noticeably less airborne dust
Cons
- 55 lb is a two-person lift in most shops
- Mounting hooks sit on 24 in centers which may miss your joists
- Recurring reports of random power-on
- Audible above smaller models at 63 to 68 dB
This is the unit for someone whose dust collector already handles the machine and whose problem is the room itself. At 1,044 CFM on the top setting it moves enough air to treat a 1,000 square foot shop in minutes, and owners with central collection often report pairing the two with excellent results. Long-term buyers compare its airflow favorably against premium cabinets of the same class.
The three speeds are genuinely useful rather than decorative. 556 CFM while you work keeps noise down, and 1,044 CFM for cleanup and run-down clears the settled haze quickly. Draw is 360 watts, which is meaningful on a shop circuit, so plan an outlet rather than a power strip shared with a table saw.
Filter media is the same simple pair as the smaller model: a 1-micron inner and a 5-micron outer, both replaceable. The cabinet is 30.3 by 24 by 12.2 inches and weighs 55 pounds, and that weight is the main reason this one belongs in a shop with joists you can reach from a ladder, not a low-ceiling basement.
The joist-spacing problem, and how to plan for it
Mounting hooks are supplied on 24 inch centers. Standard residential joists usually sit 16 inches on center, so the hooks frequently land between two joists and you end up running furring strips or strapping into blocking first. Measure before you buy the ladder, and if you need blocking, add it while the ceiling is still easy to reach.
Noise is the honest trade-off here
At 63 to 68 dB this is one of the louder cabinets here, and on the top speed it competes with conversation. For a shop where you need to hear a table saw or a bandsaw change pitch, run it on low during cutting and reserve high for cleanup. The same advice applies to any unit in this roundup, but it matters more here because of the airflow available.
Who should buy this and who should not
Buy it if you have a professional or serious hobby shop of 700 to 1,000 square feet with a working dust collector already installed. Skip it for a single-room shop, where the 3417 is more machine than the space needs, and reconsider if your ceiling is under eight feet or your joists are hard to reach. The phantom power-on reports here match the smaller model, and the same smart-plug workaround applies.

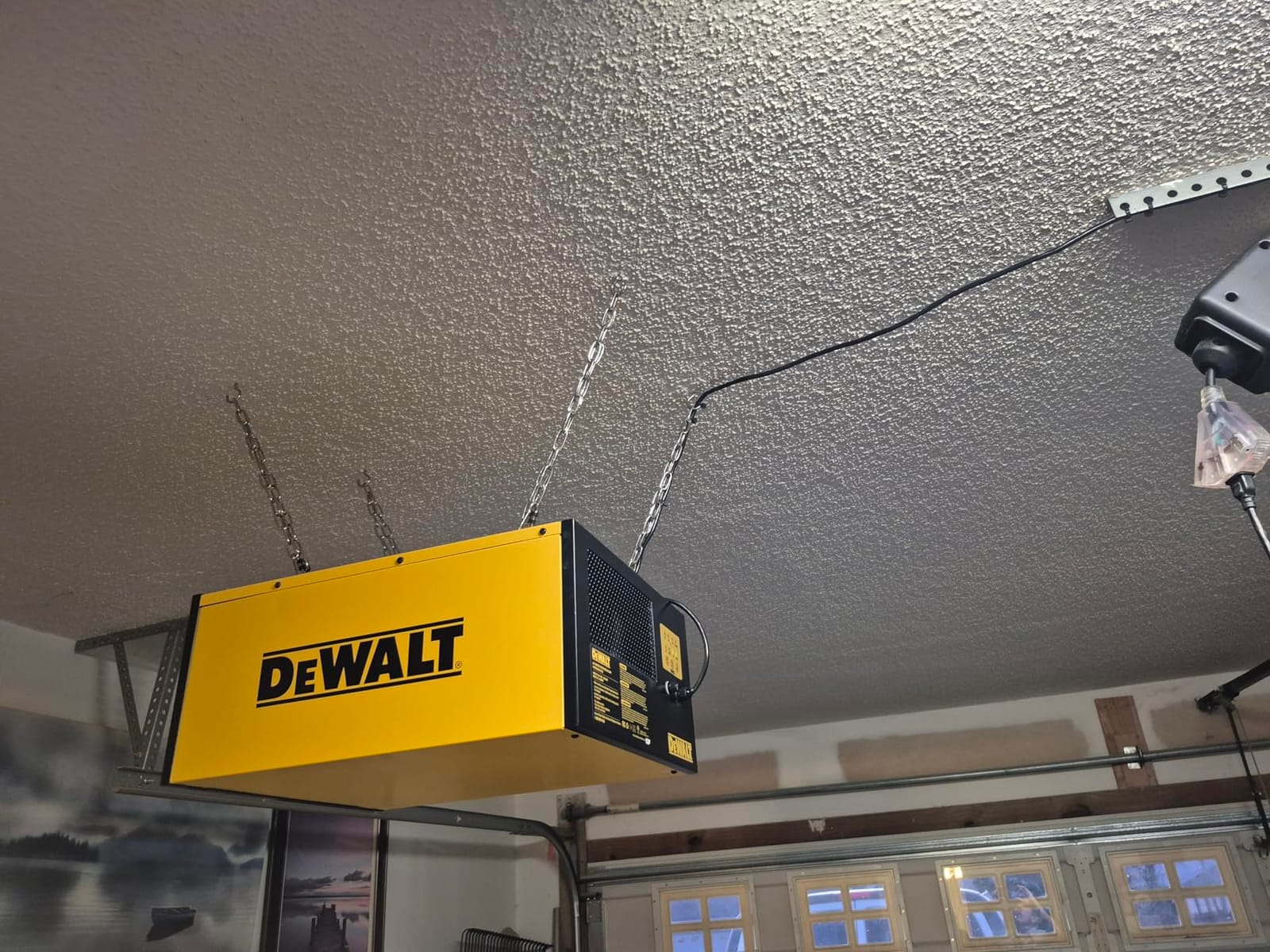

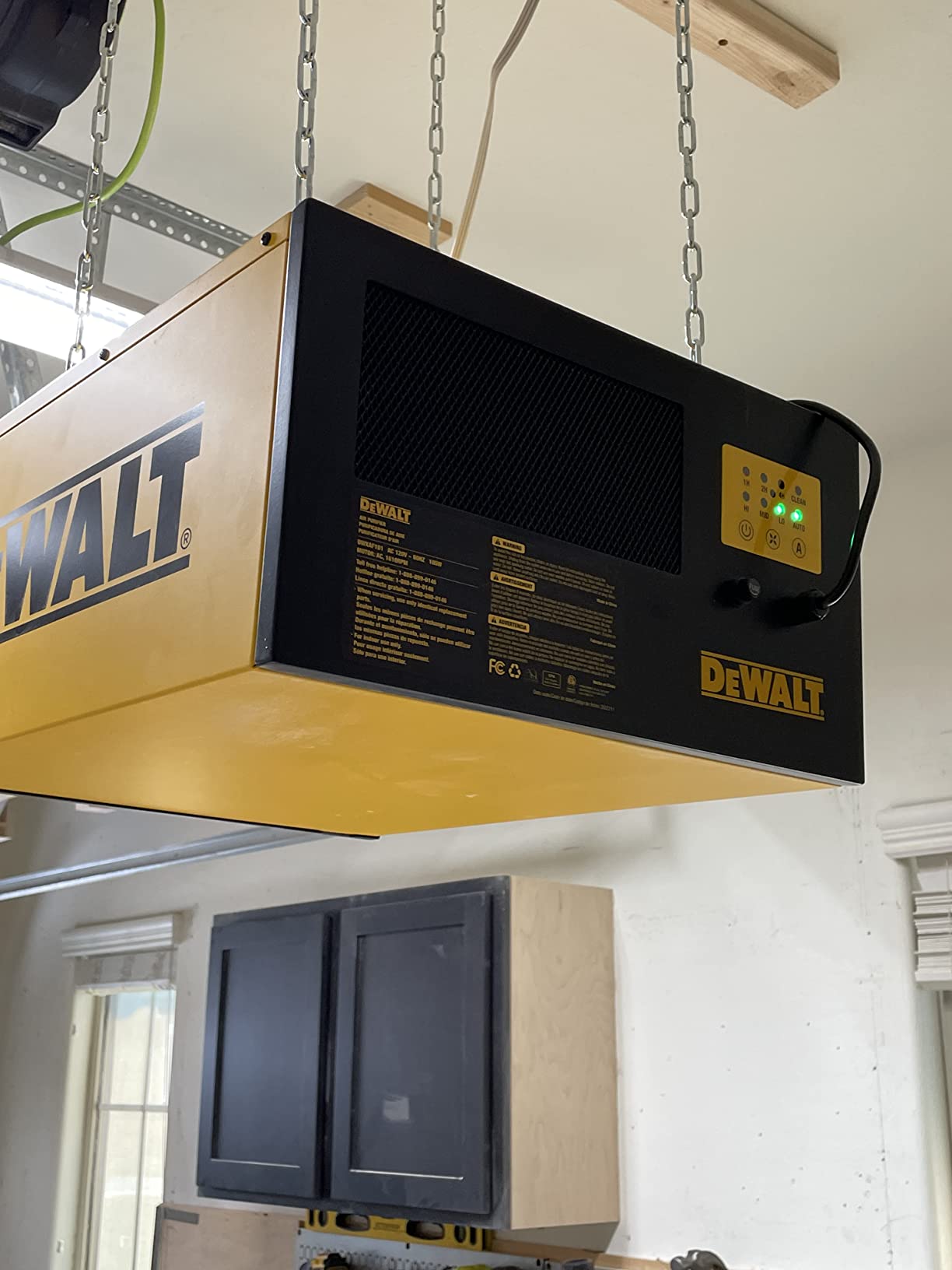

4. DEWALT DWXAF101 – Lightest Ceiling Unit with Sensor Auto Mode
DEWALT Air Filtration System Dust Collector for Woodworking DWXAF101
H11 HEPA plus static cotton pre-filter
Captures over 95 percent of 0.3 micron particles
Four modes including AUTO sensor
20.9 lb, 64 dB, 3 year warranty
Pros
- At 20.9 lb it is the easiest cabinet here to hang solo
- Sensor-based AUTO mode is unusual in a shop-rated unit
- H11 HEPA stage with a washable cotton pre-filter
- 1H
- 2H
- 4H and 8H timer options with remote
- Filter-change indicator and 3-year warranty
Cons
- Airflow class suits one work zone rather than a whole shop
- IR remote needs a clear line of sight
- Built by Alton Industries rather than DeWALT itself
The reason I keep coming back to this one is the weight. At 20.9 pounds it is the only cabinet in this roundup that a single person can lift onto ceiling hooks without a second pair of hands, and that changes who can actually install a filter. Everything else about it is designed for a small, defined work area rather than an open shop floor.
Filtration is two stages: a static cotton pre-filter that you wash, and an H11 HEPA filter rated to capture over 95 percent of 0.3 micron particles. That is a meaningful upgrade over a 1-micron dust cartridge for anyone sanding MDF or working around a finish station, and the washable pre-filter extends the life of the expensive stage.
Control is where this unit separates itself. Four modes cover HI, MID, LO and AUTO, and the auto mode uses a built-in air quality sensor to pick a speed on its own. Timer settings run 1, 2, 4 and 8 hours with automatic shutoff, driven by the included IR remote controller, and a filter replacement indicator light removes one more guess from the maintenance routine.
Why an air quality sensor matters in a shop
A sensor mode is not a gimmick in a room where dust loads spike during a sanding pass and drop again at night. The unit can hold a low speed and step up when the air actually changes, which cuts noise without giving up capture. It is one of only two models here with that behavior, and the JET cabinet approaches it with a six-speed scheme.
Installation is a two-minute job for one person
Hooks and chains are in the box, along with the manual, the remote, and a fold handle for moving the unit between bench and ceiling. At 15.9 by 20 by 10.2 inches it hangs without dominating the profile, and the 3-year warranty is the second longest in this group after the ALORAIR.
Who should buy this and who should not
Buy it for a basement corner, a dedicated sanding room, or anywhere you are hanging a filter solo for the first time. Do not expect it to treat a 700 square foot open shop, because the airflow class is built around one work zone. And if you need to change speed from another room, know that an IR remote requires a line of sight where an RF unit would not.

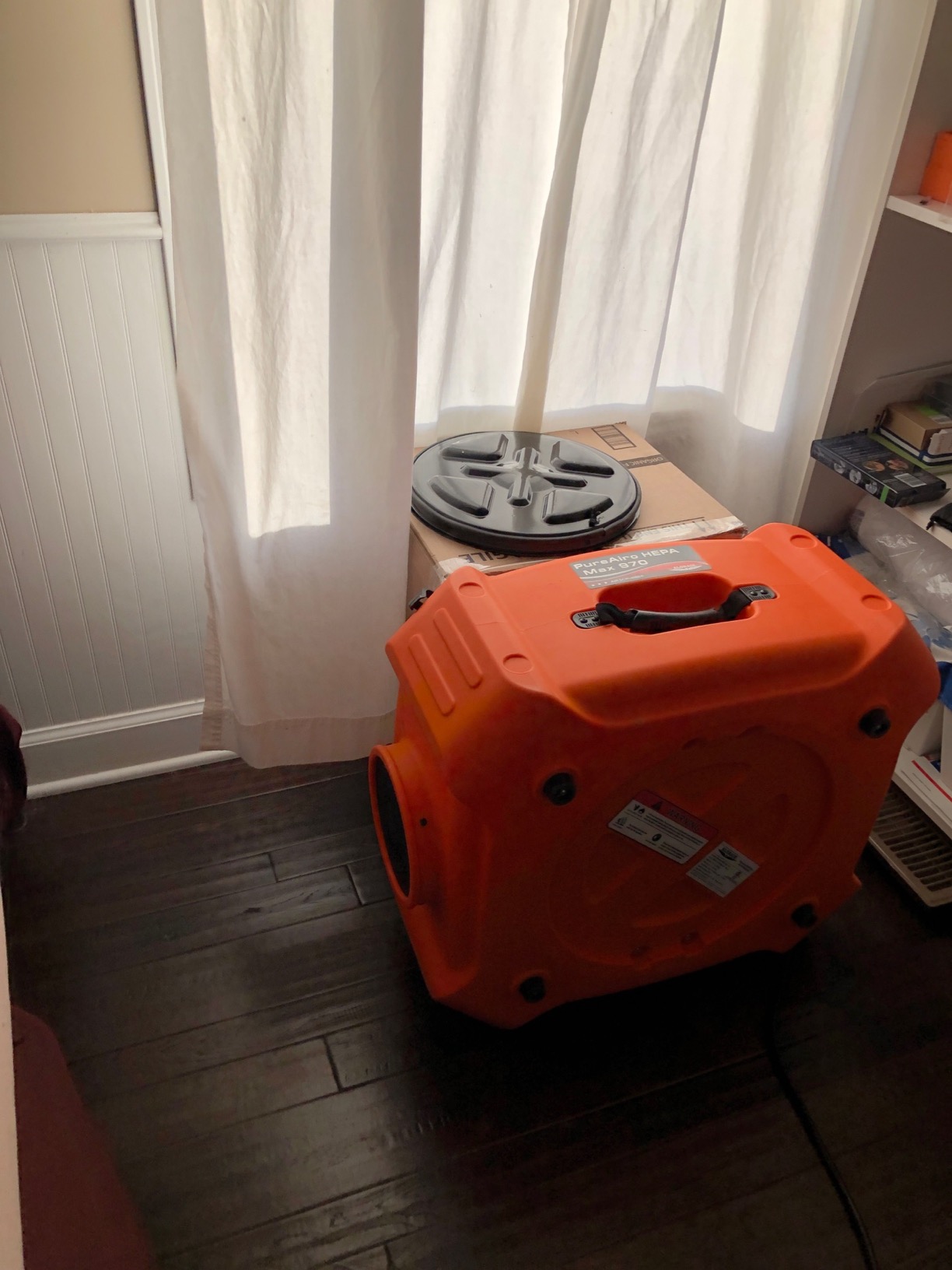

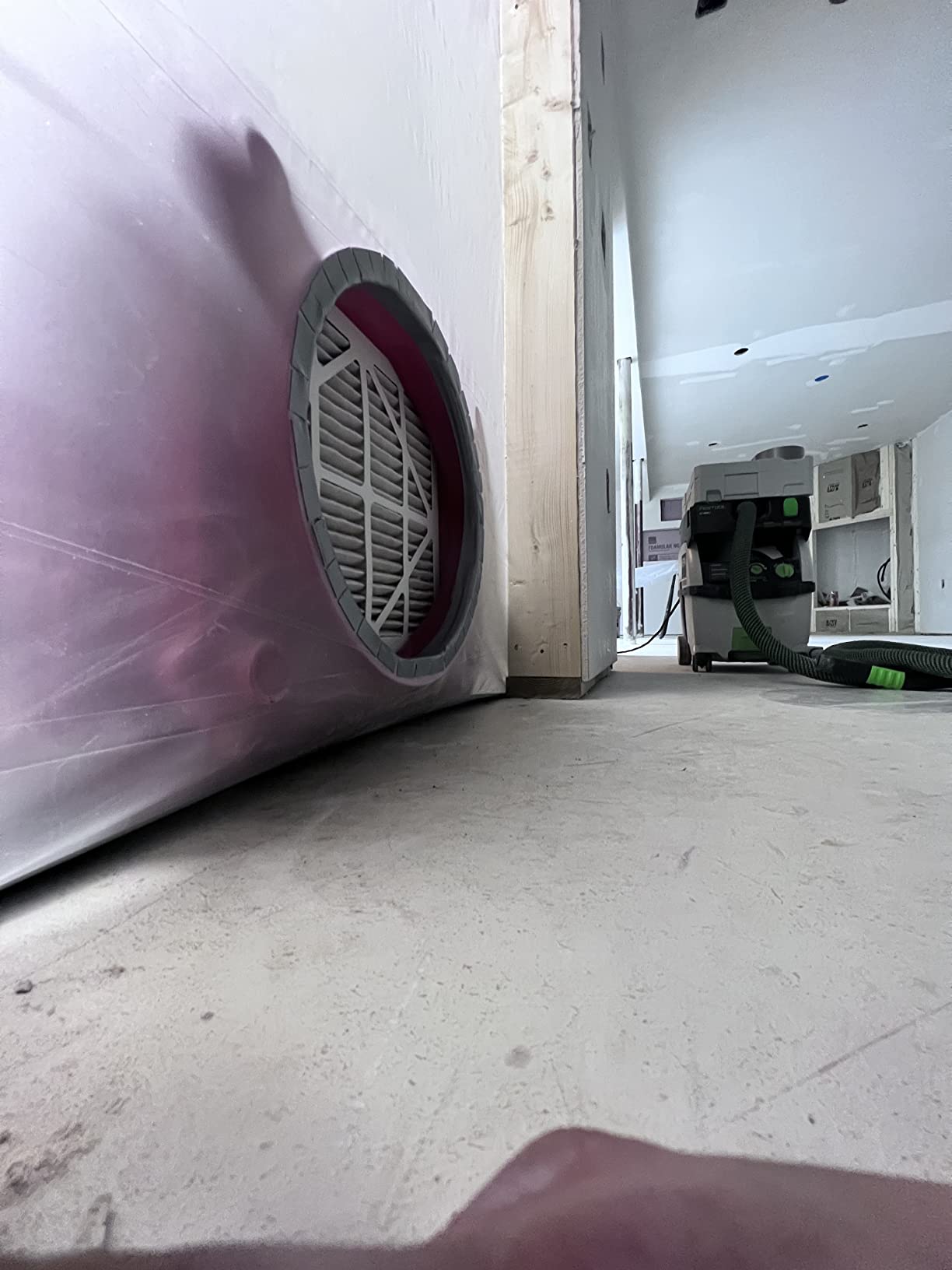

5. ALORAIR HEPA 550 – Best Warranty and Odor Control
ALORAIR Air Scrubber HEPA with 3 Stage Filtration, 10-Year Limited Warranty
3 stages: MERV-10, carbon, HEPA
99.97 percent capture above 0.3 microns
270-550 CFM variable airflow
10 year limited warranty, ETL certified
Pros
- Carbon stage handles smoke
- finish and odor loads
- 10-year limited warranty is the longest coverage here
- ETL-certified for electrical safety
- Variable 270-550 CFM suits different job conditions
- Stacks and daisy-chains to 1650 CFM combined
Cons
- Ducting adapters are not included and must be bought separately
- Plastic intake cover has to be removed before first use
- Heavier and larger than a hanging filter
This is the cabinet I would put in a shop where the air has more than dust in it. Owners of odor-heavy work, from paint stripping to pet-related remediation, single it out for the carbon stage doing real work, and the rotomolded polyethylene shell feels built for a commercial setting rather than a home shop. At 39.6 pounds it is heavier than the hanging options, and you will feel that when moving rooms.
Filtration is three stages rated to trap 99.97 percent of particles larger than 0.3 microns, across a 5,500 cubic foot area, with airflow adjustable from 270 to 550 CFM. That low end is useful, because you can throttle down to 270 CFM for a quiet run and open it up when you are doing heavy sanding or spraying.
The shell stacks horizontally or vertically, and with daisy-chaining you can combine up to three for 1,650 CFM. The control panel handles on and off, airflow adjustment, a reset circuit breaker, and a filter-change indicator, with auxiliary GFCI outlets on the panel for linking machines. A 10-year limited warranty is the strongest coverage in this roundup by a wide margin.
Two small things to do on day one
Buy duct fittings separately if you plan to hard-duct the machine, since 16 inch inlet and 8 inch outlet adapters are optional and not included. And remove the black plastic intake cover before first use, which owners consistently flag because it is easy to miss and quietly restricts airflow if left in place.
How variable airflow changes the working day
Having a real low setting changes how you use the machine. Run 270 CFM continuously through sanding sessions, where constant background removal is what keeps the haze from building, then open to 550 CFM for the run-down after the sander stops. Units with a single fixed speed force you to choose between noise and capture rather than doing both.
Who should buy this and who should not
Buy it for a professional shop, a shop doing finish or paint work, or anyone who wants coverage that does not expire when the warranty clock runs out. Pass on it for a small hobby garage where the floor footprint matters and dust is the only contaminant. Read the warranty terms carefully if you run it commercially, since long coverage is one of the main reasons to choose it.
6. Abestorm 1350IG – Highest Airflow with 360-Degree Intake
Abestorm 360 Degree Intake Air Filtration System for Woodworking, Built-in Ionizer, 1350CFM Hanging Air Filter, Shop Dust Collector, Garage WorkShop, MERV-11 filter, DecDust 1350IG
1050-1350 CFM on two speeds
360-degree intake with built-in ionizer
Covers up to 1700 sq ft
27 lb, 60-69 dBA, MERV-11 media
Pros
- Highest airflow figure in the roundup
- 360-degree intake pulls from every side regardless of mount angle
- Three mounting options including direct ceiling screw-in
- Built-in ionizer addresses odor as well as particulate
- Four MERV-11 spare filters are included with the machine
Cons
- Not available for California delivery due to air cleaner regulations
- MERV-11 filters need replacing every 2-4 months
- Louder on the high setting at up to 69 dBA
Nothing else in this group moves as much air. At 1,050 to 1,350 CFM across two speeds, with coverage rated to 1,700 square feet, this is the machine for a professional shop with a large open floor and a central dust collector that still cannot keep up with the haze. The 360-degree intake is what makes the number usable, since it pulls from every side instead of relying on one face being pointed at the work.
Flexibility is the second argument. It can hang from the ceiling on chains, sit on a bench on anti-slip rubber pads, or be screwed directly to the ceiling, so the same machine works in a rental space where you cannot hang anything and in a shop where you can. Controls are a touch panel plus a remote with 27 ft range, and the body is 27 pounds in a 20.5 inch square footprint.
The built-in ionizer generates positive and negative ions to treat airborne particles and odors, which is a complement to mechanical filtration rather than a substitute for it. Media is MERV-11 rated at 1 micron, and the package includes four replacement filters, so your first year of filter cost is covered.
What the ionizer does and does not do
Ionizers charge particles so they aggregate and are easier for the filter to catch, which helps with the fine fraction that stays suspended. They do not add filtration stages, do not raise the micron rating of your media, and do not make a MERV-11 filter into a HEPA. Owners appreciate the odor handling, and that is the honest claim to make.

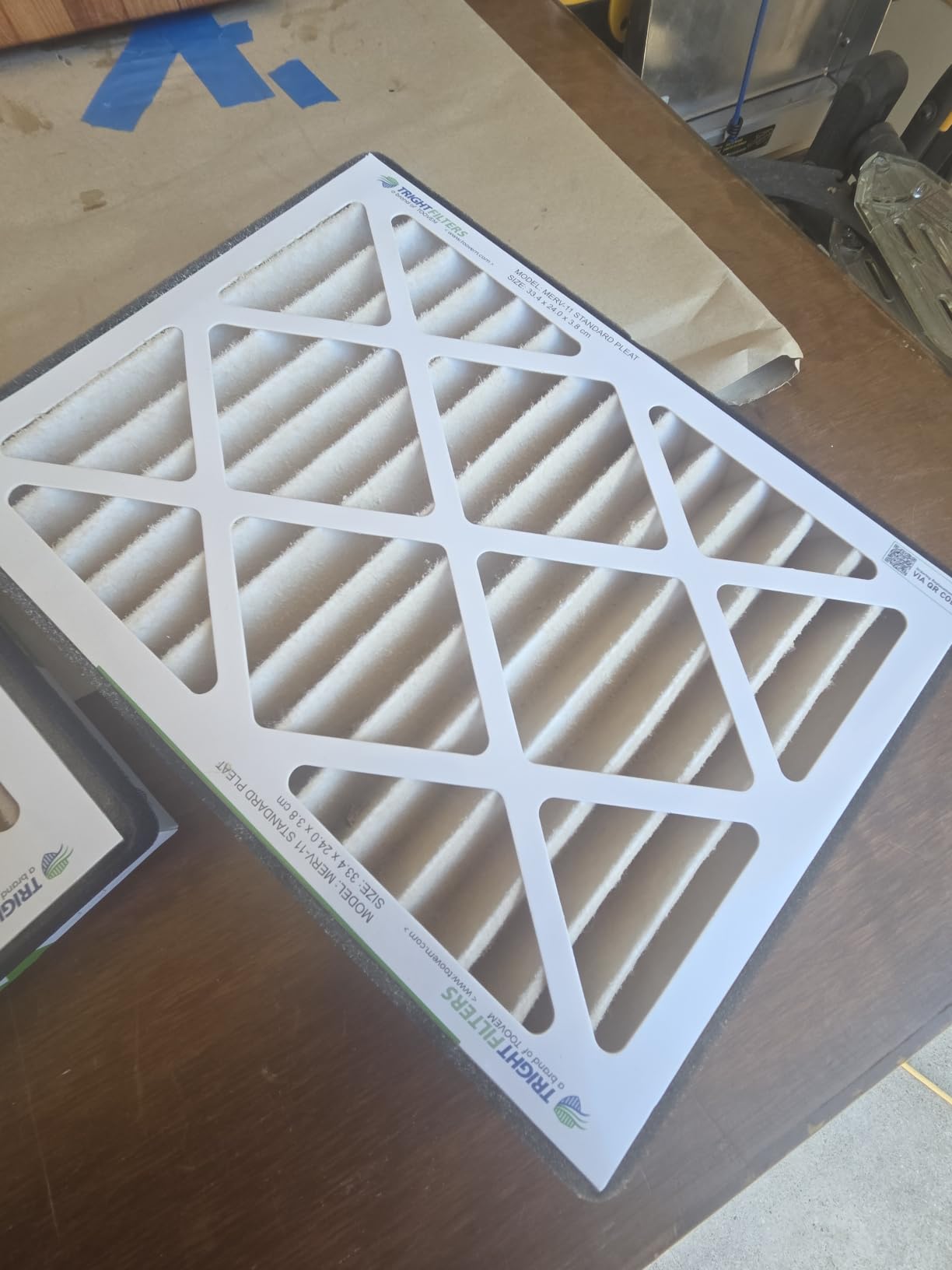

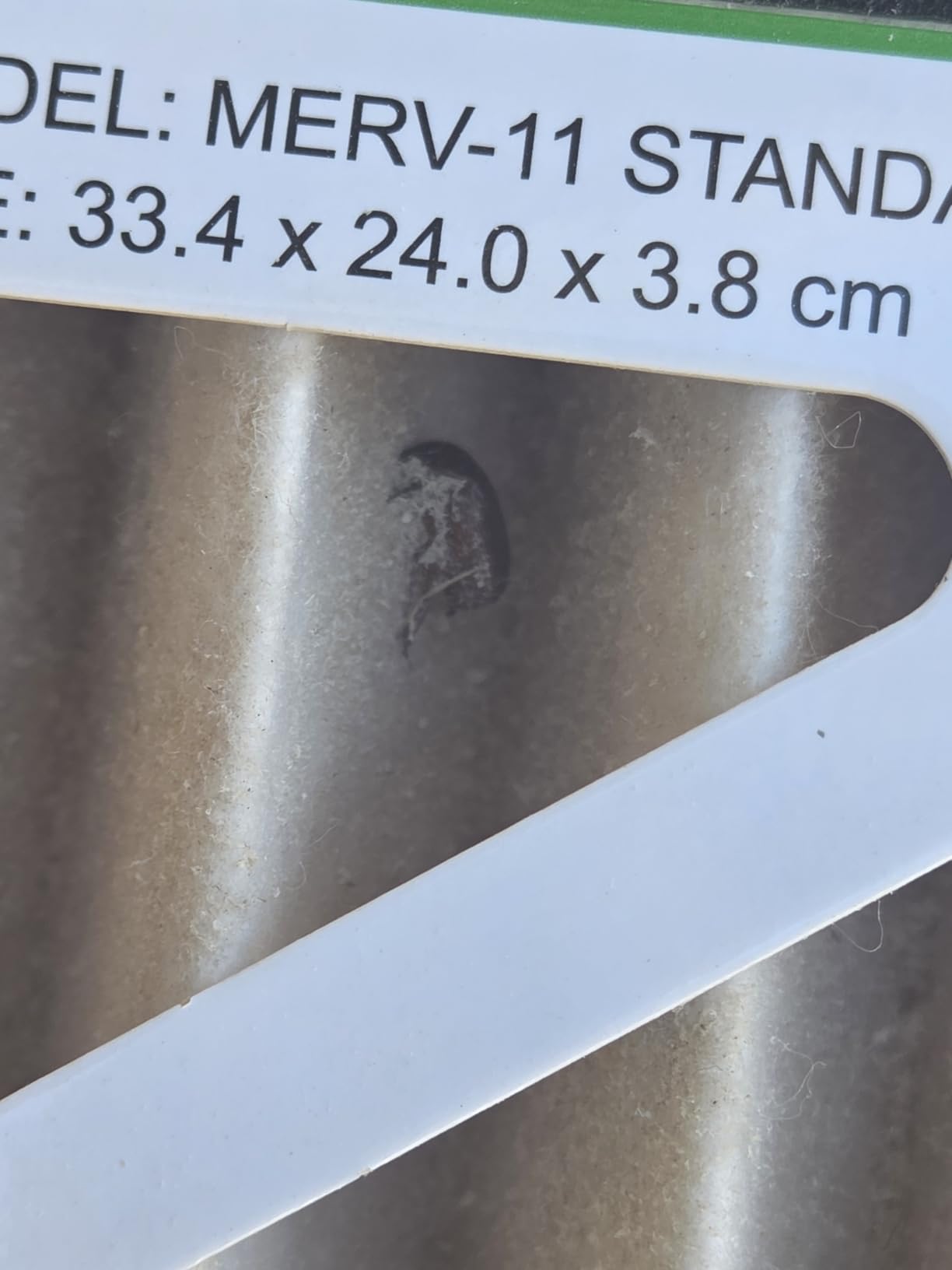

Filter cadence is the ongoing cost
MERV-11 filters here measure 13.2 by 9.5 by 1.5 inches and are rated for replacement every 2 to 4 months depending on dust load. On a heavy sanding schedule that is the largest recurring line item in this roundup, and it is worth weighting the four included spare filters against that when you compare options.
Who should buy this and who should not
Buy it for a professional or large hobby shop that needs serious air movement and values the option to change mounting method. Check your location before ordering, since this unit is not available for delivery in California, where it does not meet local air cleaner regulation requirements. For most small shops it is more machine than needed, and the noise range of 60 to 69 dBA will need managing during cuts.

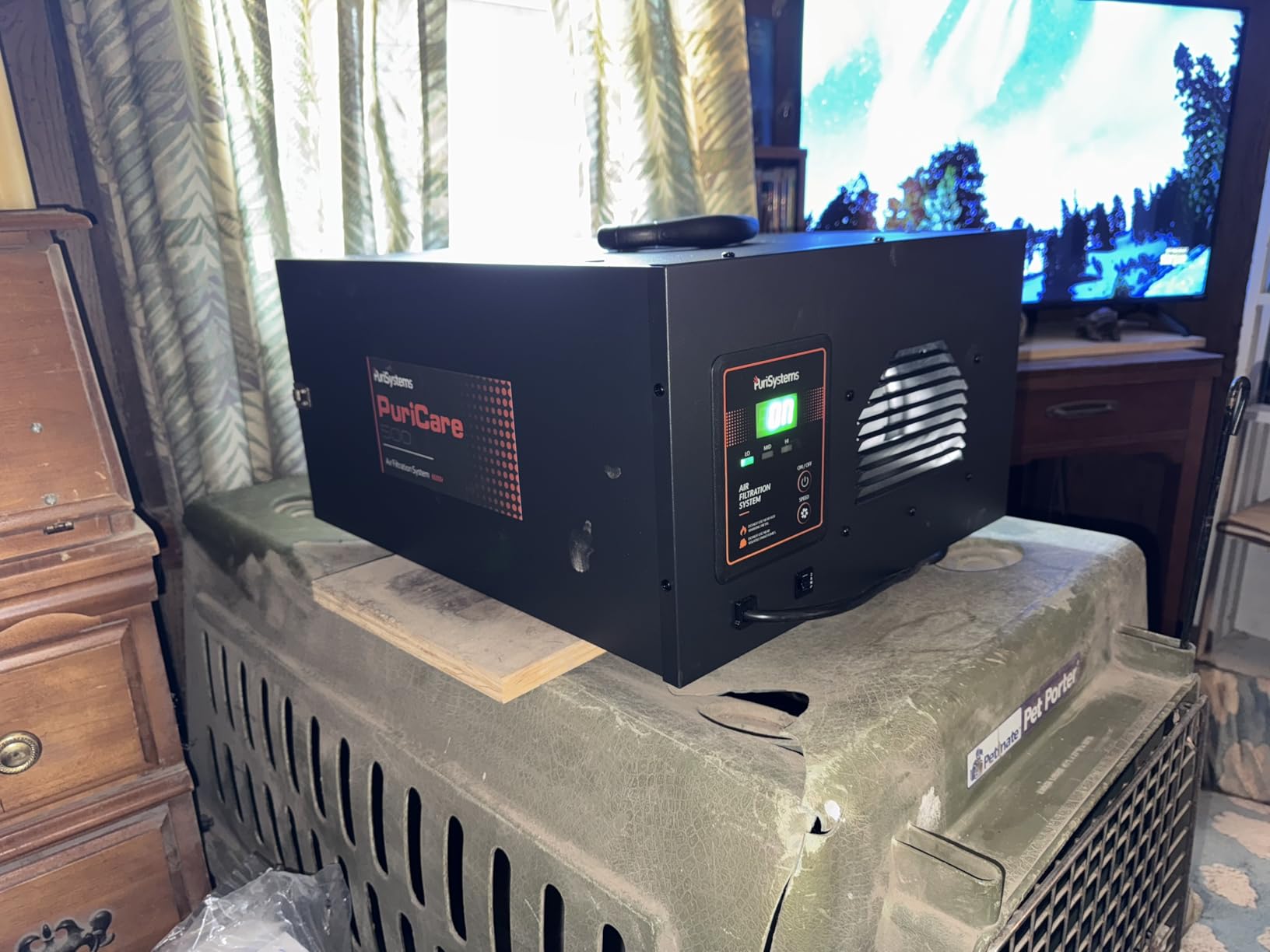

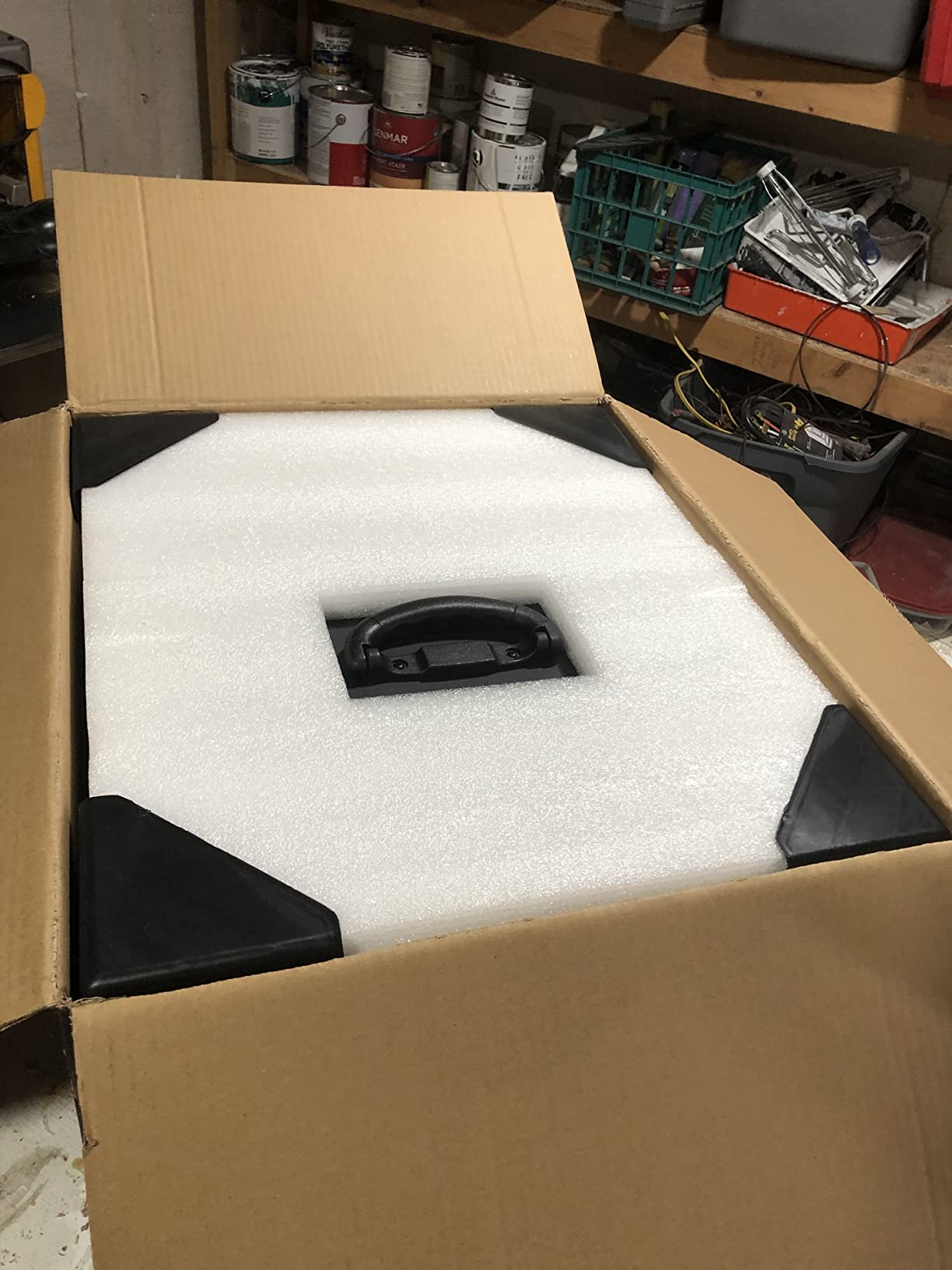

7. PURISYSTEMS PuriCare 500IG – Reusable Filters and Low Ongoing Cost
PURISYSTEMS Air Filtration System 3-Speed Remote, Built-in Ionizer, PuriCare 500IG Hanging Air Filter w/RF Remote for Woodworking, Garage and Shop Dust Collector, up to 500 sq. ft (350/450/500 CFM)
350/450/500 CFM on three speeds
Covers up to 500 sq ft
Two reusable replaceable filters
25.5 lb, 61 dB, built-in ionizer
Pros
- Both filter stages are reusable so recurring cost is near zero
- Three speeds up to 500 CFM suit a 500 sq ft shop
- Benchtop or hanging with grip handles and rubber feet
- 1H to 6H timer with 26 ft RF remote
- Built-in ionizer rated for very high negative ion output
Cons
- Not available for California delivery
- Smallest established review history in the group at 54 ratings
- 500 CFM is a small-shop ceiling
The argument for this one is economics. Both filter stages are reusable: an outer layer that catches larger particles and an inner layer that traps the smaller fraction, and both can be removed, cleaned and put back. If you hate buying cartridges four times a year, a reusable pair changes the math over a few seasons in a way no other unit here does.
Airflow runs 350, 450 and 500 CFM on three speeds, covering up to 500 square feet, with a 1-micron particle retention rating. The ionizer is specified at up to 15 million negative ions per second and 10 million positive ions per second, which owners single out for odor control in enclosed shops. Noise is measured at 61 dB.
At 25.5 pounds and 20.1 by 17 by 11 inches it works equally well hanging or standing, and the easy-grip handles plus non-marring rubber feet make bench placement a one-person move. The RF remote works at any angle without a line of sight and sets a timer from 1 to 6 hours, so the run-down routine is a button press rather than a walk across the shop.
What reusable media costs you in performance
A washable filter cannot be graded to a HEPA or even a fine cartridge rating, because efficiency depends on how clean it actually is. The 1-micron figure describes the media, not the machine in service. Vacuum the inner stage on a schedule and it performs well; ignore it and airflow drops long before you would notice by eye.
The review base is the caveat
With 54 ratings, the long-term reliability picture here is less established than in the larger WEN models. That is a real consideration for a shop that will run a machine daily for years, and it is the main reason this one sits below the editor’s pick despite solid owner feedback. Like the Abestorm 1350IG, it is not available for delivery in California.
Who should buy this and who should not
Buy it for a 300 to 500 square ft shop where a bench position is more realistic than a ceiling hang, and where low ongoing filter cost matters more than the finest possible capture. Pass on it if you spray finish, since there is no carbon stage, or if you want the reassurance of a long owner history. Check your location before ordering.

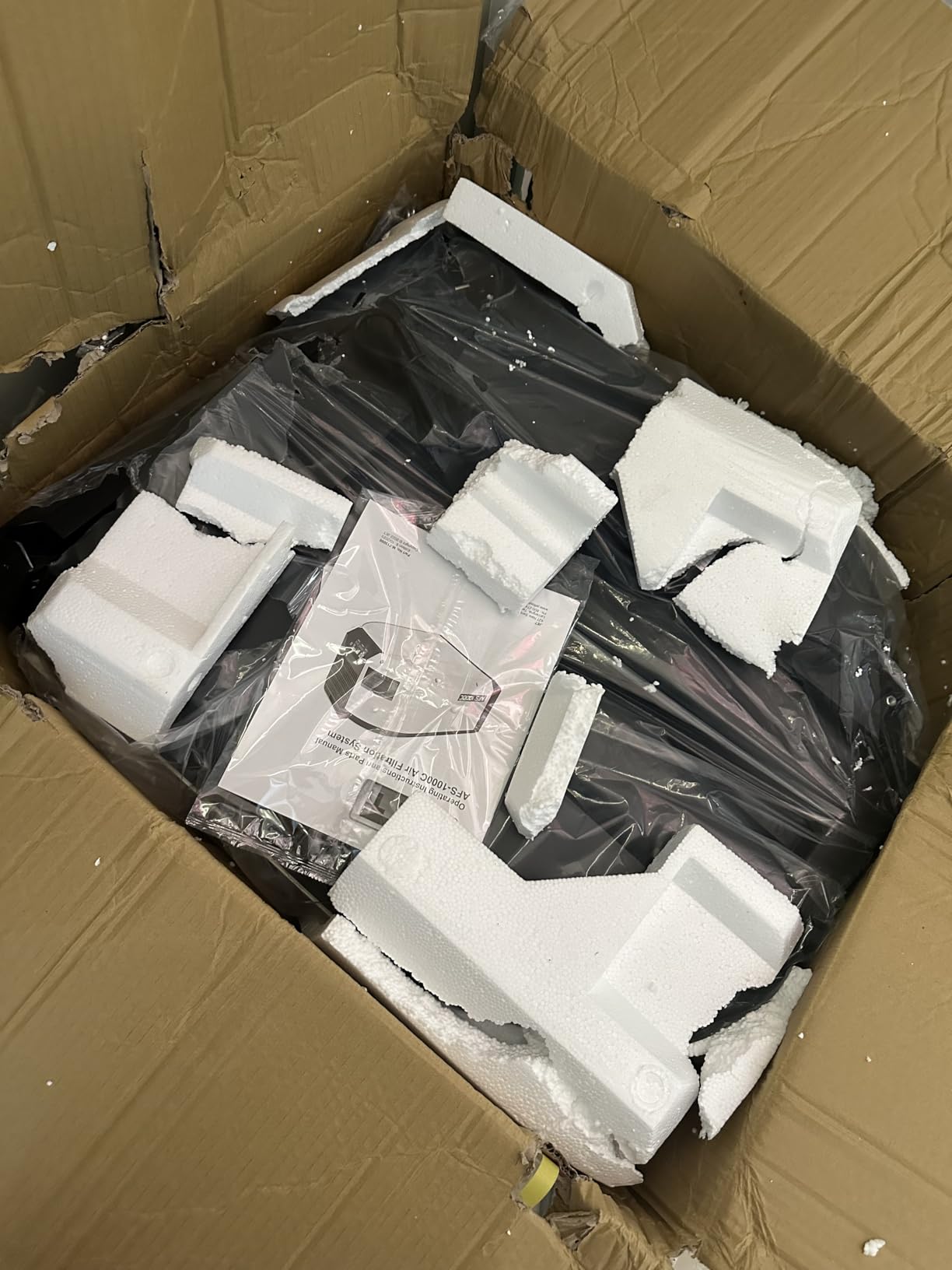

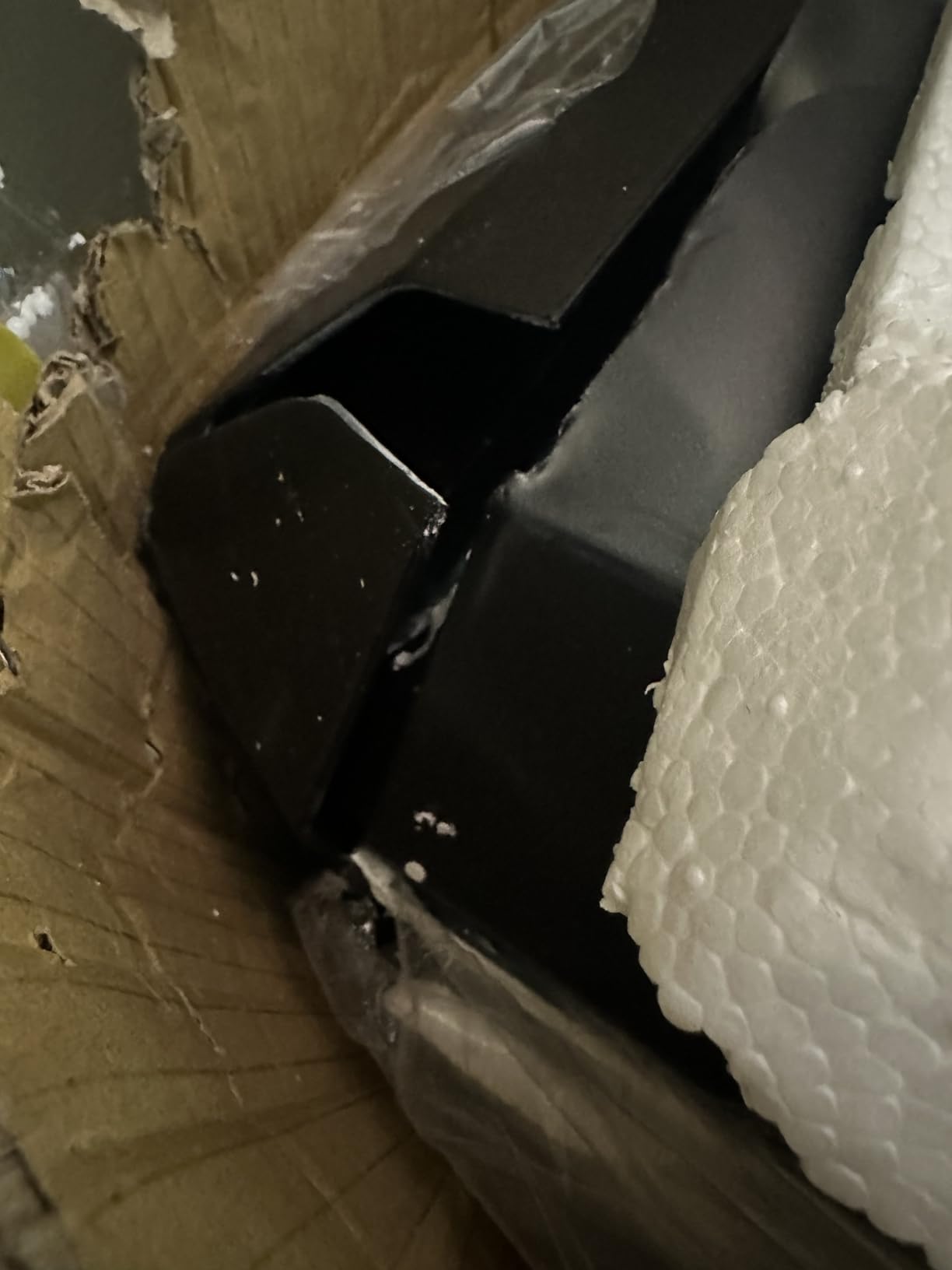

8. JET AFS-1000C – Smart Sensor Control for Big Shops
JET Air Filtration System, 1-Micron Filter, 1000 CFM, 120V 1Ph (AFS-1000C)
1000 CFM at 120V single phase
Six auto speeds with air quality sensor
16-hour RF remote timer
33 lb, 67 dB at top speed, 5 year warranty
Pros
- Automatic air quality sensor adjusts across six speeds
- Angled LED panel readable from a ceiling mount
- Filter status indicator on the control panel
- 16-hour timer set from the RF remote
- Quiet BLDC motor in a vibration-damping housing
Cons
- Most expensive unit in this roundup
- Warranty shortens to 2 years for commercial or industrial use
- Small owner review base at 73 ratings
This is the most automated cabinet in the group and the one I would choose for a shop where someone works alone for long stretches. An automatic air quality sensor adjusts across six speeds, so the machine responds to the room rather than sitting at a fixed setting you chose hours earlier. For a solo shop that is a genuine convenience, because the operator does not have to remember anything.
Filtration is a two-stage arrangement with published numbers: the outer filter captures 99 percent of 5-micron particles and the inner captures 85 percent of 1-micron particles. That is less aggressive than a HEPA stage, so this is a wood dust machine rather than a finish machine. The advantage is airflow, since 1,000 CFM passes through the media with less restriction.
Build details are what set it apart. The body is injection molded plastic that dampens vibration, driven by a quiet BLDC motor, with noise measured at 67 dB on the highest speed. The control panel is angled so the bright LED display stays readable when the unit is overhead, and a filter status indicator tells you when media needs attention.
Mounting hardware that other brands skip
Four eye bolts ship in the box. Several competing cabinets include only hooks on fixed centers, which is where most install friction comes from. With eye bolts you choose the mounting points, place them where the joists actually are, and adjust the discharge direction to throw air across your work area rather than down a wall.
Reading the warranty before you buy
The warranty is five years for residential use and drops to two years for commercial or industrial work. If you run this in a paid shop, that distinction matters more than any feature on the list, and you should factor it in before choosing on automation alone. The 16-hour timer is set from the RF remote, which also handles all six speeds.
Who should buy this and who should not
Buy it for a 600 to 1,000 square ft shop, or a one-person operation where automation pays for itself in forgotten run-downs. Do not buy it for a small room, and do not buy it for finish work without adding a carbon stage, because the published capture is aimed at wood particulate. If budget is the deciding factor, several other cabinets here deliver 1,000 CFM for considerably less.
9. POWERTEC AF4001C – Best Filter Bundle and Cross-Brand Compatibility
POWERTEC 3-Speed Remote Controlled Air Filtration System (300/350/400 CFM) w/Extra Inner & Outer Filter (2 of Each) Replacement, Hanging Air Filter for Woodworking, Workshop & Garage (AF4001C)
300/350/400 CFM on three speeds
MERV 10 outer plus MERV 11 inner media
Four spare filters in the bundle
RF remote with 1H, 2H, 4H timer
Pros
- Bundle includes two spare outer and two spare inner filters
- Filters are cross-compatible with WEN 3410 and Shop Fox W1830
- Tool-free ceiling hook installation
- RF remote with 1H
- 2H and 4H timer settings
- MERV 10 plus MERV 11 combination rated at 99 percent particulate removal
Cons
- Same 300/350/400 CFM class as the entry-level 400 CFM hanger
- Smallest review base here at 36 ratings
- Listed bundle dimensions and weight do not describe the assembled unit
The reason to buy this bundle is the box contents. It ships with the filtration system, mounting hardware, and two spare outer filters plus two spare inner filters, which covers a long stretch of ownership before you have to order anything. If you already own a WEN 3410 or a Shop Fox W1830, those same replacement filters fit your existing machine, so the spares are useful even if you later move up in size.
Media is a MERV 10 outer filter rated at 5 microns and a MERV 11 inner rated at 1 micron, together claimed to eliminate 99 percent of airborne particulates. Airflow runs 300, 350 and 400 CFM on three speeds, and the RF remote handles power and speed with a built-in 1, 2 and 4 hour timer. Mounting is tool-free hooks, and the filters pull straight out for replacement.
Be aware of the listing detail here. The published dimensions and weight describe the bundle rather than the assembled cabinet, so do not plan your ceiling clearance or your lifting technique from that figure. Owners consistently report straightforward setup with no tools needed, and no complaints about fit, which is the part that matters.
Cross-brand filter compatibility is the real story
The outer filter replaces a widely used WEN part and fits the WEN 3410, POWERTEC AF4000 and AF4001, and Shop Fox W1830 systems. The inner filter is built for the POWERTEC cabinets but shares a 16-5/8 by 9-1/2 inch frame with the same group. For a shop owner tired of proprietary cartridges, that flexibility is worth more than a small spec-sheet difference.
Where airflow limits it
Three hundred to four hundred CFM is an entry-level bracket. It handles a small room or a single sanding station well, and it will not treat an open shop of 600 square feet or more in a short time. Judge it against the WEN 3410, which sits in the same airflow class, and choose on price, filter inclusions and remote type.
Who should buy this and who should not
Buy it if you want the 400 CFM class with a deep filter buffer and already own a compatible system, or if you are buying on a fixed budget and want the most filter media in the package. Do not buy it for a large shop. And weight the thin owner history accordingly, since 36 ratings is the smallest sample in this roundup and long-term durability is unproven.

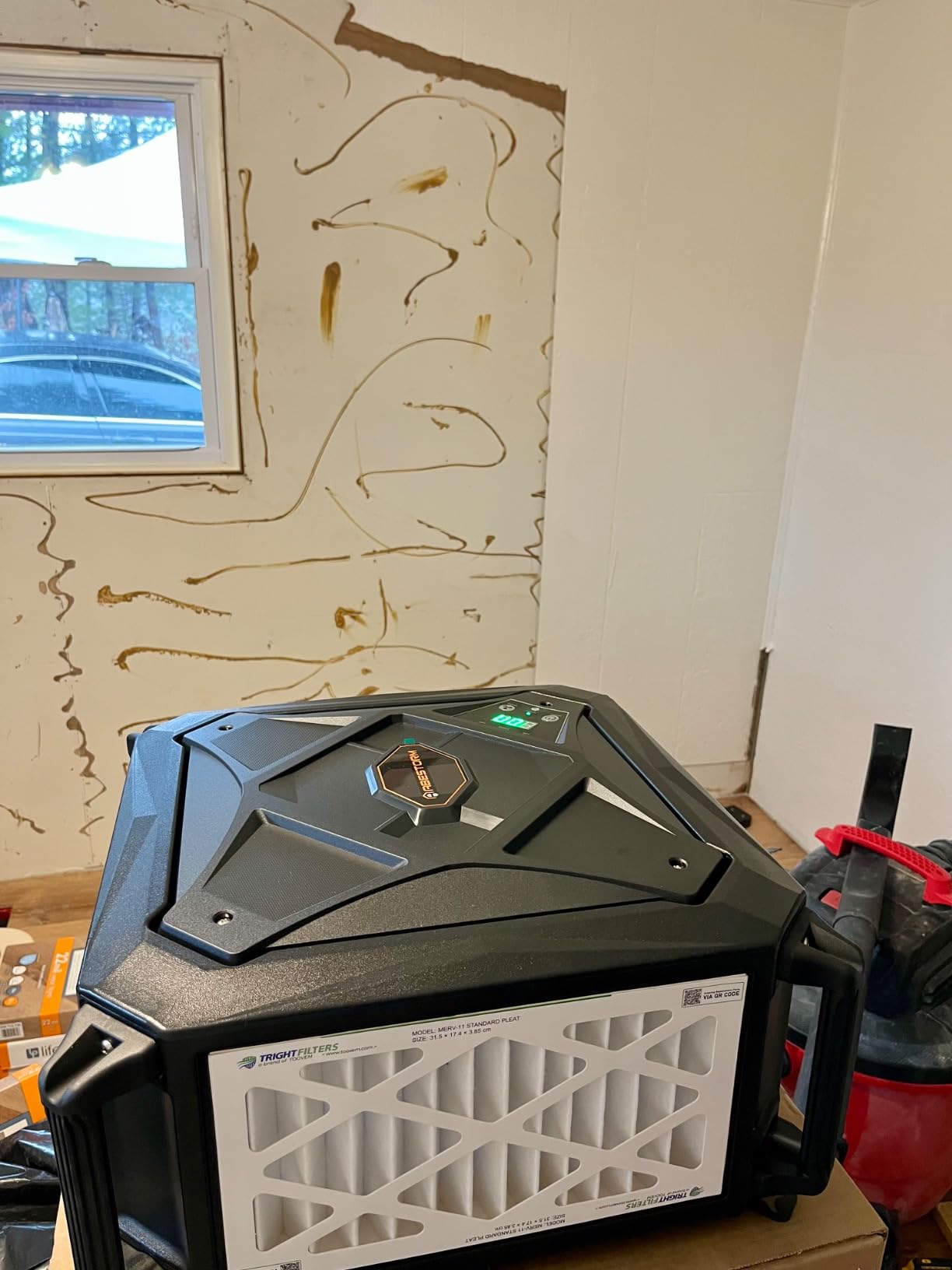

10. Abestorm 780 – Quietest Pick at 50 dB
Abestorm 780 CFM Hanging Air Filtration System, Remote Control, DecDust 780
780 CFM with 270-degree three-sided intake
Covers up to 800 sq ft
1-micron filtration
50 dB, 20 lb with carry handles
Pros
- Lowest noise rating in the roundup at 50 dB
- 780 CFM in a compact 18.35 inch square cabinet
- 270-degree three-sided intake captures from multiple directions
- Light 20 lb body with corner carry handles
- Remote and touch dual control
Cons
- Replacement filters are hard to source
- Included mounting chains reported too short for high ceilings
- Spelling errors and an unclear manual
- Ceiling mount only with no stand option
Noise is the reason this one is worth a look. A published 50 dB makes it the quietest unit here by a clear margin, and in a shop where you need to hear the pitch change on a table saw or the tone of a sander motor, that is not a trivial specification. It also reaches 780 CFM and covers up to 800 square feet, so the quietness is not bought by giving up capability.
Intake is a 270-degree arrangement across three sides, which means mounting angle matters less than on a single-face cabinet. Airflow is 780 CFM with dual low and high modes, controlled by remote or touch panel. The body is 20 pounds, measures 18.35 inches square by 8.82 inches high, and has carry handles at each corner for moving it between joists.
Filtration is 1-micron media, which handles wood dust but not the VOC load from sprayed finish. For a shop whose problem is airborne particulate and noise, that is the right trade. For a finishing room, one of the three-stage scrubbers makes more sense.
Filter availability is the serious drawback
The most serious complaint in owner feedback is difficulty sourcing replacement filters, with at least one buyer unable to find them from the manufacturer or third-party sellers. That is a bigger problem than a noisy motor, because a filter you cannot order eventually becomes a machine you stop running. Check availability before you commit, and buy a spare when you can.
Installation: chains, brackets and the manual
Owners report that the included mounting chains can be too short for high ceilings, so measure your drop before hanging rather than after. The manual is also flagged for spelling errors and unclear instructions, and there is no stand or cart, so the machine lives on the ceiling once it goes up. Plan the hanging position carefully the first time.
Who should buy this and who should not
Buy it if noise is your first criterion, you work in a shop where machines must be audible, and you can confirm replacement filters are available to you. Do not buy it for spray finishing, for a location where you need to move the unit frequently, or if ceiling access is difficult and you would rather bench-mount something. Its 4.1 rating is the lowest here, so treat it as a specialist choice rather than a default.
How to Choose a Woodshop Air Filter That Fits Your Shop
Every mistake I have seen in this category comes from sizing by price instead of by airflow, or from expecting an air cleaner to do a dust collector’s job. The seven decisions below are the ones that actually determine whether a unit helps.
Size your CFM to shop square footage, not to the machine
Start with floor area and how many times you want the air replaced. A practical rule for a dusty shop is four to six air changes per hour while working, with a shorter burst at higher speed for cleanup. A 400 square foot shop at 8 ft ceilings is about 3,200 cubic feet, so four air changes an hour works out to roughly 850 CFM of continuous airflow. Divide by four or five and you land in the 200 to 250 CFM range of unit capacity, which is why the 300/350/400 CFM models genuinely cover small shops.
Under 300 square feet, a 400 CFM hanging box handles the whole space. Between 300 and 600 square feet, target 500 to 800 CFM, or run two 400 CFM units rather than one that has to move air around corners and obstacles. Above 600 square feet, you want 1,000 CFM or more, and a second unit in a dead-air corner frequently outperforms a single larger machine in the same room.
Count speed settings as part of the capacity. A unit rated at 1,000 CFM that you run at 250 CFM to keep the noise down is a 250 CFM machine as far as your shop is concerned. This is why the three-speed and multi-speed units dominate this roundup, and why the sensor-driven JET cabinet is interesting for someone who will not manage settings by hand.
Pick the filter stage your dust actually needs
There are three practical tiers. A pre-filter and a fine dust cartridge, at 1 to 5 microns, is the wood dust standard and covers sawing, planing and sanding. A HEPA stage, rated around 0.3 microns, is what you want for MDF, plywood dust and anything that hangs in the air, and the DEWALT and Abestorm 780 units here use that approach. A carbon stage is not a dust filter at all; it is for volatile organic compounds from finishes, adhesives and solvents, and it is the reason the VEVOR and ALORAIR scrubbers include it as a middle layer.
Two related notes. Micron ratings describe the media, not the machine, so a 1-micron filter in a leaky housing performs worse than the label suggests. And MERV rating, which appears on the Abestorm 1350IG and POWERTEC models, is a scale for filter media used in HVAC systems, useful mainly as a relative comparison between cartridges.
Air filtration versus dust collection: what each one catches
This is the distinction that saves the most money. A dust collector captures material at the machine while the cut is happening, pulling chips and coarse sawdust into a drum through ducting. An air filtration system captures what is already suspended in room air, including the fine fraction that escapes leaky fittings and settles after a job. They are complementary layers, not alternatives.
The consequence is practical: a shop with a table saw and no ducts will still have visible haze, and no air cleaner will remove chips from the floor. Fix the source capture first, then add a room machine for the fines and the health exposure. Owners who pair a 1,000 CFM unit with a working central collector consistently report the best results, and that pairing is why the larger WEN and JET cabinets exist.
Ceiling mounting, placement and the run-down routine
Hang the unit so its discharge throws air across your work area, not down a wall and not straight onto a machine intake. A typical hanging point is 6 to 8 feet above the floor and forward of the dust-producing machines, so rising dust gets pulled into the intake as it settles. Check joist spacing before you buy, since hooks on fixed centers frequently land between joists on 16 inch centers and require blocking.
Then set a timer and use it. The single most effective habit in this category is running the unit while you work and for 30 to 60 minutes after you stop, because most fine particulate is still suspended at the moment you switch the sander off. Units with a programmable timer make this automatic, and the RF remote models let you start from the doorway without walking back. Owners who skip the run-down report the machine as disappointing; owners who use it report it as transformative. It is the same reason our guides to humidifier and air purifier combos stress consistent scheduling rather than occasional use.
Noise, humidity and basement shop realities
Noise is a safety issue in a shop, not just comfort. If you cannot hear a table saw or bandsaw change speed, you are working at a disadvantage, so check the published decibel figure and plan to run lower speeds during cuts. Anything above roughly 60 dB on the top setting should be treated as a cleanup-only speed. The 50 dB Abestorm 780 and the DEWALT at 64 dB sit at opposite ends of what is comfortable for this reason.
Basement shops add a variable that buyers forget. Higher humidity makes fine dust hygroscopic, which means particles clump, settle faster, and stick to surfaces and to filter media instead of staying airborne where the intake can catch them. It also shortens filter life. Controlling shop humidity improves how well any air filtration system performs, which is a separate project from the machine itself but pays for itself in filter life and in visibility.
Replacement filter cost is the real running cost
Ask two questions before buying: what does a replacement cartridge cost, and can you actually get it. Filter media compatibility across brands is uneven. The POWERTEC bundle stands out here because its outer and inner filters also fit the WEN 3410 and Shop Fox W1830, so you have a fallback. The PURISYSTEMS pair is reusable and washes, which drives ongoing cost toward zero at the price of a lower micron rating. The Abestorm 780 has the opposite problem, with owners reporting difficulty sourcing filters at all.
Budget a change every two to four months for a shop doing heavy sanding, and treat the dust collector drums as a parallel line item. A single month of skipped filter changes costs you airflow, which costs you the reason you bought the machine.
The DIY route forum users keep recommending
One more option deserves an honest mention, because it comes up more than any other in woodworking forums: a standard 20 by 20 by 1 inch house HVAC filter zip-tied to the back of a box fan. It costs a fraction of a branded cabinet, the media is available anywhere, and it does clear visible haze in a small shop. What it does not give you is a sealed housing, a timer, serviceable stages, or the airflow a purpose-built cabinet moves. Treat it as a stopgap, not a replacement.
For anyone with a respiratory condition, filtration is supporting equipment rather than a substitute for a respirator, and a machine that runs automatically after you stop working is more useful than one you have to remember to switch on. Combine source capture, an automatic run-down schedule, and proper respiratory protection, and talk to a clinician about your specific situation.
Frequently Asked Questions
What is the best air filtration system for a small workshop?
For a workshop under 300 square feet, a 400 CFM ceiling-mounted unit with a replaceable 1-micron filter is the practical choice. It clears a single-car garage or basement room quickly, runs at 50 to 60 dB, and can be scheduled to run after you stop working. Add a second unit rather than one larger machine if your space exceeds 600 square feet.
Do I need both a dust collector and an air filter?
Yes, if you want the best result. A dust collector captures chips and coarse sawdust at the machine through ducting, while an air filtration system captures the fine airborne dust that escapes ducts and settles after the job. Neither replaces the other: an air cleaner cannot pull chips off the floor, and a collector cannot remove haze already hanging in the room.
How much CFM do I need for my workshop?
Match airflow to floor area and to how many air changes per hour you want while working. Four to six air changes per hour is a reasonable target for a dusty shop, so a 400 square ft space at 8 ft ceilings needs roughly 850 CFM of continuous airflow, which points to a unit in the 200 to 250 CFM class. Shops over 600 square ft generally want 1,000 CFM or two smaller units placed to cover separate zones.
Are HEPA filters worth it for woodworking?
They are worth it when your dust is fine enough to stay airborne: MDF, plywood dust, and anything produced by sanding. A HEPA stage rated near 0.3 microns captures the fraction a 1-micron dust cartridge lets hang in the air for hours. For heavy sawing of solid wood, a 1-micron cartridge pair is usually sufficient and cheaper to service. HEPA media also costs more to replace.
How often do woodshop air filters need changing?
In a shop doing heavy sanding, plan on replacing cartridges every two to four months, while a shop with mostly sawdust can stretch that. Watch the filter-change indicator where the unit has one, and check airflow rather than appearance: rising noise and falling suction are the reliable signs that media is loaded. Budget for filters as a recurring line item, not a one-time purchase.
Is an air purifier enough for wood dust?
No. Residential air purifiers are sized for bedrooms, move a few dozen CFM, and are built for particles rather than the load a shop generates. A woodshop needs a high-CFM cabinet with a washable pre-filter and a fine dust cartridge, ideally with a timer so it runs after you stop working. A house purifier adds nothing in a shop.
Where should I hang an air filtration unit?
Mount it 6 to 8 feet above the floor and forward of the machines that generate dust, so the discharge throws air across your work area rather than into a wall. Check joist spacing first, because supplied hooks often sit on 24 inch centers while residential joists are commonly 16 inches on center, which means adding blocking first. Point the intake toward open floor rather than into a corner.
The Verdict on the Best Air Filtration Systems for Woodshops
If you are starting from nothing and your shop is a garage or a basement room, the WEN 3410 is the pick: three speeds, replaceable 1-micron and 5-micron filters, an RF remote that works through walls, and more owner history than anything else here. Set the timer for a run-down after every sanding session and it will do more for your air than a more expensive unit you switch on once.
If you spray finish or fight odors, choose the VEVOR 550 CFM scrubber for its carbon and H13 HEPA stages, or the ALORAIR HEPA 550 if you want a 10-year warranty and ETL certification on a professional shell. If noise is what keeps you from running filtration at all, the Abestorm 780 at 50 dB is the one that stays on during cuts. For a shop over 600 square feet, the Abestorm 1350IG moves the most air and mounts three different ways, and the JET AFS-1000C is worth it when you want a sensor to make the decisions while you work.
Whichever you choose, get the source capture right first. A room machine cleans the fines a collector misses, and it is not a substitute for ducting at the tool. Pick the airflow that matches your square footage, schedule the run-down, and replace the filters when the machine tells you to. That routine does more for your shop than any specification on a spec sheet.
Leave a Reply
