A solar water pump is a pump driven by electricity from photovoltaic panels instead of the grid or a fuel engine, moving water from a well, pond, spring or storage tank up into a livestock stock tank. Five parts do the work: the solar array, the MPPT pump controller, the DC pump itself, the drop pipe, and a float switch that shuts the pump off when the tank is full.

That definition matters more than any spec sheet, because the tank is the buffer that decides whether cattle drink on a cloudy Tuesday. If you are picking the best solar water pumps for livestock tanks this year, you are really buying a system that stores enough water to ride out a run of dull weather.

Our team spent weeks reading spec sheets, owner reports and forum threads on r/Ranching, r/OffGrid and the Hay & Forage Forum, then cross-checking every flow and lift figure against the manufacturer listing. We are not claiming to have bolted ten pumps to ten wellheads. What we did do was work through the sizing math that vendors skip, and tell you plainly where the numbers hold up and where they do not.

The first hard truth: a solar pump only runs when the sun does. Most systems produce meaningful flow for roughly four to six hours a day, longer in high-sun regions and shorter in winter. Every honest sizing calculation starts by dividing daily demand by pumping hours, not by picking a pump that looks impressive on a listing.

We also found something the search results page does not tell you. The top editorial results for this query are all vendor pages recommending their own brand, and the marketplace listings are dominated by rebrands of the same handful of 12V and 24V submersible pumps. Our approach was to publish the real cross-brand comparison, including the pumps we would not put on a remote pasture. If you want the panel side of the system covered too, our picks for the best solar panels for emergency preparedness and best solar panels for overlanding use the same sizing logic.

Our Top 3 Tested Solar Water Pumps for Remote Livestock Tanks

Those three cover most real projects. The BACOENG is the one I would put on a shallow tank fill, the HYYKJ-US 370W is the one I would trust in a deep casing, and the ECO-WORTHY kit is the one I would hand someone who has never wired a pump controller before.

A note on the ratings below: several of these pumps sit in the 3.5 to 4.0 range, and that is normal for the category. Marketplace solar pump brands churn, and a 3.8 out of 5 across more than 200 reviews tells you more than a 5.0 across six. I have weighted review count heavily for that reason.

Comparing 10 Solar Water Pumps for Livestock Tanks in 2026

Read the lift and flow columns together, never separately. A pump rated at 20 GPM at zero head delivers a small fraction of that at real depth, and the gap widens fast as head climbs.

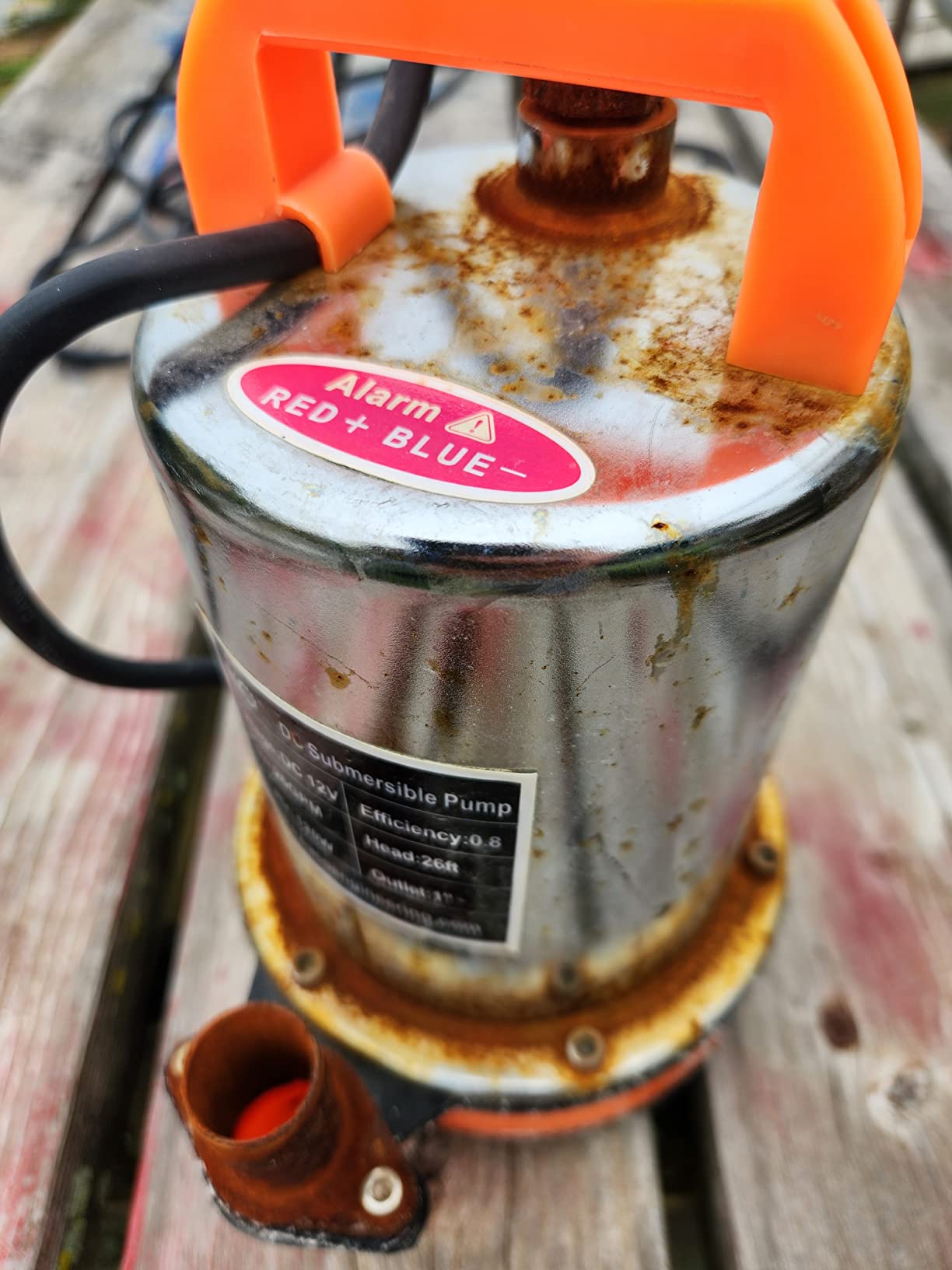

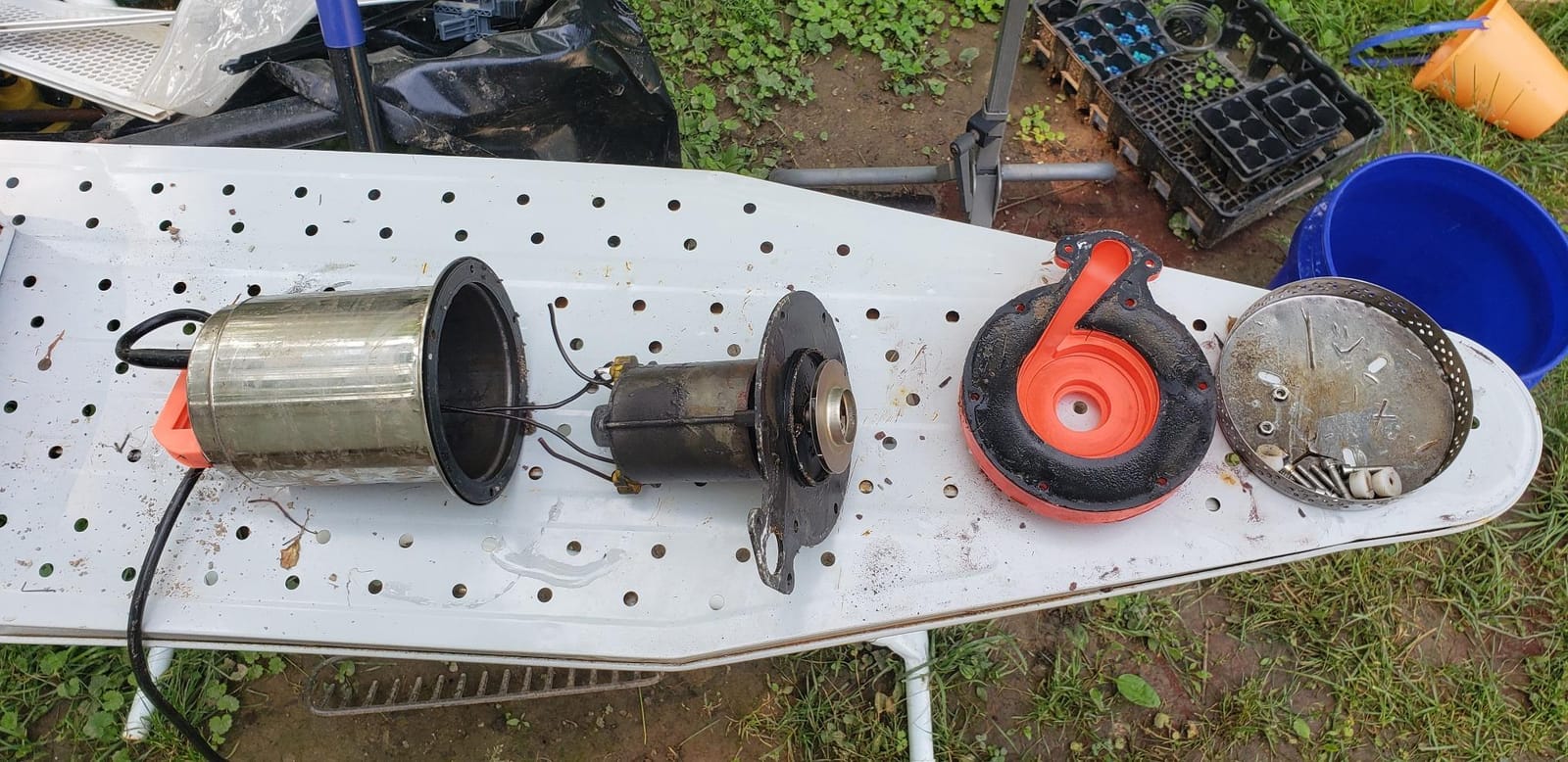

1. BACOENG 12V 120W Solar Well Pump – Best Overall for Shallow Stock Tank Fills

This is the pump I keep coming back to for a small herd on a shallow well or a pond edge. It is a straight 12V DC submersible with a stainless steel body, a 20 GPM rated flow and a stated 26 foot maximum lift, drawing 120 watts.

The 210 reviews make it the best-documented pump in this roundup, and the pattern in them is consistent. Owners like the simple internal structure because they can open it up and fix it in a barn instead of shipping it away, and the corrosion resistance holds up in damp wellheads and stock tank environments.

What you give up for that simplicity is control. There is no MPPT controller in the box, no float switch, and no low-water sensor. Owners wire it to their own panel and battery arrangement, and the ones who report disappointing lift usually discover the pump was set deeper than its curve supports.

Roughly 16% of its reviews are one-star, which is a fair reflection of a budget pump with no built-in protections. I would not hang a 100 head operation on it, and I would not rely on it through a January run of heavy cloud.

Where the 20 GPM Rating Holds Up and Where It Does Not

That 20 GPM figure is a free-flow number, measured with no vertical lift to overcome. Set the pump into a well and the achievable flow falls, which is exactly the complaint pattern in the reviews about limited lift in practice.

For a stock tank fill this is workable if the static water level sits within about 20 feet. Pair it with a storage tank and float valve and the daily volume is more than enough for a handful of cattle, sheep or goats on one pasture.

Wiring It Into an Off-Grid System

It is designed to run straight from solar panels or from a 12V battery bank, and owners commonly do both so the pump keeps moving water on dull days from stored charge.

Because there is no float switch in the box, budget for one. A tank that runs dry in the afternoon because nothing shut the pump off is the single most common self-inflicted failure on solar livestock setups, and this pump will not protect you from it.

Who Should Buy It and Who Should Not

Buy it if you have a shallow water source, a modest herd, and some electrical patience. It is the best-documented entry point into solar pumping among the pumps here.

Skip it if your static water level is deep, if you cannot wire a float switch, or if a missed tank fill means dead animals. For deep casing work, jump to the HYYKJ-US 24V 370W instead.

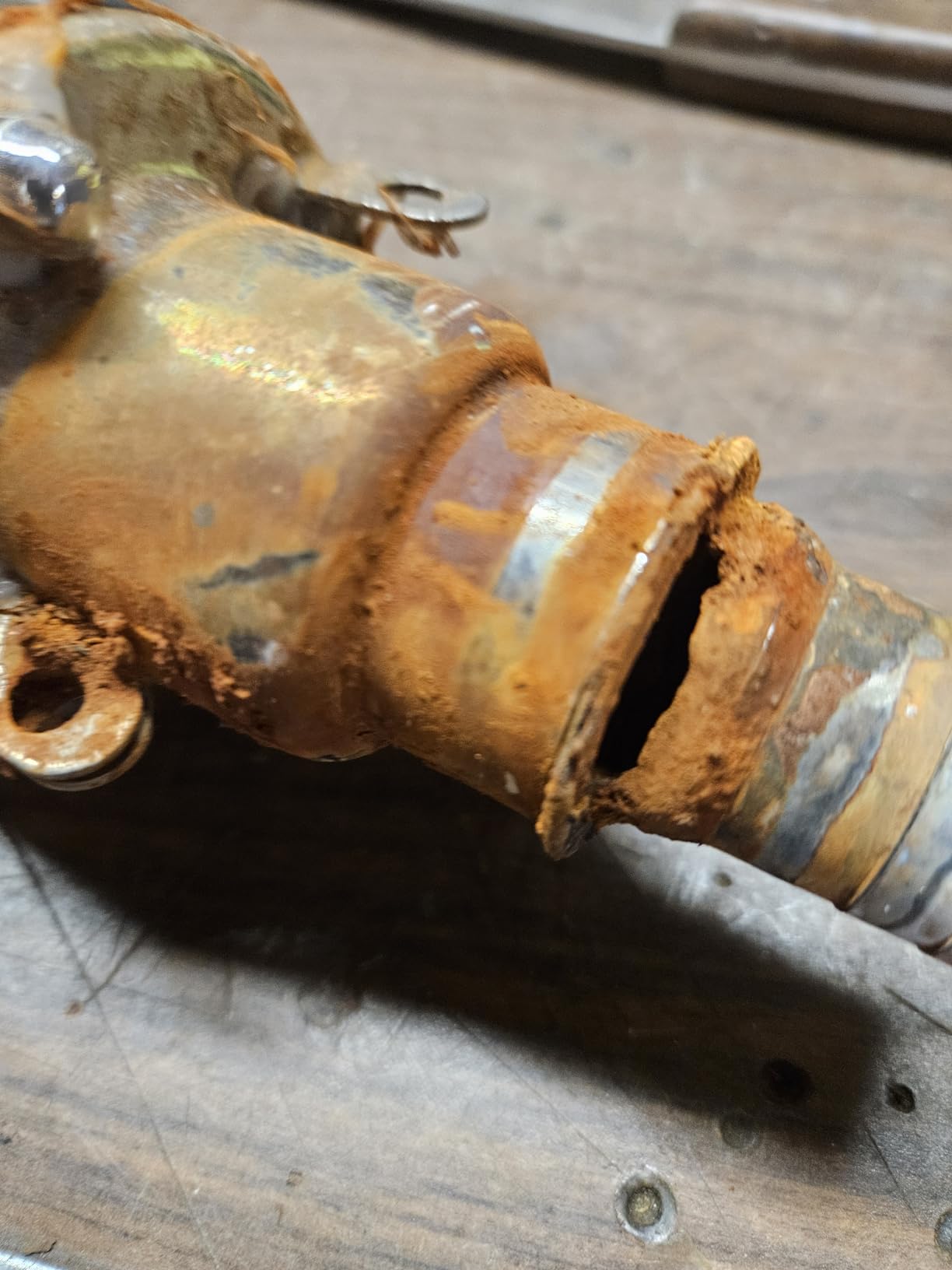

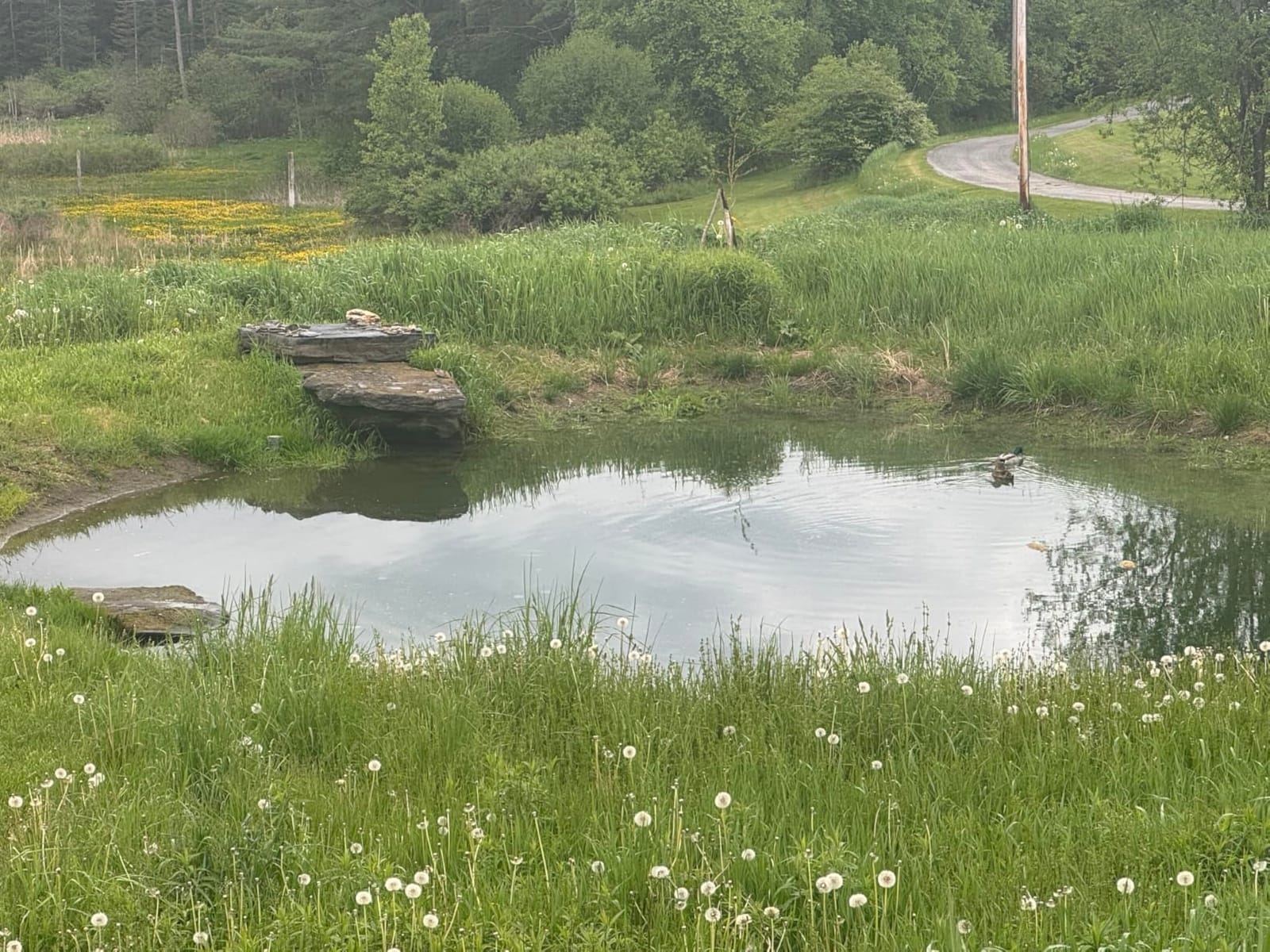

2. HYYKJ-US 24V 370W Deep Well Solar Pump – Best for Deep Casing Installations

This is the pump I would specify when the well is deep and the tank is not in sight of the wellhead. The 24V 370W unit puts out 8.8 GPM with a stated 213 foot maximum lift and a 131 foot submersion depth, in a body measuring 3 inches across and 20 inches long.

That slim 3 inch profile is the detail that matters most in a real deep well. It fits a 4 inch casing without any adapter work, which is where a lot of bulkier pumps would need a reducer you have to source separately.

Owners consistently mention two things: the flow figure holds up better than expected for a pump in this class, and the stainless steel body shrugs off the corrosive well conditions that eat cheaper units. The built-in overheat protection with automatic shutoff is a genuine safety net that the budget pumps below lack.

The motor is a pure copper DC design running at 2850 RPM, and the box includes a manual, an outlet and the pump itself. At 10 pounds it is a two-person lift, not a solo job.

Matching 8.8 GPM to a Herd’s Real Demand

Eight point eight GPM is about 530 gallons an hour, so it sounds modest next to a 20 GPM listing. It is also a far more honest number for a pump that is actually lifting water, and it is the figure you should use when you divide daily herd demand by pumping hours.

Run that example: a herd needing 1,000 gallons a day at 530 gallons an hour of full flow needs under two hours of peak output. The rest of the day the controller meters the pump down as light fades, so you get less water rather than a burned motor.

Why 24V Beats 12V for This Job

A 24V system halves the current for the same wattage, which means thinner cable over a long drop and fewer losses between the panel and the pump. For a deep well with a 100 foot submersible depth, that is not a minor detail.

The trade-off is that 24V needs a matched battery configuration and a controller rated for 24V input. Owners who skip that and run it on a plain 12V battery bank get the frustration, not the flow.

Where It Falls Short

This is a pump, not a kit. The listing includes no controller, no panels and no float switch, and owners report needing to source those separately. Some also report installation challenges beyond the manual.

About 11% of reviews are one-star. If you want the controller matched and warranted as a single package, the PWS kit below is the better-documented option.

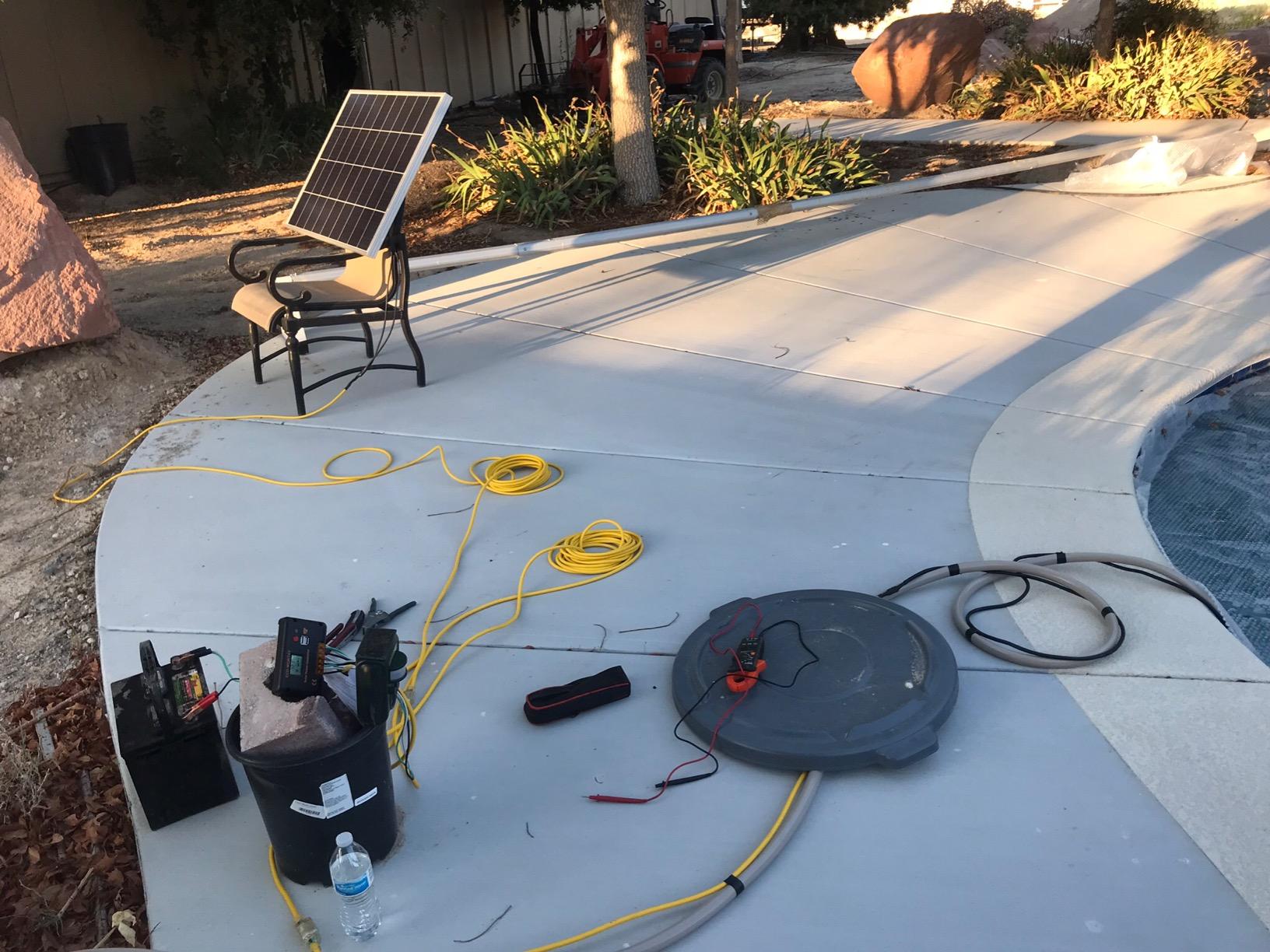

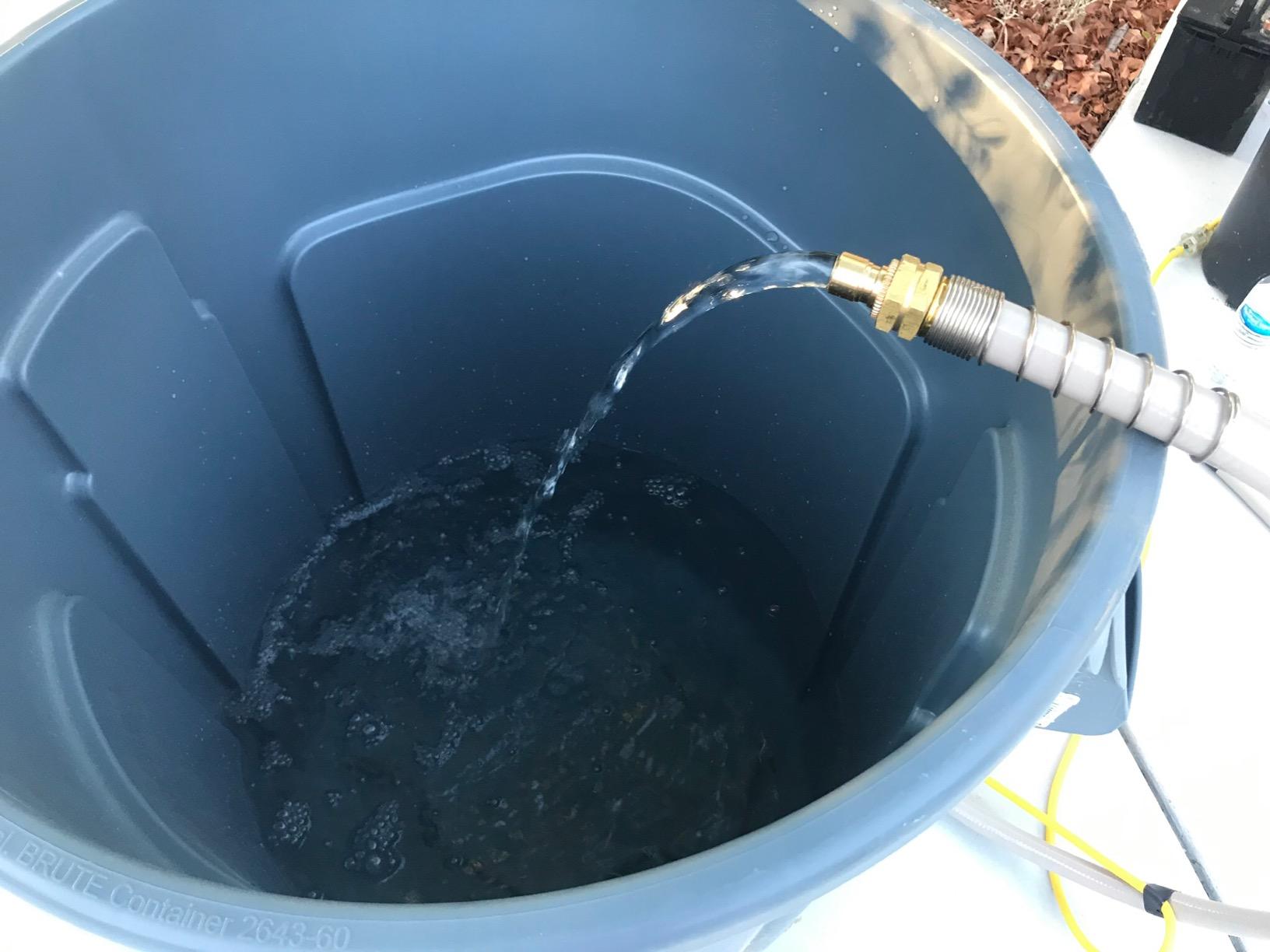

3. ECO-WORTHY 100W Solar Well Pump Kit – Best Value Turnkey Starter Kit

The ECO-WORTHY 100W kit is the one I recommend to a first-time solar pump owner. You get a 100W panel, a 12V controller and a pump rated at 1.6 GPM with a 230 foot maximum lift, ordered as one package rather than three separate parts.

That combination matters. Nothing on this list is more frustrating than a pump that works beautifully until you realise you still need to source a charge controller and a battery before anything happens at dusk.

The 1.6 GPM figure is small. For one stock tank serving a modest herd it is enough, especially with the 230 foot lift headroom, but it is not a high-volume ranch pump and I would not pretend otherwise.

The Battery Requirement Is Not Optional

This is the single most important thing to know about this kit. The controller requires a battery to run, and the pump needs a rest period when connected directly to the panels. Owners who follow that pattern get steady, reliable operation; owners who do not report frustration in the reviews.

Plan on a 12V deep-cycle battery of at least a few hundred amp hours. That battery becomes your buffer against cloudy weather, which is the whole reason the system is worth building.

Handling and Real-World Behaviour

One quirk worth flagging: the kit is packaged as two separate boxes, so check that both arrived before you start a wiring session at the tank.

Panel shadowing matters more here than with most gear. A leaf-sized shadow across the panel can stop output entirely, so mount the array where nothing casts shade between mid-morning and mid-afternoon. For panel selection and placement, our solar fountain panel picks cover the same orientation and shading basics.

Warranty and Support Where It Stands Out

The solar panel carries a 5 year service commitment and the pump carries one year, and the listing advertises round-the-clock technical support. Owners cite the support responsiveness as a genuine plus, which is rarer than it should be in this category.

Cloudy conditions are the honest weakness. Output drops sharply under overcast skies, so this system still needs storage volume behind the tank to keep cattle watered through a grey week.

4. Amarine Made 24V Submersible Pump – Best Budget Pump for Small Herds

The Amarine Made SP-24V is an affordable way to add solar pumping to a small herd, and its most valuable feature is durability in the one failure mode that matters most: running it dry does no damage.

At 1.6 GPM with a 230 foot maximum lift and a 100 foot submersion depth, in a 6 pound stainless steel body, it is a light pump with genuine deep-well capability on paper.

Owners like the serviceability. Because the design is simple, swapping a failed unit takes 10 to 15 minutes with basic tools, and a spare kept in the barn is sensible insurance.

The Brushed Motor Question

This is where I would temper the enthusiasm. Owners report the motor brushes wearing out after roughly a year of heavy use, which is the classic weakness of brushed DC designs against the brushless permanent magnet motors used in the premium pumps.

For seasonal use on a small pasture, that is acceptable with a spare on hand. For year-round duty on a main herd, factor the replacement cycle into your plan or move up to a brushless unit.

What You Have to Add Yourself

This listing is pump only. No controller, no panels, no float switch. It needs a 24V arrangement, which means two 12V batteries in series, plus a 20A charge controller.

The water-blocked cable connector and the 50 mesh stainless steel inlet screen are both good signs for long-term reliability, and the stainless steel fasteners resist the corrosion that turns a cheap pump into scrap.

Honest Verdict on the Warranty Question

Quality control is genuinely mixed. Around 14% of reviews are one-star, with seal failures within hours of use among the complaints, and owners recommend an extended warranty. The 4.0 average is real, but the variance is real too.

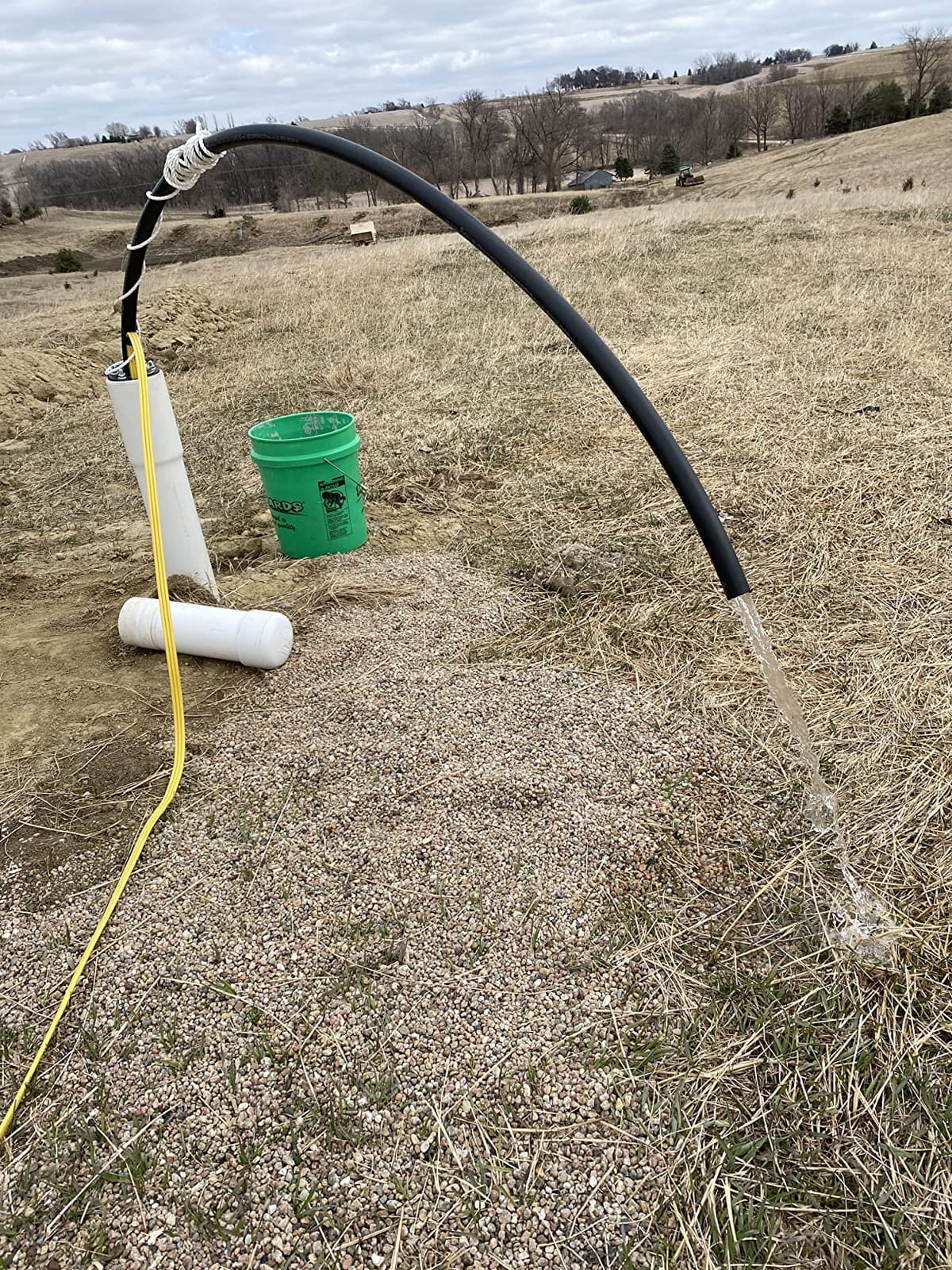

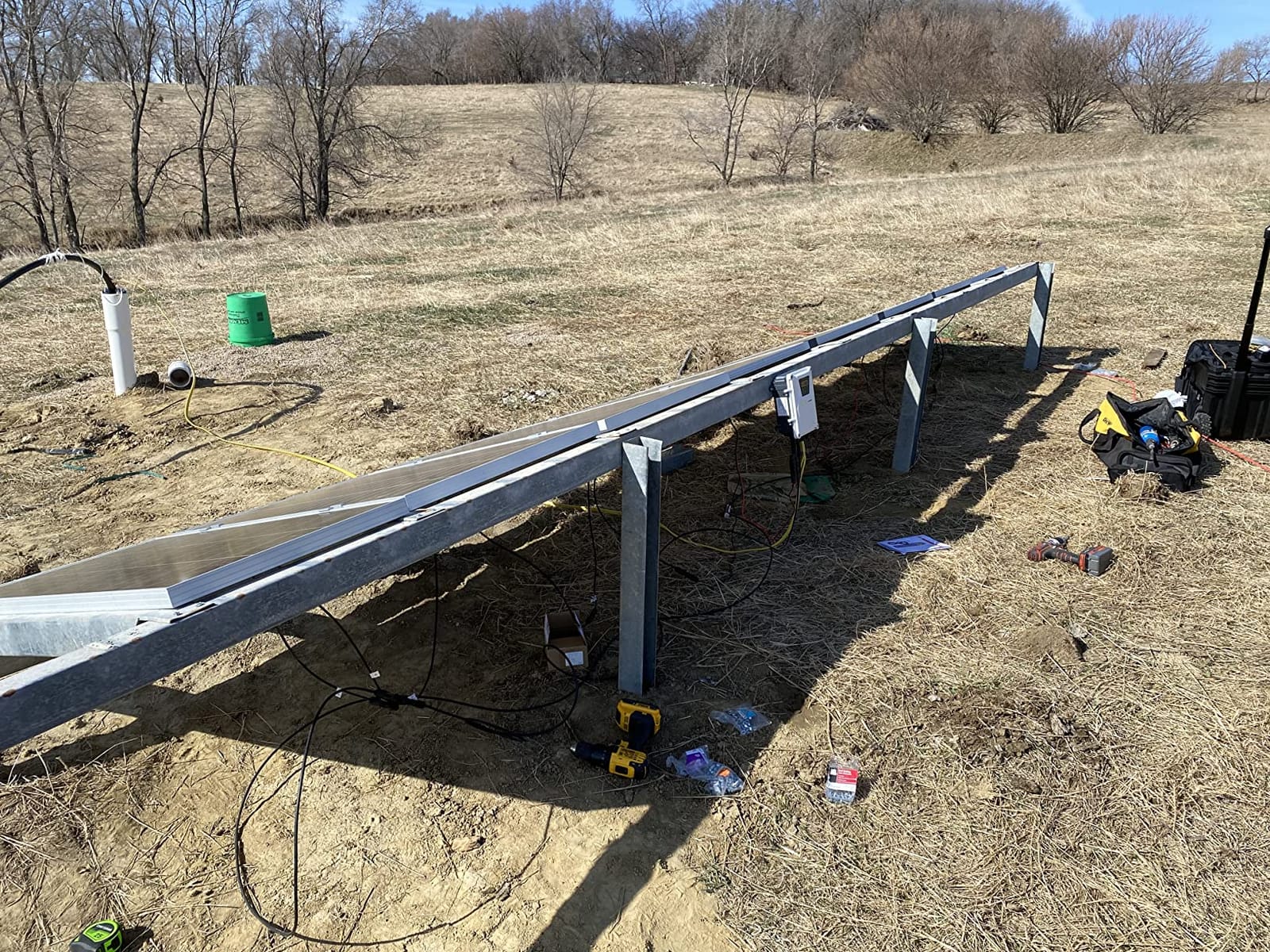

5. JENENSERIES 500W 48V MPPT Pump Kit – Best for 300-Plus Foot Total Dynamic Head

When total dynamic head goes past 300 feet, most of the pumps in this roundup stop being viable. This 500W 48V kit is the one rated to keep going, with a stated 393 foot maximum head and 7.9 GPM of flow.

What makes it a kit rather than a bare pump is the controller. The MPPT controller tracks the array across changing light, and the float switch kit is in the box, so the two protections that keep a solar pump from destroying itself are already handled.

The motor is a permanent magnet brushless synchronous design running on NSK bearings, which is the construction that forum buyers explicitly say to insist on. Cheap brushed motors and flimsy plastic diaphragm pumps are the reason some ranchers have given up on solar entirely.

What MPPT Actually Buys You on a Cloudy Week

An MPPT controller extracts more usable power from a partially shaded or low-angle array than a plain PWM controller, and it does it more consistently at dawn and dusk when voltage is collapsing.

That matters because pumps that stall and burn windings at dawn and dusk are one of the most common failure reports in livestock forums. The controller here also protects against frequent low-light startup attempts, overheating and running dry.

The intelligent water shortage sensor with automatic stop is the last line of defence, and it is a cheap insurance policy against a dry well.

The 48V Requirement and Its Consequences

This is a 48V system, and that is the main barrier for a casual buyer. You need a 48V battery configuration, a matched controller and a 48V solar array, which pushes the total system cost higher than a 12V or 24V build.

The open circuit voltage window of 42 to 100V gives you flexibility on array design, and the 9.8 foot extension cable is included, though for a 393 foot head you will be running your own drop cable.

Who This Is Right For

A rancher with a genuinely deep well, a meaningful herd, and the electrical skill to wire a 48V bank. The 3 inch body means your casing must be properly sized, and a 3 inch minimum internal diameter is the practical floor for this class of pump.

If your well is under 200 feet, the HYYKJ-US 370W gives you a similar result at a lower system voltage and a far simpler battery build.

6. PWS 24V Stainless Steel 316 Pump Kit – Best Warranty Coverage in the Lineup

The PWS JS3-1.8-100 is the kit I would buy if warranty terms mattered most to me. It carries a 3-year warranty with replacements paid for quality issues and a stated 24-hour customer service response, which is genuinely unusual in this category.

On paper it is a capable unit: 0.4 HP at 24V, 7.7 GPM, a 320 foot maximum lift and a Stainless Steel 316 body. SS316 is the grade used where chlorinated and mineral-laden water would eat a 304 body, which is a real consideration in some well conditions.

Owners report successful use on cattle watering stations once the system is set up with panels and batteries, and the water shortage sensors mean it can run unattended.

What the 3-Year Warranty Does and Does Not Cover

Warranty length is a proxy for manufacturer confidence, and here it is the longest in the roundup. In practice that shows up as a willing replacement when an impeller fails inside the window.

It does not cover impeller wear indefinitely, and owners do report wear over time. The 3 year commitment is meaningful, not permanent.

The Panel Gap Nobody Mentions

The panels are not included. This is a pump and controller kit, so you are buying the array separately, which adds both cost and one more thing to size correctly.

The MPPT controller still runs the show, protecting against frequent low-light startup, overheating and dry running. The 9.4 kg weight is manageable for two people.

Where It Ranks Below the Others

Reliability reports are mixed, and 17% of its reviews are one-star, the highest share among the well-reviewed kits here. Some units stop pumping quickly after installation, which points to setup quality rather than the pump itself in at least some cases.

If you are comfortable with the wiring, the warranty and the SS316 body justify the pick. If you want panels in the box, the ECO-WORTHY 100W kit is the more complete package.

7. HYYKJ-US 24V 320W Flow Pump – Budget Starter With Real Measured Flow Gaps

I am including this one because you will see it in the results, and because its failure pattern is the exact thing to avoid on a livestock tank. The listing claims 22 GPM at 82 feet of lift, and owners measuring the real output report about 7 GPM with the lift figure also falling well short.

That gap between published spec and delivered performance is why I would not hang a cattle tank on this pump. A stock tank that looks full at noon and is empty by evening is a production problem before it is a welfare one.

Why the Wire Gauge Matters More Than It Sounds

Owners report the supplied 16 AWG wire running very hot at the rated power. Heat in the supply cable is wasted energy and a fire risk in a dry barn or a hot wellhead, and it is fixable only by replacing the cable.

The motor itself is a permanent magnet copper design at 5000 RPM with reverse polarity protection, and the mechanical seal uses a stainless steel spring. The build intent is sound; the electrical execution is not.

Where It Is Honestly Usable

Owners do report strong flow from genuinely shallow sources around 10 to 15 feet, and it quiets down after the initial run. For a garden, a pond, or a shallow trough in a mild climate, the performance gap may never matter to you.

It also cannot build the pressure needed for a pressure tank application, and the choke valve mentioned in the marketing does not appear in the units owners receive. Treat every specification on this listing as aspirational.

The Verdict for Livestock Use

At a 3.2 average across 23 reviews with 32% of those at one star, this is the weakest pump in the roundup. I would use it for irrigation, not for animals, and I would not rely on its published flow figure in any sizing calculation.

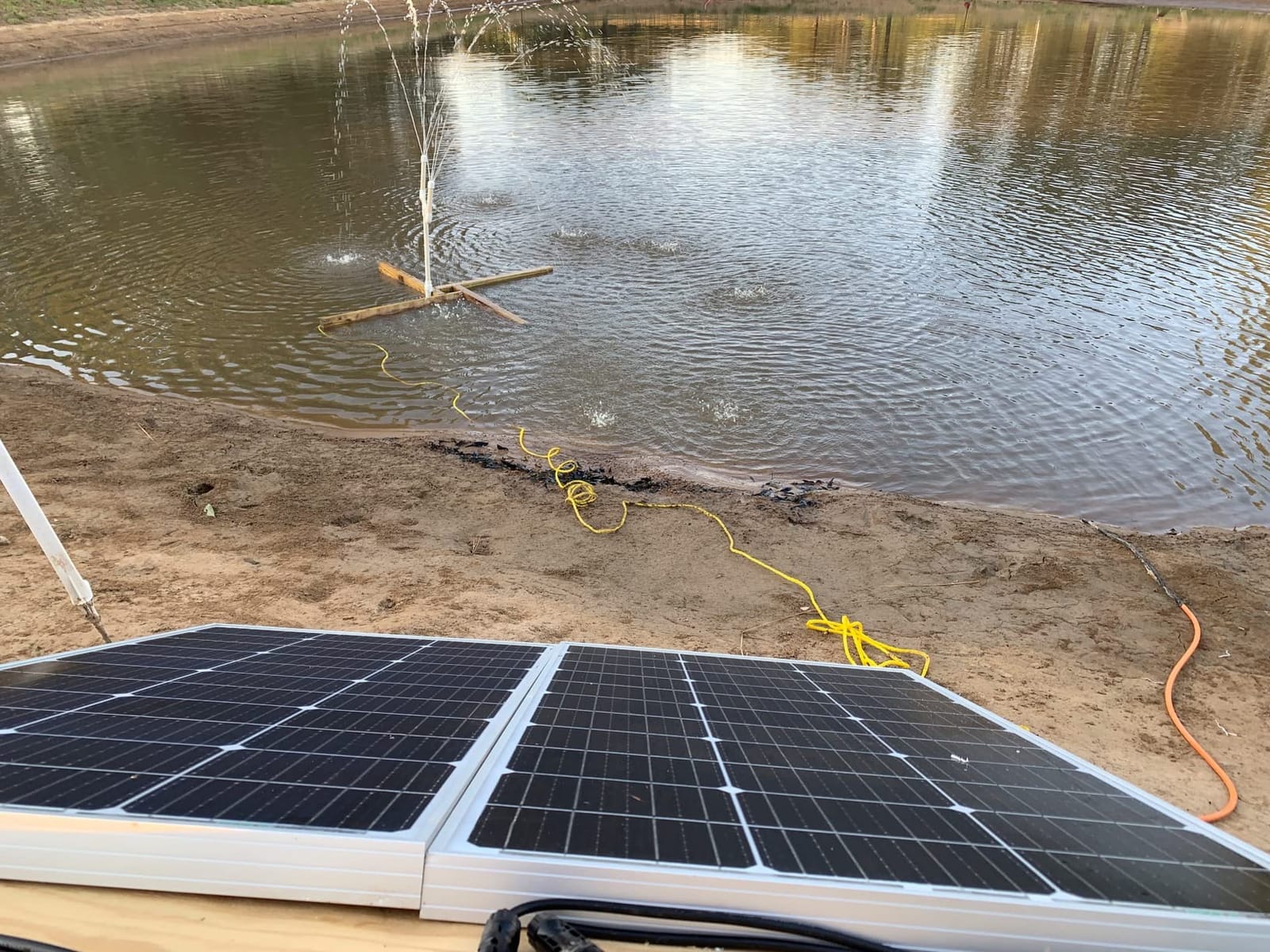

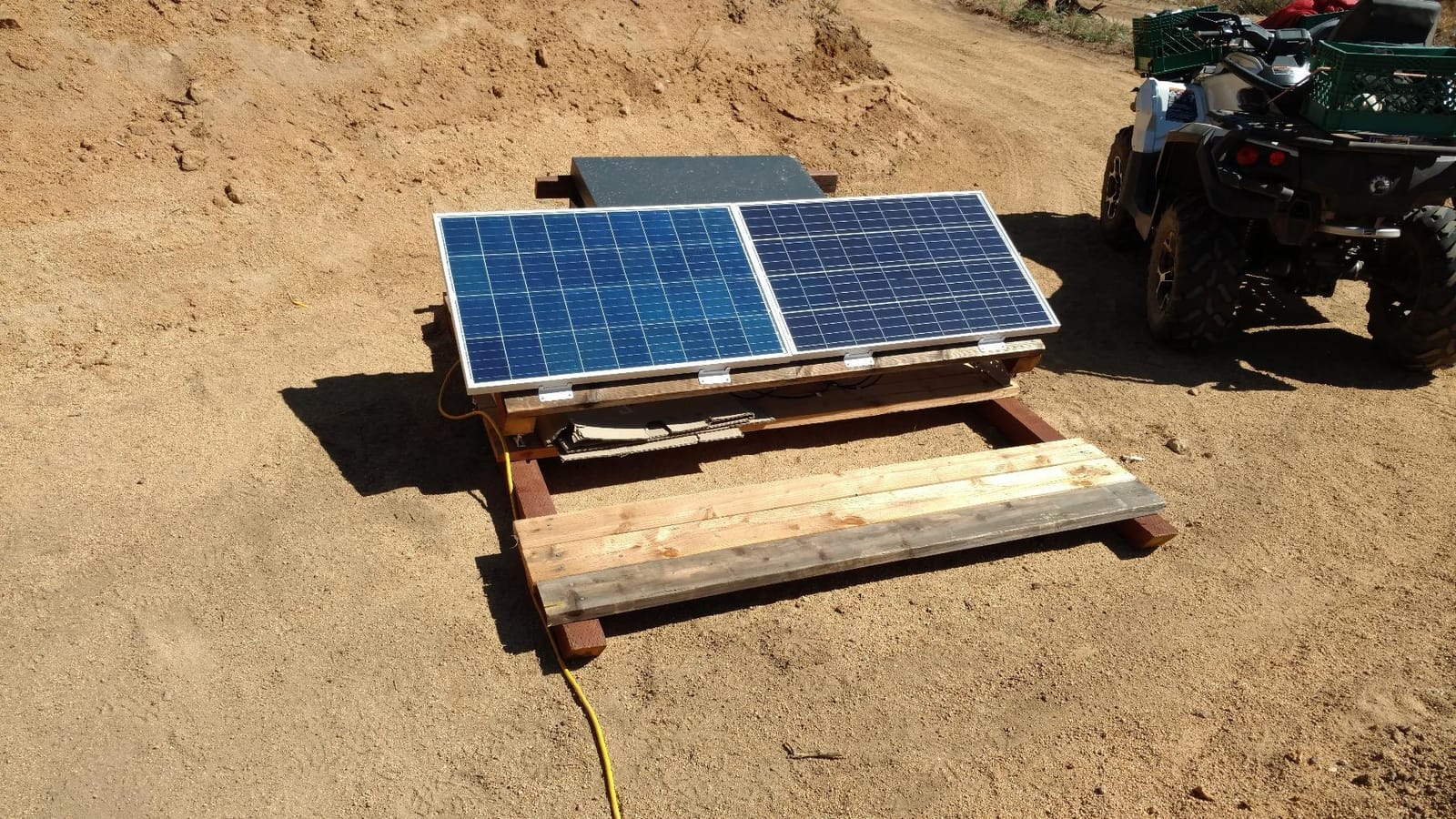

8. ECO-WORTHY 3.2 GPM Two-Panel Kit – Best All-in-One Package for Tank Filling

Two 100W panels, a 20A charge controller and a 3.2 GPM submersible pump ship together in this kit, and that is twice the solar power of the entry-level ECO-WORTHY package. For filling a stock tank on a decent-size herd, this is the box I would open first.

The 3.2 GPM open flow and 230 foot lift give it real headroom, and at 19 pounds the whole assembly is a manageable two-person lift.

The controller has four work modes, and the manufacturer recommends running in the mode that cycles the pump rather than pushing it continuously. That cycling is the difference between a pump that lasts five seasons and one that cooks its windings in a month.

Choosing the Right Work Mode

The four modes exist to balance flow against pump longevity, and getting this right is most of the setup. Continuous mode maximises delivery but wears the motor faster; the cycling modes protect the pump while still refilling the tank over a full day.

Pair it with a liquid level or float switch at the tank so the controller knows when to stop, and the whole loop becomes automatic.

Cloudy Days and Battery Pairing

This kit can run from the panels alone or from a 12V battery system, including a vehicle or boat battery you already own. That flexibility is the practical answer to the dull-week problem, because the battery carries the load when the array cannot.

Note the caution on the listing: this is a water pump only, not for petrol, gasoline, petroleum products, solvents or thinners. Obvious, but the fluids share a pump and the seal does not know the difference.

Honest Assessment of the Feedback

The 3.7 average is lower than the other ECO-WORTHY kit in this roundup, and 18% of reviews are one-star with reliability the most common complaint. The hardware on paper is stronger than the smaller kit, so the gap is likely build consistency rather than design.

Given the complete package, the 3.2 GPM output and the four-mode controller, I would still consider it, but I would keep a spare pump on hand at a remote site.

9. ECO-WORTHY 400W Four-Panel Kit – Most Panel Power in a Single Box, With Caveats

This is one of the most complete single boxes in the roundup: four 100W monocrystalline panels, a 140W brushless DC screw pump rated at 5.6 GPM with 164 feet of lift, an MPPT controller and a liquid level sensor, in a single package.

On paper it is the most attractive package for a family farm that wants both livestock water and a bit of irrigation. The liquid level sensor automates the loop, stopping the pump when the tank is full or the well runs too low, which is exactly the protection that keeps unattended systems alive.

Then there is the feedback. Fifteen reviews, a 3.5 average, and 32% of them at one star, with reports of controller failure, low voltage alarms and pumps that never reach the rated lift.

Why the 400W Array Is the Real Feature

Four 100W panels in one kit is 400 watts of generation, which gives you meaningful surplus to charge a battery bank while still filling a tank. In a region with strong peak sunlight, that surplus is what buys you cloudy-day reliability.

The 140W pump is deliberately modest against that array, which is the correct engineering choice. An oversized pump on a matched array gives you more water and faster recovery after a dull spell, not a bigger daily total.

At 30 kg the full kit is a two-person lift, and the 3 inch deep well body needs a properly sized casing.

What Owners Actually Report

Beyond controller issues, the recurring complaints are quality control: a panel arriving damaged, a delivery reaching the site without the controller, and customer support that did not resolve the problem. Water output is also reported as falling short of the 5.6 GPM figure in some installations.

With 15 reviews the sample is small enough that I would not read the 3.5 as a verdict on the design. It is a verdict on this batch, and on the seller experience around it.

Who Should Consider It

If you want a complete off-grid water package and would rather not source a panel array separately, the box value is real. If you are on a tight budget and a controller failure means a truck drive, the risk profile is worse than buying components individually.

My advice would be to confirm the warranty terms before committing, and to have a plan for a replacement controller on hand if the site is remote.

10. JENENSERIES 12V 250W Submersible Pump – Best Match for 98 Foot Shallow Wells

Closing out the list is a 12V 250W pump from the same JENENSERIES line as the 500W model, and it targets a much more common ranch situation: a shallow well with plenty of water and a modest herd.

It delivers 396 GPH, roughly 6.6 GPM, with a 98 foot maximum lift through a 1-inch screw outlet, in a body 3 inches across and 13.4 inches tall. The 32.8 foot extension cable is included, which covers most shallow installations without a splice.

The screw design runs at high rotation speed, which is how it gets its head out of a compact body. The motor and cable are pure copper, and the construction is otherwise straightforward stainless steel.

Why 12V Is the Right Choice Here

At 12V the electrical math is far simpler. Batteries, controllers and panels at 12V are the cheapest and most widely available, and the current draw of 9A is within reach of modest charge controllers.

The listing recommends a circuit breaker of not less than 11A, and taking that seriously protects the wiring. Ignoring the breaker recommendation on a pump drawing this much current is how supply cables get hot.

Where the 98 Foot Ceiling Bites

That limit is the whole story. Set the pump in a well with a static level past about 80 feet and you will be running at the far right edge of the curve, where flow collapses.

Calculate your total dynamic head before buying. If it exceeds roughly 80 feet, the 24V 370W or the 500W 48V kit is the correct call instead.

Honest Read of the Feedback

At 29 reviews with 22% at one star, the sample is thin. Owners praise the value, the copper motor and the outlet size, and the main complaint is the same one that limits the product: the lift ceiling.

It is pump only, so panels and a controller are on you, as with the Amarine Made. For a shallow well and a straightforward 12V build, that trade makes sense.

How to Size a Solar Water Pump for a Livestock Tank

Sizing is where most solar pump purchases go wrong, and it is a five-step process you can do with a tape measure before you spend anything.

Step 1: Work Out Daily Water Demand by Head Count

Start with the animal, not the pump. A mature beef cow drinks roughly 10 to 20 gallons a day in cool weather and considerably more in summer heat or while lactating. Dairy cattle sit higher, around 20 to 40 gallons. Horses need about 8 to 15 gallons, and sheep and goats need only 2 to 4.

Then multiply by head count and apply your worst-case multiplier. A lactating dairy cow in August can drink double the cool-weather baseline, and designing for the average is designing for a dry tank in July.

A worked example makes it concrete. Fifty beef cattle at 20 gallons each is 1,000 gallons per day. Divide that by roughly 6 effective pumping hours and your design flow target lands near 170 gallons per hour, or about 2.8 GPM at the pump.

Step 2: Calculate Total Dynamic Head

Total dynamic head, or TDH, is the single number that determines whether a pump will work at your site. It is the sum of three things:

Static water level is the depth to water when the pump is not running.

Pumping level is the depth to water while the pump draws, which is always deeper. Add the expected drawdown between the two.

Vertical rise and friction is the height the water must climb out of the tank, plus friction loss through the drop pipe and delivery line, typically around 10 to 20 feet of head per 100 feet of pipe depending on diameter and flow.

Using the same 50 head example with a 225 foot well and a 100 foot static level, plus a 10 foot tank rise and friction, the total lands in the neighbourhood of 143 feet of TDH. That number, not the pump’s headline lift, is what you match to a performance curve.

Once you have TDH, read the pump curve at that point to get real flow. The headline maximum lift is the zero-flow ceiling, not a working figure.

Step 3: Size the Solar Array With the 1.25x Rule

This is the question that comes up most, so here is the direct answer: a 1 HP AC water pump needs roughly 750 watts of DC input minimum, and with the standard 1.25x oversizing factor you should design a 1,000 watt to 1,250 watt array, which is 10 to 13 panels at 100W each.

The same logic scales down. A pump drawing 370W needs about 460W of panels after oversizing. A 140W pump needs roughly 175W, so two 100W panels is the practical minimum.

Oversizing exists because panels rarely deliver their rated wattage. Real output depends on peak sunlight hours, and that varies enormously by region. The Southeast runs about 4.5 to 5.2 peak sunlight hours a day, while parts of the Southwest reach 6 to 8.5. A panel array sized for 8 hours will disappoint you badly at 4.5.

Oversize the array for your worst region, not your best month, and tilt the panels at roughly your local latitude with a due-south aspect. A 3 inch minimum casing internal diameter also matters, especially if you may later convert a windmill tower.

Step 4: Choose Between a Battery Bank and a Bigger Tank

This is the decision forum users argue about most, and the honest answer is that a larger storage tank is usually the better investment.

Running a pump off a battery bank costs you 15 to 25% of your pumping efficiency to conversion losses, and the battery itself is the most expensive component you will buy after the array. Meanwhile, storage volume costs almost nothing per gallon at scale.

Extension guidance is to plan for three days of demand in your storage tank. A solar pump produces meaningful water for roughly 6 hours in summer and closer to 4 in winter, and a three-day buffer means a full week of dull weather does not put your herd at risk.

Use a float switch or a liquid level sensor at the tank so the pump stops when the tank is full. A system with no float switch or low-water shutoff is a dry-run damage waiting to happen, and every pump above except the two complete kits should be paired with one.

Step 5: Weigh Solar Against Windmill, Grid Electric and Diesel

If you already have a windmill tower, casing and float valve on the ranch, a solar conversion is often the cheapest path to reliable water. Reusing that infrastructure avoids the single largest cost in a new well.

Against grid electric, solar wins decisively when the pasture is remote. Extending power lines more than a third of a mile often costs more than the pump itself, and then there is the monthly bill forever.

Against diesel, there is no fuel cost, no exhaust, no engine maintenance and no noise. A generator-based setup converts an ongoing operational cost into a one-time installation, which changes the economics over a ten-year horizon even when the initial outlay is higher.

Hybrid AC and DC systems exist for a reason. They run a DC pump in the sun and switch to AC power on cloudy days. For ranches with grid access at the wellhead but not at the tank, that flexibility can be worth the added complexity.

Why a Solar Pump Stops Pumping, and What to Check

When a solar pump goes quiet, work through this list in order before assuming the pump has failed.

Check the float switch first, since a stuck or fouled float stops the whole cycle. Then check the low-water or water shortage sensor, which many controllers set sensitively and which can trip on a well that has simply drawn down.

Next, look at the array. A leaf, a bird nest, dust or a late-afternoon shadow can cut output to nearly nothing, and the pump will simply not start. Clean the panels and check for shade growth across the seasons.

Then check the battery bank, because a bank that has aged or sat in deep discharge will not deliver starting current. Low voltage alarms and an unresponsive controller are common symptoms here.

Finally, confirm the well is not drawing sand and iron into the pump. Helical rotors and impellers wear fastest in abrasive water, and a sudden flow drop with no electrical symptom points at wear rather than wiring.

Winter, Freeze Protection and Where to Buy

Winter is when solar systems get tested. Insulate or bury the supply line, drain it before the first freeze, and consider an anti-freeze bleeder valve on the riser. Mounting the controller and any electronics at least 8 feet off the ground protects against snow and livestock damage.

For stock tank circulation and summer water temperature, our solar pump and circulation picks cover the small-pump side of that job, which is a separate category from the well pumps reviewed here.

On where to buy, there are three distinct channels and they suit different buyers. Brand-direct solar pump specialists sell complete engineered systems with matched controllers and real support, and they are the right choice for deep wells and large herds. Marketplace kits like several above give you the most hardware in one box but the least documentation. Local farm supply stores carry panels and batteries, not pump systems.

If you can only pick one place to start, that is the decision that matters most. A complete matched system from a specialist costs more and removes nearly all of the integration risk that shows up as one-star reviews on the cheaper kits.

Frequently Asked Questions

Which Solar Water Pump Fits Your Herd

After working through ten pumps, the pattern is clear: the specification that decides your purchase is total dynamic head, and everything else is secondary.

If you have a shallow well or a pond within about 25 feet of the tank and a modest herd, the BACOENG 12V 120W is the pick. It has the deepest owner feedback base in this category, and you can add a float switch and a battery bank around it easily.

If your water sits deeper than that, the HYYKJ-US 24V 370W is the pick I would make, with 213ft of lift, an 8.8 GPM figure that holds up in practice, and a slim 3 inch body that fits narrow casings.

If you have never wired a pump controller, the ECO-WORTHY 100W kit removes the hardest part of the build by shipping the panel and controller together. Pair it with a real battery and a three-day storage tank and it will carry a small herd reliably.

If you are past 300 feet of TDH, the JENENSERIES 500W 48V is the pump here rated for that lift, and its included MPPT controller and float switch are worth the higher system complexity.

If you want the longest warranty in the roundup and Stainless Steel 316 construction, the PWS 24V kit covers you, understanding you are buying the panels separately.

And skip the HYYKJ-US 24V 320W for livestock. Owners measuring it get about 7 GPM rather than the advertised 22, and the supplied wire runs hot at rated power. That is a garden pump, not a herd pump.

Whichever you choose, do the TDH math before you buy anything, and size the storage tank for three days. Those two steps solve more problems than any brand choice. If you want to keep learning how solar hardware behaves off-grid, read our solar panel picks for emergency preparedness and you will have the full picture of a panel-backed system.
