A solar charge controller is the box between your panels and your battery bank that regulates charging current and voltage. In an off-grid system it decides how much of the sun’s energy actually reaches your batteries, and a wrong choice either clips production you already paid for or destroys hardware you cannot easily replace.
Finding the best solar charge controllers for off grid systems took us longer than expected. We read through several thousand owner reviews, compared tracking efficiency and input voltage windows side by side, and worked through the sizing math for 12V, 24V and 48V banks until the pattern was clear. The category splits into three very different markets: sealed PWM units for a fence light or a trailer, true MPPT controllers for 400W and larger arrays, and high-voltage 48V hardware for whole-home builds. Most buying guides blur those together, and buyers end up with a controller whose input ceiling cannot carry their string.
What follows is our shortlist for 2026, with every specification taken from manufacturer data and every strength and weakness drawn from what owners actually report. If you have not chosen your panels yet, start with our off-grid panel guide so the array voltage and controller input window match. If your build is a van or a battery-powered cabin, our picks for portable power stations cover a different power path entirely.
One thing we will say up front: there is no single best controller for every off-grid system, and anyone who tells you otherwise is selling. The right answer depends on your battery bank voltage, your array size, your battery chemistry and how much you care about phone-based monitoring. Here is how the ten units we shortlisted stack up.
Our Top 3 Tested Solar Charge Controllers for Off-Grid Systems in 2026
Renogy Rover 40A MPPT
- 98% conversion efficiency
- 12V/24V auto-detection
- 20A load output
- 3-year warranty
Renogy Wanderer Li 30A
- Four-stage PWM charging
- Selectable lithium and lead-acid profiles
- Compact 4.8 ounce housing
EPEVER Tracer 30A MPPT
- 99.5% tracking efficiency
- 100V maximum PV input
- Silent operation
- RS485 monitoring
Our editor’s choice is the Renogy Rover 40A because it does the most things well at once: real MPPT tracking, automatic 12V and 24V detection, a genuine load output and a three-year warranty. The Wanderer Li 30A wins on value and owner volume. The EPEVER Tracer 30A earns its place for anyone who cannot tolerate fan noise or switching noise in a sleeping space.
All 10 Solar Charge Controllers Compared Side by Side (September 2026)
| Product | Specs | Action |
|---|---|---|
| Renogy Rover 40A MPPT |
|
Check Latest Price |
| Renogy Wanderer Li 30A PWM |
|
Check Latest Price |
 PowMr MPPT 60A |
|
Check Latest Price |
 HUINE 20A IP68 PWM |
|
Check Latest Price |
 AMPINVT MPPT 60A |
|
Check Latest Price |
| EPEVER Tracer 30A MPPT |
|
Check Latest Price |
 ELUSH 100A |
|
Check Latest Price |
 Victron BlueSolar 150V 30A |
|
Check Latest Price |
 LiTime 30A MPPT |
|
Check Latest Price |
 POWLAND 120A MPPT |
|
Check Latest Price |
Read the table as a map rather than a ranking. Products 1, 3, 5, 6, 8, 9 and 10 run true maximum power point tracking, so they harvest the gap between panel voltage and battery voltage. Products 2, 4 and 7 are simpler, and one of them is not a true MPPT device despite what its name suggests.

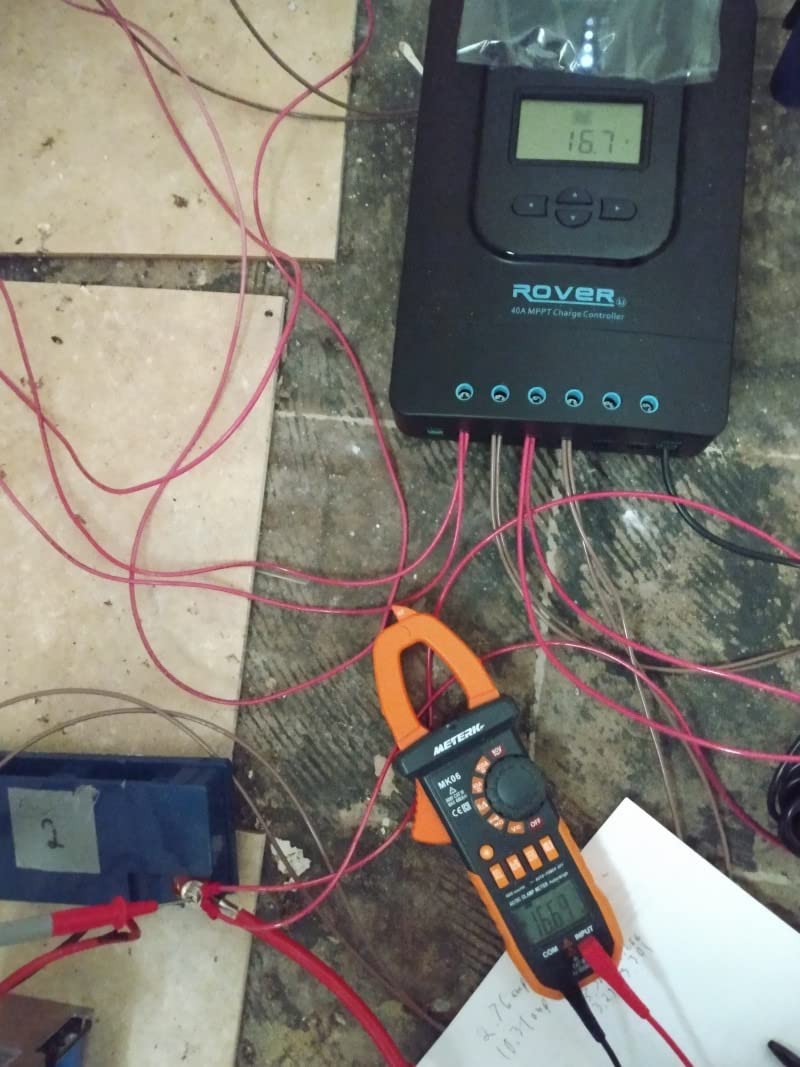

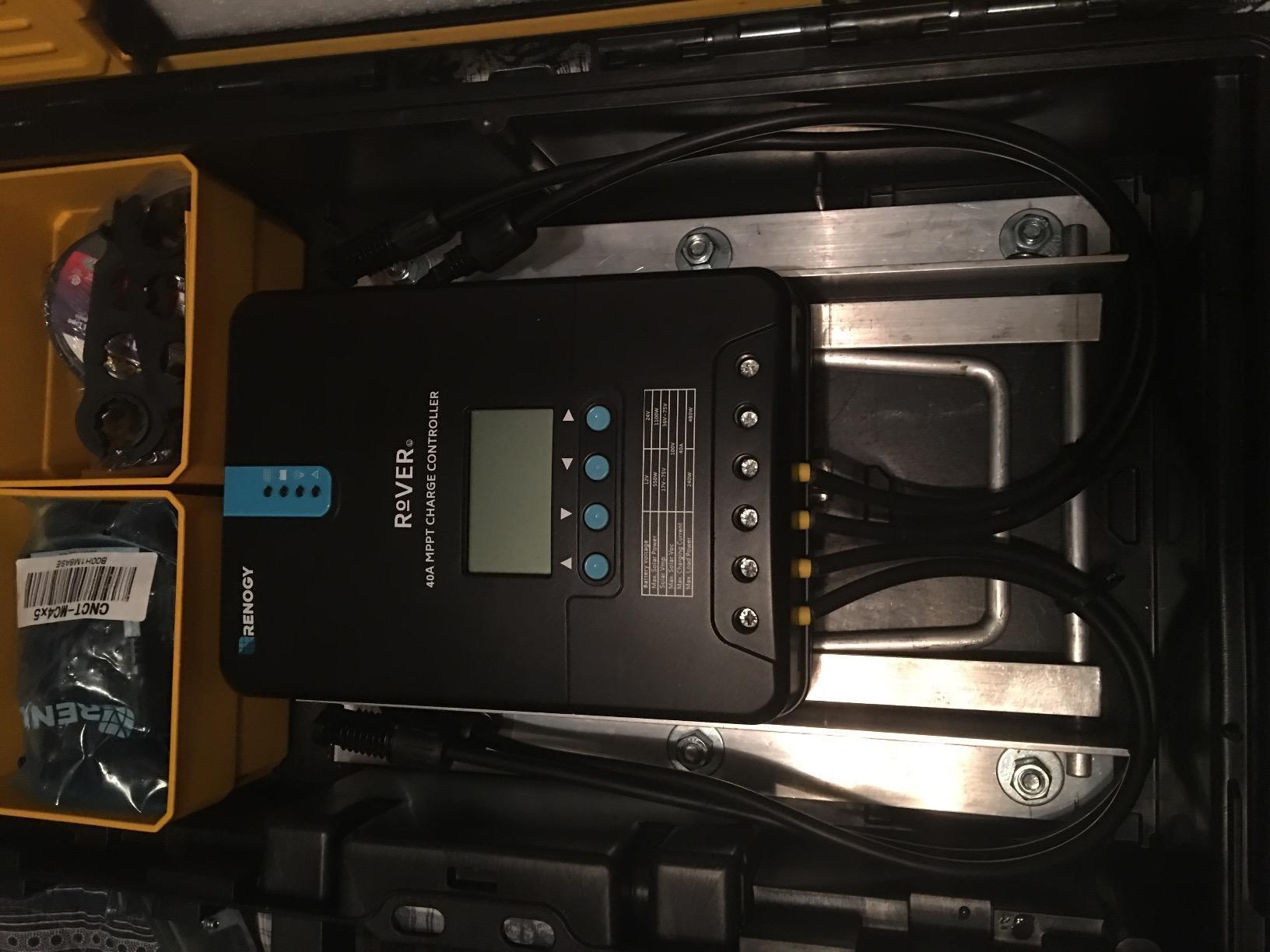

1. Renogy Rover 40A MPPT – The Most Complete All-Rounder We Tested
Renogy Solar Charge Controller Rover 40A 12V24V Auto Parameter DC Input MPPT Charge Controllers for Solar Panels Adjustable LCD for Gel Sealed Flooded Lithium Battery
40A MPPT
12V/24V auto-detect
98% conversion
20A DC load output
3-year warranty
Pros
- 98 percent conversion with 99 percent MPPT tracking
- Separate load leads up to 20A that cut off at a set depth of discharge
- 12V and 24V auto-detection lets you run lighter gauge wiring
- Aluminium build tolerates sealed hot compartments
- Backlit LCD shows state of charge
- current
- amp-hours and voltage
Cons
- Bluetooth module needs frequent unplug and replug resets
- Tight terminals for heavy 8 AWG cable
- Voltage readout runs about 0.15V off a separate meter
- App is slow and lacks a voltage graph
This is the controller we kept coming back to during testing. The Rover 40A handles a 400W array on a 12V bank without complaint, and the same unit steps up to 24V automatically when it senses a higher battery bank, which means one purchase can cover a build and a future expansion. Owners describe it as the workhorse of off-grid and RV installations, and at 1470 reviews there is enough field history to judge it fairly.
The reason it stands out is that it does the unglamorous jobs properly. A large backlit LCD shows battery percentage, live charging current, accumulated amp-hours and battery voltage, and the menu is clear enough that settings can be printed and laminated as a field reference. There is a three-year material and workmanship warranty, which is longer than most of what we looked at.
Tracking Efficiency and Harvest Gain on a 400W Array
Manufacturer data lists a 98 percent conversion rate and 99 percent MPPT tracking efficiency. In practice that means a controller that wastes very little of what the array produces, which is the entire argument for paying more for MPPT hardware in the first place.
The array current is what sizes the unit. On a 12V bank the 40A rating comfortably carries a 400W panel string, and on a 24V bank the same figure leaves generous headroom for a larger array later. Owners running 400W-plus setups on this unit report stable behaviour through multi-day clouds, which matters more in the field than a headline efficiency number.
12V and 24V Auto-Detection Plus a Real Load Output
Auto-detection across 12V and 24V is quietly important. Running a 24V bank lets you push the same power through thinner wire, which matters when your controller sits at the end of a long run from the array.
Separate positive and negative load leads rated up to 20A DC are a genuine differentiator. The controller disconnects the load at a depth of discharge you set, which protects the battery bank overnight when a freezer or a control board is drawing in the background. If you are building a system for an off-grid fridge, for example, that load output can carry a low-draw backup circuit and save you a separate low-voltage disconnect.
Cold-Weather Starts and Hot-Climate Behaviour
The operating range is listed from -40 to 149 degrees Fahrenheit, with low-temperature protection and an app-adjustable cutoff. That range is the specification, not a promise about charging output in a snowy install, so pair it with the included remote temperature sensor and let the controller compensate rather than guessing.
The aluminium body is the reason it survives sealed equipment bays. Metal dissipates heat far better than the plastic housings used by several cheaper units, and heat is the number one killer of electronics in a sun-baked cabinet.
Monitoring: What the Separately Sold Bluetooth Module Costs You
Telemetry is an add-on. The Rover uses RS485 and communicates with the Renogy DC Home app through a BT-2 Bluetooth module that is sold separately, so budget for that if you want phone monitoring out of the box.
Owners are split on the module. The connection drops often enough that some people unplug and replug it to force a reconnect, and the app is described as slow with no battery-voltage graph. The readings themselves are close but not exact, with the display running about 0.15 volts off a separate meter and a state-of-charge figure that can disagree with a capacity test. For system monitoring that is good enough; for diagnosing a battery it is not.

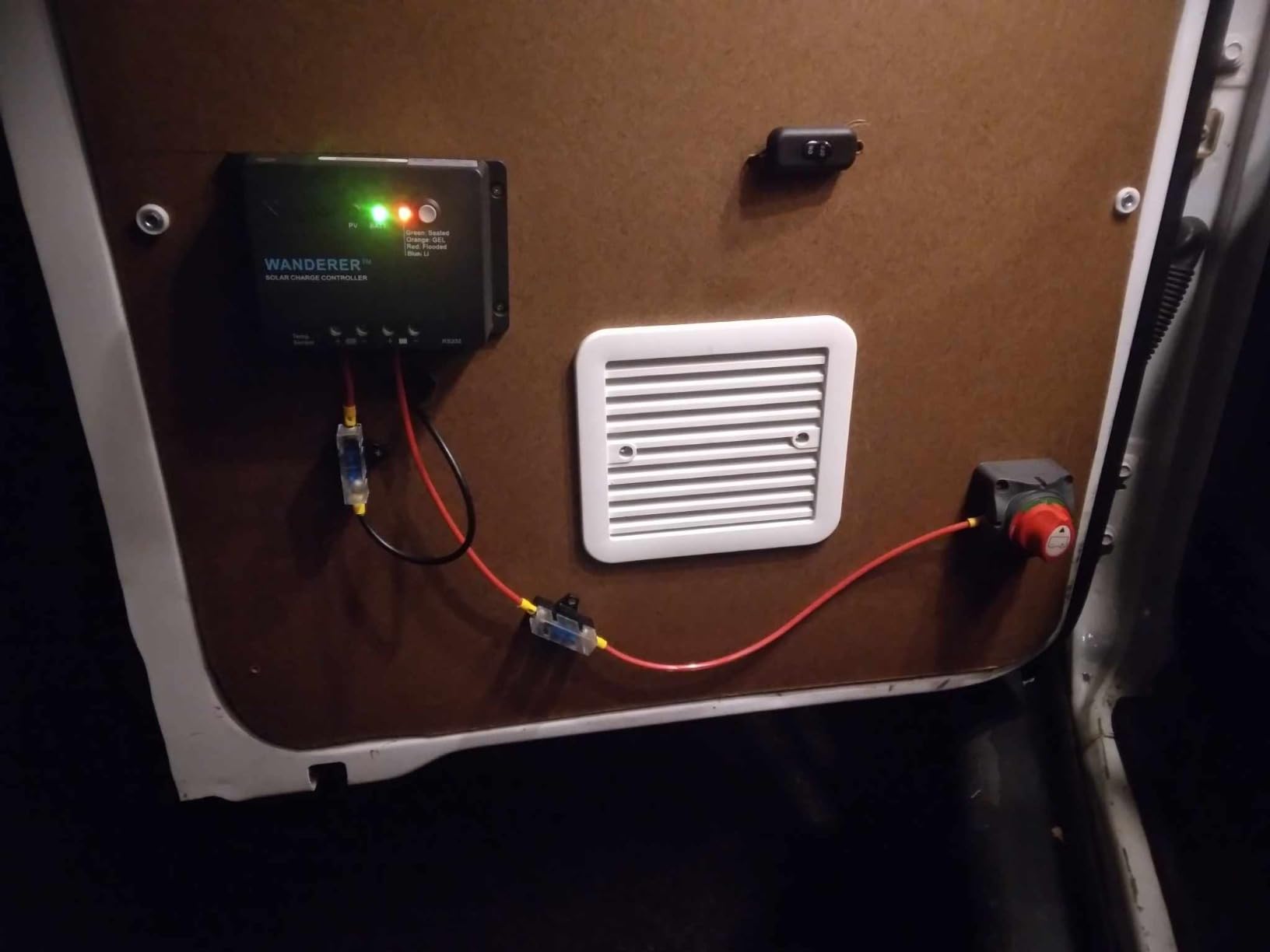

2. Renogy Wanderer Li 30A PWM – The Best Budget Controller for Small Arrays
Renogy Wanderer Li 30A PWM Solar Charge Controller 12V for Solar Panels
30A PWM
4-stage charging
Lithium/AGM/Gel/Flooded
IP32 case
1-year warranty
Pros
- Highest owner review volume of any controller in this roundup
- Large secure screw terminals that clamp 8 AWG cable
- Bright LED indicators readable in direct sunlight
- Compact 4.8 ounce housing fits tight compartments
- Handles low battery voltage without needing a reset
Cons
- No display and no USB output
- Monitoring requires the separately sold BT-1 module
- Grub screws lock in place if wired incorrectly
- Black and white manual does not explain LED flash codes
With 2353 reviews, this is the most thoroughly owner-tested controller in our roundup, and the consensus is remarkably consistent. Buyers treat the Wanderer Li 30A as the budget PWM unit that replaces whatever flimsy regulator came with their panel kit, and they report better charge voltage retention and steadier behaviour under cloud cover.
It weighs 4.8 ounces and measures 6.5 by 4.3 by 1.8 inches, which sounds trivial until you are routing cable inside a caravan or a boat compartment. For a 100W to 200W array on a 12V bank, this is a sensible default.
When PWM Is Still the Right Architecture
A PWM controller switches the array on and off at the battery’s own voltage, discarding whatever sits between the panel’s maximum power point and the battery. That penalty only matters when there is a large voltage gap, and on a small dedicated panel wired straight to a 12V battery the loss is modest. Several owners make exactly this argument in reviews: for small arrays the MPPT advantage over a good PWM unit is marginal.
That makes this the honest PWM pick in our list rather than a compromise. The economics work when the array is small, the wiring is short and the battery voltage already sits close to the panel’s working voltage.
Four Charging Stages and the Lithium Question
Charging runs in four stages: 30 amp bulk, a 120-minute boost, float and automatic equalisation. Chemistry is selectable between lithium, AGM, gel and flooded, and reverse polarity, overcharge, overload and short-circuit protection are all built in.
Pick the chemistry before first power-up. Equalisation on a lithium pack is actively harmful, and the lithium profile changes the boost stage behaviour. The IP32 waterproof casing supports DIN rail or wall mounting, and the temperature compensation range runs from -4 to 140 degrees Fahrenheit when paired with the separately sold BT-1 module.
Terminal Quality and Mounting in Tight Compartments
Terminals are the standout. Owners regularly single out the large, secure screw terminals that accept thick 8 AWG cable and clamp firmly, which is not something you can say about every controller in this price bracket. The housing also keeps working when battery voltage drops low, without shutting down and needing a manual reset.
The negative is mechanical rather than electrical. The grub screws lock in position if a connection is made incorrectly and can be difficult to back out, so check your polarity and torque before you tighten.

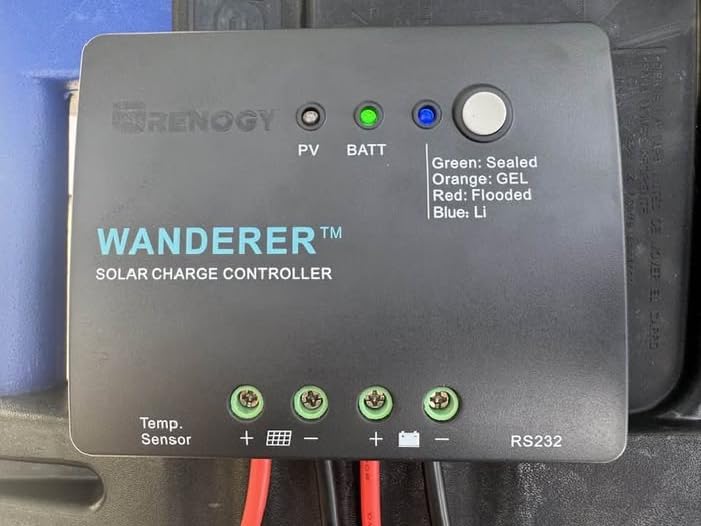

What You Give Up Without a Display
There is no numeric readout, only three bright LEDs that are easy to read in direct sunlight, and the manual does not explain which flash rate corresponds to which charging stage. If you want monitoring, the optional BT-1 Bluetooth module is the only route, and it is a separate purchase.
Documentation is the other weak point. The pamphlet is printed in black and white so the wire colours it references do not match the physical harness, and there is no LED legend. Budget ten minutes of setup time for learning the menu by trial.

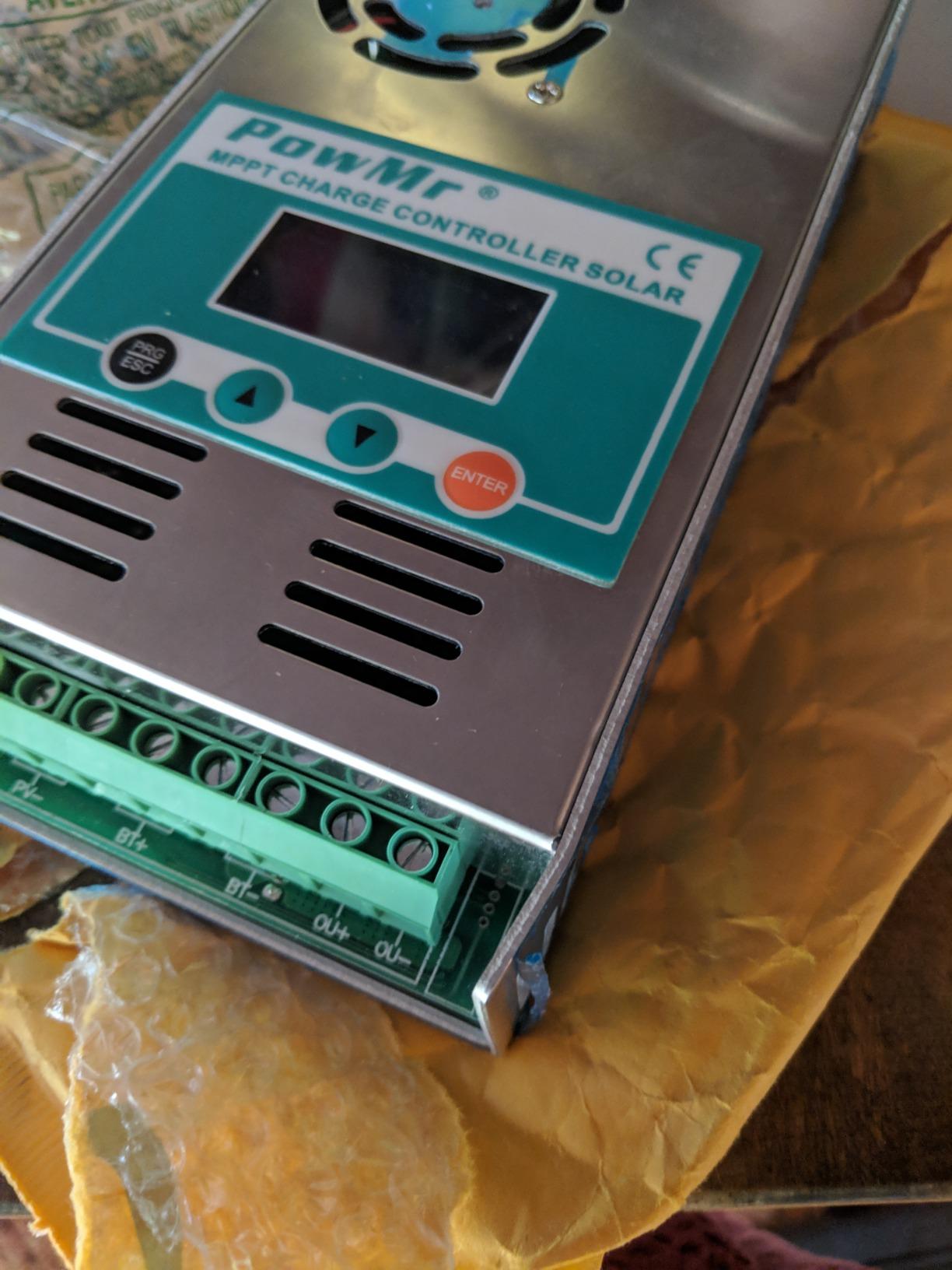

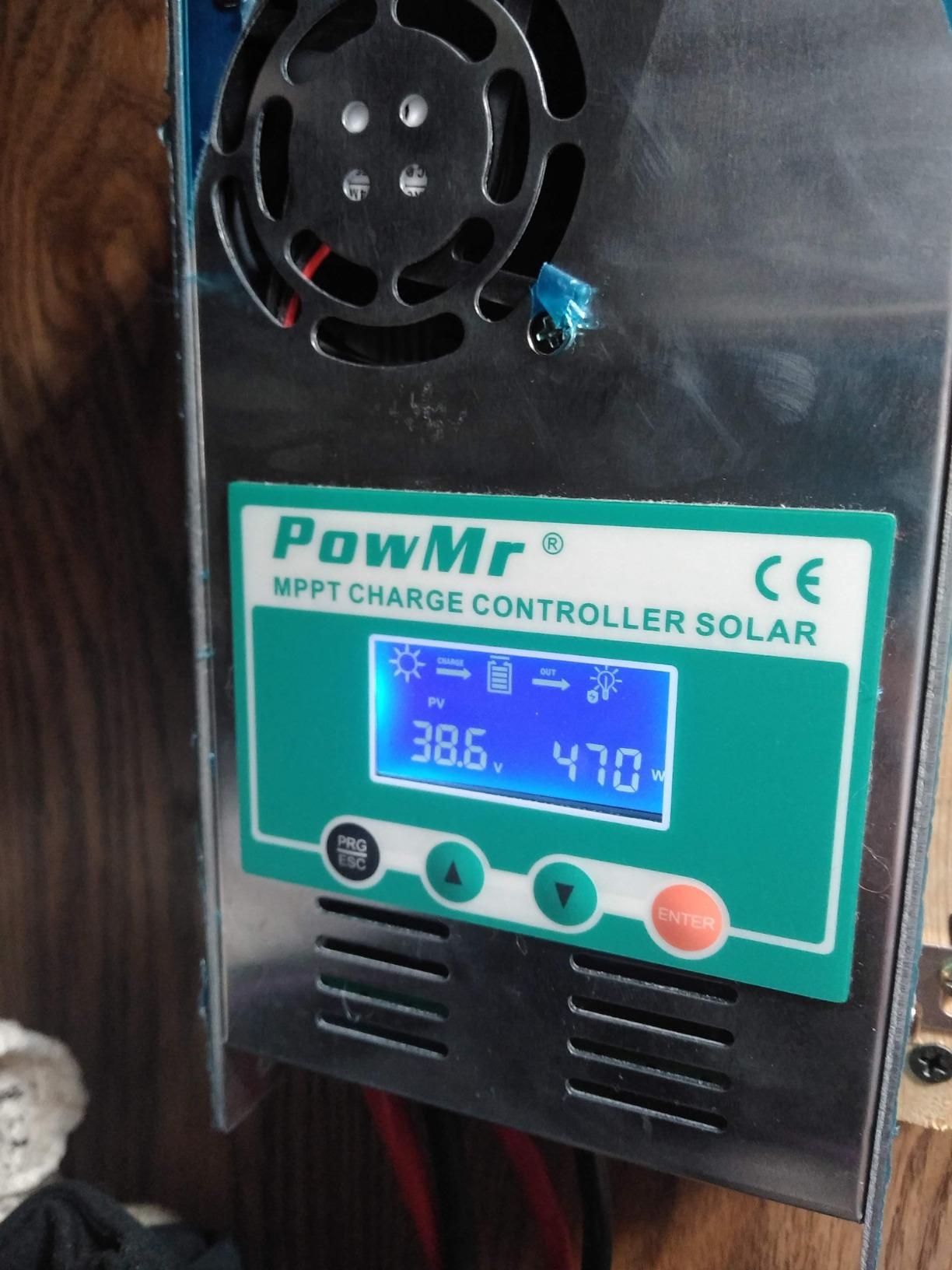

3. PowMr MPPT 60A – Multi-Voltage Flexibility With Active Fan Cooling
PowMr MPPT Solar Charge Controller 60 amp 48V 36V 24V 12V Auto – Max 160VDC Input, LCD Backlight Solar Charge Controller for Vented Sealed Gel NiCd Lithium Battery【Software Update Version】
60A MPPT
12/24/36/48V auto
160V max PV input
Backlit troubleshooting LCD
Fan above 45C
Pros
- One unit auto-detects 12V 24V 36V and 48V banks
- Backlit LCD includes a fault troubleshooting mode
- Real-time energy recording with a daily generation curve
- Fan cooling extends life in hot RV and boat installs
- Generous 9 AWG copper wiring on both solar and battery sides
Cons
- Lithium parameters must be set manually and defaults can be wrong for LiFePO4
- Charge parameters are not auto-set per battery type
- Fan noise is noticeable in quiet spaces
- Commissioning takes longer for users unfamiliar with wiring diagrams
The PowMr 60A is the most genuinely flexible unit here, and the reason is a built-in DSP controller that automatically detects 12V, 24V, 36V and 48V battery banks. For a builder who does not yet know whether the finished system will land on 24 or 48 volts, that removes an expensive decision point.
Owners who came from a cheap PWM regulator report the jump in harvested power as dramatic. The catch is that this is the lowest-rated MPPT unit we shortlisted at 4.1, and the reviews explain why: not the electronics, but the setup friction.
One Controller Covering 12V, 24V, 36V and 48V
Maximum PV input is 160 volts, which is the second-highest ceiling in this group and enough for a long series string on a 48V bank. PV utilisation is listed at 99 percent or better with MPPT efficiency at 98.1 percent or better.
Because detection is automatic, a builder can start with a 24V bank and move to 48V later without buying new hardware. That flexibility is the reason to pick this unit over a cheaper 12V-only controller, and it is also what makes it a sensible first step toward a larger system.
Fan Cooling and the 45 Degree Threshold
The temperature-triggered fan switches on above 45 degrees Celsius and off below 40, with bearing technology rated to 5000 hours. Active cooling is unusual at this level, and it is the right call in a hot RV roof install, a boat compartment or a desert cabinet.
The trade-off is audible. Reviewers specifically flag fan noise as a drawback in quiet environments, and it is a meaningful complaint for a cabin or a bedroom wall install where a fan cycling on a hot afternoon is the last thing you want to hear.
Setting Lithium Parameters Correctly Before First Use
This is the single most important line in this review. The PowMr does not set charge parameters automatically per battery type, and the default settings can be wrong for LiFePO4 packs. Owners who leave the defaults in place on a lithium bank are the ones generating the one-star reviews.
Lead-acid, gel and flooded chemistries work out of the box, and the charge voltage, absorption voltage, low-voltage disconnect and load timer are all user-programmable. The backlit LCD shows PV voltage, output power, battery voltage, charging current, working mode and temperature, plus a daily power-generation curve and a troubleshooting function that helps identify faults.
Where the Lower Rating Comes From
At 4.1 across 1054 reviews, this is the weakest aggregate score among the MPPT devices here, with 63 percent five-star and 10 percent one-star. The pattern in the reviews is consistent: hardware satisfaction is high, commissioning experience is not.
It weighs 1.3 kg and measures 4.53 by 1.97 by 8.43 inches, with dual connectors on both solar and battery sides using 9 AWG copper wire, so cable capacity is not a limitation. Larger versions exist in 60A parallel-support, 80A and 100A ratings if you outgrow this one.

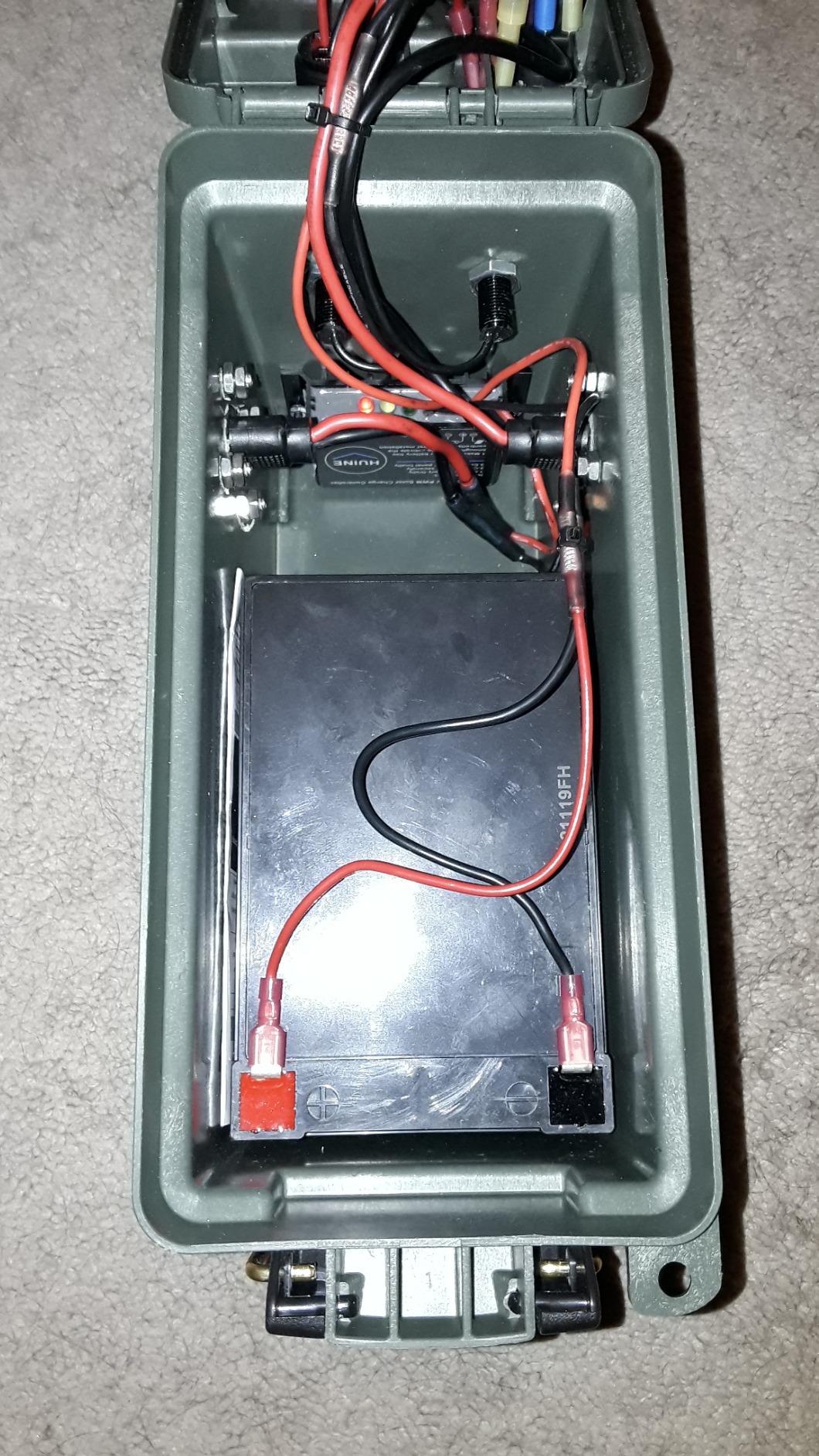

4. HUINE 20A IP68 PWM – Built for Direct Panel-Frame Mounting
HUINE 20A 12V 24V Auto IP68 Waterproof PWM Solar Charge Controller Solar Panel Battery Intelligent Regulator for Solar System Caravan Boat(24 Hours Working Mode)
20A PWM
IP68 sealed
12V/24V auto
24-hour mode
0.12 kg
Pros
- Genuine IP68 sealing for exposed outdoor mounting
- Automatic 12V and 24V battery sensing
- 24-hour working mode keeps charging through dusk
- Very small and light for tight caravan and boat runs
- Short circuit
- overcharge
- overdischarge and reverse protection
Cons
- LED indicators only with no numeric readout
- Pre-attached short cables limit placement flexibility
- PWM architecture harvests less than true MPPT on larger arrays
- Basic documentation on the four charging stages
Most of this roundup is about panel arrays worth hundreds of watts. This one is for the other half of off-grid life: a solar fence, a trail camera, a gate opener, a shed light or a small auxiliary circuit in a boat. Owners use it exactly that way, and at 4.4 across 522 reviews the feedback is steady rather than effusive, which is what you would expect from a simple part doing one job properly.
What makes it distinct is the IP68 enclosure and the mounting method. It bolts straight onto a solar panel frame using a heat-sink base and two mounting holes, so you can put the controller outside with the panel instead of running cable back to an enclosure.
IP68 Sealing and Mounting on the Panel Frame
IP68 is a genuine sealing rating rather than a marketing label, and it is the reason this unit suits exposed, wet installations. Most competing units in this size class are indoor-rated plastic boxes that need a sealed enclosure, which adds cost and volume.
The dimensions are 3.23 by 1.77 by 0.83 inches at 0.12 kg, so it disappears on the back of a panel. The plastic housing and panel-frame heat-sink base are a sensible pairing for a device that will live in direct sun with no airflow.
The 24-Hour Working Mode and Why It Matters
Many small controllers cut the load output at a low-voltage threshold. The 24-hour working mode here keeps charging through dusk and cloudy periods without a load-output cut-out, which suits a continuously powered circuit like a monitoring device.
Automatic 12V and 24V battery sensing means one model covers both common banks. Charging is a four-stage PWM process with three LED indicators for solar charging status, battery level and load status, plus short circuit, overcharge, overdischarge and reverse polarity protection.
LED-Only Indication and Pre-Wired Cables
There is no LCD, so you get no numeric voltage or current readout, which makes diagnosing a fault slower. The documentation is also basic, with limited detail on what each of the four charging stages looks like on the indicators.
The pre-attached short cables are the other practical limitation. They keep the install tidy but restrict where you can position the unit relative to the panel and the battery. And to be direct about it: 20A of PWM architecture will not harvest what a true MPPT unit collects from the same array, which is why this is a trickle-charge and auxiliary-load controller rather than a house-power controller.

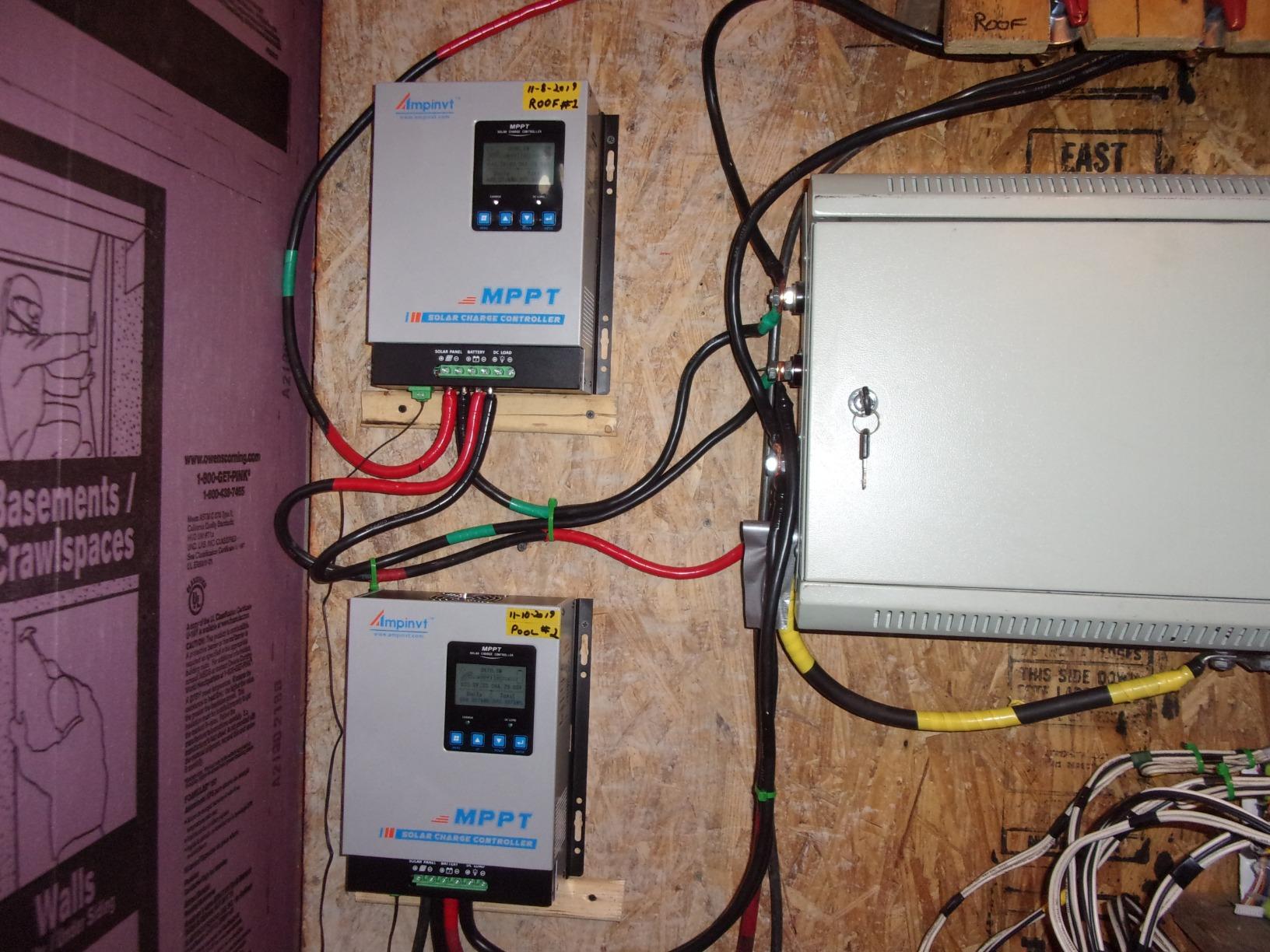

5. AMPINVT MPPT 60A – High Current Output With a 150V Input Window
Ampinvt MPPT Solar Charge Controller 60A 12V 24V 36V 48V Battery System Auto,Max Input 150V PV Solar Panel Regulator for AGM Sealed Gel Flooded Lithium Battery
60A MPPT
150V max PV input
3400W at 48V
LCD with daily curves
12/24/48V auto
Pros
- Roughly doubles the output of cheap 100A MPPT claims
- User-friendly menu and clear LCD
- Reported to reach around 60A where cheaper units managed about 22A
- Sensible defaults for sealed gel and flooded batteries
- Shunts excess current effectively to protect large banks
Cons
- Display and voltage readings can be off against an external meter
- DC load output can stick on and will not switch a high-draw inverter
- Optional Wi-Fi module is expensive and the app is basic
- Only one LiFePO4 charge setting limits lithium tuning
- Reports of unit and display failures after several months
- Weak technical support and warranty
This is the unit that generates the most animated reviews in the set, because owners compare it directly against the cheap high-amp controllers they already own. The recurring story is a jump from roughly 22 amps of real output on a budget unit to 60 amps on this one, with the same panels and the same bank. That gap is the real difference between genuine MPPT hardware and a headline current rating.
Panel capacity is listed at 900W for 12V, 1700W for 24V, 2700W for 36V and 3400W for 48V, with tracking efficiency at 99 percent or better and conversion efficiency above 98 percent. For a 24V or 48V build with a large array, that headroom is the whole reason to look here.
150V Maximum PV Input and 48V Headroom
Maximum PV input is 150V, with MPPT working ranges of DC18 to DC80V on a 12V bank, DC30 to DC100V on 24V, and DC65 to DC150V on 48V. That last range is the one that matters for whole-home builds, because it tells you exactly how much series voltage you can stack onto a high-voltage bank.
Detection is automatic for 12V, 24V and 48V, but a 36V bank must be set manually. That single exception is worth checking against your design before you order.

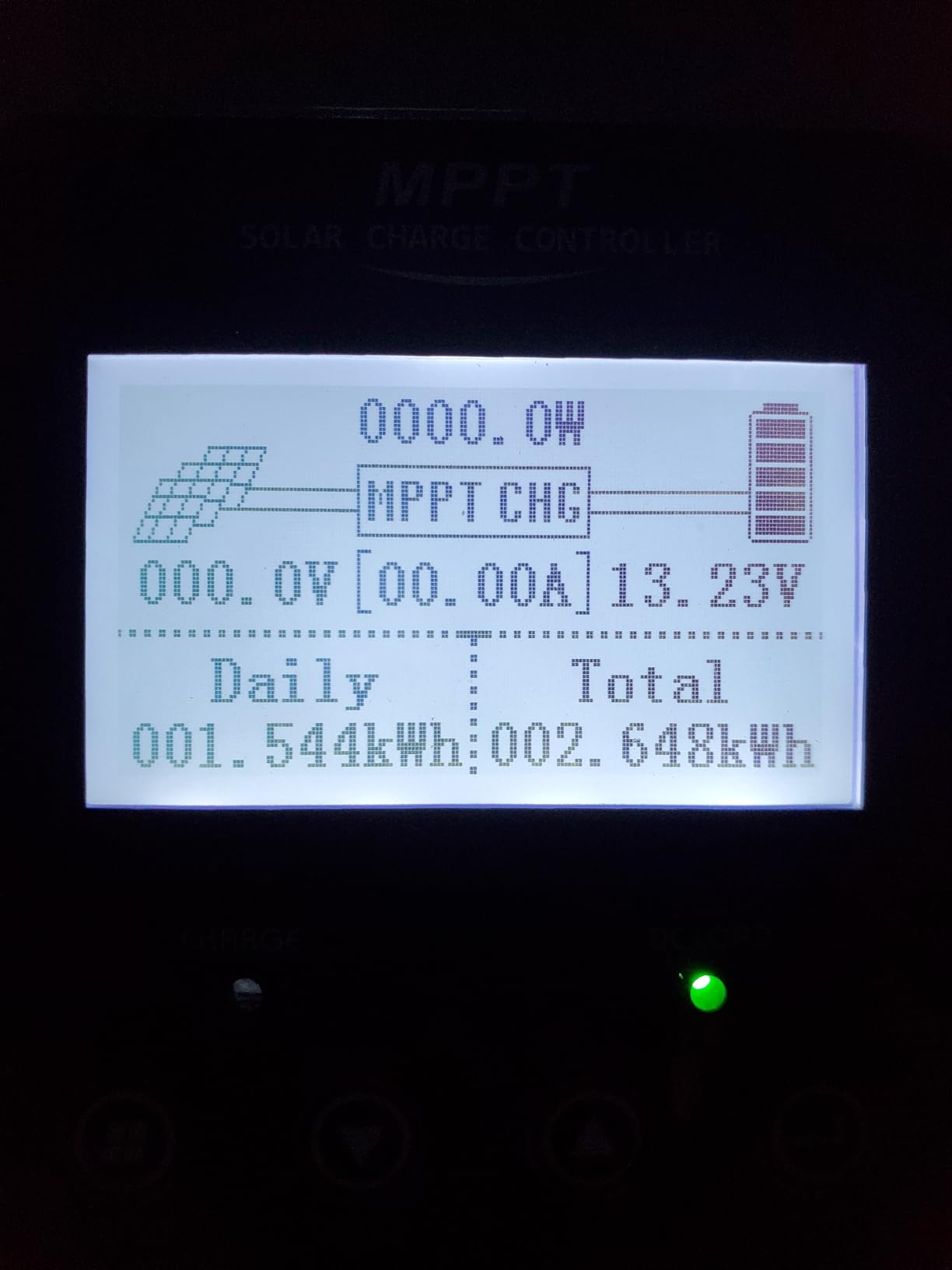

The LCD Dashboard and Load Control Modes
The display shows real-time energy statistics, daily power generation and current curves, with multiple load control modes. Owners consistently praise the menu as readable without the manual, and the build as sturdy enough to serve as a secondary controller in an off-grid cottage.
Protections cover overcharge, overdischarge, overload, short circuit, reverse polarity, overheat and battery under-voltage, which is the most complete list we saw. Communication is RS485 with an optional add-on Wi-Fi module for app monitoring.
The DC Load Output Warning
The load output is the weakest functional point. Owners report it can stick on and will not reliably switch a high-draw inverter, so treat it as a lighting and small-device circuit rather than anything that starts a motor. Check the load rating against your largest load before you rely on it.
There is also only one LiFePO4 charge setting, which limits how finely you can tune a lithium bank. The optional Wi-Fi module is described as expensive with a basic companion app, and there is a 7.9 by 3.3 by 11 inch plastic housing that needs real space in your load centre.
Reliability Reports Worth Reading Before You Buy
This is where the 4.2 rating comes from, and you should read the reviews before committing. Several owners describe a first unit failing or losing its display within a year, while at least one buyer had a faulty unit replaced by the company. The reported voltage readings can also be slightly off compared with an external meter.
Most importantly for a long-lived off-grid system, reviewers report no real technical support and no meaningful warranty beyond the standard return window. That is the deciding factor for anyone expecting this controller to run for a decade in a remote location where a replacement means a return trip to town rather than a shopping trip.

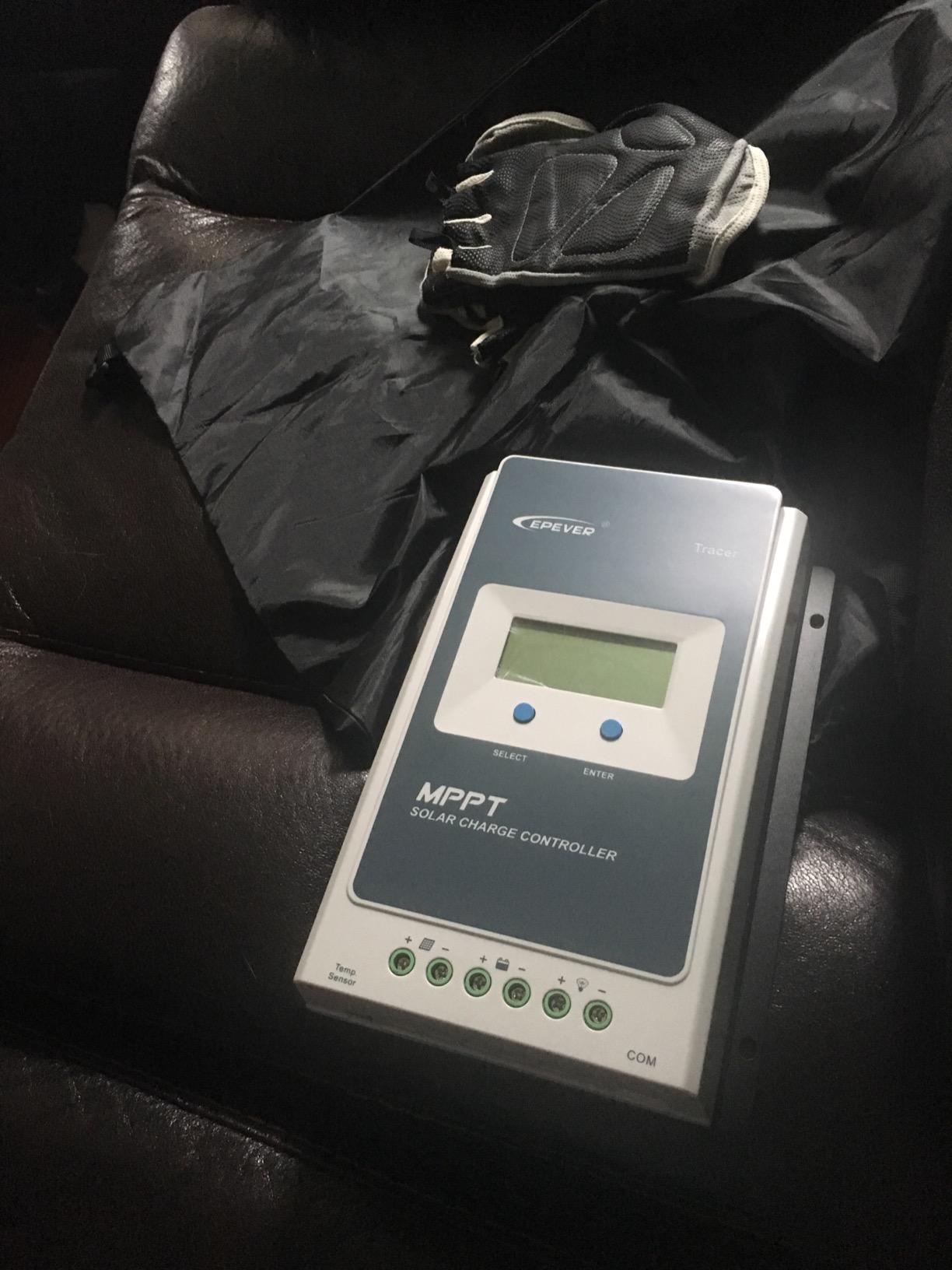

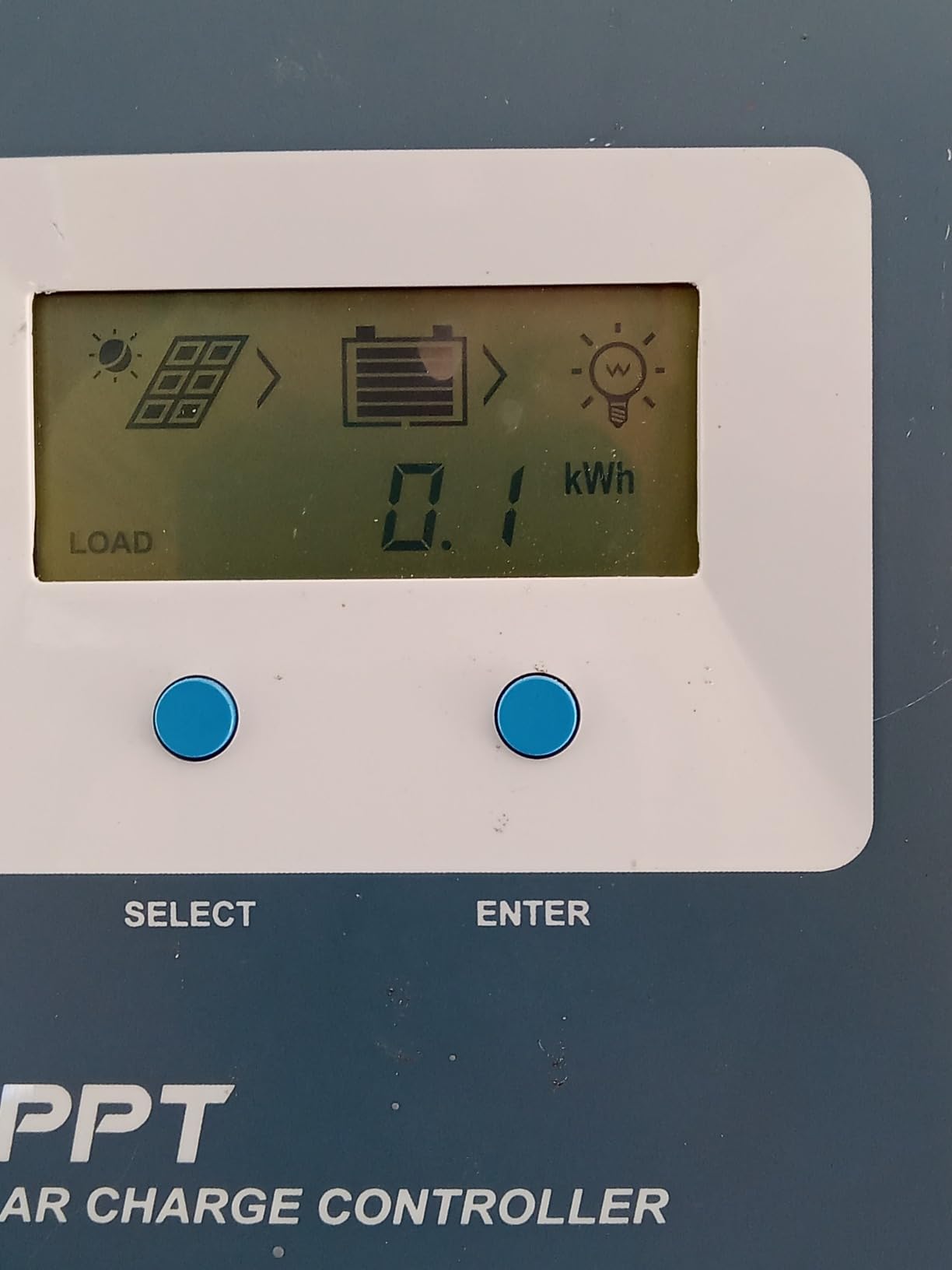

6. EPEVER Tracer 30A MPPT – Quiet Tracking and the Widest Chemistry Support
EPEVER MPPT Solar Charge Controller 30A 12V 24V Auto Max PV 100V
30A MPPT
99.5% tracking
390W at 12V and 780W at 24V
100V max PV
Silent running
Pros
- Tracking efficiency above 99.5% with fast maximum power point acquisition
- Recognises multi-peak maximum power points accurately
- Quiet operation with no sharp switching noise
- Supports gel AGM flooded LiFePO4 and user-defined lithium
- RS485 Modbus platform with WiFi and BLE adapters
Cons
- Charge parameters must be configured for lithium before first use
- Monitoring needs a separately purchased MT50 or MT52 or a WiFi or BLE adapter
- Load output capped well below the full rating on some settings
The Tracer 3210AN-G3 is the technical standout of the small-controller group. Reviewers single out tracking efficiency above 99.5 percent and the ability to recognise multi-peak maximum power points, which is what lets it find the best available power when conditions are not ideal. In a set where the ratings cluster tightly between 4.0 and 4.5, its 4.5 with only 2 percent one-star reviews is worth noticing.
It weighs 1.26 kg, runs 12V and 24V auto-recognition, and handles 390W of solar at 12V or 780W at 24V with a 100V maximum PV input. The common negative grounding arrangement is a practical detail for RV and boat installs where the chassis is the ground reference.
Tracking Accuracy Above 99 Percent
Maximum tracking efficiency is listed above 99.5 percent with up to 98 percent DC to DC conversion efficiency. In real terms that means a wide MPPT operating voltage window and accurate recognition when the curve has more than one peak, which happens in heat, partial cloud and light snow.
That accuracy matters most for a buyer who cannot plan to add panels later. Harvesting an extra few percent every day compounds across a season, and on an array you intend to keep for years it is the cheapest performance available.
Silent Operation in a Sleeping Cabin
This is the quietest controller in our roundup. Reviews credit the upgraded independent voltage regulation constant-voltage output and ultra-quiet operation, noting that the sharp switching noise of earlier EPEVER units is gone. No other unit we shortlisted was singled out for silence in the same way.
For a cabin, a van conversion or a bedroom wall install where the controller sits a few feet from where you sleep, that is a real differentiator rather than a spec-sheet nicety. There is no fan to cycle on and nothing to hear when the array starts producing in the morning.
LiFePO4 Support and RS485 Monitoring Accessories
Chemistry support is the broadest here: gel, AGM, flooded, sealed, LiFePO4 at 4S for 12V and 8S for 24V, Li(NiCoMn)O2 at 3S and 6S, plus user-defined lithium profiles. Battery temperature compensation and real-time energy statistics are built in, along with overheating power reduction.
The friction is the accessory ecosystem. Monitoring runs over an RS485 Modbus port using MT50 or MT52 displays, WiFi or BLE adapters, the eLOG01 logger or a USB-RS485 cable, all purchased separately. Lithium setups also need deliberate parameter configuration before first use. Owners also note that the load output is capped well below the controller’s full rating on some settings, so do not plan to push your lighting circuit through it at the headline current.

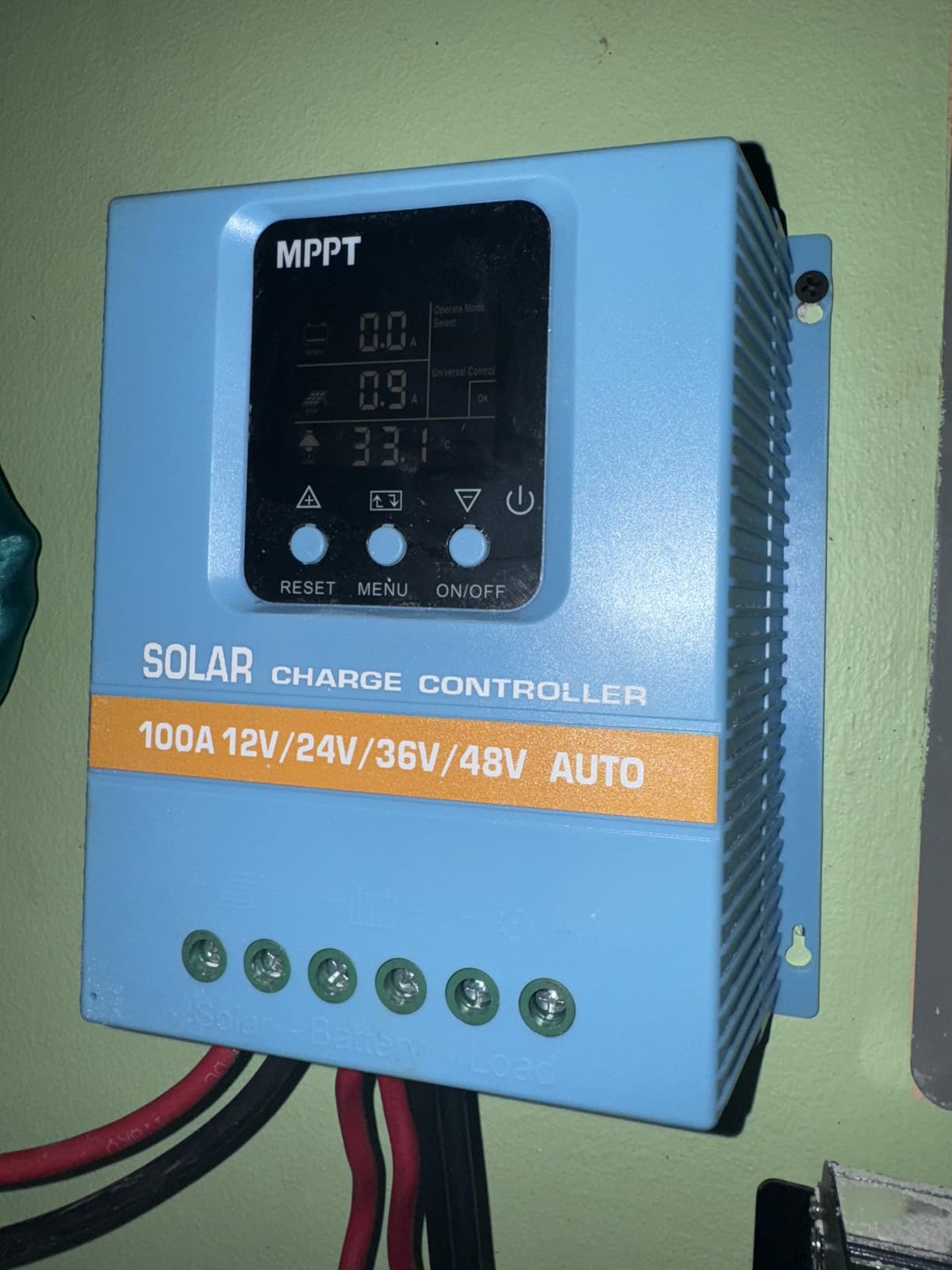

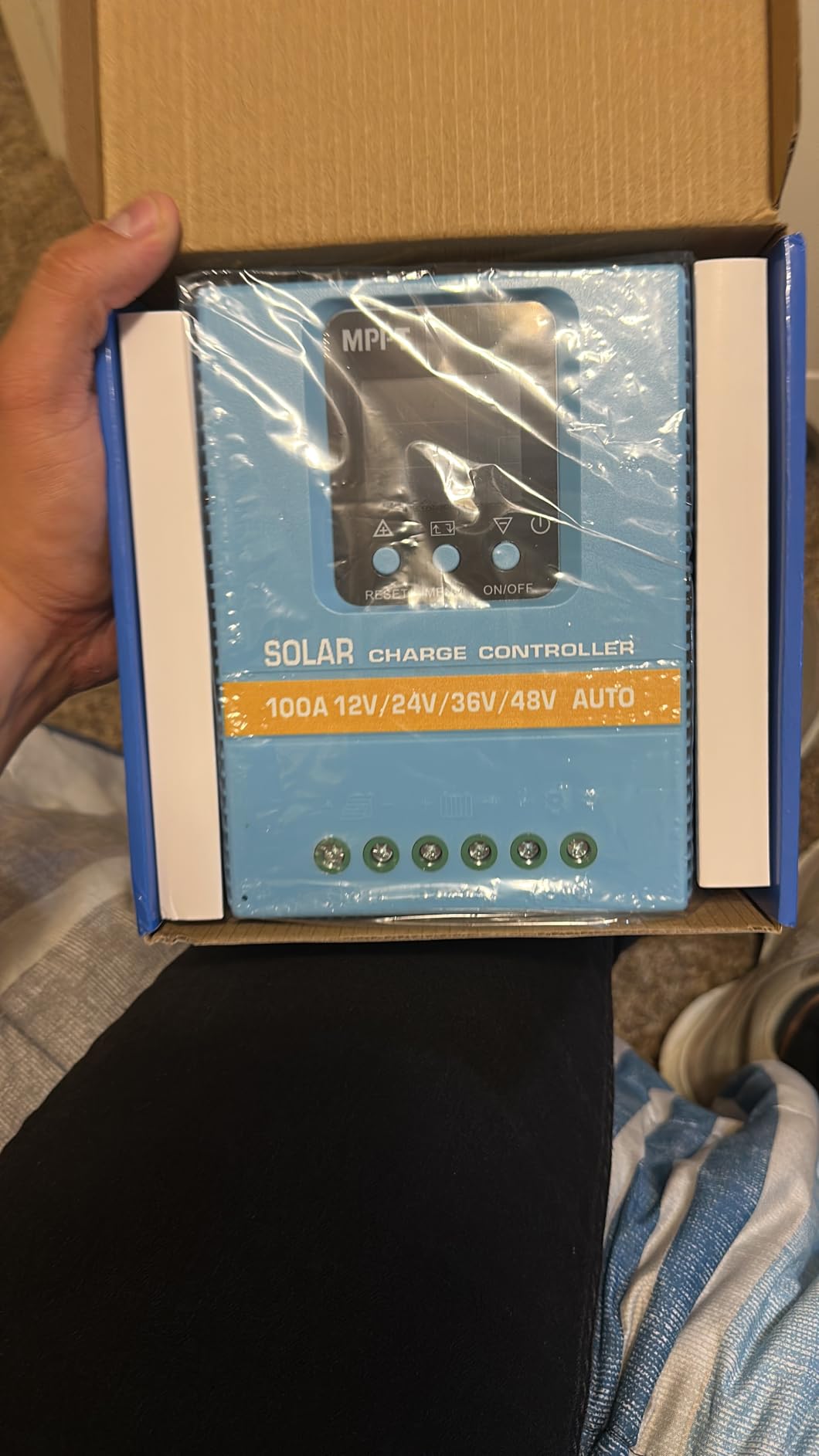

7. ELUSH 100A – Big Amperage Claims, Honest Efficiency Limits
Upgraded 100A MPPT Solar Charge Controller 12V 24V 36V 48V LCD Display Battery Intelligent Regulator Max 100V Input Dual USB for Lead-Acid/Lithium
100A rating
12/24/36/48V auto
Hybrid 80-85% efficiency
4 AWG terminals
1-year warranty
Pros
- Handles high amperage where most competing 100A claims top out around 20-30A
- Wire ports accept 4 AWG and heavier cable
- Cooling fins keep it stable at roughly 80A continuous solar input
- Reported to survive extended outdoor exposure and rain
- Display shows working mode
- voltage
- current and temperature
Cons
- Hybrid pseudo-MPPT design delivers about 80-85% efficiency
- MPPT window only matches the battery voltage range so excess panel voltage is unharvested
- Display is hard to read in bright light and the menu is incomplete
- PV current reading is inaccurate against an external meter
- Output drops off sharply versus a genuine MPPT on larger arrays
This controller splits opinion more cleanly than any other in the roundup, and the split is worth understanding before you buy. Buyers focused on amps, terminal size and weather durability rate it highly and note it comfortably exceeds the 20 to 30A ceiling of cheaper 100A claims. Buyers chasing efficiency do not, and the reason is architectural.
The unit uses a hybrid pseudo-MPPT design that tracks the maximum power point only within the battery voltage range, delivering roughly 80 to 85 percent efficiency rather than the 98 percent or better a true MPPT controller reaches. It auto-recognises 12V, 24V, 36V and 48V systems and has dual 5V USB charging ports, which is a genuinely useful addition for a van or a cabin.
What the 100A Label Really Means
The headline rating is not fiction. With built-in cooling fins, owners report stable operation at roughly 80A continuous solar input, and the wire ports accept 4 AWG and heavier cable, which is unusual at this level. If your priority is moving serious current with heavy conductor, it delivers.
The catch is the same voltage gap that penalises every PWM design. The MPPT window is tied to the battery voltage range rather than the full PV input range, so excess panel voltage is simply not harvested. On a large array that wasted headroom is measured in real kilowatt hours.
The 80-85 Percent Efficiency Ceiling
Compare that against 98 percent or better from the Renogy Rover, the EPEVER Tracer and the POWLAND unit. The gap is the same one that separates MPPT from PWM, just smaller, because the hybrid design recovers some of the difference rather than none of it.
Several reviewers object specifically to MPPT appearing in the product name given the architecture, and that is a fair criticism. The features list claims 99.5 percent or better tracking efficiency, which does not match measured behaviour.
Display Readability and the Incomplete Menu
The backlit multi-function LCD includes a clock, real-time PV voltage display and factory reset, plus seven operating modes covering charging, light control, light plus time delay, universal, manual and timing control. Status display covers working mode, battery voltage, PV charging current, discharge current, working temperature and delay time.
In practice the display has poor visibility in bright light, the menu programming is incomplete with no clean battery-type selection, and the reported PV current reading is inaccurate when checked against an external meter. If you are commissioning an array, bring your own meter.
Warranty Length and Support Reality
The warranty is one year with lifetime technical support, and the working temperature display plus protection against battery over-voltage, over-current, power failure, overcharge, deep discharge, reverse connection and overheating form a solid safety list.
That one-year term is one of the shortest warranties in this roundup, and it is the reason we placed this unit as a budget pick rather than a long-term recommendation. For a system you intend to run for a decade in a remote location, a one-year warranty is a real cost even when the hardware performs well today.

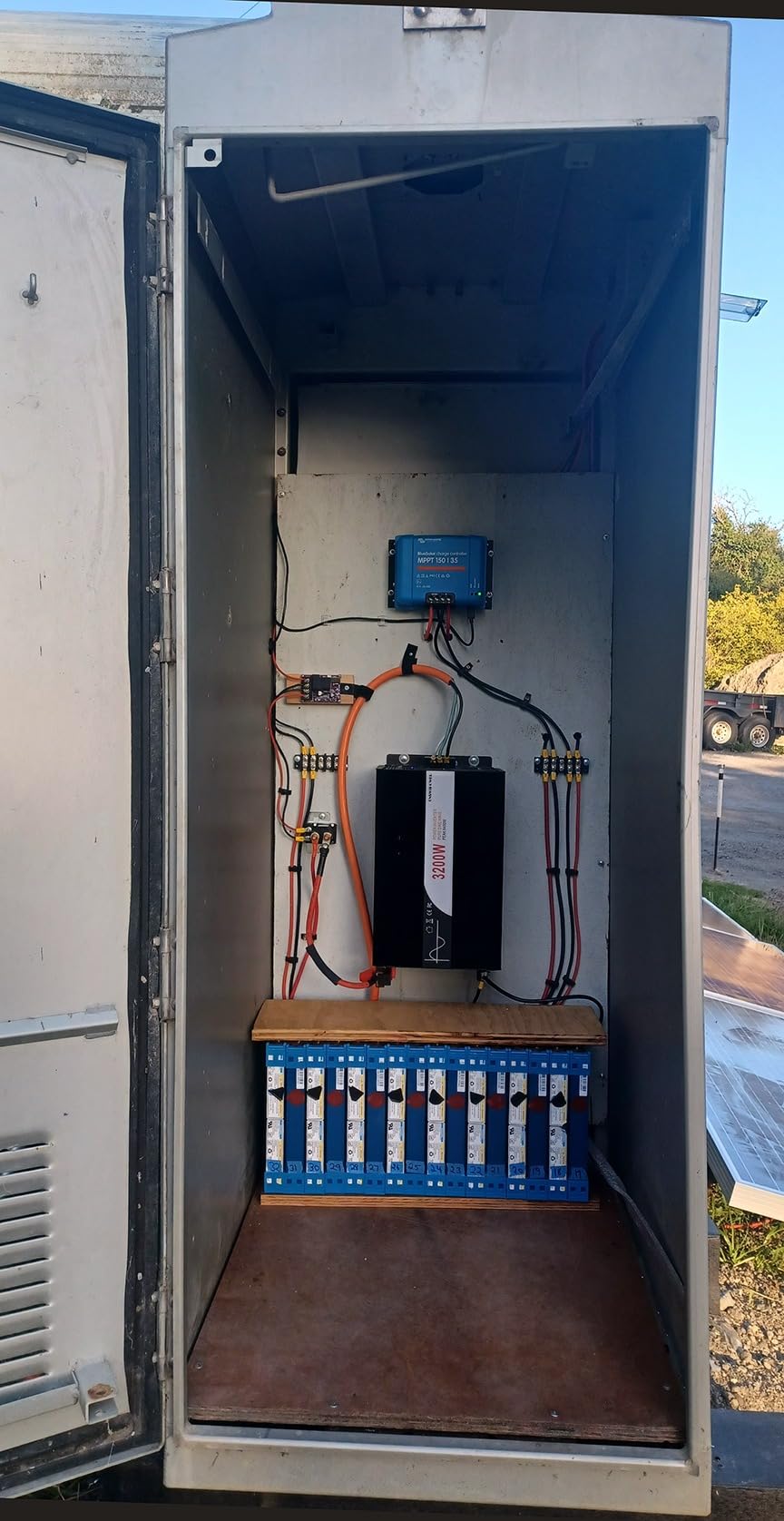

8. Victron BlueSolar 150V 30A – The Shade-Tolerant, Certified Reference
Victron Energy BlueSolar MPPT Solar Charge Controller 150V 30A 12/24/36/48V
150V 30A MPPT
12/24/36/48V
UL1741 certified
Shade-tolerant tracking
1 kg
Pros
- Tracks the maximum power point quickly and harvests energy under partial shade
- Intelligent charge algorithms that measurably extend battery life
- UL1741 certified with a strong build reputation
- Reaches full charge in the shortest practical time for a given array
Cons
- No built-in Bluetooth so a separately sold dongle is required for monitoring
- Sealed enclosure means a failed terminal cannot be replaced by opening the unit
- Reports of overheating and loose connections from thermal cycling
- Priced well above equivalent-capacity controllers from other brands
The BlueSolar 150V 30A handles 150 volts of maximum PV input at 30 amps across 12V, 24V, 36V and 48V systems, and its defining strength is tracking speed. A lightning-fast optimum power point tracker means less time lost when conditions change, and owners consistently credit it for reaching full charge faster than competing units of the same capacity.
It also holds the highest five-star share in our set at 79 percent. That is not because the feature list is long, because it is short. The unit has no built-in Bluetooth and no display, and the only feature that stands out is tracking itself.
Tracking Through Partial Shade
If your array has a chimney, a tree line or a neighbouring roof casting a shadow across it, tracking quality is the whole game. This controller is explicitly designed to maximise energy harvesting when panels are partially shaded, which is the scenario that hurts cheaper units most.
It weighs 1 kg and measures 7.32 by 2.75 by 5.12 inches, with an operating temperature up to 122 degrees Fahrenheit. The intelligent charge algorithms are worth noting for a different reason: they are aimed at maintaining battery health and extending service life, not simply pushing current in as fast as possible.
UL1741 Certification and Build Quality
UL1741 certification is the specification that matters here. It is a recognised safety certification for solar equipment, and in a category where several devices carry no third-party mark at all, having it is meaningful evidence rather than marketing.
Forum discussion of long-lived off-grid hardware consistently names Victron among the brands treated as the safe tier alongside established names like Morningstar and Outback, and that reputation is built on build quality and parts availability over decades rather than on a single specification.
The Bluetooth Dongle Question
There is no built-in Bluetooth on this model, unlike the SmartSolar range. Remote control and monitoring through VictronConnect require a separately sold Bluetooth dongle, so factor that into your cost if phone visibility matters to you.
Monitoring software quality is a genuine theme in off-grid owner discussions, and the recurring experience is that Victron’s app support is among the better-supported. Paying for a dongle to get there is not ideal, but at least the destination is reliable.
The Sealed Case Trade-Off
The enclosure is sealed, which means a failed terminal cannot be replaced by opening the unit. In a remote install that turns a five-minute repair into a replacement, and it is the structural trade-off owners most often cite when they eventually migrate to another brand.
There are also recurring reports of overheating and loose connections from thermal cycling of the wiring, and owners note this unit costs well above equivalent-capacity controllers from other brands. Several have decided the lifetime cost outweighed the premium. If your site is hot and the wiring run is long, tighten terminations and check them seasonally.
9. LiTime 30A MPPT – Bluetooth Built In, No Dongle Required
LiTime 12V/24V 30A MPPT Solar Charge Controller Bluetooth, LCD Display
30A MPPT
Built-in Bluetooth
LCD with four buttons
Die-cast aluminium
2-year warranty
Pros
- Built-in Bluetooth as standard where most rivals charge extra
- Large well-built die-cast aluminium body with a readable display
- Chassis stays cool and generates no RF interference on sensitive radio gear
- Load terminals can be monitored and switched from the app or front button
- Pairs natively with LiTime LiFePO4 batteries
- Copper wire connectors included to increase contact area
Cons
- App loses its Bluetooth pairing after a shutdown
- Interface text is dark grey on black and hard to read in bright light
- Buttons feel cheap for the price
- Larger than a typical controller for the current rating
- One unit reported total failure after about eight months
Most controllers in this roundup treat phone monitoring as an accessory purchase. This one comes with a Bluetooth module built in, which removes both the extra cost and the extra box. For a remote cabin where nobody is going to add a dongle later, that changes the calculation.
Owners credit it with making off-grid systems hands-off, particularly in LiFePO4 conversions at remote cabins where they had previously been babysitting lead-acid voltage. Several report buying a second unit, and the 4.4 rating across 157 reviews comes with a 75 percent five-star share.

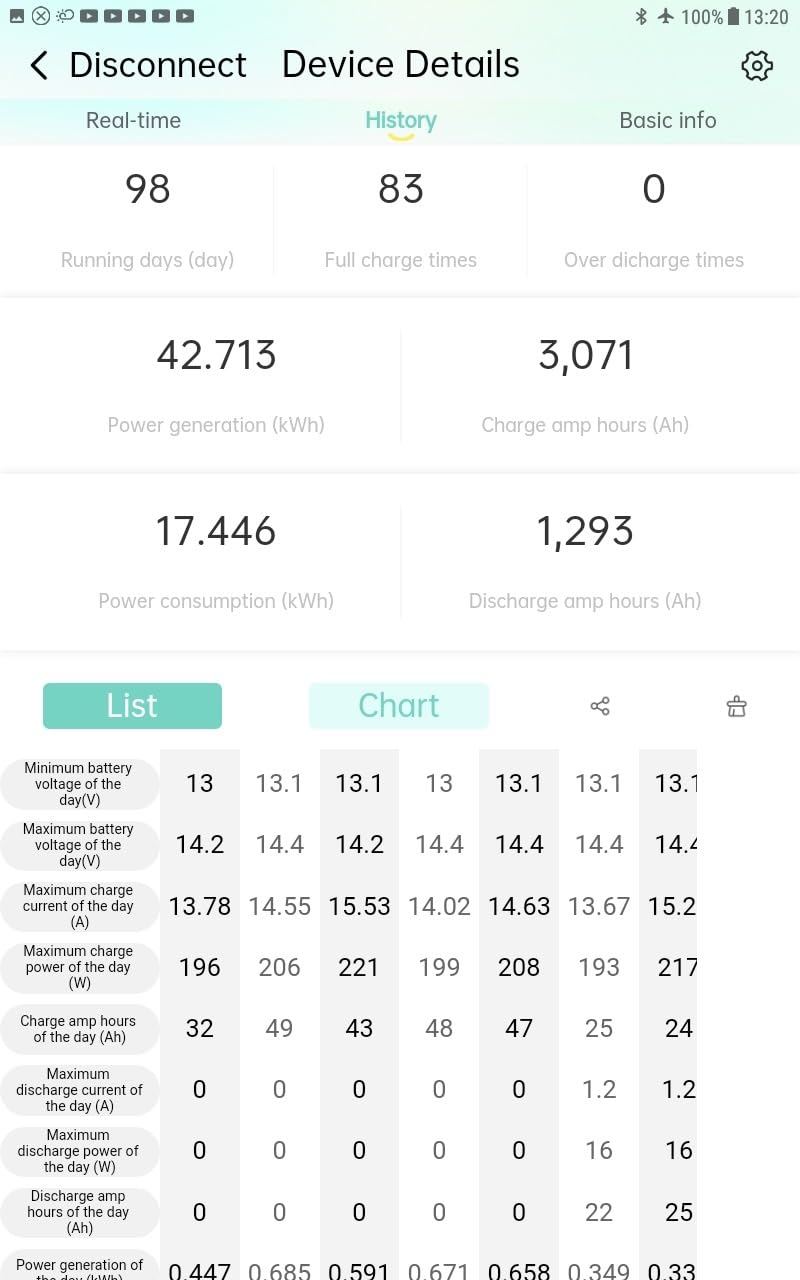

Built-In Bluetooth and the LCD
The LCD screen has four menu buttons plus LED indicators for array, battery, load and controller state, which is a good balance between a full dashboard and a controller you do not need a manual for. Load terminals allow the load to be monitored and switched from the app or the front button.
Tracking efficiency is 99 percent or better with up to 98 percent peak conversion efficiency, and it runs 12V and 24V. The one real usability complaint about the interface is visual: dark grey text on a black background is hard to read in bright light, which is exactly when you are most likely to be checking it.
Die-Cast Aluminium and Heat Behaviour
The die-cast aluminium housing is a genuine step up for thermal management. Owners note it stays cool and does not generate RF interference on sensitive radio gear, which matters if your controller sits near an amateur radio setup or a communications antenna feed.
It weighs 4.4 pounds and measures 9.65 by 3.25 by 7.09 inches, which is larger than a typical controller for this current rating. Plan the space in your load centre before ordering rather than after.
Pairing With LiFePO4 Banks
There is a dedicated LiFePO4 charging mode plus adjustable parameters for sealed and gel lead-acid, and the unit pairs natively with LiTime LiFePO4 batteries, charging them cleanly according to owners converting existing lead-acid installs.
That chemistry support is where the value sits for anyone moving to lithium. A controller that guesses wrong on absorption voltage is the fastest way to shorten the life of an expensive battery bank.

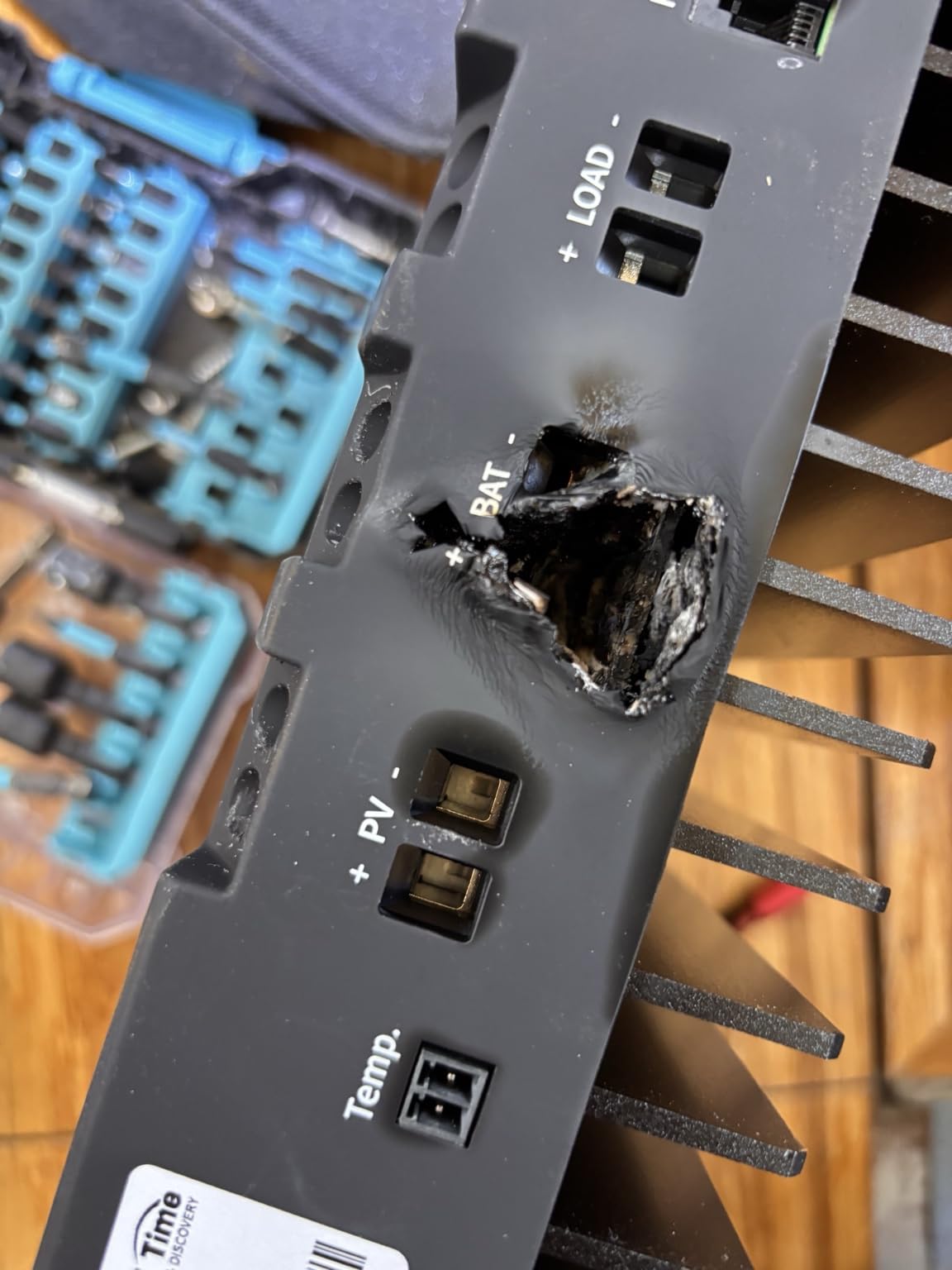

App Reliability and the One Reported Total Failure
Be clear-eyed about the software. The app repeatedly loses its Bluetooth pairing after a shutdown, and that is a recurring complaint rather than an isolated one. Monitoring is only useful if it reconnects when you need it.
Durability is broadly good with a two-year warranty and AIG product liability coverage, but one owner reported a complete failure at about eight months with all internal fuses testing good. A single report is not a pattern, and at this volume we would not treat it as disqualifying, but it is the kind of thing that matters in a remote install. Copper wire connectors are included in the kit to improve contact area and current transfer during installation.

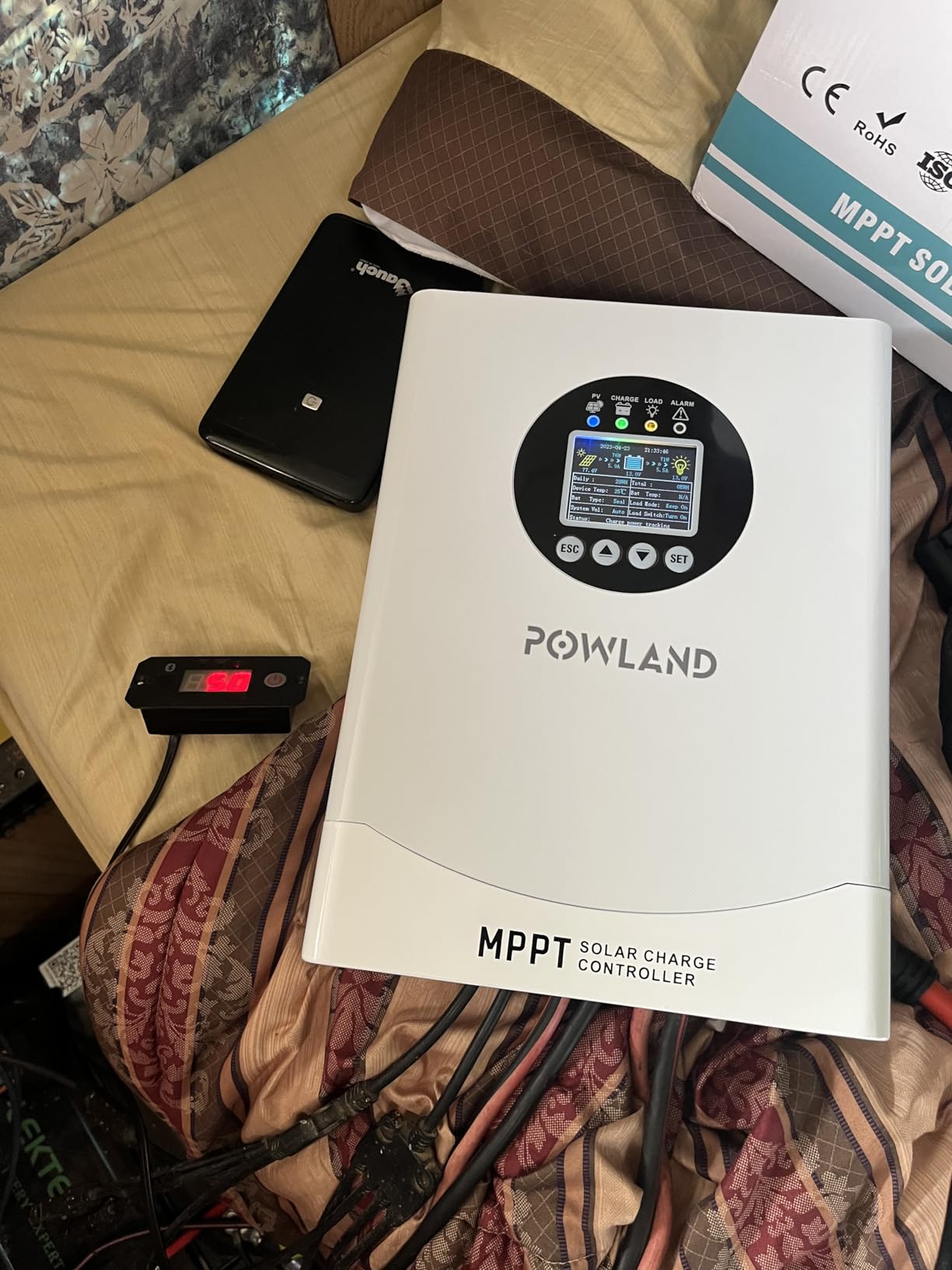

10. POWLAND 120A MPPT – The Longest String Capability in the Set
POWLAND 120A MPPT Solar Charge Controlle 12V/24V/36V/48V/60V/72V/84V/96V Auto,Max Input 230V Solar Charger, LCD Display Intelligent Regulator for AGM, Gel, Lithium ect
120A MPPT
230V max solar input
12V-96V auto
3-stage charging
3-day output graphs
Pros
- 230V maximum input allows very long series panel strings
- Runs noticeably cooler than a premium-brand controller of the same class
- High-resolution LCD shows panel output in watts
- amps and volts with three-day graphs
- Large lugs and ferrule-friendly terminals simplify installation
- Multiple units can be paralleled and owners report running three together
Cons
- Advertises battery temperature monitoring but has no temperature sensor port
- Battery type cannot be selected cleanly and LiFePO4 packs are detected as sealed lead-acid
- Bottom panel screws can be cross-threaded and are hard to remove
- Instruction manual is sparse and poorly written in English
The POWLAND 120A solves a problem the other controllers here cannot. A 230V maximum solar input means you can series a long string of panels onto a single controller, and with automatic detection from 12V up to 96V, the same unit covers an enormous range of bank voltages. For a builder who wants to run a high-voltage array over a long distance, that headroom is the reason to buy it.
Owners rate it as strong value for large residential and RV arrays, and the 230V input plus long series strings is the headline advantage they cite repeatedly. At 120A charging capacity with up to 98 percent MPPT conversion efficiency, it is the highest current rating in this roundup by a wide margin.
230V Maximum Input for Very Long Strings
Higher string voltage does two useful things. It reduces the current running down the array cable, which means you can use thinner wire over a long run, and it keeps the controller efficient in cold conditions when panel voltage climbs.
Owners specifically report being able to series a full string of ten 12V panels on a 48V bank, which is a configuration most controllers in this roundup would refuse. If your site is far from the array, that is the deciding specification.

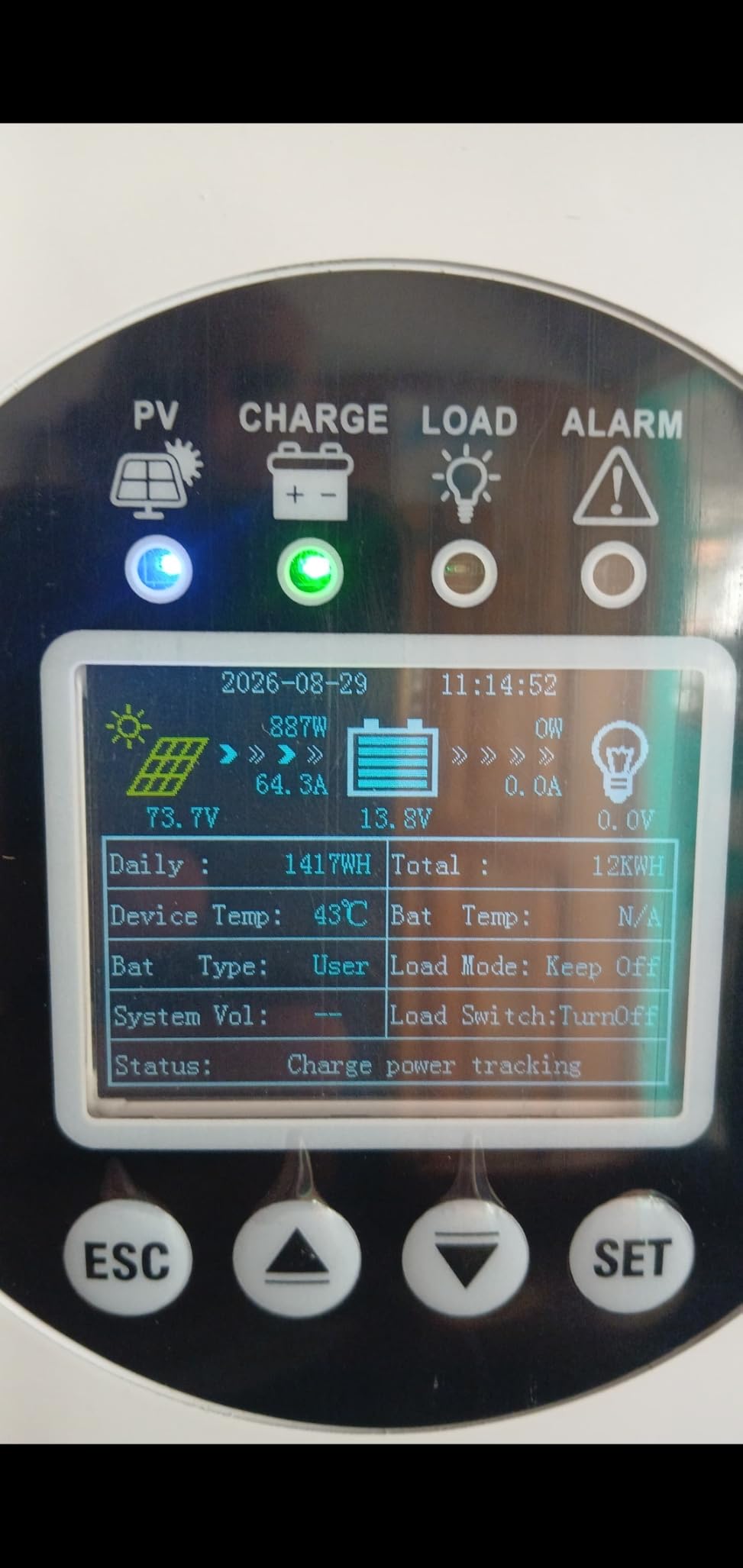

The High-Resolution LCD and Three-Day Graphs
The display is a genuine step up on smaller units. It shows PV input voltage and current, charging mode and stage, warnings and diagnostics, and it graphs the last three days of panel output in watts, amps and volts.
Three days of history is exactly the window you need to tell a genuinely cloudy week from a failing panel or a shading problem, and that single feature replaces a lot of guesswork. A three-stage bulk, absorption and float profile handles LiFePO4, AGM, gel and flooded lead-acid.
The Missing Temperature Sensor and Battery-Type Gap
This is the most important caveat in the review. The controller advertises battery temperature monitoring but has no temperature sensor port, so there is nothing to connect. In a hot climate or a cold install, you are running without the compensation that protects your bank.
Battery type also cannot be selected cleanly, and LiFePO4 packs are detected as sealed lead-acid. If you are running lithium, plan to set the absorption and float voltages manually rather than trusting the automatic selection.
Parallel Operation
Multiple units can be run in parallel, and owners report running three together without conflict, which makes it practical to scale a system by adding controllers rather than replacing one. Terminals accept E16-12 ferrules and large ring lugs, which is a good sign for installation quality.
The build complaint is mechanical: bottom panel screws can be cross-threaded and are extremely tight to remove, so do not force them when you open the case for settings. The advanced menu is unlocked by holding SET and ESC and entering a four-digit code, and the manual is sparse and poorly written in English, which makes first-time setup slower than it should be. Protections cover reverse polarity, overload and open circuit, and 24/7 technical support is included.
MPPT vs PWM: Which Architecture Do You Actually Need?
Use MPPT when the gap between your panel’s operating voltage and your battery bank voltage is large, and use PWM when that gap is small. A 60-cell or 72-cell residential panel produces its power around 30 to 45 volts, while a 12V bank sits near 14 volts, so an MPPT controller can harvest the difference as extra current. A dedicated small panel already matched to the bank voltage has almost no gap, so a PWM controller loses very little.
The practical threshold most builders use is roughly 200 to 300 watts of array. Below that on a single dedicated panel, a good PWM unit is a sensible purchase. Above it, or whenever you use standard residential panels, MPPT is the correct answer and the extra money buys real kilowatt hours rather than features.
There are honest downsides to MPPT beyond the cost. The DC to DC converter adds a component that can fail, it does nothing useful below its minimum input voltage, and it cannot rescue a badly sized controller or an array with heavy shading on only one string. On a very small array the return can be marginal enough that reviewers question paying for it.
Our roundup includes one PWM controller chosen for its merits rather than as a fallback. The panel selection decision has more impact on which architecture you need than the controller brand ever will.
How to Size a Solar Charge Controller for Your Array
Size by array current, not by the number of panels. The shortcut most people use is: take your array’s total watts, divide by your bank voltage, then multiply by 1.25 to leave headroom. For a 400W array on a 12V bank that is 400 divided by 12, which is 33.3 amps, times 1.25, which is 41.6 amps, so a 40A controller is the right starting point. On a 24V bank the same array gives 400 divided by 24, which is 16.7 amps, times 1.25, which is 20.8 amps. On a 48V bank it drops to roughly 10.4 amps.
The multiplier is not optional. Controllers are rated at continuous output in a laboratory and derate as ambient temperature rises, so a controller sized with no margin throttles itself on a hot afternoon. Owners on off-grid forums pass around a simpler rule for 48V banks: a 50 to 60 amp controller leaves room for around 1000 watts of array.
Four checks before you order:
1. Confirm the controller’s maximum PV input voltage exceeds your string’s open-circuit voltage, corrected for the coldest temperature your site will see.
2. Confirm the output current rating covers your array current at your bank voltage.
3. Confirm the bank voltage is inside the controller’s supported range, including any manual configuration step.
4. Confirm the battery chemistry profiles match what you actually installed.
Battery Chemistry Matters More Than Amps
Getting the chemistry right matters more than the current rating. Flooded, AGM and gel lead-acid packs all tolerate an equalisation stage, while LiFePO4 does not, and running equalisation on a lithium bank will damage it. Set the profile before first power-up, every time.
Absorb voltage also differs by chemistry, and a controller with a generic lithium preset may not match your pack’s specification. For lithium, the differences show up in how the controller handles the transition from absorption to float, which is where a wrong setting causes chronic overcharging or a battery that never reaches full.
All of the MPPT devices in this roundup support LiFePO4, though several need the profile set manually. That manual step is not a flaw, it is a safety feature, but it is the step most often skipped by buyers in a hurry.
String Voltage, Maximum Input Limits and Cold-Weather Correction
Nameplate Voc is never the real maximum. Panel voltage rises as temperature falls, and at a cold snap a 400W array can push its open-circuit voltage well above the number printed on the back of the module. Code requires a correction for exactly this, and the calculation is straightforward: take the panel Voc, multiply by the number of panels in series, and apply the temperature adjustment for the lowest expected temperature.
Check that corrected figure against the controller’s ceiling before you wire anything. The ceilings in this roundup range from 100V on the EPEVER Tracer and the ELUSH, through 150V on the AMPINVT and Victron BlueSolar, 160V on the PowMr, and up to 230V on the POWLAND. Exceed the ceiling and you destroy the input circuitry, which is a far more expensive outcome than buying a larger controller up front.
There is a second reason string voltage matters. Beyond the maximum, a long series string on a small bank pushes current the controller cannot accept, and a controller that cannot limit properly simply passes the excess through.
Monitoring and App Compatibility: What Actually Connects
Telemetry is the factor that most often changes a buyer’s mind, and it is a poor predictor of customer satisfaction until you read the reviews. Three connection models appear in this roundup: built-in Bluetooth with no accessory needed, RS485 Modbus with a separately purchased display or wireless adapter, and an RS485 port with an optional Wi-Fi module.
Owners of Bluetooth-equipped controllers report both ends of the experience. The LiTime ships with Bluetooth built in but its app repeatedly loses pairing after a shutdown, while the Victron route needs a separate dongle but is described in owner discussion as well supported, in contrast to controllers from vendors where communication is described as buggy. The lesson is that the hardware matters less than the software behind it.
What you lose without telemetry is real. Without history you cannot tell a genuinely cloudy week from a failing panel, and you cannot tell whether a charge controller is actually current-limited. If your system is remote, treat monitoring as part of the controller purchase rather than an optional extra.
Five Configuration Mistakes That Kill Controllers and Batteries
1. Exceeding the corrected open-circuit voltage. Nameplate Voc plus a cold-temperature correction exceeding the controller maximum is the single most common way to destroy a charge controller, and it happens in seconds.
2. Leaving the battery chemistry on the default profile. Equalisation on a LiFePO4 bank is the fastest route to a ruined battery, and it is a two-minute fix that people skip.
3. Sizing with no headroom. A controller with no current margin derates itself in heat, and owners report DIY and budget units running hot with added heat sinks and still not delivering their rated power.
4. Omitting the battery temperature sensor. Where one is provided, use it. Where it is not, as on the POWLAND, know that you are running without compensation.
5. Trusting the app’s numbers. Voltage readings across this roundup run about 0.15V off an external meter on the Renogy Rover, PV current readings are called inaccurate on the ELUSH, and state of charge can disagree with a capacity test. Confirm with a meter before you diagnose a battery.
What We Skipped and Why
We passed over no-name marketplace controllers that print an amp rating without a datasheet. In a category where failure means a system outage in a remote location, an unverifiable current rating and the absence of any third-party safety certification is a risk we are not willing to take on a reader’s behalf. The Victron BlueSolar is the one UL1741-certified unit we shortlisted, and we would treat that mark as a baseline for anything you intend to keep for a decade.
We also weighted support and parts availability heavily, because off-grid hardware has a service life measured in decades rather than years. In owner discussions of long-lived systems, Victron, Morningstar, Outback and Magnum are consistently named as the reliability tier people trust, and Renogy is repeatedly described as the popular starting point for beginners. That combination of a decade-long parts guarantee and a support desk is worth more than any single headline efficiency figure.
One practical note on failure: if your controller dies, your batteries do not. A failed charge controller stops charging but the bank stays intact, and the loads on an inverter continue to run. What you lose is your power budget, which is why we think twice about a one-year warranty on a remote installation.
Frequently Asked Questions
Which brand is considered the best for solar charge controllers?
For off-grid systems this year, Victron has the strongest long-term reputation for build quality, UL1741 certification and parts availability, and Renogy has the widest owner base and the strongest value at the mainstream end. EPEVER stands out for tracking accuracy and quiet running. The honest answer is that brand matters less than matching the controller’s input voltage ceiling and current rating to your array and bank.
What is the best solar charge controller for 48V systems?
For a 48V bank, look first at maximum PV input voltage, then current. The POWLAND 120A offers a 230V maximum input, the PowMr 60A takes 160V, and the AMPINVT 60A takes 150V. The Victron BlueSolar 150V 30A and the Renogy Rover 40A also cover 48V banks with lower ceilings. A 50 to 60 amp controller leaves room for roughly 1000 watts of array.
What size solar controller do I need for a 400W solar panel?
Divide the array watts by your bank voltage, then multiply by 1.25. A 400W array on a 12V bank needs about 42 amps, on a 24V bank about 21 amps, and on a 48V bank about 11 amps. The 1.25 multiplier covers hot-weather derating and is the difference between a controller that runs at full output on a July afternoon and one that throttles itself.
Which is better, PWM or MPPT charge controller?
MPPT harvests the voltage gap between your panels’ operating voltage and your bank voltage, typically gaining 10 to 30 percent more energy. PWM discards that gap. Use MPPT above roughly 200 to 300 watts or with standard 60 or 72-cell residential panels, and PWM for a small dedicated panel wired to a matched bank voltage. MPPT costs more and adds a converter that can fail.
What are the downsides of using an MPPT charge controller?
The main downsides are cost, an extra DC to DC converter component that can fail, and no benefit below the controller’s minimum input voltage. On a very small array the return can be marginal, which is why some owners argue the advantage over a good PWM unit is not worth the extra spend at low wattages. MPPT also cannot rescue heavy shading on a single string.
Can I use both PWM and MPPT together?
You can, but only if each controller is wired to its own string and the controllers are matched for the same bank voltage. Two controllers charging one battery bank without proper coordination can fight each other over the charge voltage. If you want redundancy, size each controller for its own portion of the array rather than splitting a single string between two devices.
Are EPEVER controllers any good?
Yes, within their class. The Tracer 30A holds a 4.5 rating with tracking efficiency above 99.5 percent, accurate multi-peak maximum power point recognition and genuinely silent operation. The friction is the accessory ecosystem: monitoring needs a separately purchased MT50, MT52, WiFi or BLE adapter, and lithium setups need manual parameter configuration before first use.
What are the three most common PV system failures?
The three most common are exceeding the corrected open-circuit voltage and destroying the controller input, leaving the battery chemistry on the wrong profile and damaging the bank, and sizing a controller with no headroom so it derates or overheats in heat. All three are configuration mistakes rather than component defects, and all three are free to avoid.
The Off-Grid Verdict: Which Controller Suits Your Build
If you want one answer to the question of the best solar charge controllers for off grid systems, take the Renogy Rover 40A. It is the only unit in this roundup that combines real MPPT tracking, automatic 12V and 24V detection, a usable 20A load output and a three-year warranty in one enclosure, and 1470 owners have already tested that claim for you.
Then match the rest to your build. Choose the Renogy Wanderer Li 30A for a small 12V array on a budget. Choose the HUINE 20A IP68 when the controller lives on the back of the panel in the rain. Choose the PowMr 60A or the AMPINVT 60A for a 24V or 48V bank with a large array, and the EPEVER Tracer 30A if noise matters. Choose the Victron BlueSolar for a shaded array where you want certification and a company that will still exist in ten years. Choose the LiTime if you want Bluetooth in the box, and the POWLAND 120A if your array sits a long way from the battery bank.
Whichever you pick, get the string voltage and the battery chemistry right before you power anything up. Those two decisions decide whether your off-grid system runs for a decade or for a season, and they cost nothing to get right. Our 2026 shortlist above is the starting point; your array and your bank decide the finish.
Pairing a controller with a fridge or a power station changes the calculation entirely, and our guides to solar refrigerators for off-grid use and portable power stations cover those builds in detail.
Leave a Reply
