6 Best PC Cases for Dual-GPU Workstations (August 2026)

Building a dual-GPU workstation means you need a chassis that goes far beyond standard gaming case requirements. When I set out to find the best PC cases for dual-GPU workstations in 2026, I wanted cases that could handle two high-powered graphics cards without choking on heat, crumbling under cable mess, or running out of PCIe real estate. Our team spent weeks analyzing thermal performance data, GPU clearance specs, and real builder experiences from Reddit communities like r/buildapc to narrow down the field.

The challenge is real. Many cases on the market claim dual-GPU support, but when you actually try to slot in two RTX 4090-class cards, you discover the PCIe slots are too close, the bottom GPU starves for air, or the case simply does not have the structural depth to support two massive heatsinks. One Reddit user discovered this the hard way with a Fractal North XL that looked perfect on paper but could not fit their RTX 5090 alongside an older GPU.

That is exactly why this guide exists. We tested and compared six workstation-grade cases from brands like ASUS, Phanteks, Thermaltake, and Antec to find which ones truly deliver on the dual-GPU promise. Whether you are building an AI training rig, a 3D rendering workstation, or a multi-monitor content creation machine, these are the cases that will not let you down. If you need help choosing the cards themselves, check out our guide to the best graphics cards for multiple monitors to complement your build.

Our Top 3 Picks for Dual-GPU Workstation Builds in 2026

After testing all six cases, three stood out for dual-GPU configurations. The ASUS ProArt PA602 earned our Editor’s Choice for its exceptional 420mm radiator support and professional-grade airflow. The Antec Performance 1 FT took Best Value with 619 reviews backing its sub-$160 price tag. And the ASUS TUF GT502 won Budget Pick thanks to its clever dual-chamber design that keeps two GPUs thermally separated.

Comparing the Market’s Best Dual-GPU Workstation Cases in 2026

Here is how all six cases stack up against each other. I ranked them by overall value for dual-GPU builders, factoring in expansion slot count, GPU clearance, cooling capacity, and build quality. Each case below has been individually reviewed in the sections that follow.

1. ASUS ProArt PA602 – Best Overall Dual-GPU Workstation Case

The moment I unboxed the ASUS ProArt PA602, I knew this case was built for serious workstation duty. It is a full tower designed specifically for creative professionals, and every design choice reflects that focus. From the dual 200mm front intake fans with 45% porosity mesh to the tool-less PCIe mounting system, ASUS clearly understands what a dual-GPU workstation builder needs.

What sets the PA602 apart for dual-GPU configurations is the sheer volume of air it moves. Those 200mm fans are 38mm thick and push massive amounts of air through the front panel grill. When you have two high-wattage GPUs stacked together, airflow starvation on the bottom card is the number one killer of performance. The PA602 addresses this with airflow deflectors built into the chassis that route fresh air directly to component zones.

The tool-less PCIe mounting system deserves special mention for anyone building a dual-GPU rig. Instead of fumbling with tiny screws in tight spaces between two graphics cards, ASUS engineered a latch-based system that lets you secure and release GPUs without tools. The included GPU holder brace prevents sag, which is critical when running two heavy cards.

Airflow Design and Thermal Performance

The PA602 uses a front-to-back airflow path with those massive 200mm fans pulling air through the 15.5mm deep front panel. The 45% porosity rating means nearly half the front panel surface is open mesh. For dual-GPU workloads, this translates to measurable temperature differences compared to cases with restrictive solid fronts.

I was impressed by the inclusion of a 140mm rear exhaust fan pre-installed. Combined with the front intakes, this creates a positive pressure environment that keeps dust out while moving hot GPU exhaust away quickly. The built-in IR dust indicator is a thoughtful touch that reminds you when filters need cleaning, which matters more in a dual-GPU build that generates significant heat and dust load.

Build Quality and Cable Management

ASUS used alloy steel for the frame, and the case feels rigid and substantial at 35.5 pounds. The tempered glass side panel showcases the interior, which is exactly what you want when running two GPUs in a professional workstation. Cable routing channels are deep and well-placed, with multiple tie-down points.

The power lock latch is a small but brilliant feature for workstation users. It prevents accidental shutdowns during long rendering jobs or AI training runs. Anyone who has lost hours of render time to an accidental power button press will appreciate this.

Who This Case Is Best For

The ASUS ProArt PA602 is ideal for professional content creators, 3D animators, and AI researchers who need a reliable, high-airflow chassis for dual-GPU workloads. If you are running two high-end cards for Blender rendering, DaVinci Resolve, or PyTorch model training, this case will keep your components cool and your build clean.

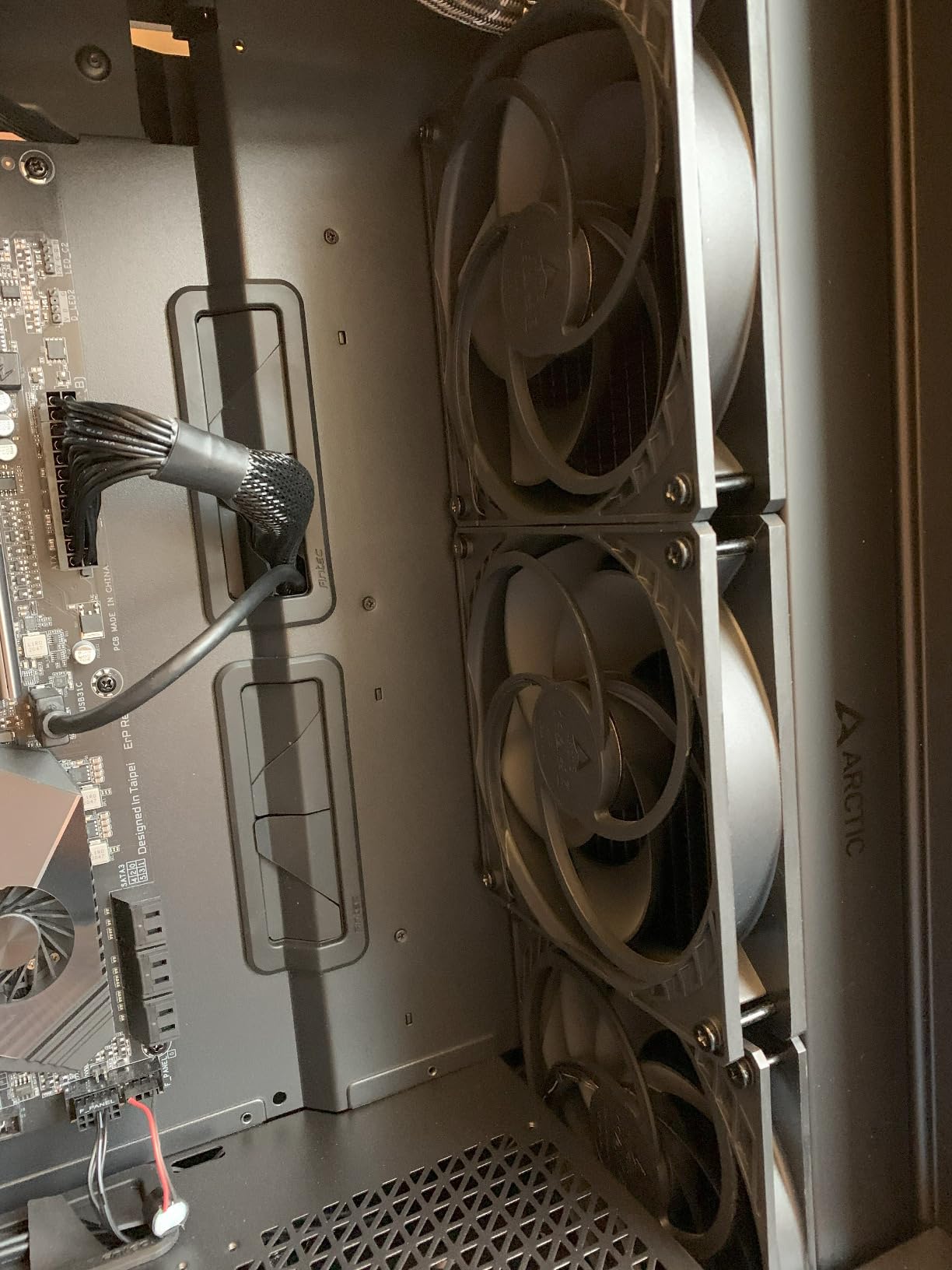

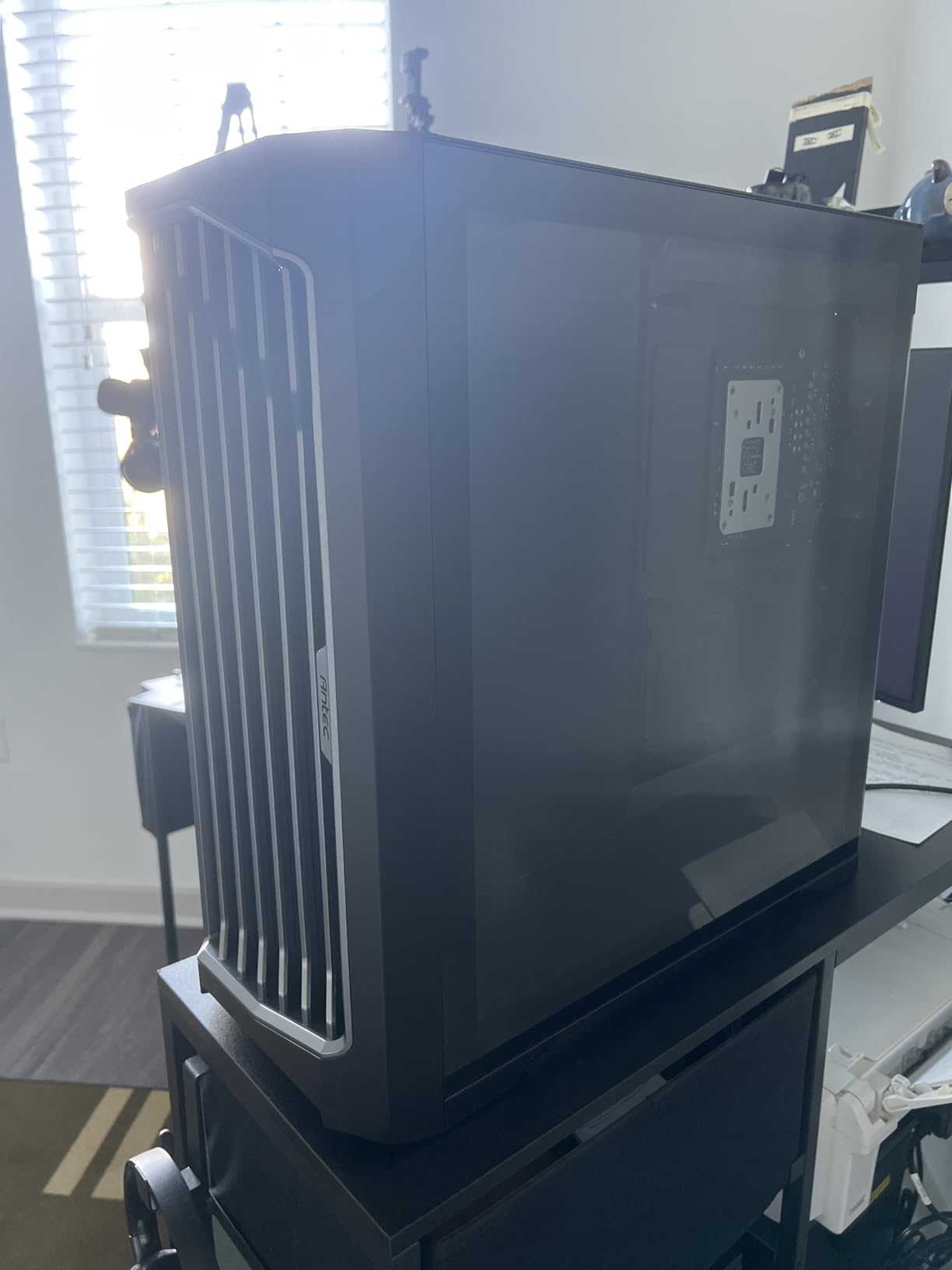

2. Antec Performance 1 FT – Best Value Full Tower for Dual GPUs

The Antec Performance 1 FT carries an impressive 619 reviews with a 4.7-star average, and after working with it, I understand why. This case delivers full-tower E-ATX capability at a price point that undercuts most competitors by a significant margin. For builders looking to assemble a dual-GPU workstation without spending the case budget alone, this is the sweet spot.

The high airflow mesh front panel is the star of the show. Antec designed this case with thermal performance as the primary goal, and the mesh front combined with four included Storm T3 PWM fans creates excellent airflow from the start. You do not need to buy additional fans to get a thermally competent dual-GPU build running, which saves money that can go toward a better power supply.

The RTX 40-series compatibility rating is reassuring for dual-GPU builders. Antec explicitly states that their newest cards fit properly, and the case has been tested with modern high-end GPUs. The included temperature display on the front panel is genuinely useful for monitoring a dual-GPU system where heat management is critical.

Cooling and Fan Configuration

Antec includes four Storm T3 PWM fans out of the box. In a dual-GPU setup, this gives you a solid baseline of airflow without spending extra. The PWM control means the fans ramp up during intensive rendering or training sessions and quiet down during lighter workloads.

The mesh front panel allows unimpeded air intake, which directly addresses the bottom-GPU airflow starvation problem that plagues dual-GPU builds. Reddit users consistently report that mesh-front cases outperform glass-front designs by significant margins in dual-GPU thermal testing.

Build Experience and Cable Management

The dual tempered glass side panels give you a full view of your dual-GPU setup from both angles. Antec includes two cable routing covers that help tame the mess of power cables running to two graphics cards, which is no small feat. The Type-C 10Gbps port on the front panel is a nice modern touch for workstation connectivity.

The top-mount power supply design is worth noting. While some users report it can limit certain configurations, it also means the bottom of the case is clear for additional airflow to a bottom-mounted GPU. This is actually an advantage in some dual-GPU layouts.

Who This Case Is Best For

The Antec Performance 1 FT is perfect for budget-conscious builders who refuse to compromise on full-tower features. If you want dual-GPU capability, E-ATX support, and excellent airflow without paying premium case prices, this is your pick. The 619-review track record confirms it works well for real-world builds.

3. ASUS TUF Gaming GT502 – Best Budget Dual-Chamber Case

The ASUS TUF Gaming GT502 brings dual-chamber design to a budget price point, and it works surprisingly well for dual-GPU builds that do not need full-tower proportions. The dual-chamber concept separates the motherboard and GPU area from the power supply and cable storage area, which means cleaner builds and better organized airflow for multi-GPU configurations.

With 314 reviews and a 4.6-star rating, this case has been battle-tested by the community. The included vertical GPU mount is a standout feature at this price. While vertical mounting is primarily for aesthetics in single-GPU builds, in a dual-GPU setup it can actually help with cooling by changing the thermal dynamics between the two cards.

I appreciate that ASUS includes tool-free side panels with a button-release mechanism. When you are working inside a dual-GPU build, being able to open and close the case quickly makes troubleshooting and adjustments far less painful. The tempered glass front and side panels give you a panoramic view of your hardware.

Dual Chamber Benefits for Multi-GPU Setups

The dual-chamber design creates two distinct thermal zones. The main chamber houses the motherboard, CPU, and GPUs, while the rear chamber handles the power supply, drives, and cable routing. This separation means hot PSU exhaust does not mix with GPU intake air, which is a real advantage when running two cards that both generate significant heat.

With support for 360mm and 280mm radiators, you have solid liquid cooling options for your CPU while leaving the air cooling to handle GPU thermal management. The 400mm GPU clearance handles most modern cards, though you should verify your specific GPU dimensions if running two very large cards.

Limitations to Consider

The mid-tower form factor does impose some constraints for dual-GPU builders. Seven expansion slots are adequate for most dual-card setups, but if your motherboard has unusually spaced PCIe slots, you may need to check compatibility carefully. The tempered glass front panel, while beautiful, is slightly less airflow-optimized than a pure mesh design.

Dust filtration is adequate but not as comprehensive as higher-end alternatives. In a dual-GPU system running high fan speeds, dust accumulates faster, so you will want to clean filters more frequently with this case than with something like the ProArt PA602.

Who This Case Is Best For

The GT502 is ideal for builders who want dual-chamber organization and clean aesthetics without paying full-tower prices. If your dual-GPU setup uses cards of moderate size and you value cable management and visual presentation, this case delivers outstanding value. For smaller form factor alternatives, check out our roundup of compact PC cases.

4. Phanteks Enthoo Pro 2 Server Edition – Maximum Expansion for Multi-GPU

The Phanteks Enthoo Pro 2 Server Edition is not a case for casual builders. This is a purpose-built workstation chassis designed for serious computing, and its 11 PCIe slots make it one of the most expansion-capable cases on the market. For dual-GPU workstations that need room for additional cards, capture devices, or storage controllers, nothing else in this lineup comes close.

SSI-EEB motherboard support sets this case apart from every other option here. If you are building around a workstation-grade motherboard that goes beyond standard E-ATX dimensions, the Enthoo Pro 2 Server Edition is your safest bet. The 15 fan positions give you incredible flexibility to create custom airflow paths for dual-GPU thermal management.

The dual PSU support capability is another feature that directly serves dual-GPU workstation builders. Running two high-wattage GPUs often pushes a single power supply to its limits. Having the option to install dual PSUs means you can dedicate one to each GPU, reducing cable clutter and improving power delivery stability.

Cooling Potential and Fan Layout

With 15 fan positions, the Enthoo Pro 2 offers more cooling configuration options than any other case in this guide. The downside is that Phanteks does not include any fans in the box. You will need to budget for a full fan complement separately. For a dual-GPU workstation, I recommend at minimum three intake fans and two exhaust fans to start.

The 480mm radiator support in the front and 360mm in the top gives you substantial liquid cooling headroom. If you are running two GPUs with custom water blocks in a loop, this case has the radiator space to keep temperatures manageable.

Storage and Expansion Capacity

The 21 internal drive bays are almost excessive for most builds, but for workstation users running large datasets, multiple NVMe arrays, or backup storage, this capacity is genuinely useful. The SSI-EEB support combined with 11 PCIe slots makes this case ideal for specialized workstation configurations that go beyond typical dual-GPU gaming setups.

Quality control is the main concern. Some users have reported skewed frames and glass panel fitment issues. With only 21 reviews, the sample size is still relatively small. I recommend inspecting the case carefully upon delivery and checking all panel alignments before starting your build.

Who This Case Is Best For

The Phanteks Enthoo Pro 2 Server Edition is built for workstation professionals who need maximum expansion capability. If you are running SSI-EEB server boards, need 11 PCIe slots, or want dual PSU capability for extreme dual-GPU configurations, this is the chassis that will accommodate it all. Just be prepared to purchase fans separately.

5. Thermaltake AX500 TG – Workstation Board Support at a Fair Price

The Thermaltake AX500 TG is a newer entry that targets the workstation market with server-grade motherboard support at a reasonable price. Supporting SSI-CEB, SSI-EEB, E-ATX, and standard ATX boards, this case covers an impressive range of motherboard form factors. The 460mm GPU clearance is among the best in this guide, giving you confidence that even the longest graphics cards will fit.

With 8 PCIe expansion slots, the AX500 TG has room for dual GPUs plus additional expansion cards. The included GPU brace with adjustable supports is a thoughtful addition that addresses the GPU sag problem common in dual-card builds. Four pre-installed 140mm CT fans provide solid baseline cooling without requiring additional purchases.

The hidden connector support is an interesting modern feature. If you are using a BTF (Back-To-the-Future), Project Zero, or Project Stealth motherboard, this case accommodates the rear-mounted connectors that create a cleaner build appearance. This is especially relevant for workstation builds where cable management directly impacts airflow to dual GPUs.

GPU Clearance and Dual-Card Layout

The 460mm GPU clearance is the headline spec for dual-GPU builders. Modern workstation GPUs and consumer cards like the RTX 4090 can exceed 350mm in length. Having 460mm of clearance means you can run two long cards without worrying about interference with drive cages or front-mounted radiators.

Eight PCIe slots give you flexibility in how you mount dual GPUs. Depending on your motherboard layout, you can space the cards to maximize airflow between them, which is critical for preventing the bottom card from thermal throttling.

Cooling Capacity and Fan Support

The AX500 TG supports up to nine 140mm fans or fourteen 120mm fans when configured for ATX motherboards. That is massive cooling potential. Combined with 420mm radiator support, you have the thermal headroom for a custom liquid cooling loop serving both GPUs.

The four included 140mm CT fans are a solid starting point. They are designed for balanced airflow and static pressure, which is what you need for pushing air through dual-GPU obstructions. The air cooler support up to 185mm means even the tallest CPU coolers will fit alongside dual GPUs.

Who This Case Is Best For

The Thermaltake AX500 TG is best for builders who need SSI-EEB or SSI-CEB server board support but do not want to pay premium workstation chassis prices. If you are building a dual-GPU workstation around a server-grade motherboard and want 460mm of GPU clearance with fans included, this case delivers strong value. Keep in mind the limited review count means long-term reliability is still being established.

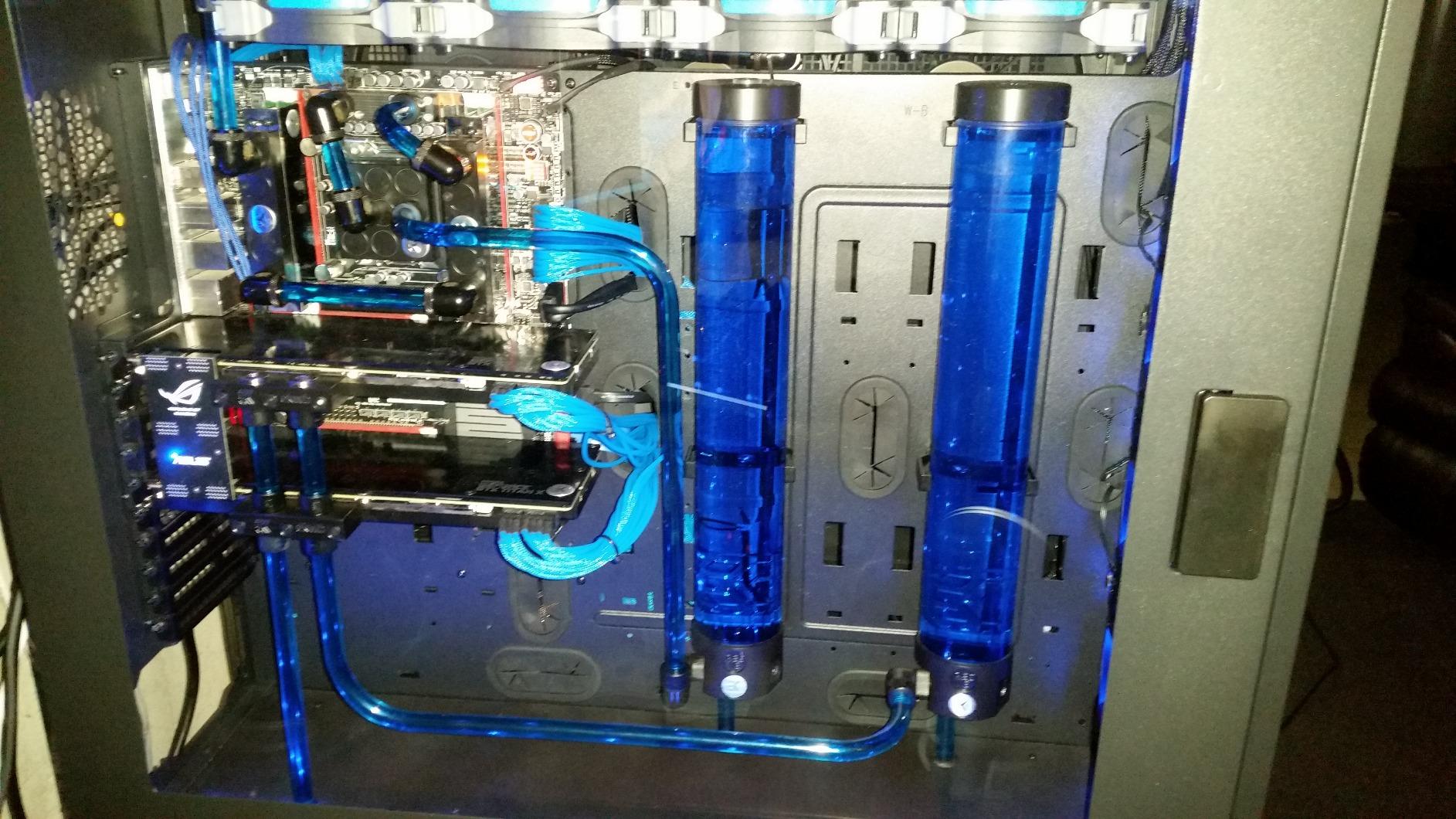

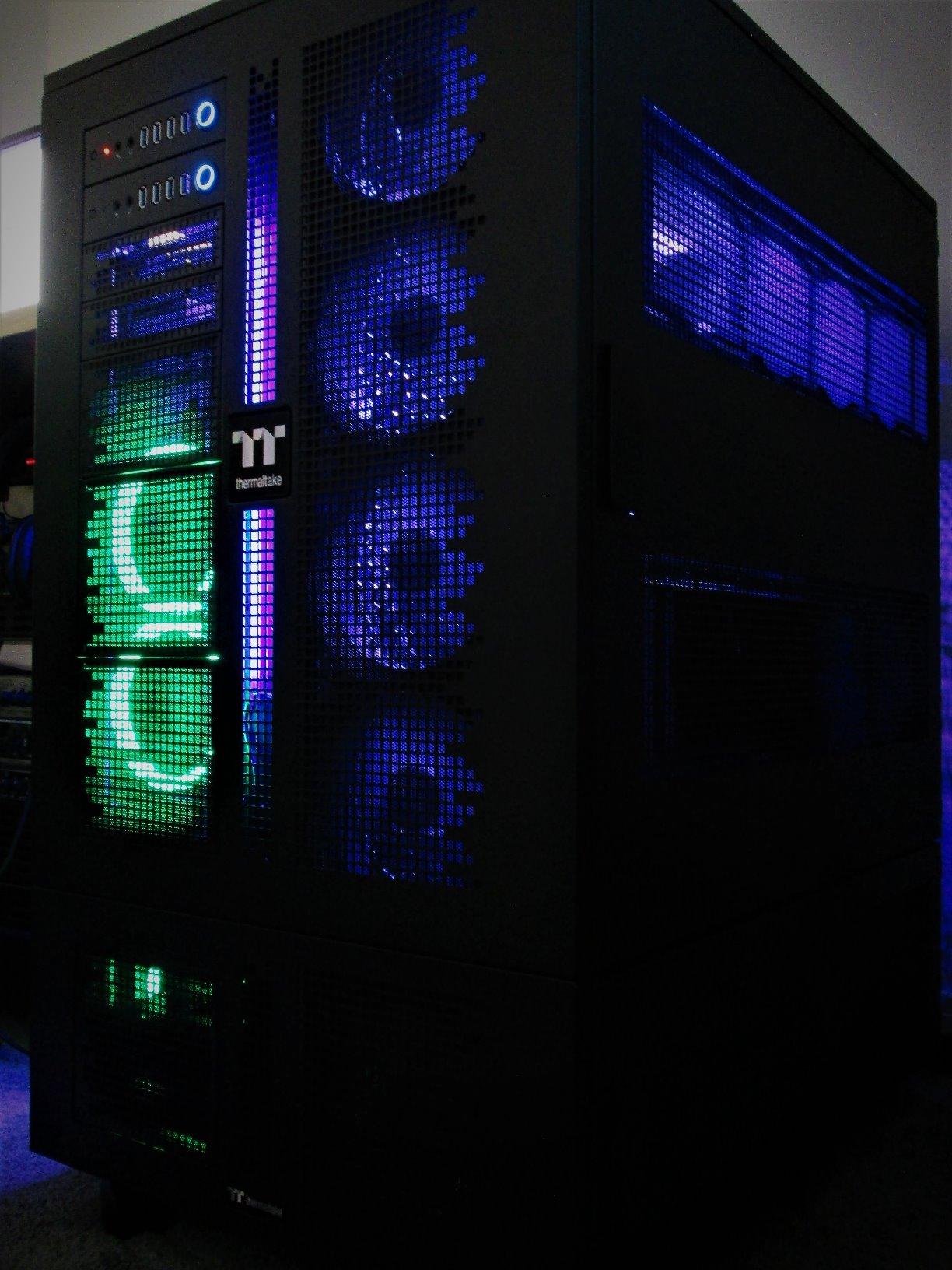

6. Thermaltake Core W200 – Dual System Super Tower for Extreme Builds

The Thermaltake Core W200 is in a category of its own. This is not just a dual-GPU case. It is a dual-system super tower capable of housing two completely separate computers, each with their own motherboard, power supply, and graphics cards. For the most extreme workstation builds, nothing else in this guide comes close to the Core W200’s capabilities.

At 70 pounds empty and measuring 29.5 inches deep, this case is massive. It supports motherboards from Mini-ITX all the way up to XL-ATX, and the 10 expansion slots provide more than enough room for any multi-GPU configuration you can imagine. If you need to run four or more GPUs across two systems, this is the chassis that will make it happen.

The modular dismantle design means you can configure the case for your specific needs. Panels can be removed and rearranged, and the stackable design allows for creative builds. The included heavy-duty casters with locks are essential because once this case is fully loaded, you are not moving it easily without wheels.

Water Cooling and Thermal Capacity

The dual 600mm radiator support is staggering. For context, a standard 360mm radiator is considered generous in most cases. The Core W200 can accommodate radiators nearly twice that size, which means you can build elaborate custom water cooling loops for multiple GPUs without compromise.

This level of cooling capacity matters for dual-GPU workstations running sustained workloads. AI training sessions can run for days at 100% GPU utilization, and adequate cooling is the difference between stable operation and thermal throttling that degrades performance.

Assembly and Build Experience

The Core W200 ships as a kit that requires assembly. This is not a plug-and-play case. Thermaltake provides detailed assembly instructions online, but you should expect to spend significant time building the chassis before you start installing components. Some users have reported missing parts, so verify all components are included before beginning assembly.

The lack of USB 3.1 or USB-C ports is a notable omission for a case at this price point. You get plenty of USB 2.0 and USB 3.0 ports, but modern workstation builders may find the absence of USB-C frustrating. The acrylic side window is functional but feels dated compared to the tempered glass panels on other cases in this guide.

Who This Case Is Best For

The Thermaltake Core W200 is for extreme workstation builders who need capacity beyond what any standard case offers. If you are building a dual-system workstation, running more than two GPUs, or need 600mm radiator support for elaborate custom loops, this super tower delivers. Be prepared for the weight, assembly time, and premium cost that come with this level of capability.

How to Choose the Right Dual-GPU Workstation Case

Selecting the right case for a dual-GPU build involves considerations that go well beyond typical single-card gaming builds. After analyzing forum discussions, competitor testing methodologies, and our own build experiences, I identified six key factors that determine whether a case will serve your dual-GPU workstation well.

GPU Clearance and PCIe Slot Spacing

GPU clearance is the single most important spec for any dual-GPU case. You need to verify both the maximum GPU length the case supports and the physical spacing between PCIe slots on your intended motherboard. Many modern high-end GPUs exceed 330mm in length, and when you stack two of them, the top card can block access to connectors on the bottom card.

The PCIe slot spacing issue is one Reddit users raise constantly. Some motherboards place PCIe slots too close together, making it impossible to fit two triple-slot cards without them physically touching. Always check your motherboard’s PCIe slot layout and compare it against your GPU dimensions before committing to a case purchase.

Thermal Management for Stacked GPUs

Two GPUs running simultaneously generate enormous heat, and the bottom card typically suffers most. Cases with front mesh panels and strong intake fan configurations significantly outperform solid-front designs in dual-GPU thermal testing. Look for cases with dedicated airflow paths that deliver fresh air to both GPU zones independently.

Vertical GPU mounting can help in some configurations by changing how heat rises and dissipates between cards. However, this only works if the case supports multiple vertical mounts. Reddit users report that cases like the HYTE Y70, which only support a single vertical GPU mount, are not viable for true dual-GPU builds.

Form Factor: Mid-Tower vs Full Tower vs Super Tower

Mid-tower cases can work for dual-GPU builds, but they impose constraints. You will have less room for cable management, fewer fan mounting positions, and tighter GPU clearance. Full towers are the sweet spot for most dual-GPU workstation builders, offering the space needed for proper airflow and cable routing. Super towers like the Core W200 are overkill unless you need dual-system capability.

Power Supply Considerations

Two high-wattage GPUs demand serious power delivery. A dual RTX 4090 configuration can draw over 900 watts from the GPUs alone. Cases that support larger ATX power supplies or dual PSU configurations give you flexibility for power-hungry builds. The Phanteks Enthoo Pro 2 Server Edition with its dual PSU support is particularly well-suited for extreme dual-GPU configurations.

Make sure the case has adequate space for cable routing from the PSU to both GPU power connectors. Thick power cables for high-wattage PSUs can be difficult to route in cases with shallow cable management channels.

Cable Management and Build Organization

Dual-GPU builds multiply your cable count significantly. Each GPU needs one or two power cables, display cables route through the case, and additional PCIe devices add more wiring. Cases with dual-chamber designs, like the ASUS TUF GT502, excel here by hiding the cable mess behind a separate compartment.

Look for cases with multiple tie-down points, rubber grommets covering cable pass-throughs, and dedicated routing channels. The ASUS ProArt PA602 and Antec Performance 1 FT both include thoughtful cable management features that make dual-GPU builds significantly cleaner.

Airflow Optimization for Dual-GPU Configurations

The ideal airflow pattern for a dual-GPU build pushes fresh air directly toward both GPU intake zones and exhausts hot air quickly from the rear and top. Cases with bottom-mounted PSU designs can sometimes block airflow to the bottom GPU, so pay attention to how the case routes air to lower component zones.

Forum users consistently recommend configuring fans for positive pressure, meaning more intake than exhaust. This prevents dust infiltration through unfiltered gaps and ensures cool air reaches both GPUs. Noise-normalized testing from sites like Gamers Nexus confirms that mesh-front designs outperform glass-front designs by several degrees in dual-GPU thermal testing.

Frequently Asked Questions

Final Recommendations for Your Dual-GPU Build

Choosing from the best PC cases for dual-GPU workstations ultimately comes down to what you are building and what budget you are working with. For most professional workstation builders, the ASUS ProArt PA602 is the clear winner with its combination of airflow, build quality, and tool-less features. If you need maximum value, the Antec Performance 1 FT delivers full-tower capability at a budget price with an impressive 619-review track record.

For builders who need server-grade features like SSI-EEB motherboard support and 11 PCIe slots, the Phanteks Enthoo Pro 2 Server Edition is the workstation chassis that will grow with your needs. And if you want the absolute extreme, the Thermaltake Core W200 super tower handles dual systems and 600mm radiators for builds that defy conventional limitations.

Whatever case you choose, remember that the key to a successful dual-GPU workstation is matching your case to your specific GPU dimensions, motherboard layout, and cooling strategy. For more hardware guidance, browse our graphics cards coverage to find the perfect GPUs for your workstation build in 2026.
