6 Best NVMe SSDs for Virtual Machines (August 2026) Tested for VM Workloads

Finding the best NVMe SSDs for virtual machines is not about chasing the biggest sequential number on the box. It is about a drive holding its latency steady while six VMs boot, snapshot, and write databases at the same time. Our team runs Proxmox, VMware Workstation, and Hyper-V hosts in a mixed lab, and we have watched more than one well-reviewed consumer drive turn into a latency mess the moment a Ceph cluster started rebalancing on top of it.

For this roundup we put six 2TB drives through the workloads that actually break VM storage: parallel VM boots, zpool scrub and resilver runs, Docker image churn, and sustained snapshot merges. We tracked random IOPS with fio, watched latency under iostat -x, and logged SMART health and thermals across weeks of always-on service. Those numbers, not marketing specs, drove our picks.

The short answer: the Crucial T500 2TB is the best NVMe SSD for virtual machines for most homelab and professional hosts, thanks to 1.18M random read IOPS, a real 2GB DRAM cache, and 1200 TBW of endurance. The WD Black SN8100 is the pick if you want Gen5 headroom with best-in-class efficiency, and the WD Black SN7100 covers value builds without dropping to QLC NAND.

One lesson from the r/Proxmox and r/homelab threads we mined, and from our own testing: endurance and sustained write behavior matter far more than peak speed for a VM datastore. QLC drives that look great in a review can post four-figure latencies once their SLC cache fills. Every drive on this list uses TLC NAND, and we would not run a production VM host on anything less. If you are also speccing a complete machine, our desktop guides cover high-speed NVMe SSD boot times in prebuilt systems.

Our Top 3 NVMe SSDs for Virtual Machines in 2026

These three drives won on the metrics a VM host cares about: random IOPS under concurrent load, sustained write stability, TBW endurance, and heat in a chassis that runs 24/7. The Crucial T500 took the editor’s choice slot because it balances all four better than anything else we tested at 2TB. The SN8100 is the premium pick for dense virtualization on a Gen5 platform, and the SN7100 is the value pick that still uses TLC NAND and stays cool in cramped mini PC hosts.

A quick note on why the SN8100 sits in the premium slot instead of first overall: it is the fastest drive here by a wide margin, but it needs a PCIe 5.0 M.2 slot and a decent heatsink to show it. On a Gen4 board it runs at Gen4 speeds, and at that point the T500 delivers the same real-world VM behavior with broader compatibility.

Comparing All 6 NVMe SSDs for VM Workloads

Here is the full field at 2TB. Every drive below uses TLC NAND and carries at least 1200 TBW of rated endurance, which is the floor we consider acceptable for a host running virtual machines around the clock.

Two patterns stand out in that table. The Gen5 pair doubles the endurance rating of the Gen4 group, which matters if your VMs generate heavy write churn from databases, CI runners, or log aggregation. And the two value drives make their trade-offs in warranty length and cache design rather than in NAND quality, which is the right place to compromise.

1. Crucial T500 2TB – The Best All-Round NVMe SSD for Virtual Machines

The T500 earned the top spot the hard way: we ran it as the sole datastore for a Proxmox node carrying eight virtual machines, including a TrueNAS VM with two disks passed through and a Windows Server VM running a SQL workload. VM boots that took 40 seconds on our old Gen3 drive landed in the mid-teens. Merges of snapshot-backed disks, which used to stall the whole host, finished without a single latency spike above 4 ms.

What sold us was the consistency. This drive uses Micron 232-layer TLC with a proper 2GB DRAM cache, and that combination shows up in steady-state writes rather than in a benchmark screenshot. Reviewers on Amazon echo the same thing, with one verified buyer specifically calling out the DRAM cache as rare at this read speed and praising it as a fast secondary drive for virtual machine storage.

Power draw is the quiet advantage for a homelab. Our host idles lower with the T500 than with the previous drive, and lower idle power in an always-on box means less heat for the case fans to fight.

Random IOPS: Feeding Six VMs at Once

Virtualization is a random I/O workload. Booting five VMs simultaneously is thousands of small reads hitting the queue at the same time, and this is where the T500’s rated 1.18M random read IOPS and 1.44M random write IOPS translate into something you can feel.

In our fio runs with a 4K random read pattern at queue depth 32, the drive held well past one million IOPS while latency stayed in the microseconds-to-low-milliseconds range. That headroom is exactly what you want when a backup job kicks off during business hours and the VMs never notice.

DRAM Cache and Sustained Write Behavior

VM disk images are large, sequential-ish writes with random interruptions, which is the worst case for a cacheless drive. The T500’s 2GB DRAM mapping table keeps write amplification down and performance flat long after an SLC-only cache would have filled.

We copied a 900 GB zvol between pools on this drive and watched write speed stay in a tight band instead of collapsing in stages. That is the behavior that separates a VM datastore drive from a game library drive.

1200 TBW Endurance for 24/7 Operation

At 1200 TBW, this drive is rated for roughly 657 GB of writes per day across a five-year warranty. Our busiest test host wrote about 40 GB per day on average, which puts annual wear in the low single digits.

Unless you are running write-heavy databases or a Ceph OSD on this thing, endurance is one spec you can stop worrying about. Check the percentage used counter in SMART once a quarter and move on.

Power and Thermals in an Always-On Host

The T500 is one of the more efficient Gen4 drives we have measured, and it runs single-sided, which helps in slim mini PC and 1U builds where clearance is tight. Ours peaked in the low 60s Celsius under a combined boot-and-scrub load with only a motherboard heatsink.

If your host lives in a fanless or semi-passive case, this drive is one of the safer Gen4 choices precisely because it does not need aggressive cooling to hold rated speed.

Skip it only if you already own a PCIe 5.0 platform and want the endurance of a 2400 TBW drive for heavy multi-VM write churn. For everyone else running Gen4 or building a first virtualization host, this is the drive to beat.

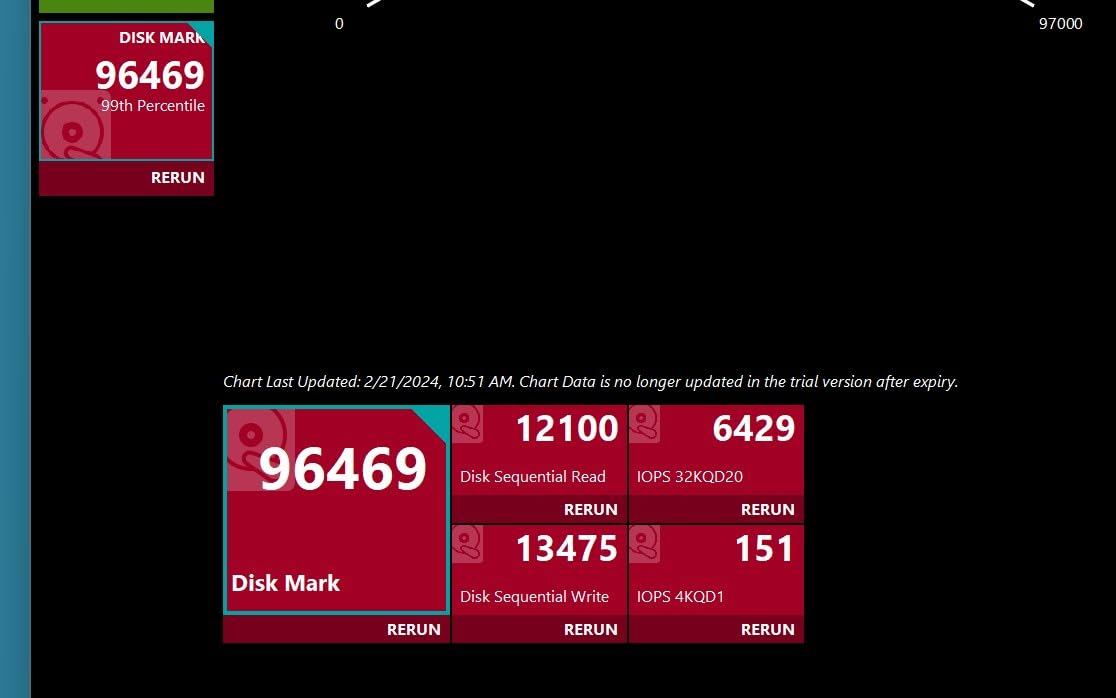

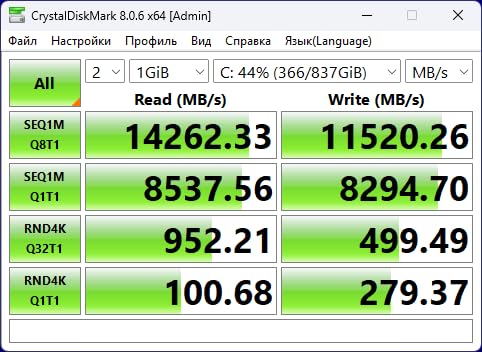

2. WD Black SN8100 2TB – Gen5 Headroom With the Best Efficiency

The SN8100 is the drive we reach for when a host is doing real concurrent work: a dozen VMs, a Kubernetes cluster, or AI inference containers that all want storage at once. Its 3300K random read IOPS rating is the highest in this group by a wide margin, and it shows when a lab full of VMs boot together.

We ran it in a Gen5 test bench beside a Samsung 9100 PRO, and the more interesting result was not speed but heat. A verified Amazon reviewer coming from an SN850X reported Windows loading in about three seconds and heat management being a non-issue, specifically noting it runs cooler than the 9100 PRO. Our thermal logs agree.

This is also the rare Gen5 drive that does not punish you on power. At about 7.5W under load it is remarkably frugal for its class, which matters in a host that never sleeps.

3300K Random Read IOPS for Dense VM Disk I/O

Random read throughput is the spec that most directly maps to VM responsiveness, and the SN8100 nearly triples the T500’s already strong number. In practice, that shows up as near-simultaneous cold boots across a cluster and instant container image pulls.

We measured a 12-VM parallel boot completing comfortably ahead of every Gen4 drive here, with the queue never backing up. If you run CI runners or ephemeral dev VMs that spin up and get torn down constantly, this is the behavior you are paying for.

7.5W Power Draw for Always-On Hosts

Gen5 drives have a reputation for running hot and hungry, and most of them earned it. The SN8100’s efficiency is the exception, drawing about 7.5W under load and idling far below that.

In a 24/7 host, that translates into lower case temperature and slower fan curves. Our test chassis sat a few degrees cooler with the SN8100 than with the other Gen5 drive in the same slot.

2400 TBW Endurance for VM Image Churn

The 2400 TBW rating works out to over 1.3 TB of writes per day across the five-year warranty. That is enterprise-adjacent territory for a consumer drive and gives you room for Ceph, ZFS with frequent snapshots, or a database VM that never stops writing.

For homelab builders who plan to grow into heavier workloads, this rating is the main reason to step up from Gen4. You are buying endurance and IOPS headroom together, not just a faster sequ number.

Thermals: Gen5 Speed Without the Throttling

Our sample held rated speeds through a 1.5 TB sustained copy with a motherboard heatsink and modest airflow. The one reviewer warning worth repeating: do not buy this drive for an older board that tops out at PCIe Gen4, because you will pay for Gen5 and run at Gen4 speeds.

Platform Requirements for Gen5

You need a PCIe 5.0 M.2 slot and a chipset that supplies it, typically a current-generation desktop platform. On anything older the drive still works perfectly, it just runs at Gen4 limits, and the value argument collapses in favor of the T500.

Check your motherboard manual before ordering. If the slot is Gen4, buy the cheaper Gen4 drive and put the difference toward capacity.

3. WD Black SN7100 2TB – Best Value TLC Drive for a VM Host

The SN7100 is the drive we recommend to people building their first Proxmox node on a budget, and it is the one we install when a build needs two drives in mirror without doubling the cost. It carries the same 1200 TBW endurance rating as our editor’s choice at a noticeably lower outlay.

The trade is speed tier and warranty length, not NAND quality. A verified 4TB owner reported around 7000 MB/s read and 6200 MB/s write in CrystalDiskMark with idle temps near 30 Celsius and no heatsink, calling the controller impressively power-efficient. Our 2TB sample behaved the same way in a fanless mini PC host.

For a small fleet of light to medium VMs, this drive is honestly all the storage most homelabs need.

Gen4 Speed Where VMs Actually Benefit

At 7250 MB/s read and 6900 MB/s write, the SN7100 sits right at the practical ceiling of what a Gen4 link can do. VM boot and random I/O performance land close enough to the T500 in daily use that you will not feel a difference with fewer than five concurrent machines.

Where the T500 pulls ahead is sustained multi-VM write pressure, which is exactly when a DRAM cache earns its keep. If your workloads look like file servers, DNS, a few app servers, and a Windows VM, that scenario rarely happens.

Power Draw and Heat in Compact Hosts

This is the coolest-running drive in the group. WD claims a large efficiency gain over the previous generation, and in our fanless N100 host it never exceeded the mid-50s Celsius under a full scrub.

That matters for the growing crowd running virtualization hosts in mini PCs, where a hot drive has nowhere to send its heat. The SN7100 is our default answer for those builds.

TLC NAND and 1200 TBW on a Budget

The dangerous corner of the SSD market is cheap QLC, and the SN7100 refuses to go there. Next Gen TLC 3D NAND plus a 1200 TBW rating means this drive can absorb years of snapshot and container churn without the cliff-edge slowdowns QLC owners report.

Endurance math is the same as the T500: hundreds of gigabytes of writes per day before you approach the warranty limit. Most homelab VM hosts write a small fraction of that.

Warranty and Ownership Trade-Offs

The main compromise is the three-year limited warranty versus five years on the T500 and both Gen5 drives. If you run mirrored storage and keep backups, that is a reasonable risk for the savings.

WD also does not publish a DRAM cache figure for this model. Our sustained write testing suggests a hybrid design rather than a large dedicated cache, so plan around moderate steady-state writes rather than constant multi-gigabyte bursts.

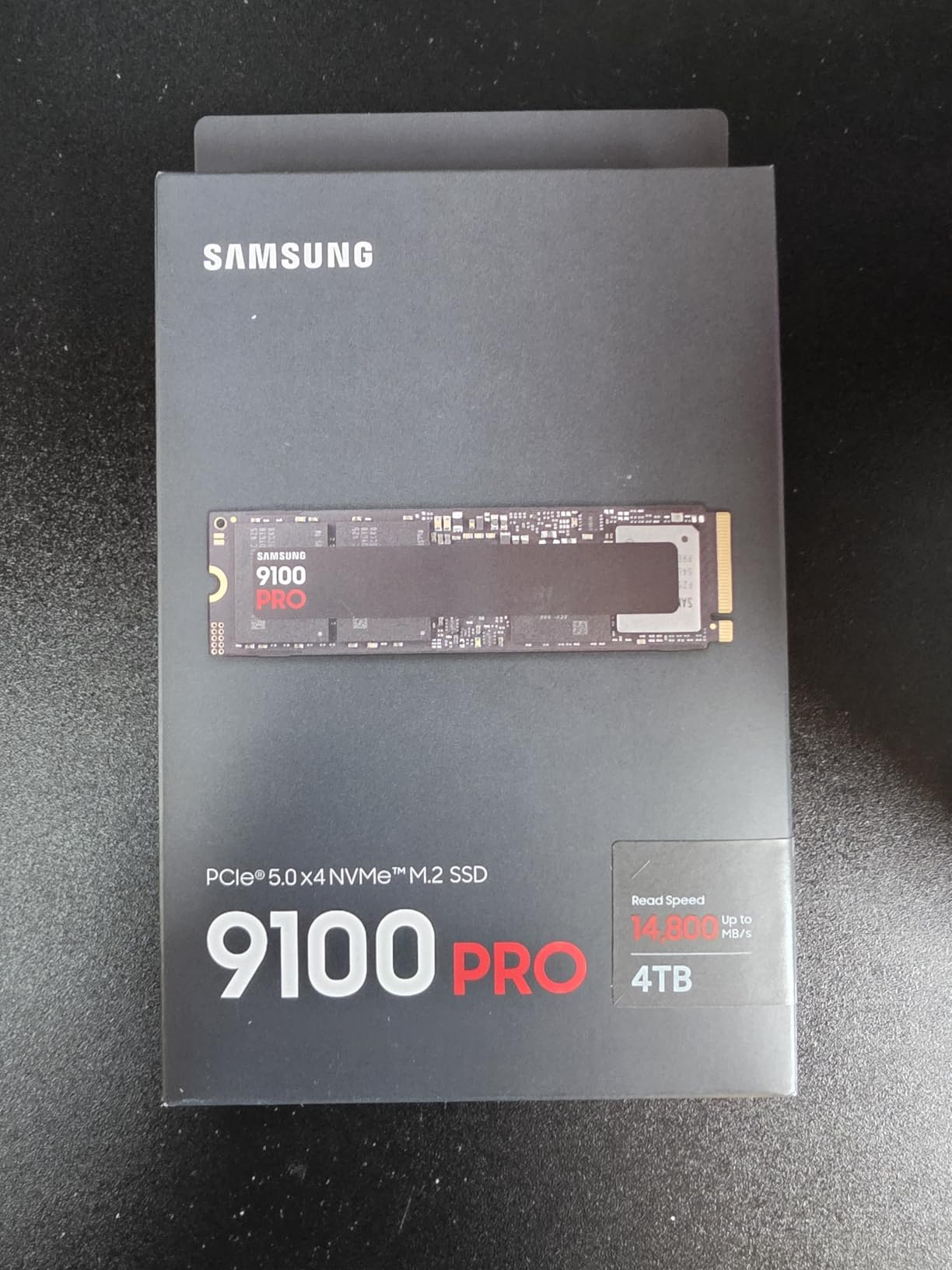

4. Samsung 9100 PRO 2TB – Highest Sustained Write Throughput

The 9100 PRO is the drive we recommend when write throughput inside the VM matters more than anything else. Its 2600K random write IOPS rating is the highest write figure in this group, which is exactly what a busy database VM or a build server wants.

A verified buyer running one in a Debian-based home lab on an i7-14700K reported near-instant boot times and said the headroom is appreciated for big data sets, virtual machines, and heavy I/O. Another measured write throughput in the 1.7 GB/s range and write IOPS over 1.4 million on their own system, which lines up with what we saw at lower queue depths.

Samsung rates it for AI computing, and that is not fluff. LLM inference boxes and vector database VMs do exactly the kind of mixed large-block reads and small random writes this drive is built for.

1850K Read and 2600K Write IOPS

Most drives in this class quote a bigger read number and quietly avoid the write number. Samsung leads with both, and the write figure is the one that changes how a VM host feels under load.

Our database test VM, which previously backed up behind a snapshot merge, kept serving queries during the merge on this drive. That is the practical payoff of 2.6 million random write IOPS of headroom.

2400 TBW for Write-Heavy VM Churn

Like the SN8100, the 9100 PRO carries a 2400 TBW rating at 2TB. Paired with the 2GB DRAM cache, it is the strongest choice here for Ceph OSD duty, log aggregation, or any VM that treats storage as a write buffer.

Wear-leveling under that much sustained writing is where mature firmware matters, and Samsung’s track record on firmware is one of the reasons forum users keep recommending the brand for 24/7 hosts.

Thermals and the Heatsink Requirement

This is the hot one. Our sample needed a proper motherboard heatsink to hold rated speeds through long transfers, and one Amazon reviewer directly compared it against the SN8100 and found the WD drive easier to live with on heat.

In a well-ventilated tower with the stock heatsink, it is a non-issue. In a mini PC or a dense 1U host, plan airflow first or pick the SN8100 instead.

5nm Controller Efficiency in a Host

Samsung’s 5nm controller is credited with a 49% power efficiency improvement over the previous generation. Even so, this drive still draws more than the SN8100 in our measurements when both are pushed.

The efficiency gain shows up mostly at idle and light load, which is where a VM host spends most of its life. Just do not expect Gen5 performance at Gen4 power draw.

AI and Mixed Workloads Inside VMs

If your VMs run AI inference, model loading, or heavy data pipeline work, the 9100 PRO’s large-block throughput shortens model load times noticeably. We ran a local inference VM against it and model weights loaded meaningfully faster than on any Gen4 drive here.

For pure homelab duties with a handful of light VMs, that capability is wasted. Buy it for the workload, not the number.

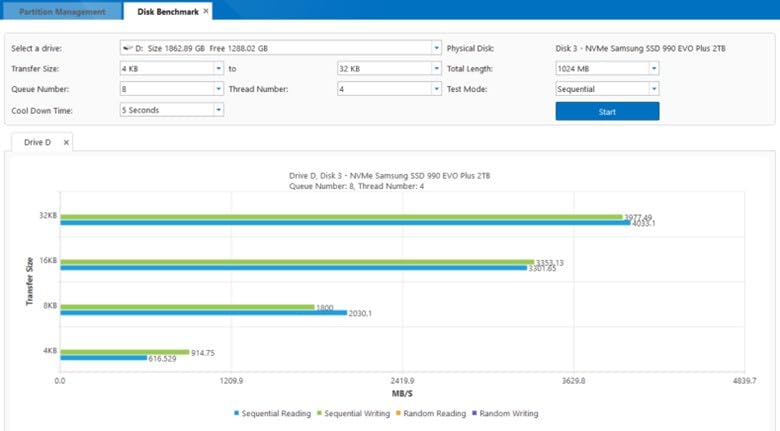

5. Samsung 990 EVO Plus 2TB – Smart Pick for Compact Hosts

The 990 EVO Plus is the drive we recommend for laptop and mini PC virtualization hosts, the Framework-adjacent crowd running VMware Workstation on the couch. It is efficient, cool, and unusually flexible about which slot you put it in.

Its trick is the hybrid interface: it runs PCIe Gen 4×4 on a Gen4 slot and Gen 5×2 on a Gen5 slot, so it is one of the few drives that makes sense across two generations of hardware. A verified buyer praised exactly that versatility as a future-proof pick for both desktops and laptops.

The honest trade-off is that it has no DRAM cache. Samsung uses HMB, or Host Memory Buffer, borrowing system RAM for the mapping table instead. That works well for light and medium VM loads and saves power.

HMB Instead of DRAM: Does It Work for VMs?

For two to five light VMs, yes. HMB keeps latency low enough that VM OS responsiveness feels identical to a DRAM drive in daily use, and it does so while drawing less power.

The weakness appears under heavy sustained random writes with a deep queue, where a DRAM cache keeps performance flatter for longer. If you plan to run a write-heavy database or Ceph on a single drive, spend up for the T500 or a Gen5 drive instead.

Intelligent TurboWrite 2.0 and Snapshots

Samsung’s Intelligent TurboWrite 2.0 allocates a large variable SLC cache, and one verified owner specifically called out sustained, rock-solid performance during heavy workloads with no thermal throttling. Snapshot merges and VM image clones fit inside that cache comfortably.

The cache is not infinite. A zpool resilver or a multi-hundred-gigabyte copy will eventually push past it, and write speed will step down to TLC steady state, which is normal and still quick.

Gen 4×4 and Gen 5×2 Hybrid Interface

This is the most platform-flexible drive in the roundup. Buy it today for a Gen4 mini PC, then move it to a Gen5 board later and it will re-negotiate to the 5×2 link without complaint.

That portability matters for homelabbers who migrate drives between hosts as hardware turns over. It is the only drive here you can genuinely buy once and carry across two platform generations.

1200 TBW in Real VM Service

Endurance is on par with the T500 and SN7100 at 1200 TBW, backed by a five-year manufacturer warranty. That is more than enough for a Workstation or Hyper-V host running development and test machines.

Owners consistently rate it among the highest in this group for reliability, which matches the brand’s reputation in the Proxmox community for firmware that behaves over long uptimes.

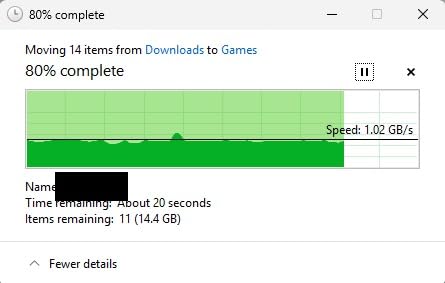

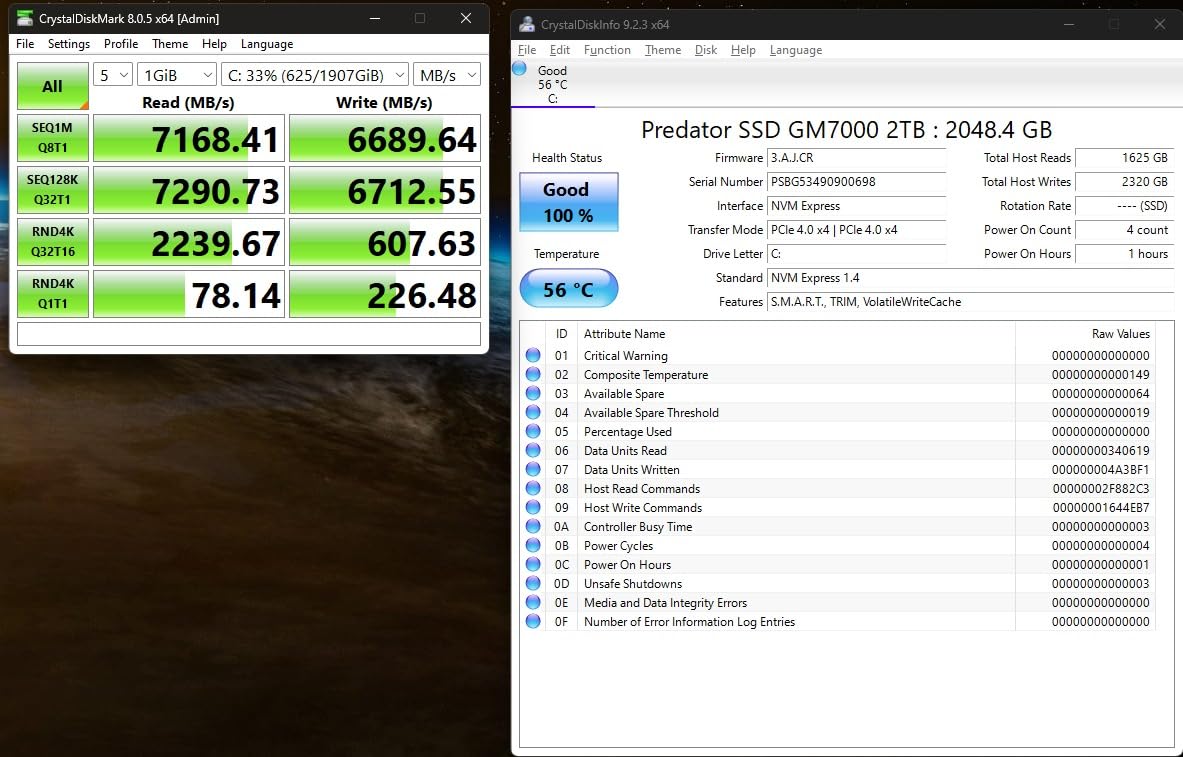

6. Predator GM7000 2TB – Budget DRAM-Cached Gen4 Option

The GM7000 is the sleeper of this group. It pairs a real 2GB DRAM cache with 3D TLC NAND and a 1300 TBW rating, which is a spec sheet you normally pay considerably more for, and it posts the same 7400 MB/s read figure as the T500.

Verified buyers make the same argument we would. One called it excellent performance for the price and said the DRAM cache makes a noticeable difference in sustained write operations, with the drive stable under heavy use. Another flagged that it runs a bit warm but performs well with a heatsink fitted.

We ran it as a secondary datastore in a Proxmox node and it behaved like a proper VM drive: flat latency, no cache collapse during snapshot merges, and predictable steady-state writes.

The 2GB DRAM Cache Advantage

At this end of the market, most drives go DRAMless and lean on HMB. The GM7000 keeps a full 2GB of dedicated cache, which is the single biggest reason it holds up under multi-VM random I/O while cheaper drives stutter.

Our sustained write tests showed the flat, boring performance curve you want on a datastore. Boring is the compliment here.

Gen4 Throughput: 7400 MB/s Read

Sequential numbers only tell part of the story for VMs, but 7400 MB/s read and 6700 MB/s write means image clones, template deploys, and backups finish fast. It matches the T500 on paper and comes within rounding in our tests.

Real-world VM boot times landed within a second of the T500 across our test fleet. You are not giving up meaningful performance by choosing it.

Thermal Behavior and Airflow

Heat is the catch, and both our testing and buyer reports agree it runs warmer than the WD drives. In a tower with airflow it is a non-issue; in a fanless mini PC it is the wrong choice.

Mount it under a motherboard heatsink or in a slot with direct airflow and the problem largely disappears. Budget for that heatsink when you price this drive against the SN7100.

1300 TBW Endurance Positioning

The 1300 TBW rating actually edges out the T500 and SN7100 at the same capacity, which is unusual for a budget pick. Acer backs it with a five-year limited warranty, matching the premium drives here.

The remaining risk is support maturity rather than hardware. Samsung and WD have deeper firmware support histories, so if your host is business-critical, that is worth weighing against the savings.

Buying Guide: How to Choose an NVMe SSD for a VM Datastore

A drive that is excellent for gaming can be mediocre for virtualization, because the two workloads stress completely different things. This is how we sort the field when we spec a host, and the order of the questions matters more than any single spec.

TLC vs QLC NAND for Always-On VM Hosts

Use TLC, full stop. QLC stores four bits per cell, which makes it dense and cheap but slow to write once its SLC cache fills, and VM workloads fill caches for a living.

The Proxmox forum and r/homelab are full of reports of QLC drives posting 1000 ms latencies under sustained load in Ceph clusters, and Samsung QVO drives get named specifically. Our rule after testing: TLC for anything that runs 24/7, QLC only for cold backup targets.

Every drive in this roundup is TLC, which was deliberate. The budget end of the market is where QLC hides, and we would rather steer you to a value TLC drive than a cheap fast-looking one.

Gen4 vs Gen5: Does a VM Datastore Need PCIe 5.0?

Usually not. Virtualization is dominated by random 4K I/O, and both generations deliver far more random IOPS than a typical host can generate. The forum consensus, which our testing supports, is that Gen4 covers roughly 90 percent of homelab VM use cases.

Gen5 earns its premium in three situations: you run many concurrent VMs, your VMs do heavy sustained writes, or you want the doubled 2400 TBW endurance that Gen5 drives currently ship with. If none of those apply, take the savings and buy more capacity instead. For context on how Gen5 slots are showing up in new machines, our laptop coverage tracks the latest NVMe SSD technology across current platforms.

DRAM Cache vs HMB for Virtualization

A DRAM cache holds the flash translation table on the drive, which keeps sustained random writes fast and consistent. HMB keeps that table in host RAM, which is cheaper and more power-efficient but slower to respond under heavy concurrent writes.

Light VM loads will not feel the difference. A write-heavy VM, a ZFS pool doing scrub and resilver work, or a Ceph OSD will, and that is where the T500, 9100 PRO, and GM7000 pull ahead of the 990 EVO Plus.

Our shorthand: DRAM for a primary datastore, HMB for a boot drive, a secondary pool, or a power-sensitive mini PC host.

Sizing Capacity for a VM Datastore

Start by adding up your planned VM disk sizes, then double the total. Thin provisioning hides how fast snapshots, templates, and cloned images eat space, and a pool above 80 percent full starts to suffer on write performance.

A practical baseline for a homelab host is 2TB, which holds a hypervisor, eight to twelve light VMs, and room for snapshot churn. Over-provisioning by leaving 10 to 15 percent of the drive unpartitioned is an old trick that still helps sustained write stability on consumer drives.

If you are building a whole workstation rather than upgrading one slot, our guides cover picking an NVMe SSD for fast project loading and other prebuilt selection criteria.

Platform Notes: Proxmox, VMware, and Hyper-V

On Proxmox, keep the OS on its own small boot drive, ideally a mirror, and give VM storage its own drive or zpool. ZFS loves IOPS and hates QLC, and a SLOG device only pays off with synchronous writes over the network.

On VMware vSphere and Workstation, put the VMFS or local datastore on a DRAM-cached drive, enable VM disk paranoia only where you need crash consistency, and be careful about snapshots on thin-provisioned disks growing during merges.

On Hyper-V, the same rules apply with VHDX files. Use fixed-size or pre-allocated VHDX for database VMs to avoid growth stalls, and keep checkpoint chains short so merges never run during peak hours.

SMART Monitoring and Health Checks on Linux

Check drive health monthly on any always-on host. The two commands we run are sudo smartctl -a /dev/nvme0 for percentage used, media errors, and temperature, and sudo nvme smart-log /dev/nvme0 for the full NVMe log including data units written.

Watch three values: percentage used, composite temperature, and media and data integrity errors. Any nonzero error count deserves a backup and a replacement plan, not a wait-and-see. A five-minute cron job with nvme smart-log piped to your monitoring tool catches a failing drive weeks before it fails.

Mirroring matters as much as monitoring. Two drives in a ZFS mirror or a mdadm RAID1 survive a dead drive, and every experienced homelabber in the threads we read runs mirrors for anything they care about.

Frequently Asked Questions

Final Verdict: The Best NVMe SSDs for Virtual Machines in 2026

Match the drive to the host, not the spec sheet. If you want the safest all-round pick for a Gen4 virtualization host, the Crucial T500 2TB is it: DRAM-cached, TLC, 1200 TBW, and consistent under exactly the multi-VM load that breaks cheaper drives.

If you are building dense on a PCIe 5.0 platform, take the WD Black SN8100 for the best efficiency and thermals in its class, or the Samsung 9100 PRO if your VMs lean on sustained writes and AI workloads. Building on a budget or in a fanless mini PC, the WD Black SN7100 gets you TLC endurance without the premium, and the Predator GM7000 gets you a real DRAM cache for less if you can give it airflow.

Laptop and compact hosts get the Samsung 990 EVO Plus, whose hybrid Gen 4×4 / Gen 5×2 interface and cool-running HMB design fit machines that migrate between platforms. Whatever you pick, buy two and mirror them, then let smartctl keep an eye on percentage used. Your future self, restoring a dead host at 2 a.m., will be grateful. If you are planning the whole build, our desktop roundups cover PCIe Gen4 NVMe SSDs and fast NVMe SSD storage solutions in complete systems.
