Finding the best manual water pumps for off-grid homes came down to one question that almost every owner gets wrong: how deep is the well, and can a suction pump even reach it? I have run shallow pitcher pumps on my own well head and on a rain barrel, and I have watched cheap ones fail in a single winter. The short answer is that a hand-operated pump can only lift water from roughly 25 feet by suction. Anything deeper needs a push-type cylinder pump bolted to the bottom of a drop pipe, and no suction pitcher pump will change that no matter what the listing claims.
On an off-grid homestead the electric submersible is usually the only thing between your household and running out of water. When the inverter, the generator or the pump itself fails, everything stops. A manual pump sharing that same well casing is the one water source that cannot fail with the grid, the battery bank, or anything electrical at all. I used one of these through a stretch of grid-down weeks while working through the rest of our power gear, and it is the reason my portable power station setup felt like a system rather than a guess.
Seven qualified models made it onto this list after I filtered out everything with almost no owner history, because a hand pump that fails during an outage is worse than no hand pump at all. All seven sit in the suction class rated between 25 and 30 feet, which is the honest reality of what the market offers with real review depth behind it. For the bigger picture on powering the rest of the house, see our solar panel guide for off-grid living.
I rated them on four things: cast iron or stainless steel body construction, how the pump behaves on a real well head, whether the seals can be resealed when they dry out, and whether the spout and handle make sense for real household work rather than garden decoration.
Our Top 3 Manual Water Pumps for Off-Grid Water Backup (September 2026)
XtremepowerUS 71004 Antique…
- 25 ft lift
- Cast iron with coating
- Easy 2-3 minute install
- NPT 1-1/4 in
Comparing Seven Manual Water Pumps Side by Side in 2026
Every pump in the chart below is a hand-operated pitcher or cistern style unit that works by suction rather than by a cylinder pushing water up a drop pipe. That single fact drives the depth rating, the effort required, and where each one belongs on an off-grid property.
| Product | Specs | Action |
|---|---|---|
| Simmons 1160/PM500 No.2 Pitcher Pump |
|
Check Latest Price |
 VEVOR HC-1005 Cast Iron Pitcher Pump |
|
Check Latest Price |
| XtremepowerUS 71004 Antique Pitcher Pump |
|
Check Latest Price |
 Locci Stainless Steel Hand Well Pump |
|
Check Latest Price |
 SWP 300 Cast Iron Pitcher Pump |
|
Check Latest Price |
 Boshart Pe-Hp(110) Cast Iron Pitcher Pump |
|
Check Latest Price |
 HFS PPUMP-NO2 Manual Pitcher Pump |
|
Check Latest Price |
One important note on that chart: the depth numbers are maximum ratings at ideal conditions, not comfortable working depths. Reviewers on the Simmons report comfortable pumping at 8 to 14 feet of lift, and real-world output drops as the head of water rises. Treat these ratings as the ceiling, not the promise.

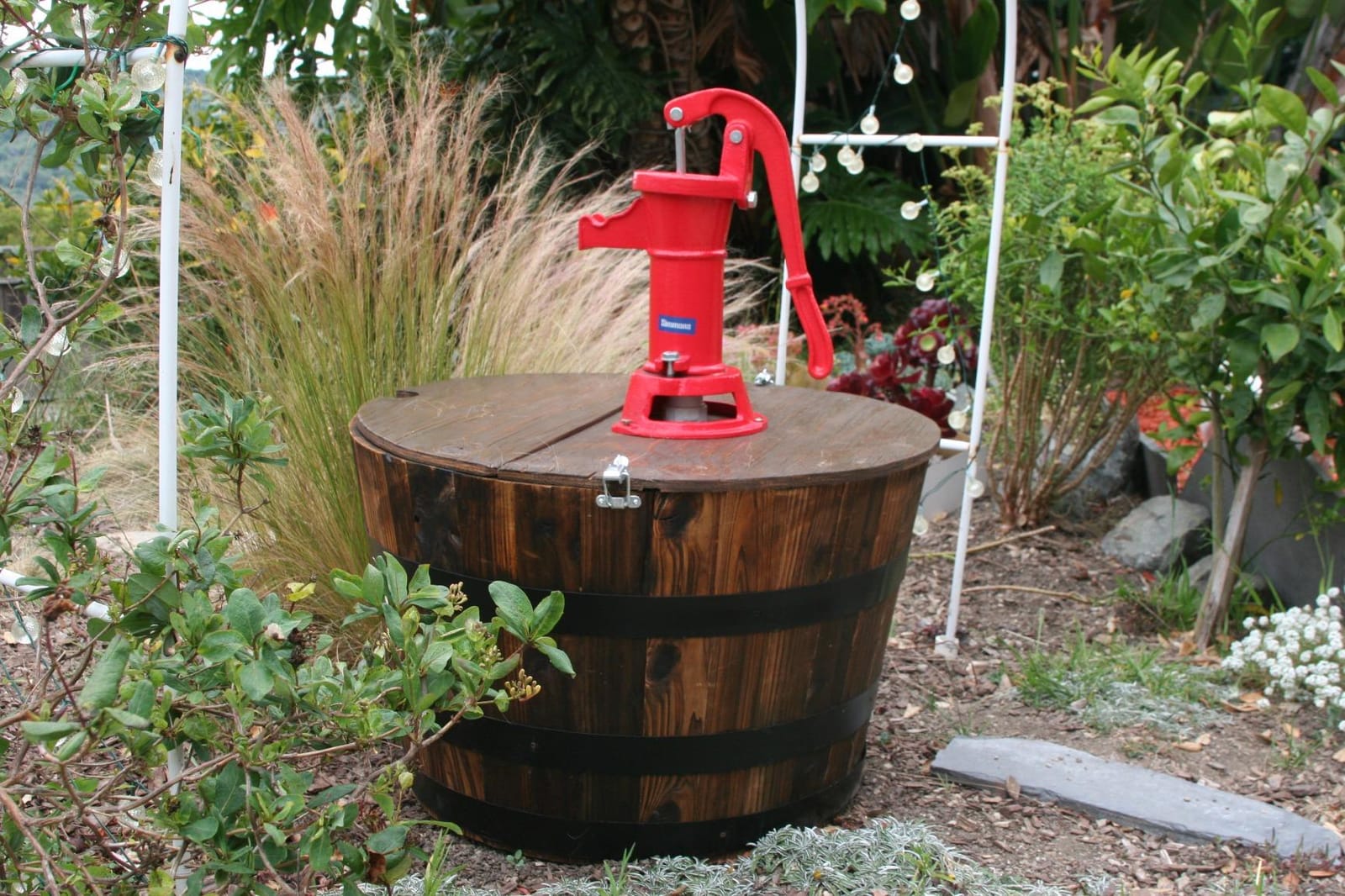

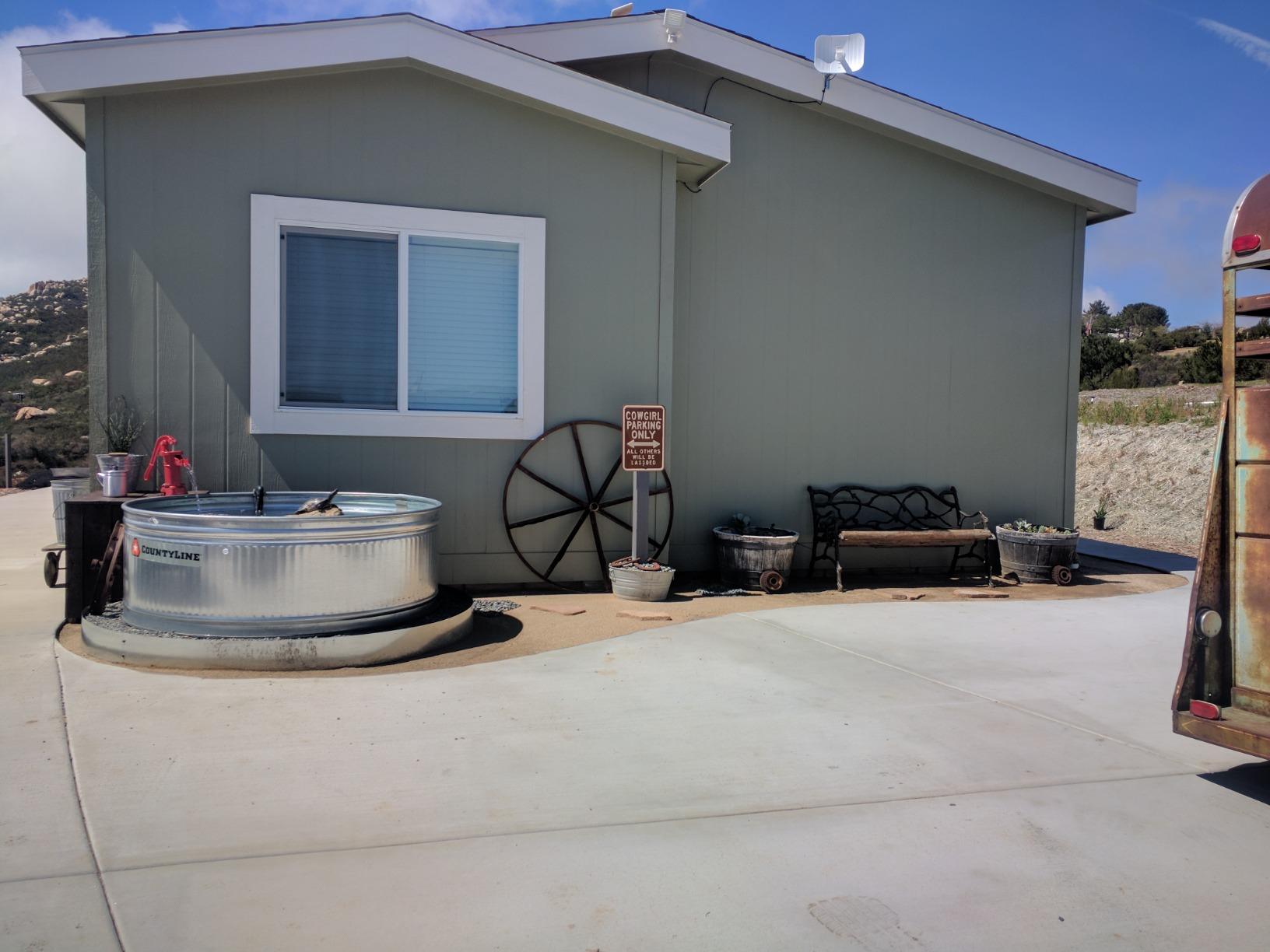

1. Simmons 1160/PM500 No.2 Pitcher Pump – The Cast Iron Standard for Shallow Wells
Simmons 1160/PM500 No.2 Pitcher Pump
Close-grain cast iron body
25 ft max lift
10 gpm listed
6.8 lb, 15.95 in long
Pros
- Close-grain cast iron with reinforced bolt lugs
- Adjustable cap gives a wide range of handle positions
- Easy to fit to an existing well head
- Backs up an electric shallow well pump through outages
Cons
- Leather cup and flapper seals dry out between uses
- Some pumps lose prime within minutes
- Occasional missing cotter pins on arrival
- Heavy effort when lifting a tall column of water
The Simmons 1160 is the one I ended up putting on my own well head, and after months of use I understand why it carries more owner history than anything else in this category. Everything you can stress on a shallow well pump ends up concentrated in the body, the bolt lugs and the spout, and this one is all close-grain cast iron with reinforced lugs throughout. At 6.8 pounds it is also a light body for a cast iron pump, which matters when you are bolting one onto a well casing in a cramped pump house.
Installation was the least interesting part, which is exactly what you want. Several owners primed it with a couple of quarts of water and it pumped almost immediately. The adjustable cap is the detail I did not expect to care about, then did: it lets you reposition the handle to suit the height of the person using it, which matters more in daily use than any spec on the page.
Eight-year owners describe using it as a manual backup alongside an electric shallow well pump, and that is the exact use case on our property. When the submersible quits, the well is still a well, and a hand pump on the same casing still works. The listed flow figure of 10 gpm and the 25 foot maximum lifting height are both manufacturer ratings rather than owner measurements, so I would not plan a household schedule around them.
Here is the honest drawback, and it applies to nearly every leather-sealed pitcher pump on the market. The factory leather cup and flapper seals dry out and deform between uses, so they need soaking before pumping and replacements are worth keeping on hand. Some owners also report losing prime within minutes and fixing it with an added 1-1/4 inch brass valve under the pump. That is a five-minute fix, but you need to know it exists before you are standing in the dark with it.
Cast iron body and reinforced bolt lugs in daily service
The body is the part that should last decades, and cast iron is why this class of pump has outlived every plastic alternative. Painted, close-grain iron resists the UV and freeze-thaw cycling that destroys thinner castings, and reinforced bolt lugs are what stop the handle assembly from working loose over thousands of strokes. I tighten the handle hardware once a season and it has not moved since.
Where owners do report problems is quality control on arrival, with missing cotter pins and a handle-stop tension bolt that will not hold appearing in reviews. Inspect every fastener the day it arrives. It takes two minutes and it prevents the most common early failure on this pump.
Effort, priming and what 8 to 14 feet of lift feels like
Effort scales almost linearly with the column of water you are lifting, so the difference between a 10 foot well and a 22 foot well is dramatic on the handle. Owners running this pump at 8 to 14 feet of lift describe light, steady work. Near the 25 foot rating, the same pump becomes genuinely tiring, and reviewers specifically flag the effort required when lifting a large vertical head of water.
That is the single most important number for an off-grid buyer: your static water level, not your total well depth, is what sets the workload. A 30 foot well with water at 10 feet pumps almost as easily as a 20 foot one.
Why it works as a backup to an electric shallow pump
This is the configuration I run and the one most guides miss. A manual pitcher pump mounts on a 1-1/4 inch well pipe or a dedicated swing pipe beside the submersible’s discharge, and both can be fed from the same casing. When power fails, you close the electric control valve and open the manual one, and the pump becomes a second water source on the same well.
Because it is cast iron and easy to reseal, it also survives long stretches of neglect in a pump house. That resilience is what makes it a backup rather than a novelty. If you are still deciding how to power the rest of the house, our solar refrigerator picks cover the other end of the off-grid load list.

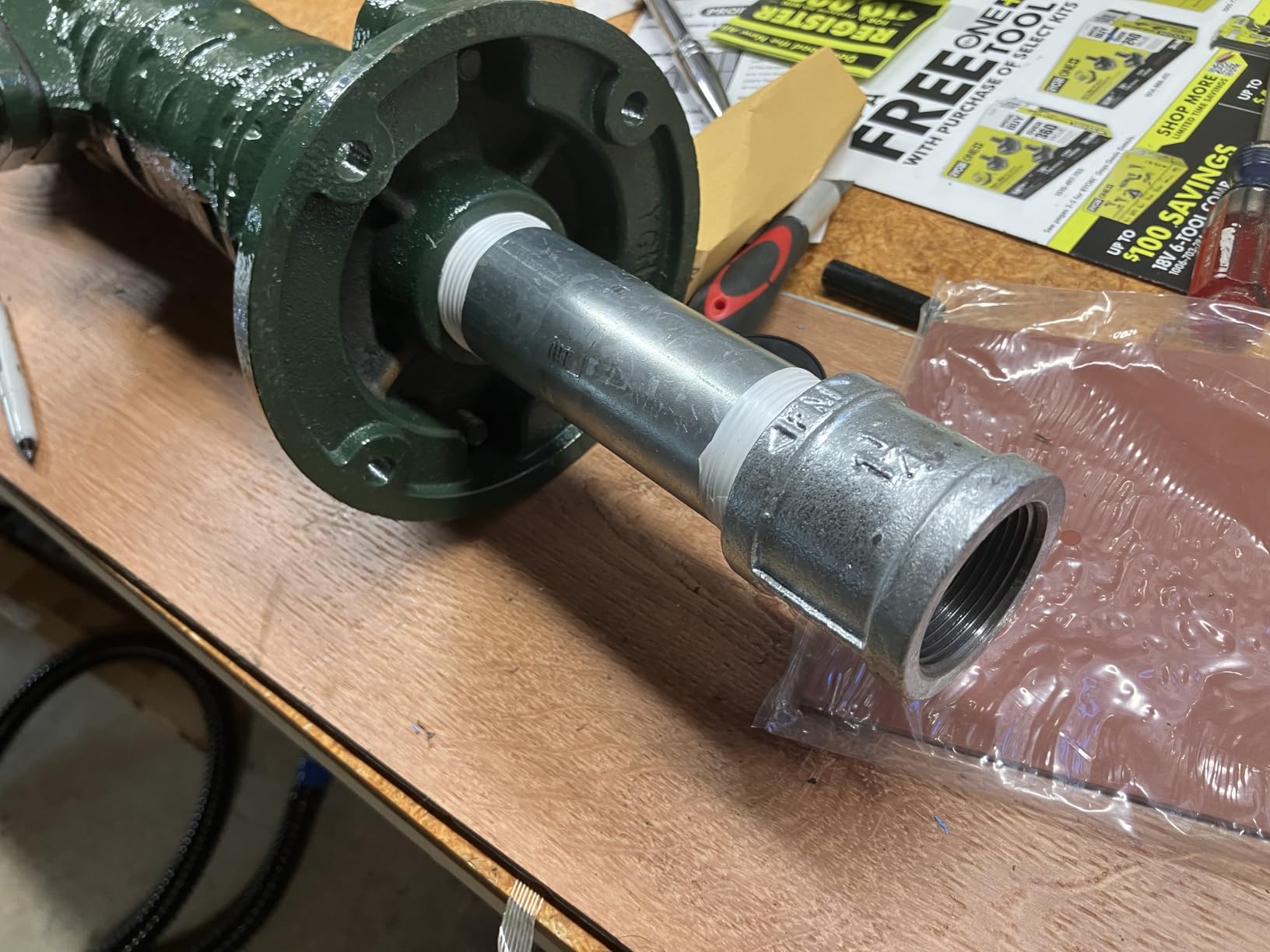

2. VEVOR HC-1005 Cast Iron Pitcher Pump – Best Balance of Price and Build
VEVOR Well Hand Pitcher Pump, 25 ft Maximum Lift, Antique Cast Iron Manual Hand Water Pump, NPT 1-1/4 in Connection, Easy Installation, Old Fashioned for Outdoor Garden, Pond, Backyard, Farm, Red
Cast iron with rust-resistant coating
25 ft max lift
12.9 lb
NPT 1-1/4 in connection
Pros
- Thickened pipe rated for 20 lb hammer impact
- Curved palm-grip handle keeps strokes smooth
- Hook spout hangs a bucket securely
- Installs in 2-3 minutes with a screwdriver
Cons
- Rubber and cup seals need soaking before priming
- Coating can show surface rust after long exposure
- Must be drained in freezing weather

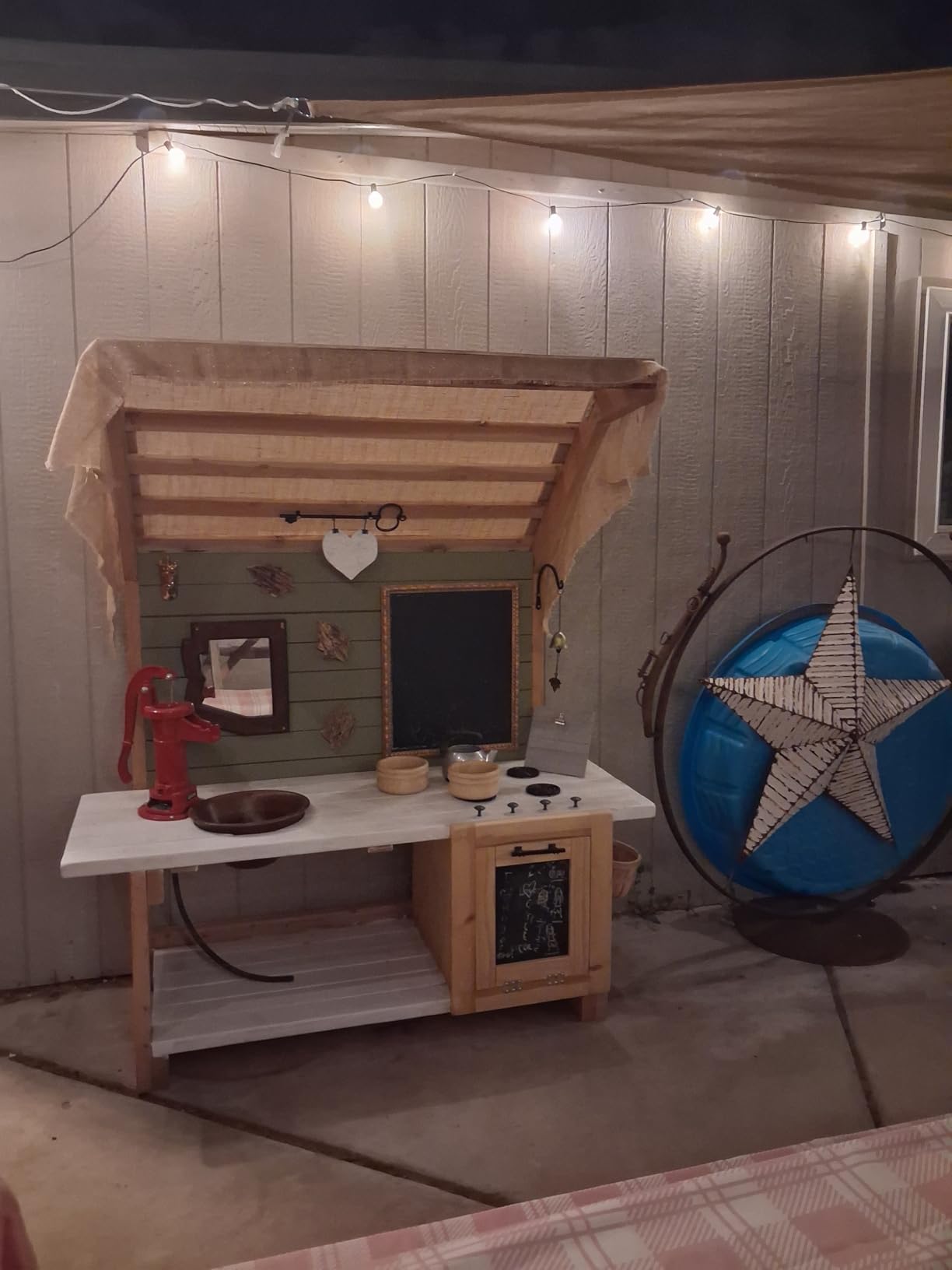

The VEVOR HC-1005 is the pick I recommend to anyone who wants a genuinely heavy cast iron pitcher pump without chasing a heritage brand. It lands in the middle of this group on every spec that matters: 25 foot maximum lift, cast iron throughout, and a 12.9 pound body that feels like a real pump the moment you lift it off the bench.
The detail that convinced me was the thickened pipe rated to handle 20 pounds of hammer impact. That sounds like marketing language until you understand what it means: an outdoor water pump mounted on a well head gets knocked by livestock, by wind-driven debris, and by children with a soccer ball. Thinner pipe on a decorative-looking pump cracks at the base in a couple of seasons, and then you have a leak in exactly the place you cannot afford one.
Owners rate it highly for decorative and functional garden use alike, which is a fair description of most pitcher pump ownership. The vintage styling genuinely works as yard decor when it is not pumping, and the NPT 1-1/4 inch connection means it will mate with standard galvanized well pipe without adapters you would have to hunt down.
The friction point is always the same: the rubber and cup seals need to be wetted or soaked before the pump will prime properly. Once that is done, the pump runs steadily. It is a ten-minute task on day one and a habit thereafter.
Handle geometry and why the curved grip matters
The palm-curved labor-saving handle is a real ergonomic improvement over a straight bar. On a straight handle, the load lands across the flat of your palm and blisters form within a few hundred strokes. The curve rolls the load into the heel of the hand instead, which is the difference between a pump you can use for twenty minutes and one you abandon after five.
The hook spout is equally practical. Hanging a full five gallon bucket by the handle on a flat spout is genuinely awkward, and a hook lets the bucket hang plumb and fill without you holding it. If you are filling anything other than a bucket, the hook is decoration, but for bucket work it earns its place.
Seal behaviour after a season outdoors
Two things to plan for with any coated cast iron pump mounted outside. First, the coating can show surface rust after extended exposure, which is cosmetic rather than structural, but it tells you the pump wants a shelter if you live somewhere wet. Second, the manufacturer advises draining the pump in winter weather to avoid freezing damage, which is exactly the scenario where a hand pump is most needed.
My approach is a small insulated pump house with a removable top. It keeps rain off the finish, keeps the frost line from reaching the water column, and it is a five-minute walk from the house at 6am during a January outage.
Where this pump fits on an off-grid property
This is the unit I would put on a garden well point or a rain barrel feeding a livestock trough, because the thickened pipe survives animals and the 25 foot lift covers most dug wells. For drinking and cooking water I would choose a model with a deeper rating or a push cylinder, since a pitcher pump on a 25 foot suction lift at the far end of its curve will frustrate you.
It is also the most straightforward of the group to install, which matters if you are doing this alone in a pump house with limited light. A screwdriver and a wrench is the whole tool list for a standard 1-1/4 inch well pipe connection.
3. XtremepowerUS 71004 Antique Pitcher Pump – Lightweight and Decorative
XtremepowerUS Well Hand Pitcher Antique Pitcher Manual Hand Pump Operated up to 25′ ft Max Lift Patio Water Well Fountain for Outdoor Garden, Pond, Backyard, Farm
Cast iron and aluminum body
25 ft max lift
9.5 by 8.5 by 19 in
NPT 1-1/4 in
Pros
- Retro styling works as garden decor
- Coated cast iron for outdoor durability
- Curved handle with hook spout
- Lifts from well points up to 25 ft
Cons
- Priming is needed every time it sits unused
- Listed weight of 0.27 g is inaccurate
- Aluminum internals wear before all-iron assemblies

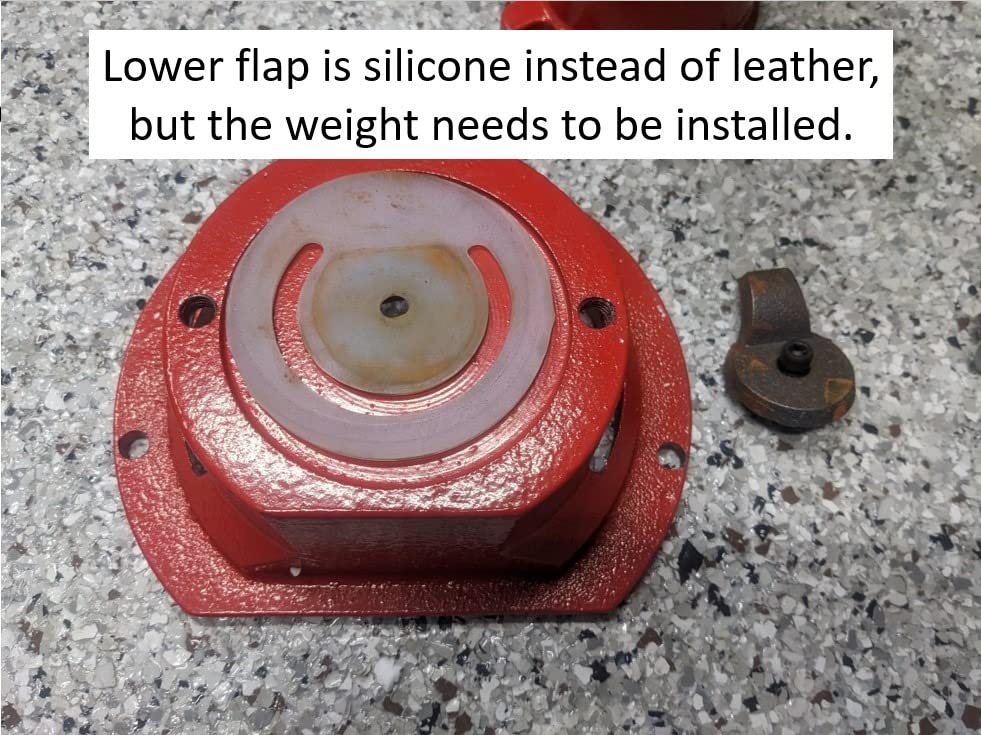

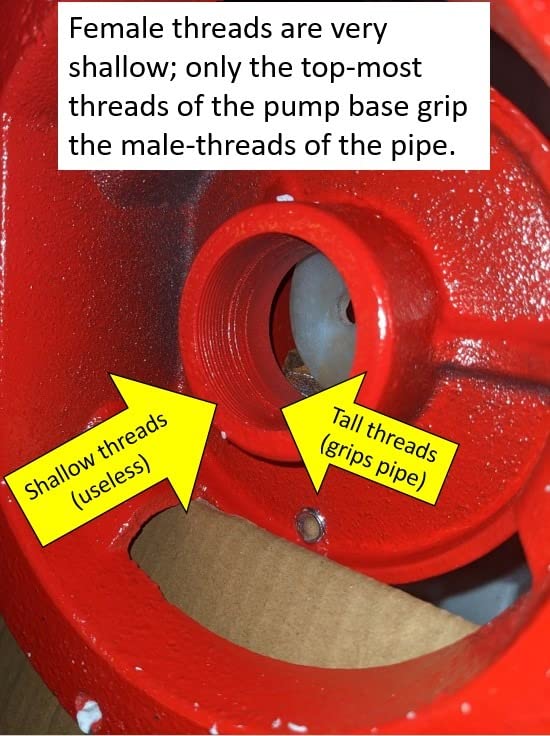

The XtremepowerUS 71004 is the one I would hand someone who wants a working pitcher pump for a garden fountain and does not want to spend serious money on it. It covers the same 25 foot lift as the pricier cast iron models, carries the same curved handle and hook spout layout, and at 4.2 stars across 279 reviews it holds a solid position without pretending to be a heritage product.
What you trade for the lower cost is internal durability. This pump pairs a coated cast iron body with aluminum internal components, and owners report the aluminum pieces wearing sooner than they would in an all-iron assembly. For a fountain, a rain barrel, or seasonal garden irrigation where the pump runs a few minutes at a time, that is a perfectly reasonable trade.
Its 19 inch listed height makes it a tall unit for a well head, which is a benefit where you want the spout high enough to hang a bucket clear of the ground. It also means more leverage against tipping on an uneven pad, so bolt it down.
The listed item weight of 0.27 g is plainly a data entry error, and I would treat any weight figure on this listing with suspicion. Budget extra for whatever the real carrying weight turns out to be if you are ordering more than one for a garden project.
Priming every time versus priming once
The consistent complaint on this pump is that priming is required each time it has sat unused. That is normal behaviour for a leather or cup-sealed pitcher pump and it is why owners keep a jar of water right next to the well head. Pour a quart down the spout, work the handle until it primes, and it runs steadily until you stop pumping.
Compare that to the Boshart on this list, which is antifreeze equipped and drains itself when you raise the handle. On a property where winter access is the whole point, a self-draining pump has real value. On a warm-weather garden, priming is a non-issue.
Matching the pump to the job
This unit earns its place on ponds, campsites, decorative fountains and backyard irrigation, which is exactly how buyers use it. I would not hang my household drinking water on it. The 25 foot suction limit applies, the aluminum internals add maintenance, and you have plenty of better options for a pipe that runs to a kitchen.
Where it genuinely earns the money is a second or third pump on a property. Most people install one hand pump and wish they had two, because the second one goes on the garden line while the first stays on the house line.
Installation on a well point versus a casing
On a well point, this pump mounts directly on the well point itself and the connection is simple. On a drilled casing, you need the adapter and a 1-1/4 inch pipe, and you need to be sure the casing is accessible. The NPT 1-1/4 inch standard is the reason this fits so easily, and it is the standard to look for on any pitcher pump you consider.

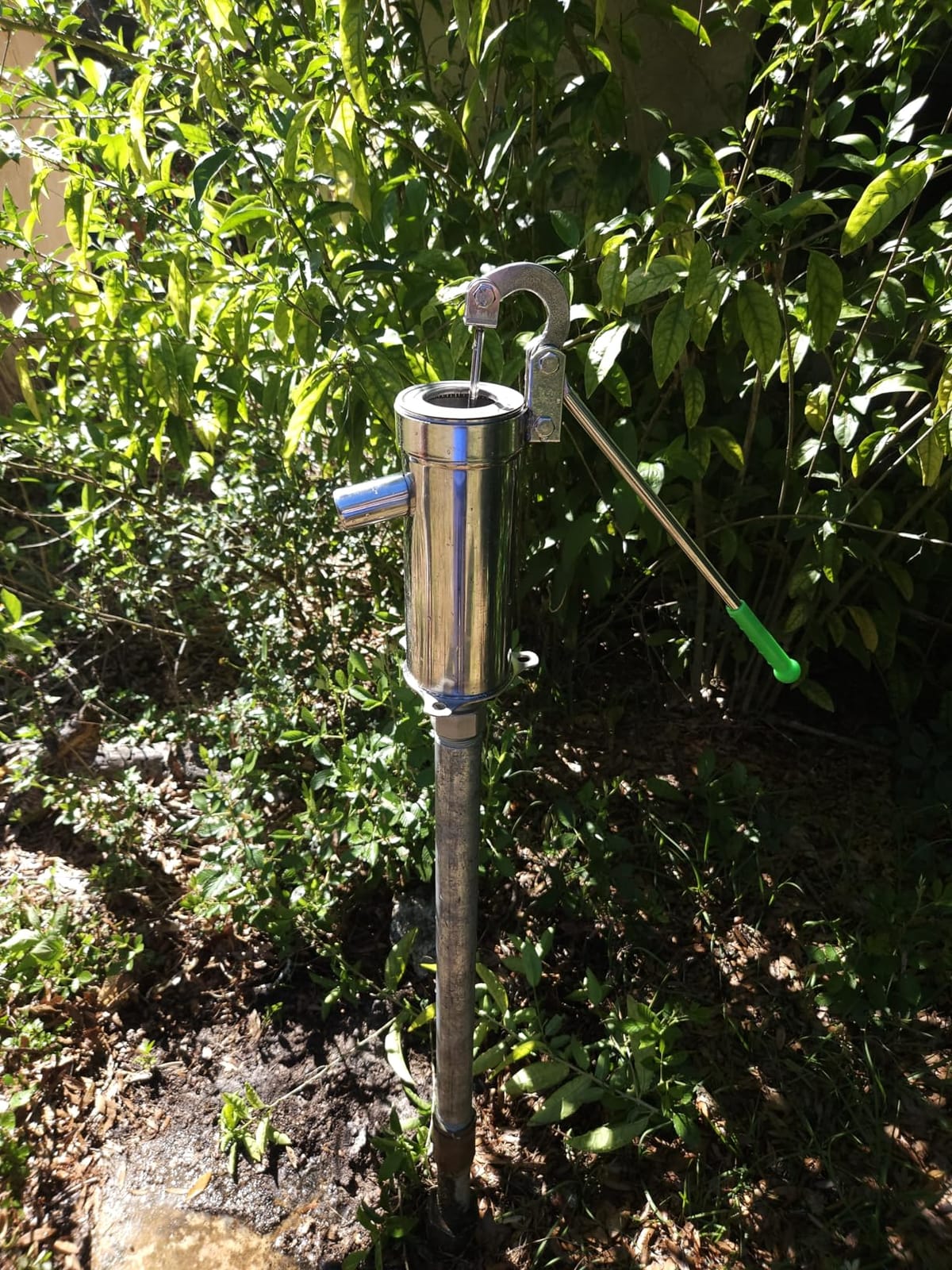

4. Locci Stainless Steel Hand Well Pump – Best Rust Resistance in a 4-Pound Body
Locci Stainless Steel Manual Hand Well Pump, Heavy Duty Deep Well Hand Pitcher Pump with Integrated Base Design, Corrosion-Resistant Water Pump for Farm, Garden, Homestead & Emergency Water Supply
Stainless steel body
26 ft max lift
4 lb, 14.96 in long
Integrated reinforced base
Pros
- Stainless steel resists rust in rain and sun
- Reinforced integrated base resists movement
- Includes five spare leather bowls and pads
- Lightest body in the group at 4 pounds
Cons
- Leather bowl seals need re-soaking and replacing
- No hook spout so a bucket bracket is needed
- Some report a weaker stream than the rated lift

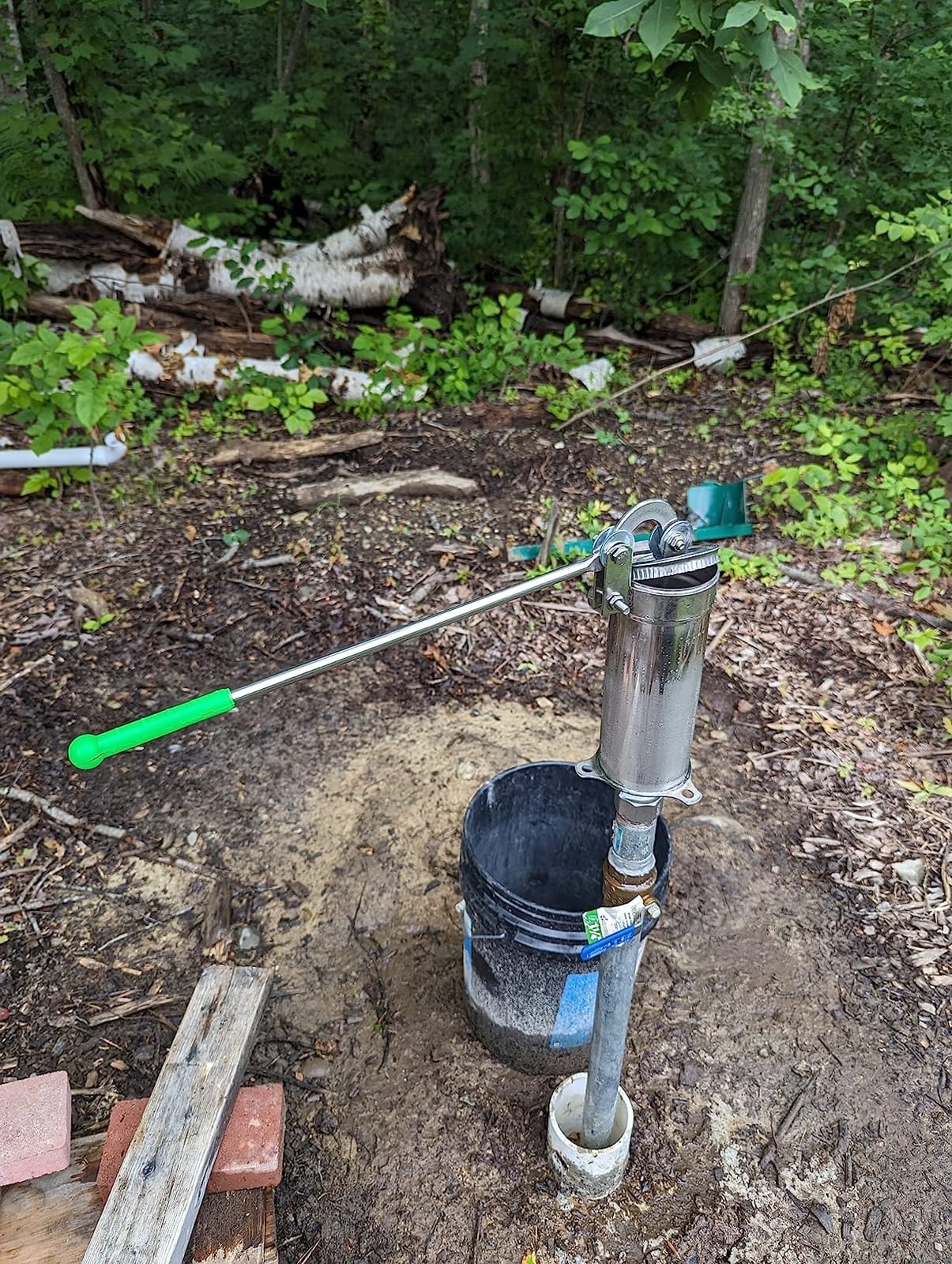

The Locci is the only stainless steel pump in this group, and that single material difference changes its behaviour in wet climates. Cast iron needs a coating to survive years of rain, sun and freeze-thaw cycles. Stainless does not, which makes this the model I would choose for a coastal homestead, a high-rainfall property, or anywhere the pump is going to sit outside without a pump house.
At 4 pounds it is also by far the lightest unit here, half the weight of most of the cast iron models. On a well casing where you are working overhead with limited clearance, that is a genuine advantage rather than a spec sheet curiosity.
What stood out most in the box were the spare parts. It includes five spare leather bowls, five water stopping pads, three fixing screws, PTFE tape, a PVC direct piece and a conversion hand fitting. Most pumps in this category ship with nothing spare, which means a dried-out seal in an outage turns into a trip to town.
Its 26 foot maximum lift is nominally the second deepest rating here, though again that is a ceiling at ideal conditions. It uses an integrated base design, which reviewers say reduces movement compared with the multi-piece bases used by cheaper pitcher pumps. Movement matters because a pump that rocks under load cracks its own pipe connection eventually.
Stainless steel versus painted cast iron over a decade
The honest comparison is corrosion versus mass. Cast iron is heavier, feels more stable, and shrugs off physical knocks better, but it is entirely dependent on its coating for long-term survival. Once the coating fails, the iron beneath pits and rusts from the inside out along the waterway.
Stainless trades raw strength for corrosion immunity. On a pump that is bolted down and only stroked a few hundred times a month, corrosion is the more likely long-term failure. That is why I rank this model highest for wet and coastal climates despite the lower 4.1 rating.
The spout problem nobody mentions until you hang a bucket
This is the one design decision I would change. The straight-through flow has no hook spout, so you need a bucket adapter or a bracket to hold a container steady. On a property where I am filling five gallon buckets with cold hands in the dark, that is an annoyance worth budgeting for up front.
Several owners also report the spout stream is weaker than expected for the rated lift. If your static water level is near the 26 foot rating rather than well under it, test it before you rely on it. Near 10 feet it performs well.
Where I would put this pump
Barn and livestock watering, an outdoor garden well point, or a secondary pump on a property where the main unit lives indoors. The stainless body and the included seal kit make it the lowest-maintenance option here once installed, which is exactly what you want from a pump that will sit untouched for months between emergencies.

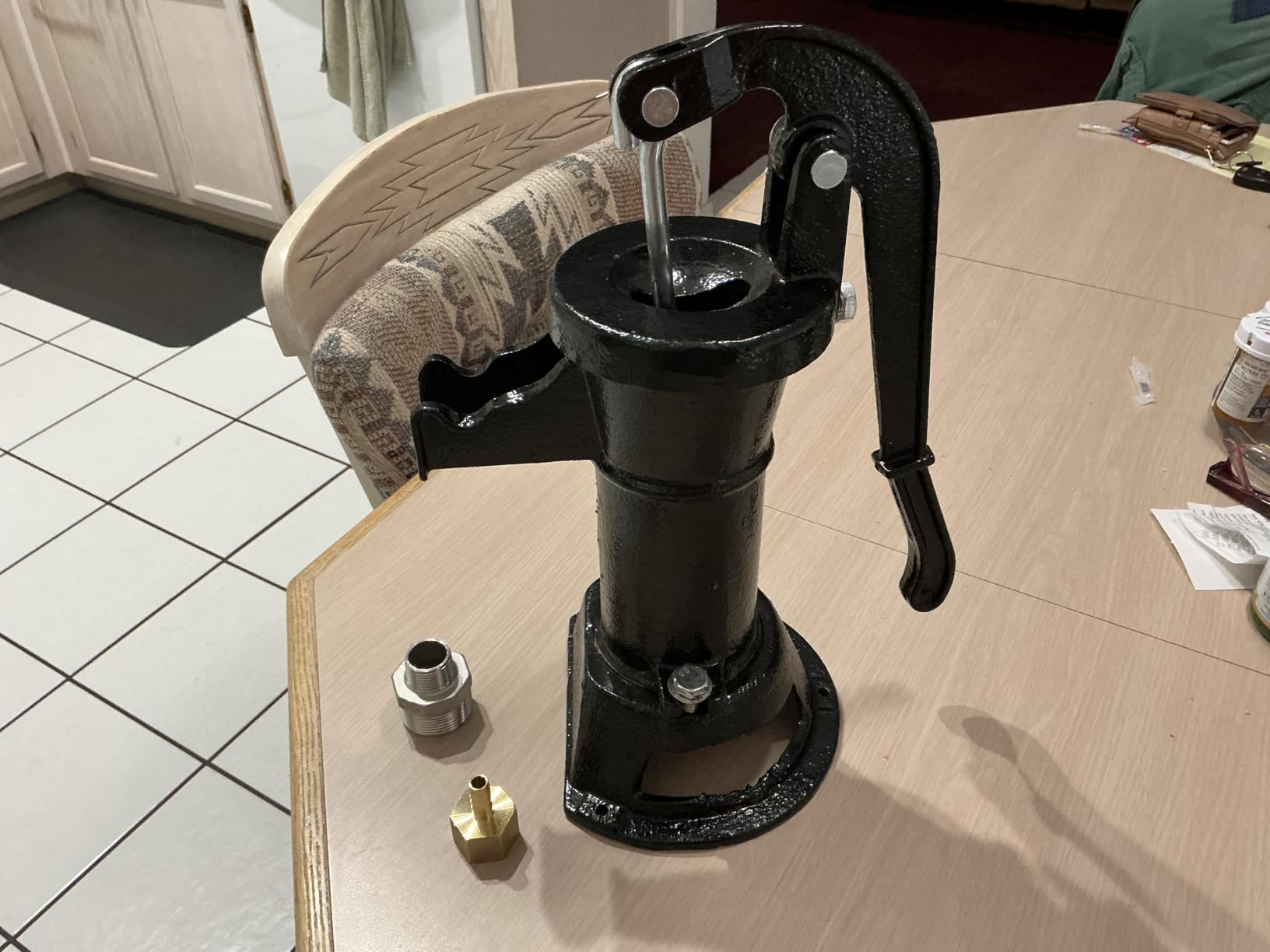

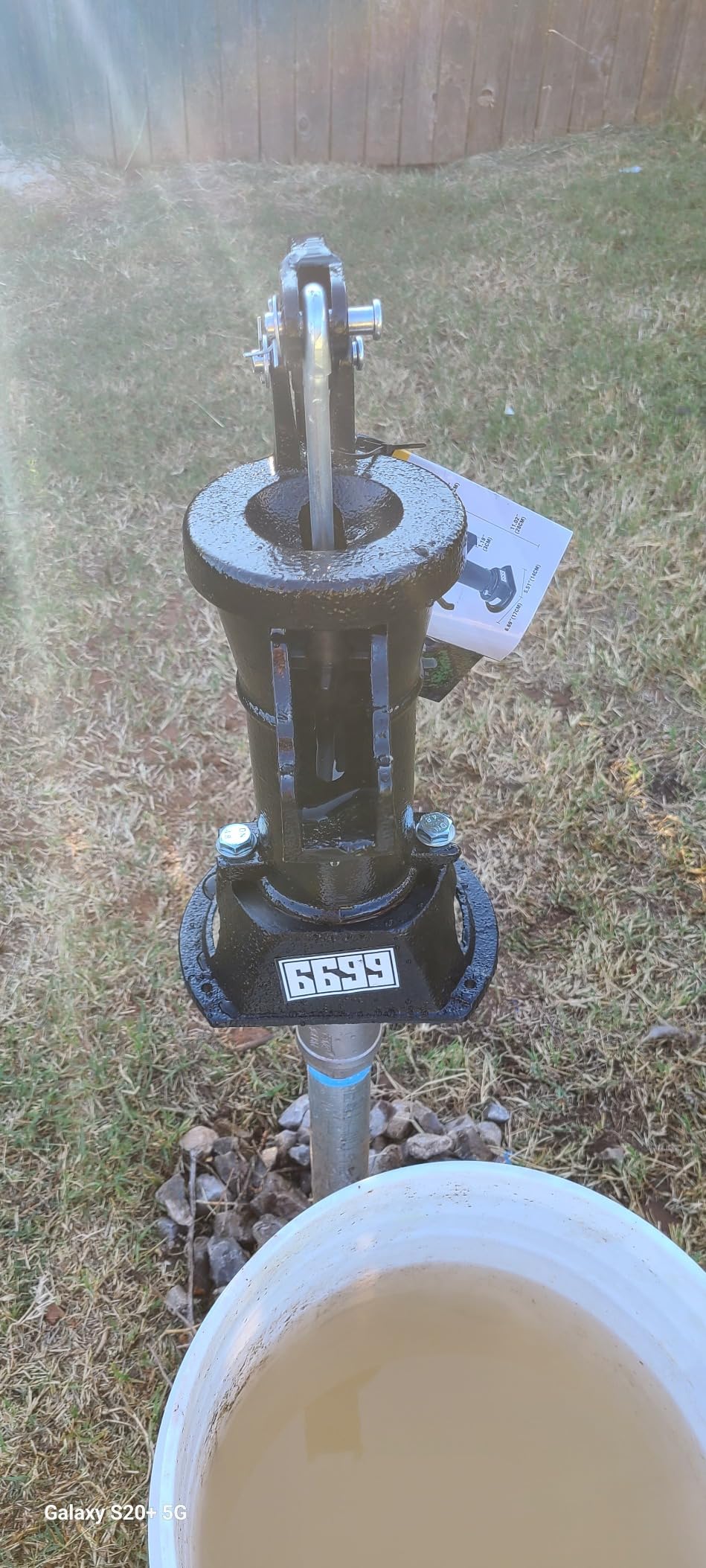

5. SWP 300 Cast Iron Pitcher Pump – Highest Rated and Heaviest at 16 lbs
6699 Durable Cast Iron Pitcher Pump Antique Manual Hand Shake Suction Well Pump Water Transfer Pump 25ft Maximum Lift Easy Installation for Outdoor Garden Pond Backyards SWP 300 Black
Painted cast iron
25 ft lift,5 gpm 300 GPH max
16 lb, 3 in cylinder
NPT 1-1/4 in
Pros
- Heaviest build in the group at 16 lb of painted cast iron
- Highest average rating in the group at 4.5
- 300 GPH max flow handles irrigation duty
- Includes anchor bolts nuts and hardware
Cons
- Cork plunger needs a 30 minute soak first
- Must be emptied in winter to prevent freezing
- 16 lb weight is hard to reposition alone
The SWP 300 has the highest average rating of any pump on this list at 4.5 stars, and the reason shows up in the weight. At 16 pounds this is the heaviest unit in the group by a wide margin, and that mass is the feature. A heavy cast iron pump does not shift when you put real force into the handle, and it does not walk off a level pad over a season.
Owners describe genuinely impressive results, including one who broke through a badly clogged irrigation well and got clean, forceful well water out of it. The 3 inch cylinder diameter is larger than the 1-1/4 inch pipe inlet and is part of why the output feels substantial.
For garden and cistern duty, that 5 gpm / 300 GPH max flow figure pairs well with the 3 inch cylinder. The Simmons lists a 10 gpm figure, though that one is a manufacturer spec rather than an owner measurement. If you are filling irrigation lines or a livestock trough rather than kitchen taps, raw flow matters more than anything else on the page.
One more practical note: the box includes #8 x 40mm anchors, M5 and M6 hardware, so you have what you need to anchor it. On a 16 pound pump that is not optional, it is the difference between a secured pump and one that moves under load.
Cylinder size and what it does to actual output
The 3 inch cylinder is the working heart of the pump. A larger cylinder displaces more water per stroke, which means fewer strokes for the same volume and a fuller stream at the spout. On a pump you use for irrigation or livestock troughs, that difference is the difference between ten minutes and twenty-five for the same job.
On a household drinking water line it matters much less, because the constraint there is how many gallons your family uses, not how fast the pump delivers them. Match the cylinder to the job, not to the spec sheet.
Weight, anchoring and mounting
Sixteen pounds is heavy enough that repositioning the pump is a two-person job, and reviewers flag this directly. Set it where you want it the first time, on a level concrete or compacted pad with the anchor bolts in place. The integrated hook groove holds a bucket or container securely, which is a small feature that saves you from steadying a full bucket with one hand while pumping with the other.
Because of that weight, I would not plan on moving this pump seasonally between a summer garden position and a winter backup position. Install it once, in the location that serves you best year round.
Winterizing the cork plunger
The cork plunger must be soaked in water for about 30 minutes before first use to form a seal, and the manufacturer advises emptying the pump in winter to prevent freezing damage. That combination means this pump is best installed somewhere you can drain it, or inside a pump house where the temperature never drops. In a freezing climate with no shelter, pick a self-draining model instead.
6. Boshart Pe-Hp(110) Cast Iron Pitcher Pump – Built for Cold-Weather Off-Grid Supply
Pe-Hp(110) Cast Iron Pitcher Pump 033308 Boshart
Antifreeze equipped cast iron
30 ft max lift
3 in cylinder
1-1/4 in standard pipe tap
Pros
- Antifreeze equipped for wells in cold climates
- Deepest rated lift in the group at 30 ft
- Marketed specifically for rural and off-grid water supply
- Large 3 in cylinder fits common well plumbing
Cons
- Only 66 reviews so long-term data is thin
- Listed weight of 0.27 g is inaccurate
- Freeze protection depends on raising the handle fully
The Boshart Pe-Hp(110) is the only pump here designed around the specific problem an off-grid owner faces in winter, and it solves it in a way I have not seen elsewhere in this class. It is antifreeze equipped, and freezing is prevented by simply tripping the valve, meaning you raise the handle to its extreme height and the pump drains itself. Nothing to remember to switch, no drain line to run, no heat to keep on.
That matters more than the rating suggests. The classic failure story from off-grid forums is a frozen pump house after somebody stopped burning a light bulb over the well pump for a winter, and a self-draining hand pump sidesteps that entire category of risk. It also carries the deepest rated lift in this group at 30 feet.
It is explicitly marketed for rural and off-grid water supply, and the 3 inch diameter cylinder with a standard 1-1/4 inch pipe tap is the same plumbing geometry you would find on an existing well, so it drops in without custom fittings.
What antifreeze equipment does and does not buy you
Be precise about this. The antifreeze treatment protects the pump body and lets it drain when the handle is raised. It does not protect the well pipe, the drop line, or the water column between the pump and the water. If your pump is mounted above a pipe that will freeze solid, the pipe still freezes.
That is why the proper off-grid answer is to mount the pump on a well pipe that runs below your local frost line, with the pump head inside a small shelter. This model simply removes one more thing that can go wrong inside that shelter.
Where the thin review pool matters
Sixty-six reviews is the smallest pool here, and I want to be straight about what that means: there is less long-term field history available than for the higher-volume models. The 4.4 rating is encouraging, but a pump you intend to depend on for a decade deserves a track record.
The listed item weight of 0.27 g is clearly inaccurate, so treat the real carrying weight as unknown if you are planning around it. My advice is to buy this one alongside a spare seal kit, not instead of one.

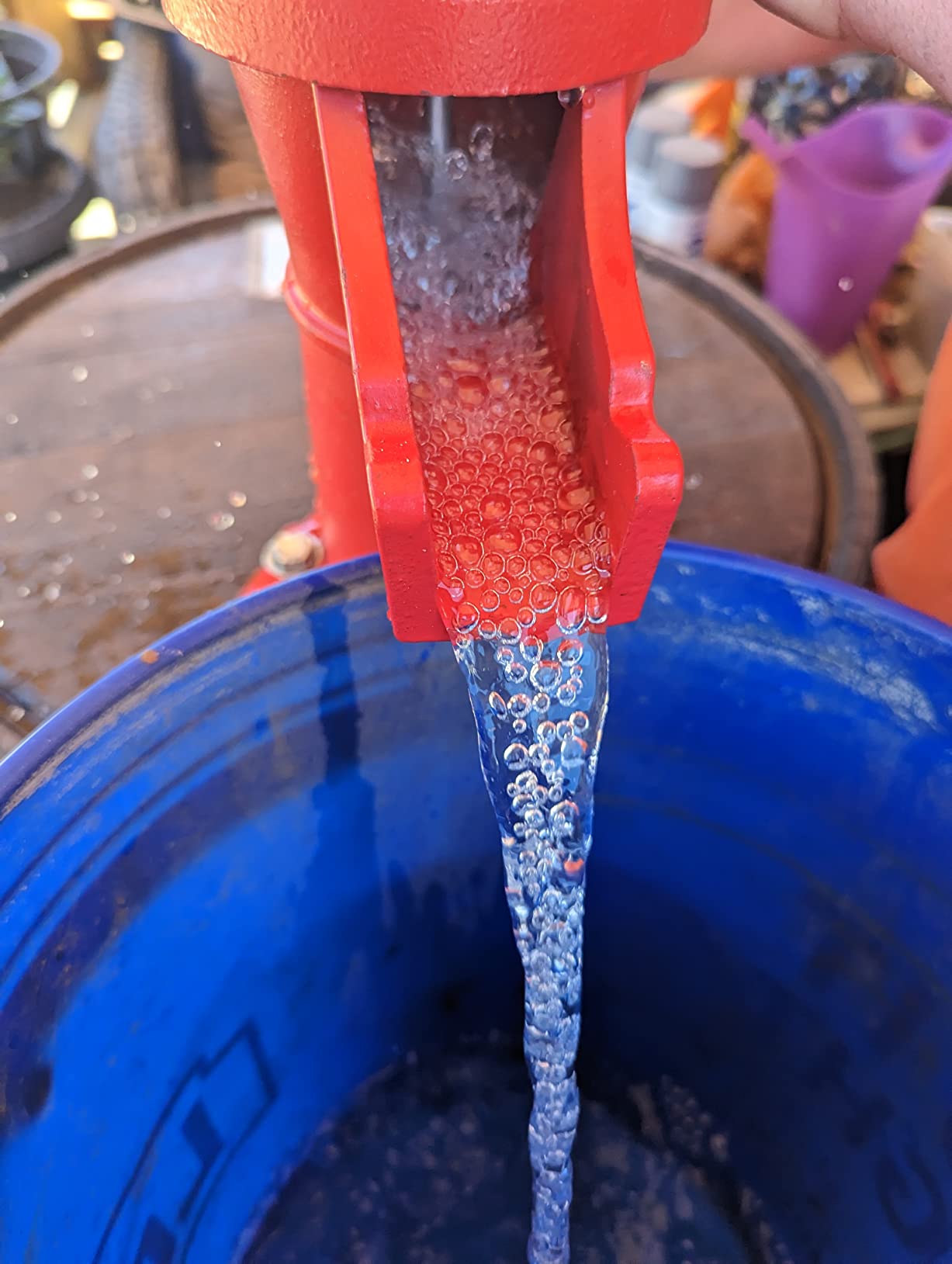

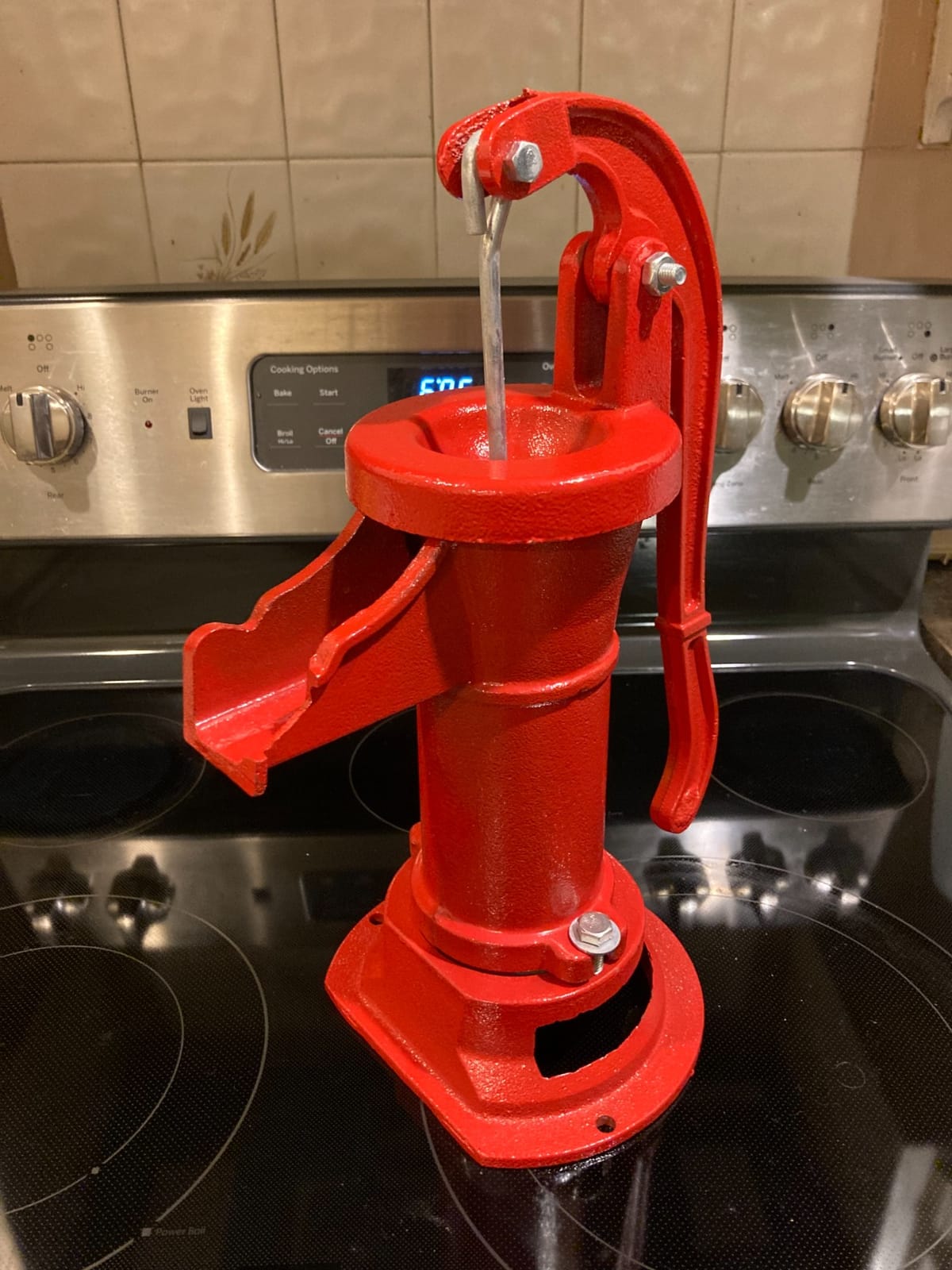

7. HFS PPUMP-NO2 Manual Pitcher Pump – Light 12 oz Stroke, Check the Hardware First
HFS(R) Hand Water Well Pump Manual Pitcher Pump Antique 25 FT Max. Lift Red Cast Iron for Home, Yard, Garden, Farm, Pond
Cast iron and aluminum body
25 ft lift,12 oz per stroke
14 lb, 11 by 9 by 17 in
1-1/4 in NPT inlet
Pros
- 12 oz per stroke feels light and easy to work
- Hooked spout hangs a bucket conveniently
- Ergonomic handle for extended pumping
- Good decorative appeal for rain barrels and fountains
Cons
- Inconsistent assembly quality with loose hardware on arrival
- Some units leak from the base after short use
- Several units broke within a week or two
- Plunger rod and flat leather may need modification
The HFS PPUMP-NO2 is the most polarised pump on this list, and the reason is visible in the reviews. Buyers who get a good unit praise the heavy cast iron feel and the genuinely light 12 oz per stroke output. Others report loose or missing nuts and bolts on arrival, base leaks, and outright breakage within a week or two of regular pumping.
That said, the 12 oz per stroke figure is a real and useful number. At 14 pounds it is a solidly built body delivering a small, light displacement, and owners building working rain barrels and fountains from it confirm the decorative appeal is genuine rather than claimed.
The listed flow rate of 40000 cubic centimetres per minute works out to about 40 litres a minute, which is plenty for a rain barrel feeding a garden bed. The ergonomic handle is comfortable across extended pumping, and the hooked spout design makes hanging a bucket straightforward.
My advice for this specific model is simple: inspect and tighten every bolt before installation, and run it for a short test cycle while you watch the base for weeping. If it seeps at the base, address it immediately rather than hoping the sealant holds.
Why the plunger rod and flat leather may need modification
Several owners report the plunger rod length and the flat leather cup needing modification to seal properly. This is a geometry problem: the leather cup has to compress evenly against the cylinder wall, and a rod that is a little too long or too short pulls the cup off centre. Symptoms are a pump that primes, delivers a weak spurt, then drops prime.
It is fixable, and fixable cheaply, with a replacement leather cup cut or trimmed to suit and a rod set to the right length. But you are modifying a new pump on day one, and that is exactly the kind of friction that turns a buyer into a detractor in a short product life.
How I would rank this one
As a garden and rain barrel device, where the pump runs occasionally and the consequences of a leak are a wet patch rather than a dry house, the trade-offs are acceptable. As your primary emergency water supply on a well, I would choose almost anything else on this list, because the early-breakage reports are exactly the scenario a backup pump exists to prevent.
It earns the last spot in this roundup, not because it is bad, but because the failure mode of this model is failure when you need it most.
How to Choose a Manual Water Pump for an Off-Grid Home
Choosing well means measuring before you shop. Every wasted hand pump purchase in the forums traces back to a buyer who guessed at depth or bought a decorative pump for a functional job. Work through these seven criteria in order and the decision makes itself.
Measure your well depth before you buy anything
You need two numbers, and only one of them is well depth. The number that determines your effort is the static water level: the distance from the surface down to water in a well that has been resting. A well can be 120 feet deep with water at 25 feet, and that well is easy work.
The method is simple. Lower a length of string with a fishing sinker or a heavy bolt on the end, mark the depth at the surface, and let it sit for a few hours so the water column settles. Then measure the second string at the wet mark. If you have a static water level over 20 feet, a suction pitcher pump is the wrong tool and no amount of marketing copy changes that.
If you cannot get a reading, count your submersible cable depth as a rough guide and then add a safety margin, because a pump installed at exactly its rating gives you no margin for a dry year.
The 25 foot suction limit: shallow wells versus deep wells
A hand pump can only lift water from about 25 feet by suction. That is physics, not a brand limitation. Above roughly 25 feet, atmospheric pressure can no longer push water up the pipe, and every suction pump on this list hits the same wall at the same place.
Deep well hand pumps work differently. A cylinder is sealed to the inside of the casing below the water, and a rod running up the drop pipe pushes water column by column to the surface. They reach 150 feet and beyond, but every foot of depth multiplies the force you need on the handle, and they cost several times more. The install also involves lowering a heavy cylinder into the casing, which is not a weekend project for a first-timer.
The practical rule: under 20 feet of static water level, a pitcher pump is the right answer. Between 20 and 25 feet, it will work but effort climbs sharply. Over 25 feet, you need a push-type cylinder pump, and you should talk to a well contractor before ordering anything.
Cast iron or stainless steel for freeze and corrosion
Cast iron is the traditional choice and the heaviest, which resists knocks and does not walk under load. Its weakness is that it depends on a painted coating for long-term protection, and coatings fail. Stainless steel needs no coating and is the better pick for wet, coastal, or unsheltered installations.
Avoid plastic internals and plastic handles entirely. Forum complaints about plastic handles are consistent, and the reason is straightforward: plastic becomes brittle in repeated freeze-thaw cycles and fails without warning. Every pump on this list has a metal body and handle.
Handle length, cylinder size and how hard you will work
Two numbers control workload. Cylinder size determines how much water moves per stroke, and lift depth determines how much force the stroke takes. Bigger cylinder plus shallower lift equals easy pumping, and that combination is what you want for a household supply.
The 12 oz per stroke figure on the HFS shows how a pump can feel light, while the Simmons reviews describing heavy effort near 25 feet show the other end of the scale. Judge the pump on your actual static water level, not on its rating sticker.
Installing a hand pump alongside an electric submersible
This is the configuration I recommend, and it answers the most common forum question about whether a hand pump can go on an existing drilled well without re-drilling. It can, in most cases, using a swing pipe or a 1-1/4 inch well pipe that runs down the casing alongside the submersible cable. The submersible sits at the bottom, the hand pump takes water from higher up.
At the well head you close the electric control valve and open the manual valve, and your hand pump becomes a second source on the same well. Keep the shut-off valves labelled in permanent marker, because a confused valve in the dark is a real failure mode. A hand pump can also push water into a pressure tank and feed the whole house, which is the configuration off-grid owners describe when they want hand-pumped water to reach the kitchen tap rather than stopping at the spout.
What a well professional must confirm before you order: your casing diameter, whether the casing is accessible at the surface, and the actual static water level. Those three facts decide which of these seven pumps you can actually install.
Winterizing a hand pump before the first freeze
Four steps, in order. First, install the pump head inside a shelter or pump house where the temperature stays above freezing. Second, run the well pipe below your local frost line rather than up to an exposed pump. Third, after each use, drain the pump by opening the spout and letting residual water out, or raise the handle fully on a self-draining model. Fourth, keep a spare leather cup, flapper or bowl and a spare cotter pin in a sealed bag somewhere dry.
Pumps with leather or cup seals will still dry out between uses even in summer, so soaking them in water before the next pumping session is normal maintenance rather than a fault.
What you are giving up versus a generator or solar pump
Buying a manual pump is buying redundancy, not a primary supply, and no roundup should pretend otherwise. A commonly cited practical figure for a fit adult is on the order of 100 to 200 gallons per day of sustained pumping, and far less for children, older family members, or anyone with a back problem. Household use without conservation runs well past that.
Against a generator, the hand pump wins on simplicity: no fuel, no oil changes, no starting motor that fails during a cold snap. It loses on output, and it loses badly if your electric pump is hard-wired rather than plug-in, because a generator cannot simply be connected to it. That hard-wiring frustration is the single most common complaint in off-grid water forums.
Against a solar pump, the comparison is closer. A solar pump runs unattended and quietly, which is a genuine advantage for a large property or livestock. A hand pump costs nothing to run, needs no inverter or charge controller, and works in any weather as long as you are willing to swing the handle.
The most common real-world answer is both: a solar pump for daily use and a manual pump on the well casing for when the panels are under snow or the controller fails.
Frequently Asked Questions
How deep of a well will a hand pump work?
A hand-operated suction pump can lift water from about 25 feet at most, and works comfortably under 20 feet of static water level. Deeper wells need a push-type cylinder pump sealed to the casing below the water, which pushes water up a drop pipe. Measure your static water level with a string and a sinker before buying, because that number, not your total well depth, sets the effort.
What are the disadvantages of using a manual water pump?
The main disadvantages are effort, output and convenience. A fit adult realistically pumps on the order of 100 to 200 gallons a day, well short of normal household use. Leather and cup seals dry out between uses and must be soaked or replaced, and many pumps must be drained before freezing. A hand pump also cannot be plumbed to a pressure tank without a specific setup.
Can I install a hand pump on an existing drilled well?
In most cases yes, without re-drilling. A 1-1/4 inch well pipe or swing pipe runs down the casing alongside the submersible cable, with the manual pump mounted at the surface. Close the electric control valve and open the manual one to switch between them. Confirm your casing diameter, surface accessibility and static water level with a well contractor first.
Does a hand pump freeze in winter?
A hand pump can freeze, and the water column in the pipe below it is usually the bigger risk. Mount the pump inside a pump house above freezing, run the well pipe below your local frost line, and drain the pump after each use. Some models are antifreeze equipped and self-draining by raising the handle to its extreme height, which removes the need to remember a drain step.
Do I need to prime a manual hand pump?
Usually yes, at least for pitcher and cistern style pumps with leather cups or rubber flappers. Pour a quart or two of water into the spout and work the handle until it primes. Seals that have dried out between uses need soaking in water first, and some pumps need this every single time they have sat unused. Sealed bearing deep well pumps generally do not need repeated priming.
The Right Manual Pump Depends on Your Well, Not the Brand
If you want the most owner history and a body built to last on a shallow well, the Simmons 1160 is the pick I would install on my own property. If you want cast iron thickness and garden-level flow at a lower cost, the VEVOR HC-1005 does the same job with a curved handle you will be glad of after twenty minutes of pumping. In a wet or coastal climate, the Locci stainless steel body is the one that needs no coating maintenance.
For livestock, irrigation and stock tanks, the SWP 300 pairs a stated 300 GPH max flow with a 3 inch cylinder and a body heavy enough not to move under load. For a freezing climate with no pump house, the antifreeze-equipped Boshart drains itself when you raise the handle, which removes the most common way hand pumps fail in winter.
One last check before you order, and it matters more than any badge: measure your static water level. If it is over 20 feet, none of these seven suction pumps is the right answer, and you need a push-type cylinder pump installed on the casing. Choose the best manual water pumps for off grid homes based on that one measurement, then pick the model that matches your climate and your effort tolerance. Measure first, buy second, and your hand pump will still be pumping water long after the grid comes back.
Leave a Reply
